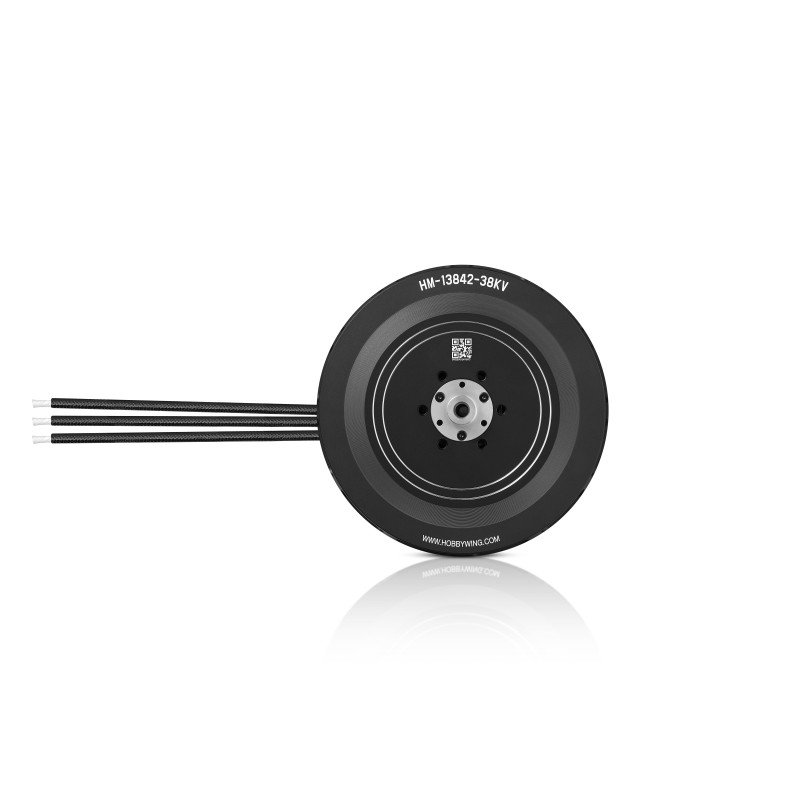

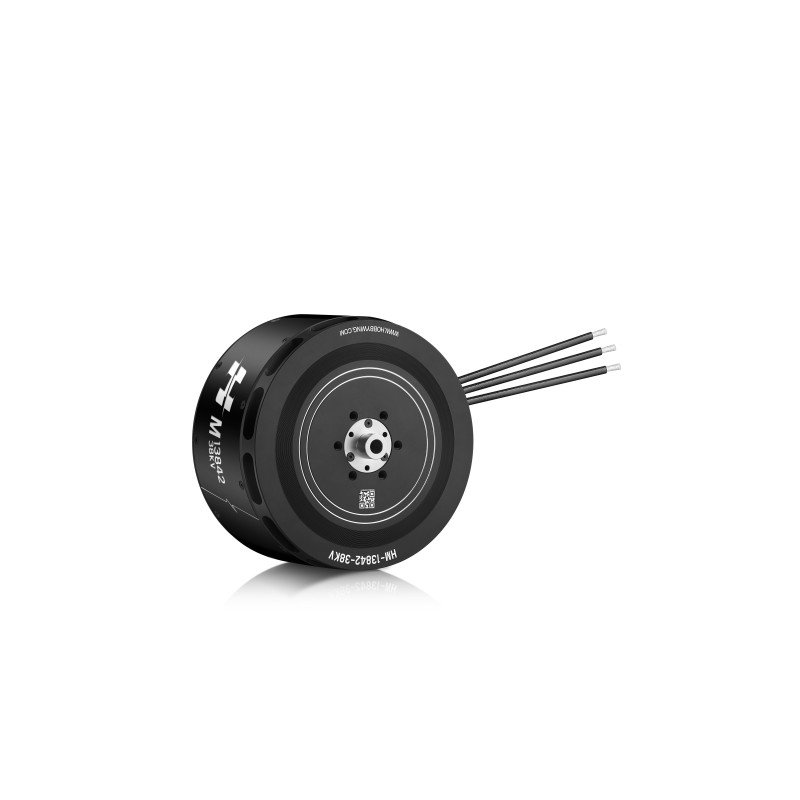

Hobbywing M13842 HP Industrial Heavy-Lift Drone Motor (38KV)

The Hobbywing M13842 HP is a heavy-duty industrial motor engineered for high-payload UAVs. Combining massive thrust capacity, a robust structural design, and premium-grade materials, it delivers reliable performance for logistics, rescue operations, agricultural spraying, and other demanding commercial drone applications.

Key Features

High-Payload Performance

• Maximum thrust: up to 108 kg (38KV version with 58×24″ prop at 92V, full throttle, lab tested)
• Recommended thrust per rotor: 35–40 kg
• Supports quadcopters with a maximum takeoff weight (MTOW) of 140–160 kg

Robust & Durable Construction

• Structural design tested for 1,000+ hours of operation
• High-strength 7075 aviation-grade aluminium alloy body
• Large-diameter stator (Ø137.6 mm) for stable torque output

Premium Materials

• High-performance iron core from low-loss silicon steel sheets
• Anti-rust and anti-corrosion treatment on all silicon steel components
• High-grade sintered NdFeB magnets rated up to 180°C
• Durable alloy shaft with precision high-quality bearings

Advanced Cooling System

• Rotor bracket with integrated centrifugal air-cooling system
• Efficient heat dissipation for reliable operation in harsh conditions
• Rated for ambient temperatures up to 50°C (reduced load recommended for prolonged use in high-heat environments)

Safety & Certification

• Certified by NSS48 for industrial reliability
• 1,000V AC high-voltage insulation test passed
• Built for long-term, safe operation in industrial UAV applications

*Load parameters listed in this product description follow the same order as the recommended propellers. Propellers are sold separately.

*Products intended for civilian, industrial and commercial UAV applications only.
