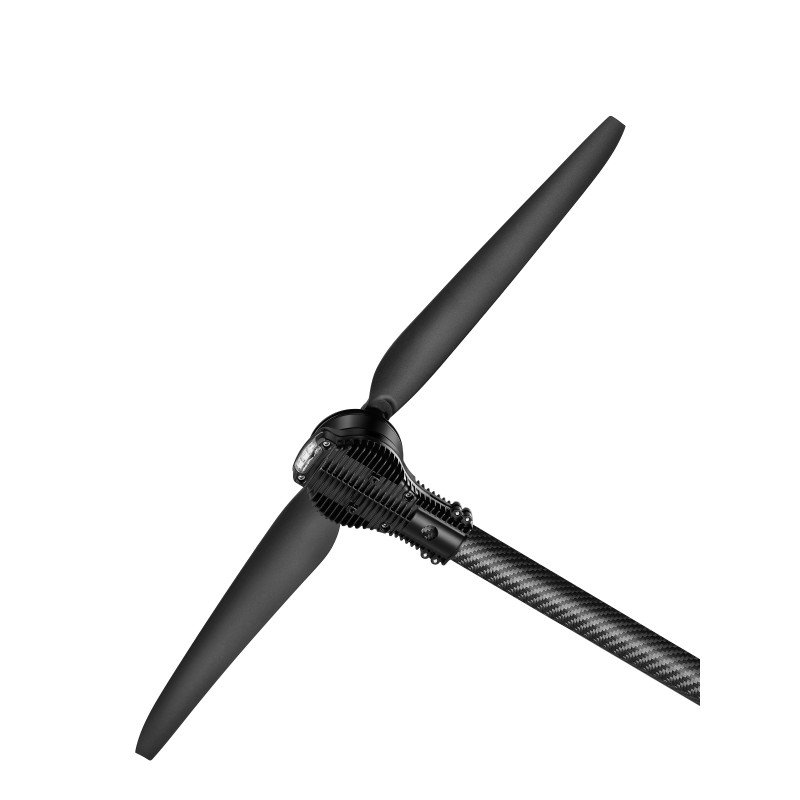

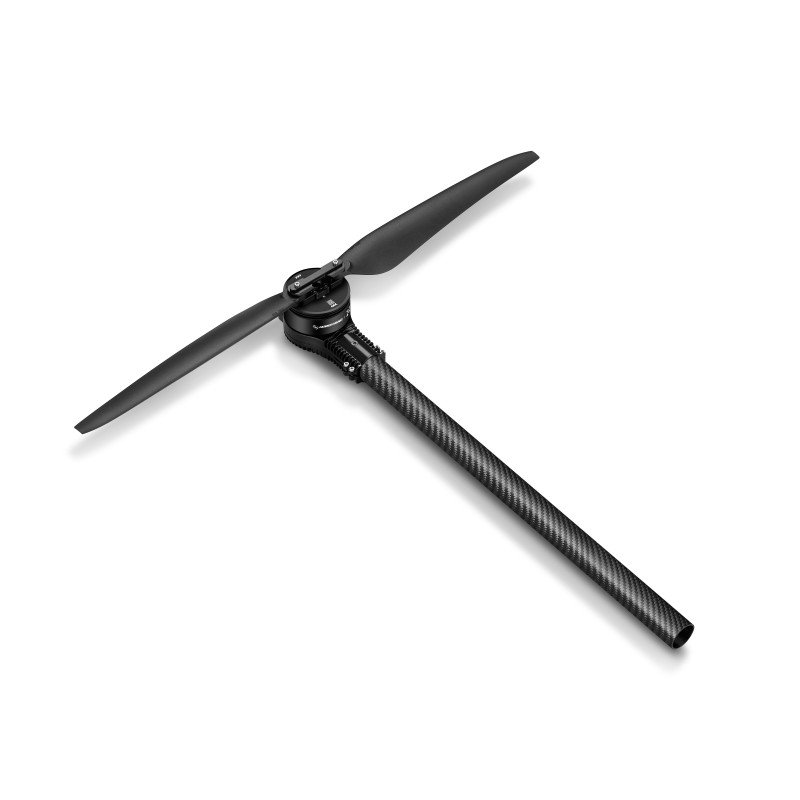

Hobbywing X6 Plus G2 Propulsion System

The X6 Plus G2 Propulsion System is purpose-built for agricultural plant protection drones, delivering a 6 kg rated load and up to 12.5 kg maximum thrust per axis. Designed to fit 30 mm carbon fiber tube arms, it is well-suited for small to medium-sized drone platforms. With an IPX6 waterproof rating and a FOC-based ESC optimised for PMSM motors, the X6 Plus G2 combines robust environmental protection with efficient heavy-load performance.

Key Features

Dual Throttle Modes

• Supports both digital and analog throttle inputs
• Seamless redundancy switching for uninterrupted operation

Comprehensive Safety Protections

• Power-on and self-check routines at startup
• Active voltage, current, and stall protection during flight

Advanced Communication Protocols

• HWCAN + DroneCAN (Cyphal / UAVCAN) support
• Compatible with most flight controllers
• Real-time telemetry for live monitoring and diagnostics

Smart Maintenance & Upgradability

• Built-in fault logging for post-flight analysis
• OTA firmware upgrades via flight controller

Agricultural Specifications

• Rated load: 6 kg per axis
• Maximum thrust: 12.5 kg per axis
• Arm compatibility: 30 mm carbon fiber tube
• Waterproof rating: IPX6
• ESC type: FOC (optimised for PMSM)

*Products intended for civilian, industrial and commercial UAV applications only.
