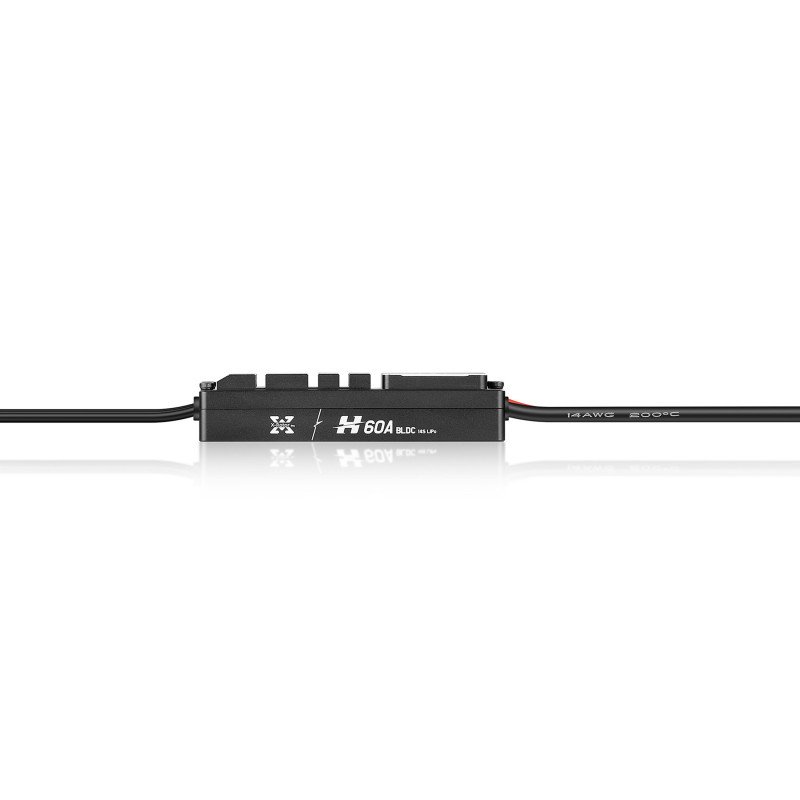

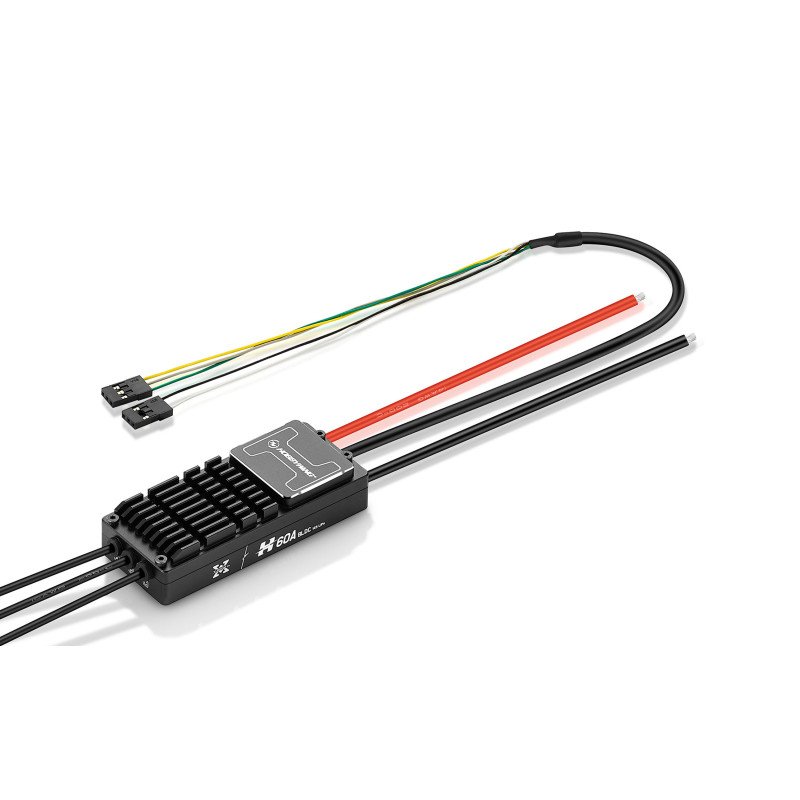

Hobbywing XRotor H60A 6S/14S Electronic Speed Controller

The Hobbywing XRotor H60A delivers reliable and compact electronic speed control for professional drone applications. Available in FOC (Field-Oriented Control) and BLDC variants, this ESC supports high-voltage 6S and 14S systems, providing up to 40 A continuous current and a 60 A peak current. With CAN 2.0 and PWM protocol support, black box fault logging, and superior thermal dissipation through large aluminium fins, the H60A is built for VTOL aircraft, drone docks, and industrial multirotors demanding efficiency, reliability, and strong anti-interference capability.

Key Features

High-Efficiency Cooling

• Large aluminium cooling fins for superior heat dissipation
• Silicone-sealed wire outlets for enhanced environmental protection
• High-conductivity materials ensure optimal performance in demanding conditions

CAN 2.0 Communication + PWM Redundancy

• Supports 1 Mbps data transfer rate
• Real-time telemetry and precise diagnostics
• Ultra-low error rate (<0.0003) — ideal for flight controller integration

Integrated Black Box

• Records 2 to 48 hours of operational data and error logs
• Millisecond-level precision for accurate fault analysis and post-flight evaluation

Shielded Signal Cable

• Enhanced EMI resistance for stable, interference-free signal transmission
• Reliable performance in complex electrical environments

Hobbywing H-Series Quality

• Start failure rate <5 PPM
• MTBF exceeding 2,000 hours
• Rigorous testing standards for high-reliability drone systems

Additional Specifications

• Continuous current: 40 A — Peak current: 60 A
• Voltage support: 6S and 14S LiPo
• Protection rating: IP55
• Lightweight design with compact form factor

*Products intended for civilian, industrial and commercial UAV applications only.
