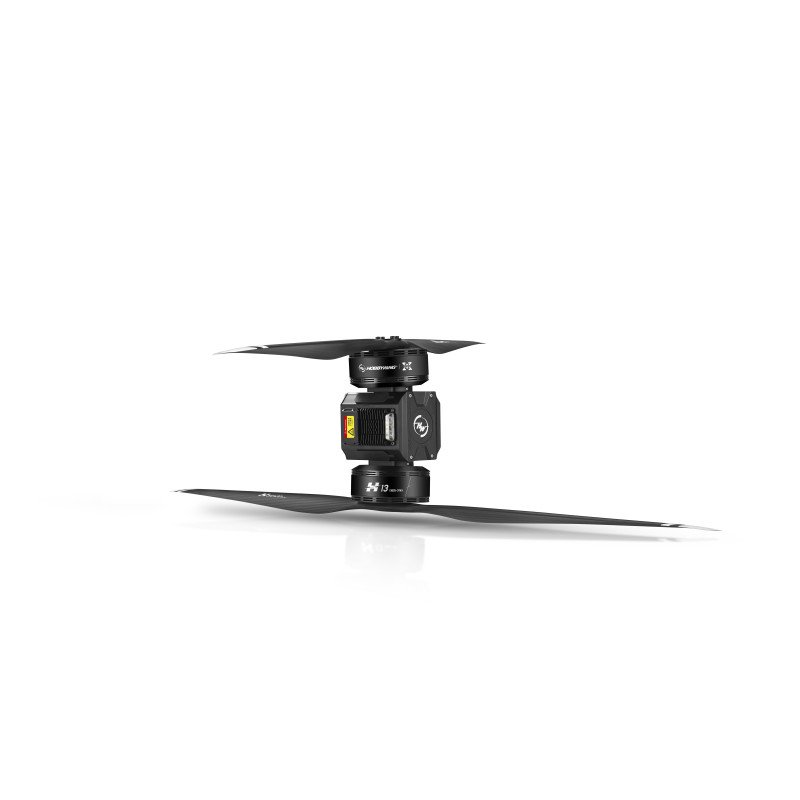

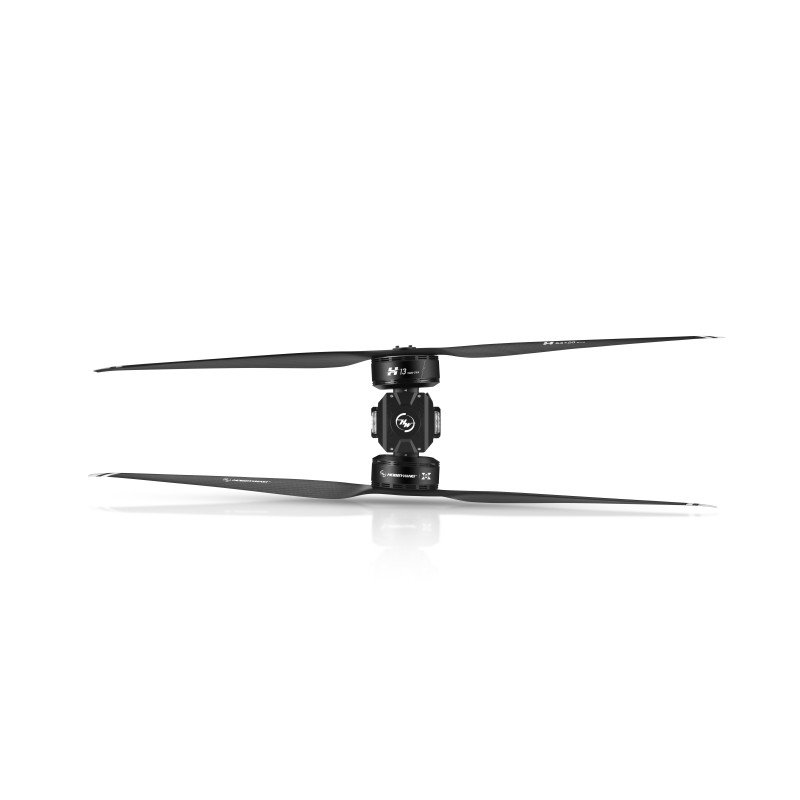

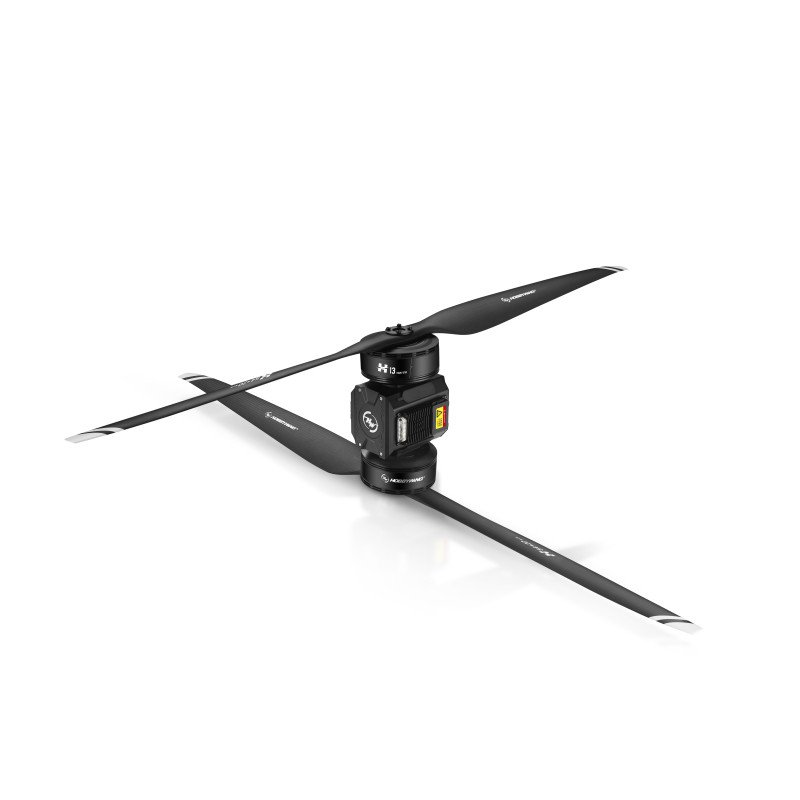

Hobbywing H13MD Coaxial Propulsion System

The Hobbywing H13MD Coaxial Propulsion System is engineered for industrial heavy-lift UAVs, delivering massive thrust, high stability, and outstanding reliability. Designed to operate in challenging environments such as plateaus and low temperatures, it is ideal for logistics, fire-fighting, emergency rescue, and material transport missions.

Key Features

Powerful Heavy-Lift Performance

• Rated thrust: 45 kg per axis
• Maximum thrust: 110+ kg per axis
• Supports payloads up to 100 kg
• Recommended takeoff weight: 180 kg (quad-axis, eight-propeller configuration)

High Voltage & Efficiency

• Operates at 100V with 28S LiPo batteries
• 15% current reduction compared to 24S systems
• Lower battery discharge multiplier improves battery safety and extends lifespan
• Smaller wire specification minimizes overall product weight

Automotive-Grade Durability

• Wide operating temperature: -40°C to +65°C
• Built with high-specification materials for long service life
• Resistant to extreme conditions for reliable performance

Robust & Reliable Design

• Modular optimization simplifies assembly and maintenance
• Internal support design with secure locking
• Tube clip holder with tilt-angle design for enhanced stability

Wide Industrial Applications

• Material lifting and logistics transportation
• Fire-fighting and emergency rescue
• Adapted for special environments including plateau and cold climates

*Propellers are sold separately

*Products intended for civilian, industrial and commercial UAV applications only.
