Hobbywing

X13-45KV-CW

€293.08

€194.18 pcs

Tax included EU: 3/5 business days | International: 4/6 business days

HOBBYWING XRotor X13 propulsion system is designed for agricultural drones, with a thrust of 25-27kg per rotor and a maximum thrust of 57kg/rotor. It is suitable for 50mm carbon fiber tube arms and is IPX6 waterproof, capable of withstanding rain, pesticides, salt spray, high temperatures, sand, dust, impacts, and mud. Featuring FOC vector control and algorithm optimization, the system combines digital and analog throttle for increased flight stability, plus safety functions such as voltage abnormality protection, over-current protection, stall protection, and others

€293.08

€194.18 pcs

Tax included EU: 3/5 business days | International: 4/6 business days
Quantity
Add to Wishlist
Add to Compare

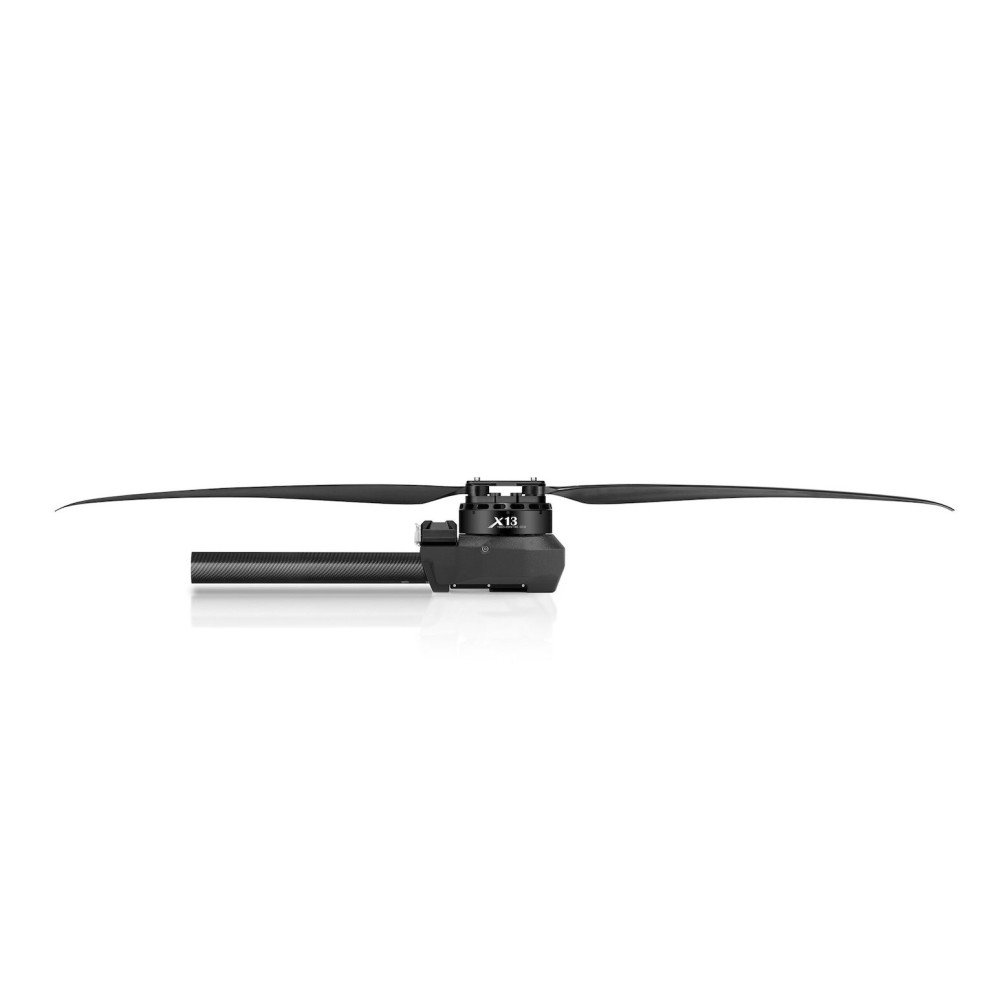

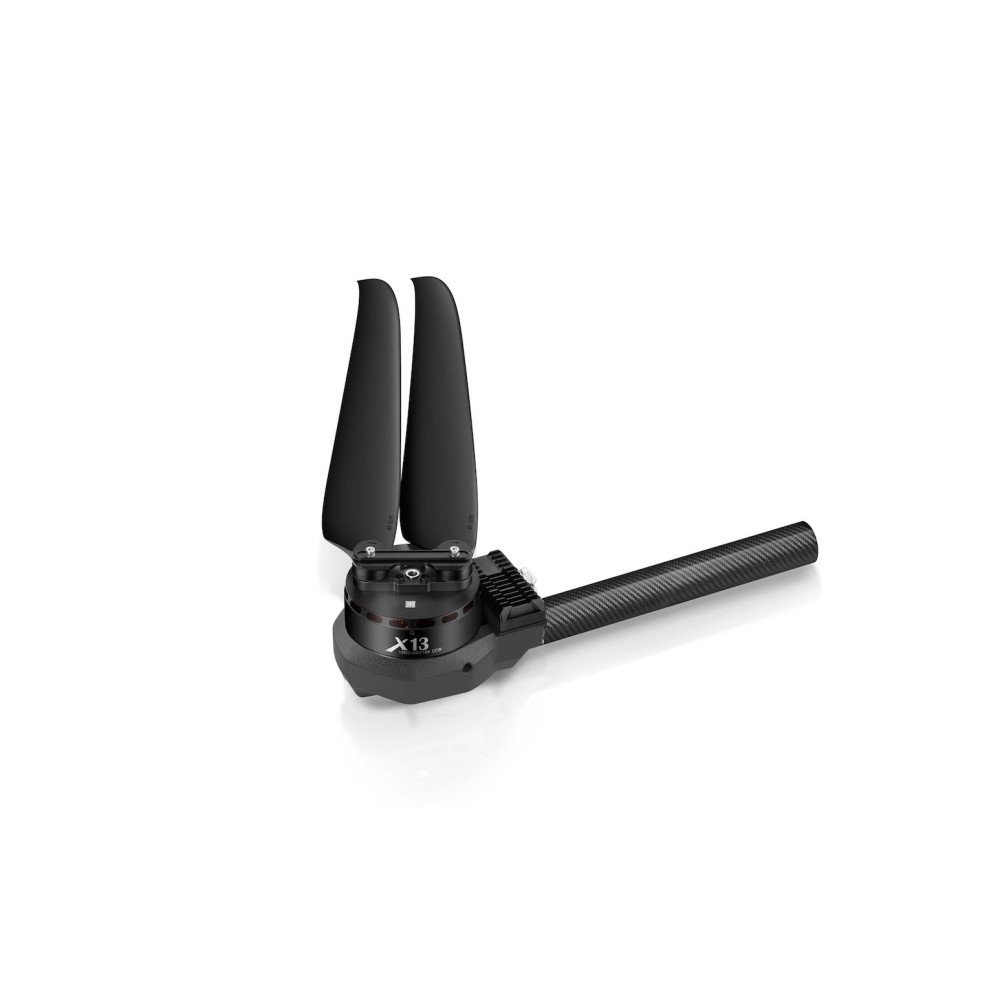

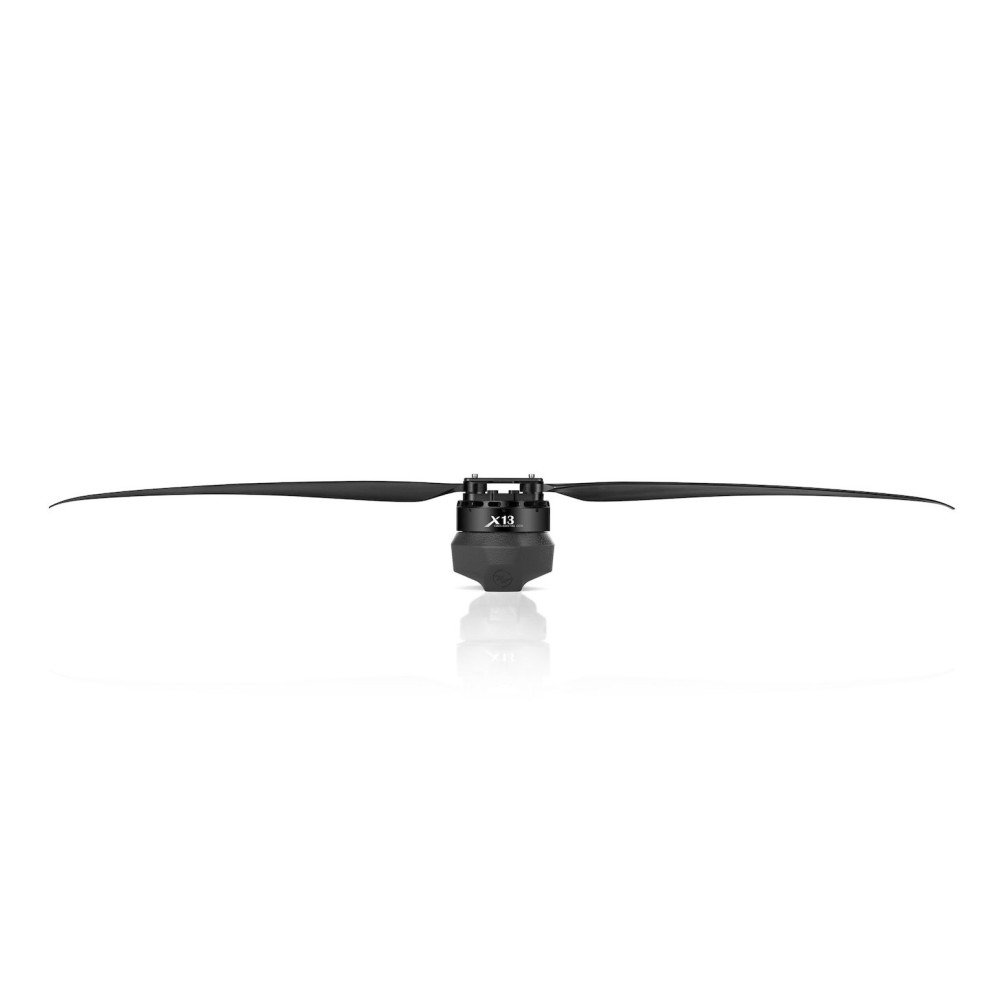

Hobbywing X13 Agricultural Drone Propulsion System

The X13 propulsion system is a high-performance solution designed specifically for heavy-duty agricultural UAVs, delivering exceptional thrust, fast response, and reliable energy efficiency. Built with durability and smart features in mind, it’s engineered to handle the demands of precision agricultural operations.

Key Features:

  • Strong, Efficient Propulsion

    • Maximum thrust: 57 kg per rotor (sea level)

    • Rated thrust: 27 kg per rotor

    • 200A ESC for stable and high-current performance

    • Uses a 56″ high-efficiency propeller for optimal lift and energy savings

    • Up to 8.0 g/W efficiency, supporting extended flight operations

    • ~7.2 minutes flight time with 18S 30000mAh battery (4-rotor, 108 kg takeoff)

  • Advanced Digital Control System

    • Full CAN bus communication with real-time data transmission between flight controller, ESC, and motor

    • Dual digital throttle control ensures redundancy and precise control

    • Remote OTA upgrades via flight controller for seamless firmware updates

  • Smart Safety Features

    • Intelligent Protection auto-restarts during faults (e.g., throttle loss, overcurrent)

    • Built-in fault log records issues for post-flight diagnostics

    • Hundreds of tests for temperature, waterproofing, lab aging, and real-world flight reliability

  • Robust & Easy-to-Maintain Design

    • Quick-disassembly layout: motor and ESC can be removed in under 1 minute

    • Industrial Appearance 2.0 design with clean aesthetics and innovative layout

    • Waterproof connectors ensure secure and simple installation in harsh environments

*Propellers are sold separately

Technical specifications

Arm Tube Diameter: 50mm
KV: 45
Weight with prop: 4087g
Weight: 3.47kg
Battery: 18S
Max thrust: 57kg/rotor
Max power: 11000W
Prop: 5620 (56*20″)
CAN Protocol: Yes
Max current: 190A
PWM range: 1050-1950us
Recomended Thrust: 25-27kg/rotor
What's include
All assembled :  -1x motor  -1x ESC  -1x mount
30550005303
1 Item

Data sheet

KV
45

You might also like

Meta title-BelkinLeatherFolio
  • On sale!
  • New
  • Current supply. Ordering availlable
Add to Compare
Hobbywing

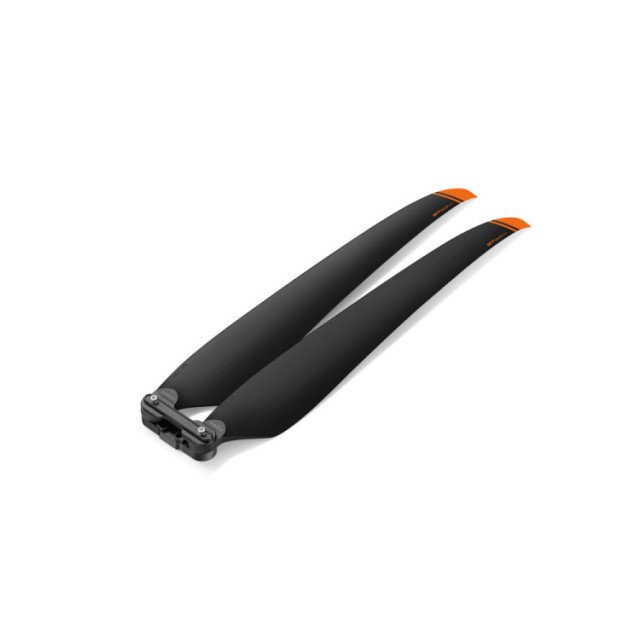

MFP 56x20 CCW
