The Hobbywing MFP 63x24 Folding Propeller is a high-performance UAV propeller specifically designed for heavy-lift multirotor drones, large industrial UAVs, and high-efficiency propulsion systems. Engineered to deliver massive thrust, excellent aerodynamic efficiency, and reliable flight stability, it is ideal for demanding applications such as agricultural UAVs, logistics drones, firefighting platforms, heavy cargo transport, mapping, inspection, and long-endurance industrial operations.
Built with 40% high-strength special carbon fiber reinforced nylon composite, the MFP 63x24 provides the perfect balance between rigidity, toughness, lightweight construction, and durability, ensuring stable and reliable operation even under heavy-load conditions.
Heavy-Lift & Efficient Performance
The MFP 63x24 is optimized to deliver powerful thrust and efficient aerodynamic performance for large UAV propulsion systems.
With a recommended thrust range of 13–54 kg and a maximum thrust of 73 kg, this propeller is designed for professional drones requiring strong lift, stable operation, and efficient power consumption under demanding load conditions.
Designed for heavy-duty UAV applications, the MFP 63x24 provides:
-
Massive lift capability
-
Excellent propulsion efficiency
-
Stable flight performance
-
Reliable thrust output
-
Optimized performance for heavy-load UAVs
Aerodynamic Winglet Design
The MFP 63x24 uses an aerodynamic airfoil combined with a tip winglet design, helping reduce air resistance and propeller noise during operation.
Compared with common propeller designs, this optimized structure can improve efficiency by 3–5% and reduce noise by up to 5 dB, making it ideal for large UAV platforms where both performance and smoother acoustic behavior are important.
This design provides:
-
Reduced aerodynamic drag
-
Improved flight efficiency
-
Lower propeller noise
-
Better lift-to-power performance
-
Improved stability during flight
Lightweight Folding Design
The MFP 63x24 features a folding propeller structure, allowing easier transport, storage, and integration into large professional UAV platforms.
Its folding design reduces the overall transport volume while maintaining the rigidity and strength required for heavy-lift flight operations.
Key advantages include:
Strong & Durable Materials
The propeller blades are made from carbon fiber reinforced nylon, offering excellent strength, toughness, water resistance, corrosion resistance, and aging resistance. The propeller adapter is made from aluminium alloy, ensuring secure installation and reliable mechanical strength during heavy-load operation.
This material combination offers:
The MFP 63x24 is designed to operate reliably in harsh environments such as rain, salt fog, high temperatures, and sandstorms.
Excellent Balance & Stability
Each MFP 63x24 propeller undergoes weight balancing tests to ensure consistent performance across all propellers and improve flight stability.
This provides:
Optimized for Hobbywing Heavy-Lift Propulsion Systems
The MFP 63x24 is deeply tuned and matched with Hobbywing heavy-lift propulsion systems, ensuring stable torque output and efficient performance in complex airflow conditions.
It is recommended for the Hobbywing X15 propulsion system / 15623-45KV and 15623-60KV motors, making it ideal for large UAV platforms requiring high thrust and reliable heavy-load performance.
Recommended operating range:
Technical Specifications

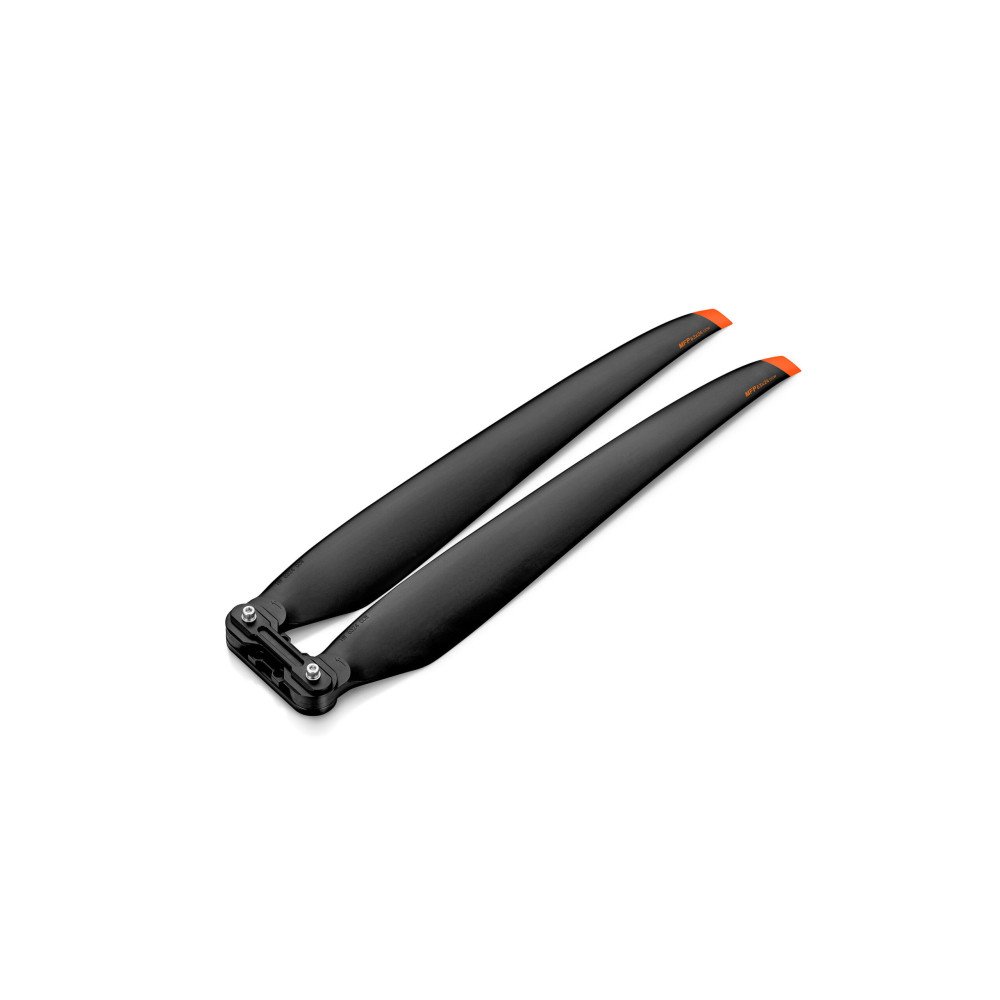

Product: Hobbywing MFP 63x24 Folding Propeller
-
Propeller Size: 63 × 24 inch
-
Type: Carbon-Nylon Folding Propeller
-
Single Blade Weight: 400 g
-
Total Weight: 1190 g including propeller adapter
-
Blade Material: Carbon fiber reinforced nylon
-
Propeller Adapter Material: Aluminium alloy
-
Recommended RPM Range: 1000–1900 RPM
-
Maximum RPM: 2350 RPM
-
Recommended Thrust: 13–54 kg
-
Maximum Thrust: 73 kg
-
Operating Temperature: -20°C to +50°C
-
Storage Temperature: -10°C to +40°C
-
Storage Humidity: ≤85%
-
Recommended Hobbywing Motor/System: X15 / 15623-45KV / 15623-60KV
-
Recommended Use: Heavy-lift multirotor UAVs, agricultural drones, logistics UAVs and industrial propulsion systems
Motor and ESC are sold separately.
