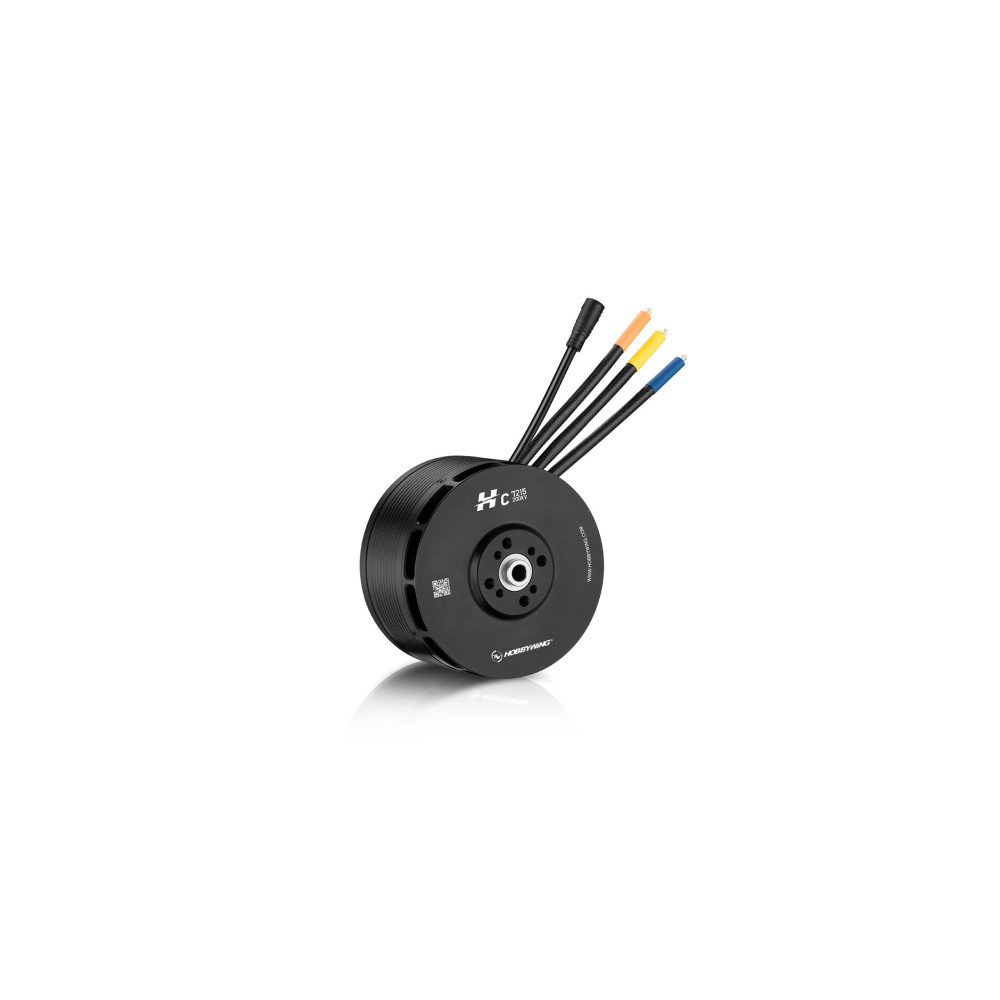

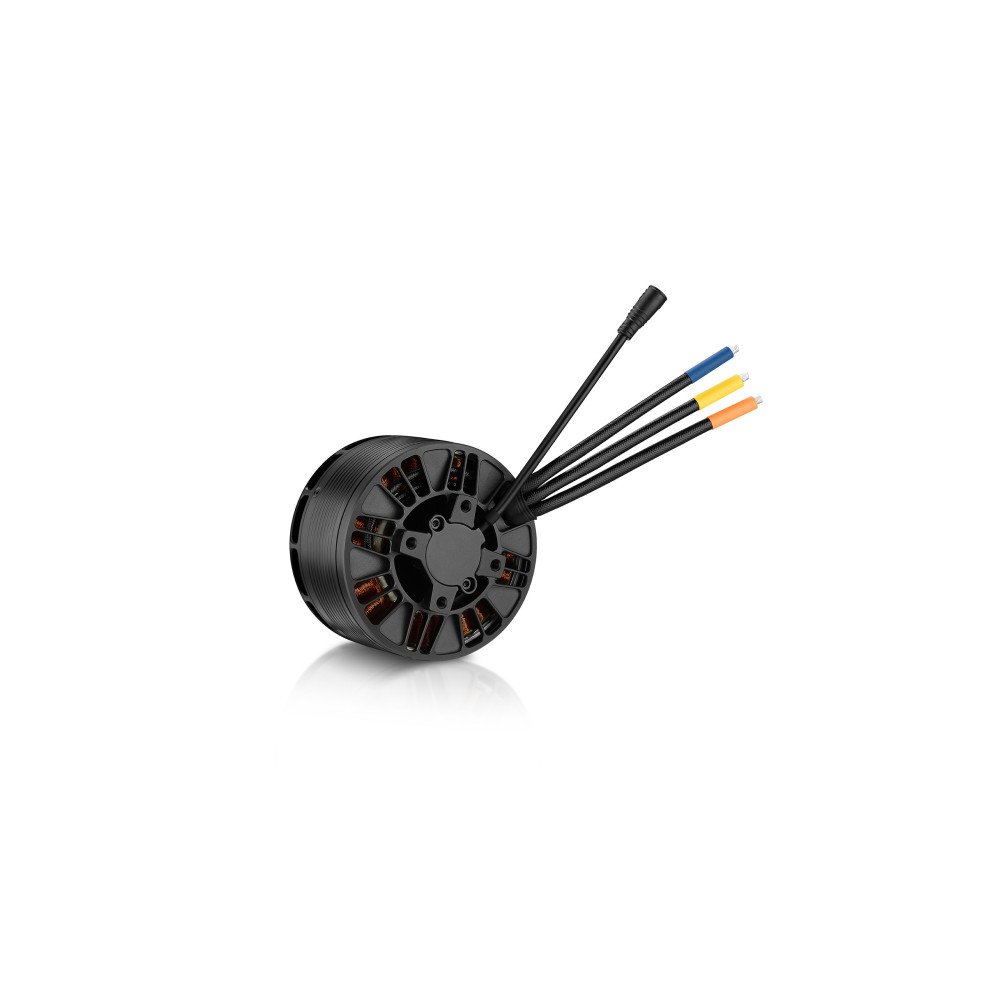

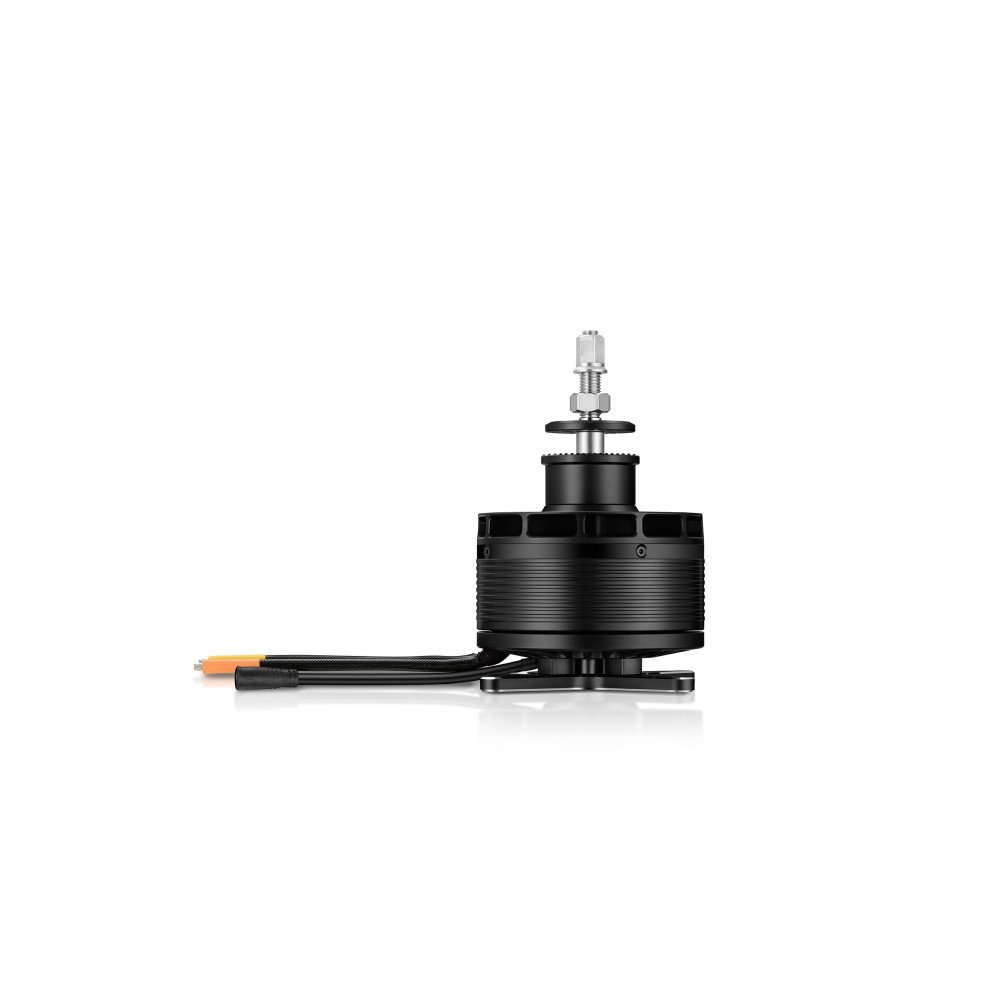

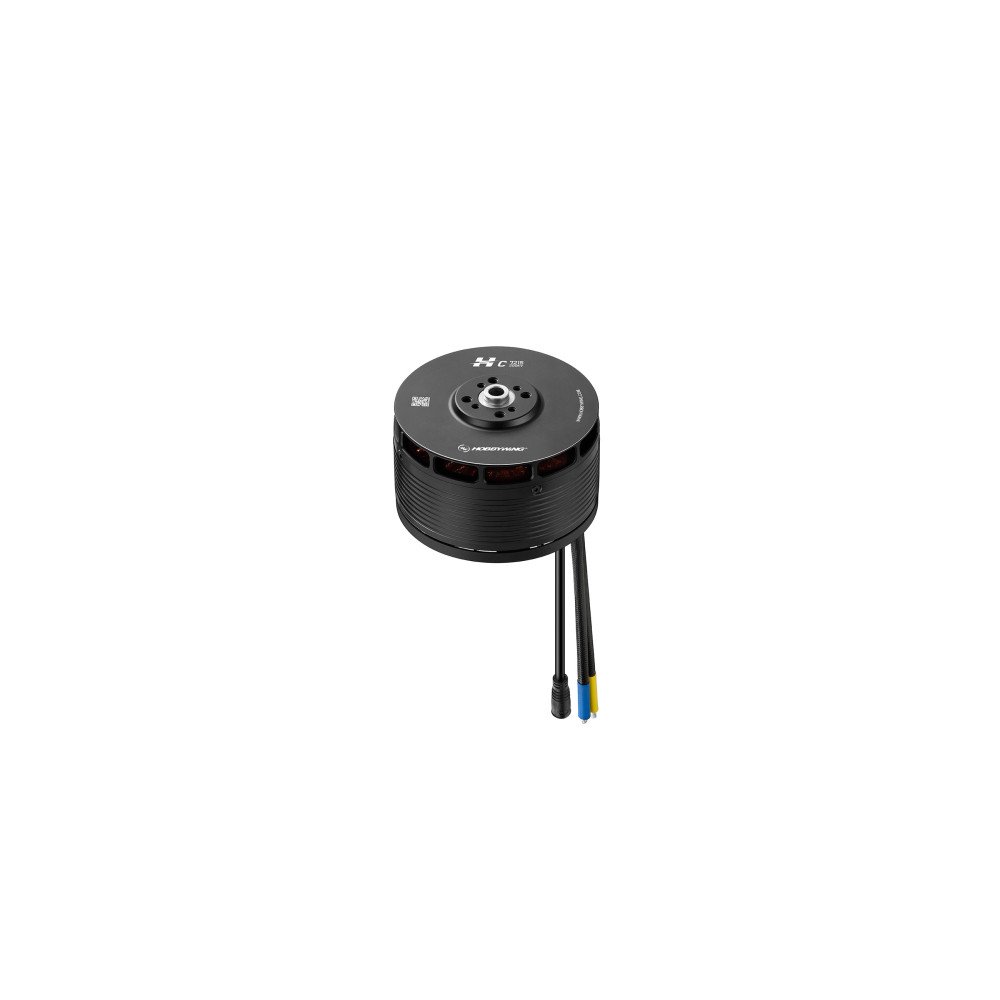

C7215 200KV

The Hobbywing C 7215 200KV Fixed-Wing UAV Motor is a high-power electric propulsion motor designed for professional fixed-wing UAVs, VTOL aircraft, industrial drones, and long-endurance UAV platforms. It delivers strong thrust, efficient cooling, and reliable performance for demanding aerial operations.

Built as an electric alternative to traditional 30CC combustion engines, the HT 7215 200KV is engineered for UAV manufacturers and integrators looking for a clean, efficient, and durable cruise motor solution.

Strong & Efficient Propulsion

The HT 7215 200KV motor is optimized for electric fixed-wing UAV cruise operations.

Paired with 19″, 20″, or 21″ propellers, the motor delivers up to 16 kg of maximum thrust at 48V, with a rated thrust of 5.5 kg using a 21×10 propeller.

Designed for 12S LiPo battery systems, it provides stable power output, fast throttle response, and efficient propulsion performance for professional UAV platforms.

Efficient Cooling Design

The Hobbywing HT 7215 features an optimized rotor bracket with a rectangular outlet design, reducing airflow resistance and improving heat exhaust efficiency.

This cooling structure helps improve motor heat dissipation, supporting reliable performance during long flights, high-load operations, and demanding UAV missions.

Reliable Design for Harsh Environments

The HT 7215 200KV UAV motor is built for professional outdoor drone operations, with an IPX5 protection leveland a steel mesh structure designed to prevent particles of 1 mm or larger from entering the motor.

This makes it suitable for harsh operating environments, including dust, rain, field operations, mapping missions, inspection flights, surveillance UAVs, and VTOL applications.

IPC-Compatible Propeller Positioning

When used with a compatible Hobbywing IPC ESC, such as the XRotor Pro H130A 14S BLDC IPC, the HT 7215 200KV can support customizable propeller positioning.

This helps reduce ground contact risks, improves equipment protection, and makes the motor well suited for VTOL aircraft, fixed-wing UAVs, autonomous drones, and drone dock applications.

Robust & Easy-To-Integrate Construction

The Hobbywing HT 7215 200KV motor is compatible with both folding propellers and non-folding propellers.

Its detachable propeller adapter includes anti-slip, anti-rotation, and interlocking features to improve installation safety and reduce the risk of propeller loosening.

Premium materials such as waterproof bearings, high-temperature enameled wires, curved magnetic tiles, titanium alloy nuts, and a triple-bearing system provide durability, stability, and long service life for professional UAV use.

Technical Specifications

Product: Hobbywing HT 7215 200KV Fixed-Wing UAV Motor
Official Hobbywing Reference: C7215-200KV
KV: 200KV
Battery: 12S LiPo
Recommended Voltage: 48V
Maximum Current: 111A
Rated Output Power: 770W
Rated Thrust: 5.5 kg at 48V with 21×10 propeller
Maximum Thrust: 16 kg at 48V with 21×10 propeller
Recommended Propellers: 19×10 / 20×10 / 21×10
Recommended ESC: XRotor Pro H130A 14S BLDC IPC
Protection Level: IPX5

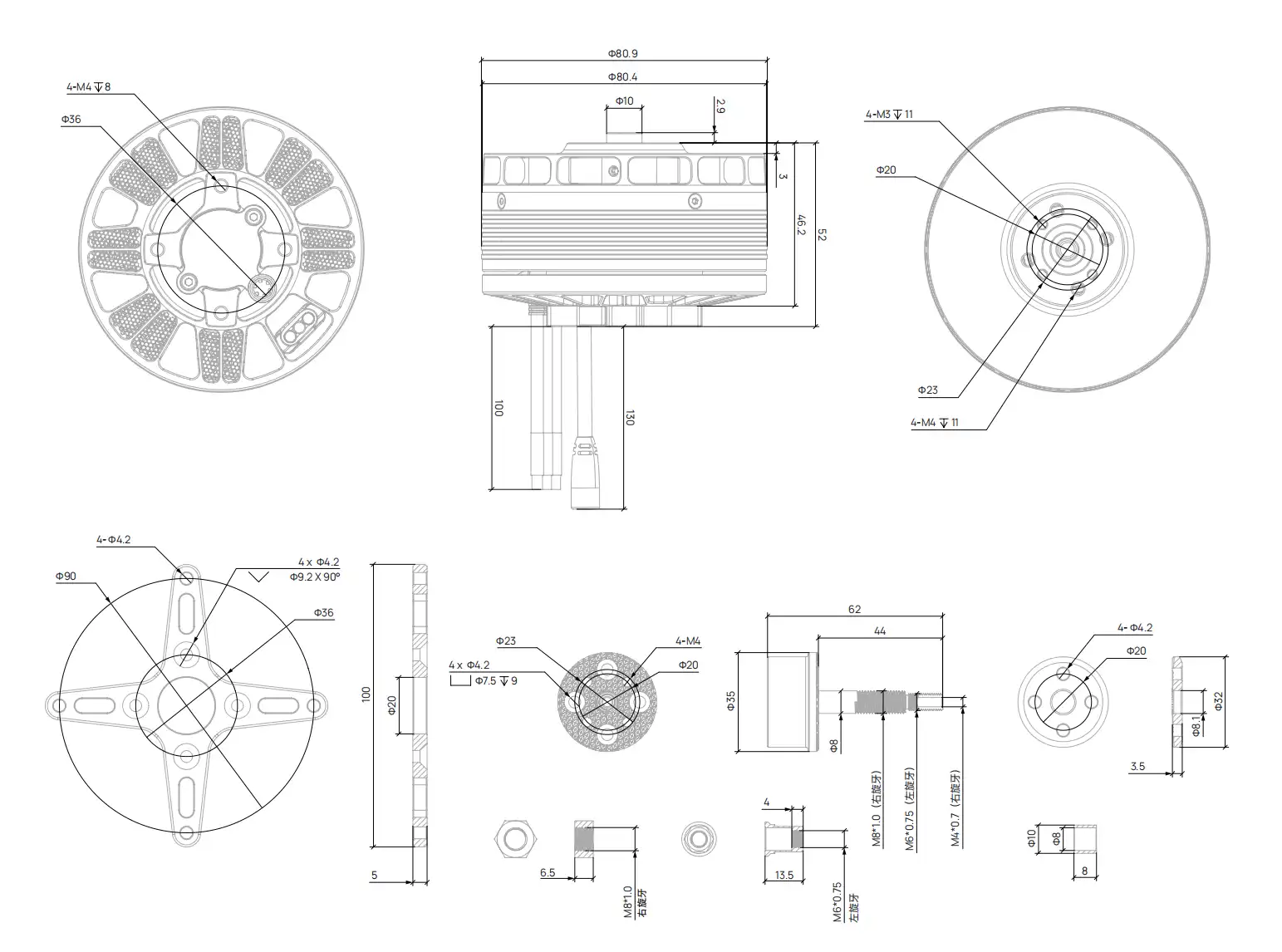

Motor Size: Ø80.9 × H52 mm
Stator Size: 72 × 15 mm
Slot / Pole: 24N22P
Resistance: 24.6 mΩ
No-Load Current: 4.55A
Weight: 555 g with wires
Recommended Single-Motor Takeoff Weight: 25–30 kg
Recommended Use: Fixed-wing UAVs, VTOL aircraft, long-range drones, industrial UAVs and professional electric propulsion systems

ESC and propellers are sold separately.
