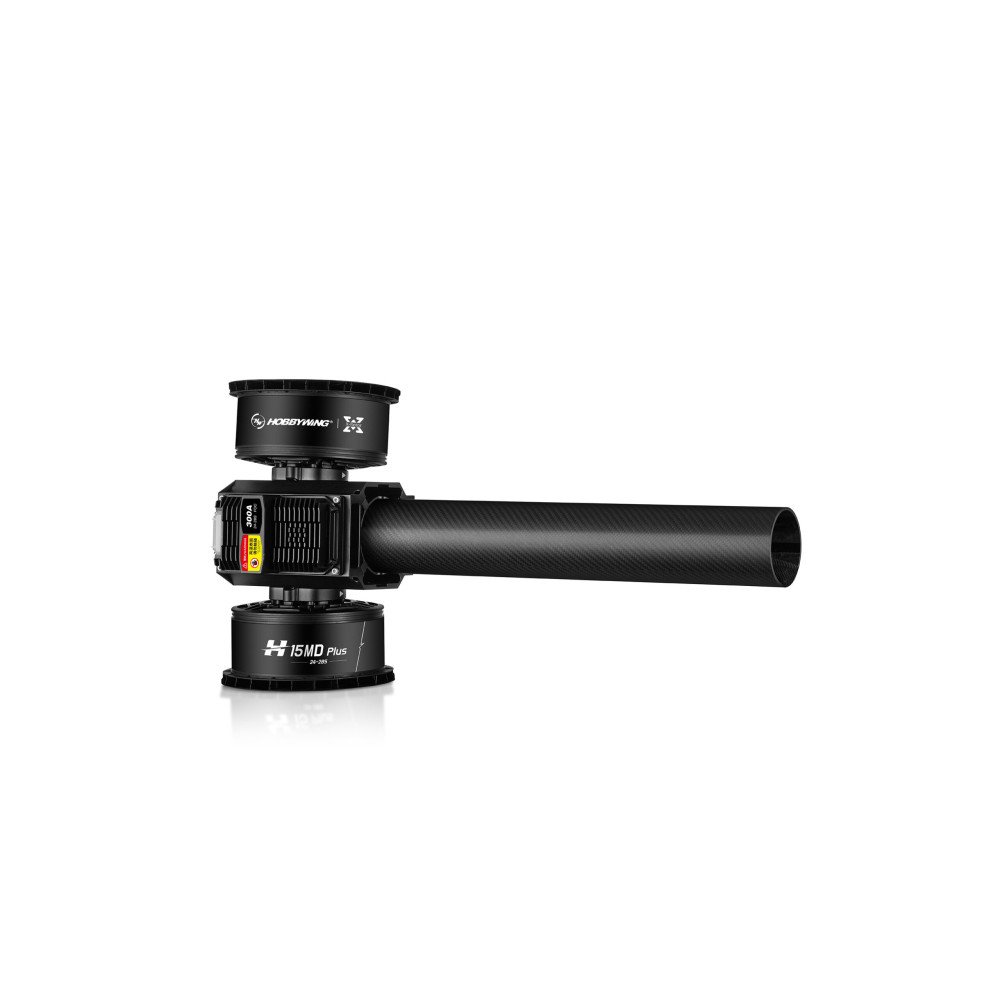

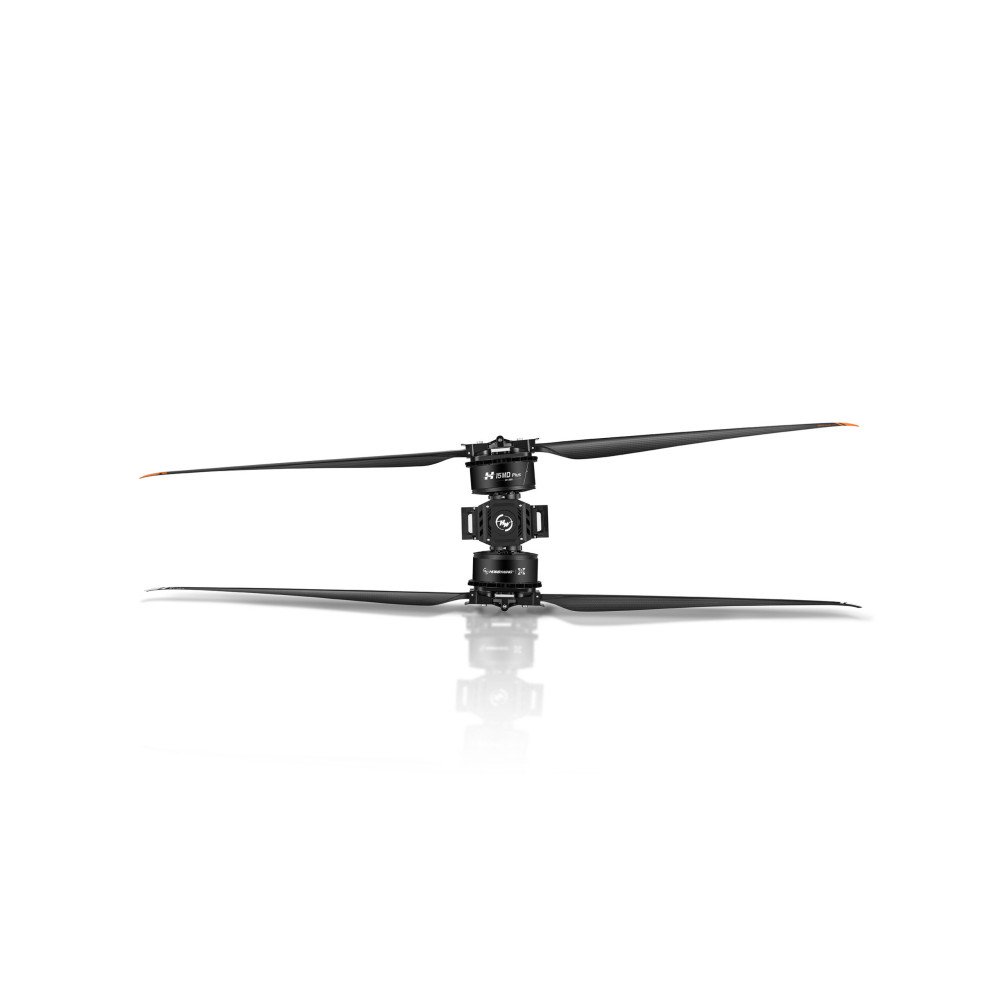

Hobbywing H15MD Plus Industry Drone Propulsion System
The Hobbywing H15MD Plus is the upgraded flagship of the H15 coaxial propulsion series, purpose-built for ultra-heavy-lift industrial UAVs. Delivering a rated thrust of 80 kg per axis, it is designed for 320 kg-class drones operating in the most demanding logistics, lifting, and rescue environments.
Key Features
Class-Leading Thrust Performance
- Rated thrust: 80 kg per axis
- Maximum thrust: 195 kg per axis
- Compatible with 24S–28S LiPo batteries
- Total system weight: 14,550 ± 200 g (without propellers)
Optimized Propeller Compatibility
- Compatible with MSC 73×21 and MFC 73×23 carbon fiber propellers
- Large-diameter propellers tuned for maximum efficiency at high loads
Shared Advanced H15MD Platform Features
- Self-developed FOC ESC with HOBBYWING proprietary algorithms
- Intelligent Propeller Control (IPC), dual-throttle redundancy, CAN communication
- Built-in 48-hour black box log storage
- Motor temperature monitoring as standard
- Full protection suite: overcurrent, stall, undervoltage, overvoltage, temperature anomaly
Heavy-Duty Industrial Design
- Arm tube outer diameter: 80 mm, 5 mm wall thickness
- 3° tilt angle motor base for improved flight control authority
- Operating temperature: -40°C to +60°C — IPX6 waterproof
Wide Industrial Applications
- Ultra-heavy material lifting and mountain logistics transport
- Emergency firefighting and large-scale rescue operations
- Suitable for high-altitude and extreme terrain environments
Propellers are sold separately
