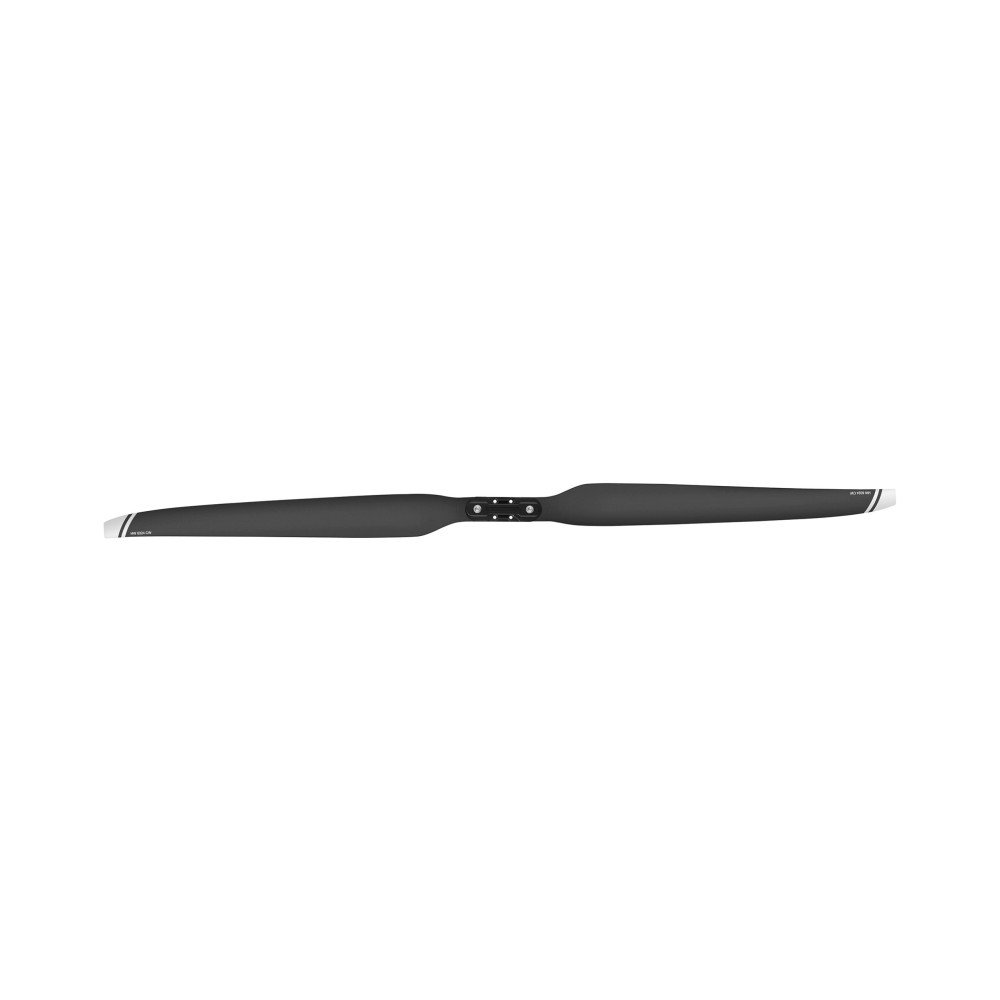

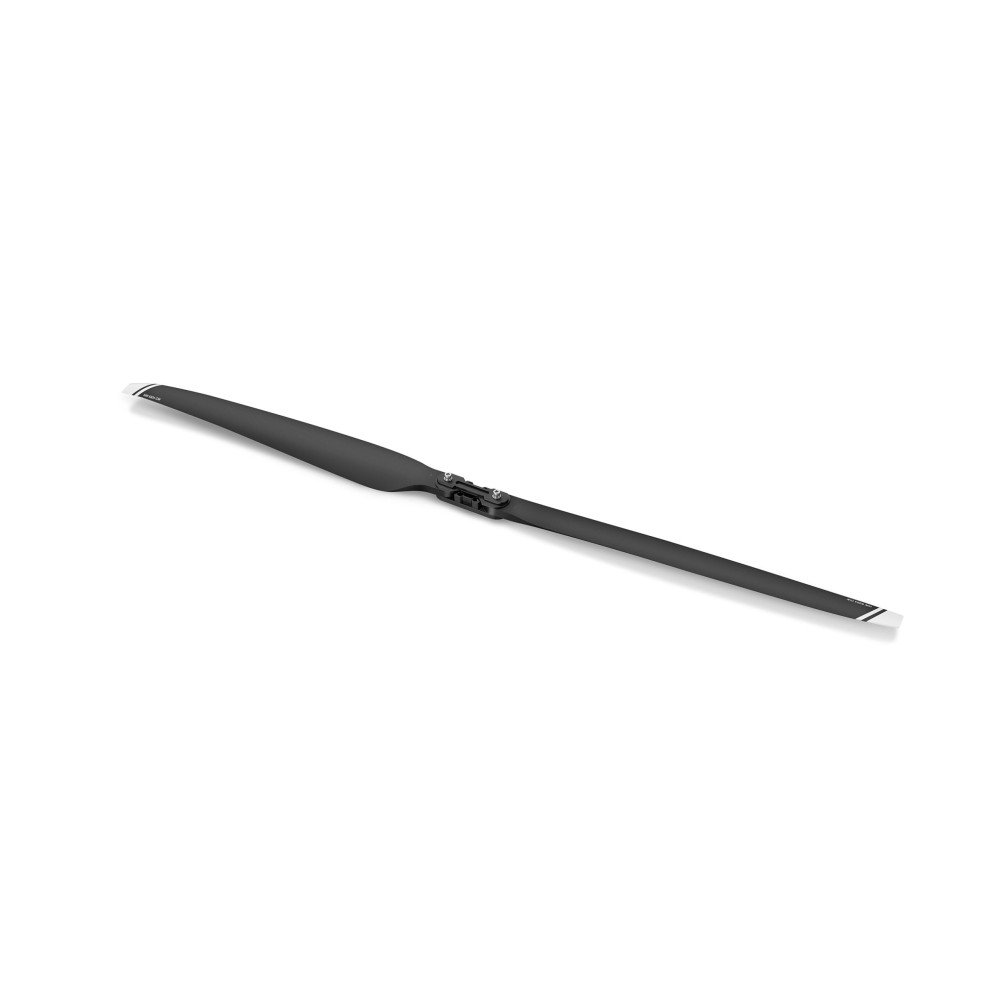

The Hobbywing MFC 63x24 Carbon Fiber Folding Propeller is a large-size professional UAV propeller designed for heavy-lift drones, industrial multirotors, cargo UAVs, agricultural drones, and high-power aerial platforms.
Engineered for demanding professional applications, the MFC 63x24 combines high-strength carbon fiber construction, efficient aerodynamic performance, and reliable CW / CCW rotation compatibility to deliver stable thrust and long-lasting performance in harsh operating environments.
High-Performance Heavy-Lift Propeller
The MFC 63x24 propeller is designed for large drone propulsion systems requiring high thrust, efficient power transfer, and excellent flight stability.
With a recommended thrust range of 17–65 kg and a maximum thrust of up to 80 kg, this propeller is ideal for heavy-duty UAV platforms, transport drones, industrial inspection drones, coaxial multirotor systems, and professional long-endurance applications.
Its 63-inch diameter and 24-inch pitch provide strong lifting capability while maintaining efficient propulsion performance for large UAV configurations.
CW & CCW Versions Available
The Hobbywing MFC 63x24 is available in both CW and CCW rotation versions, allowing correct installation on multirotor drones, coaxial UAV platforms, and heavy-lift propulsion systems.
Using the correct clockwise CW propeller and counter-clockwise CCW propeller is essential for stable flight control, balanced thrust, and safe operation.
The propeller design also supports professional UAV configurations where precise rotation direction and matched propeller pairing are critical.
Premium Carbon Fiber Construction
Built from carbon fiber and epoxy resin, the MFC 63x24 folding propeller offers a strong balance between lightweight construction, rigidity, and durability.
This premium material structure helps reduce deformation during high-load operation while maintaining stable propulsion output at high RPM.
The matte frosted surface finish gives the propeller a professional appearance and supports long-term use in demanding environments.
Aerodynamic Efficiency & Low Noise
The Hobbywing MFC 63x24 features an optimized aerodynamic design created to improve propeller efficiency, reduce air resistance, and support smooth flight performance.
Its airfoil design helps improve thrust generation while contributing to low vibration, stable flight behavior, and reduced operating noise compared with standard large propellers.
This makes the MFC 63x24 well suited for professional UAV missions, heavy-lift operations, industrial transport, field operations, and high-efficiency drone platforms.
Reliable Performance in Harsh Environments
The MFC 63x24 UAV propeller is designed for professional outdoor use and can operate in temperatures from -40°C to 65°C.
Its carbon fiber construction provides strong resistance to corrosion, temperature variation, wind, and demanding field conditions.
This makes it suitable for mountain operations, emergency rescue drones, cargo UAVs, agricultural heavy-lift drones, and industrial aerial work.

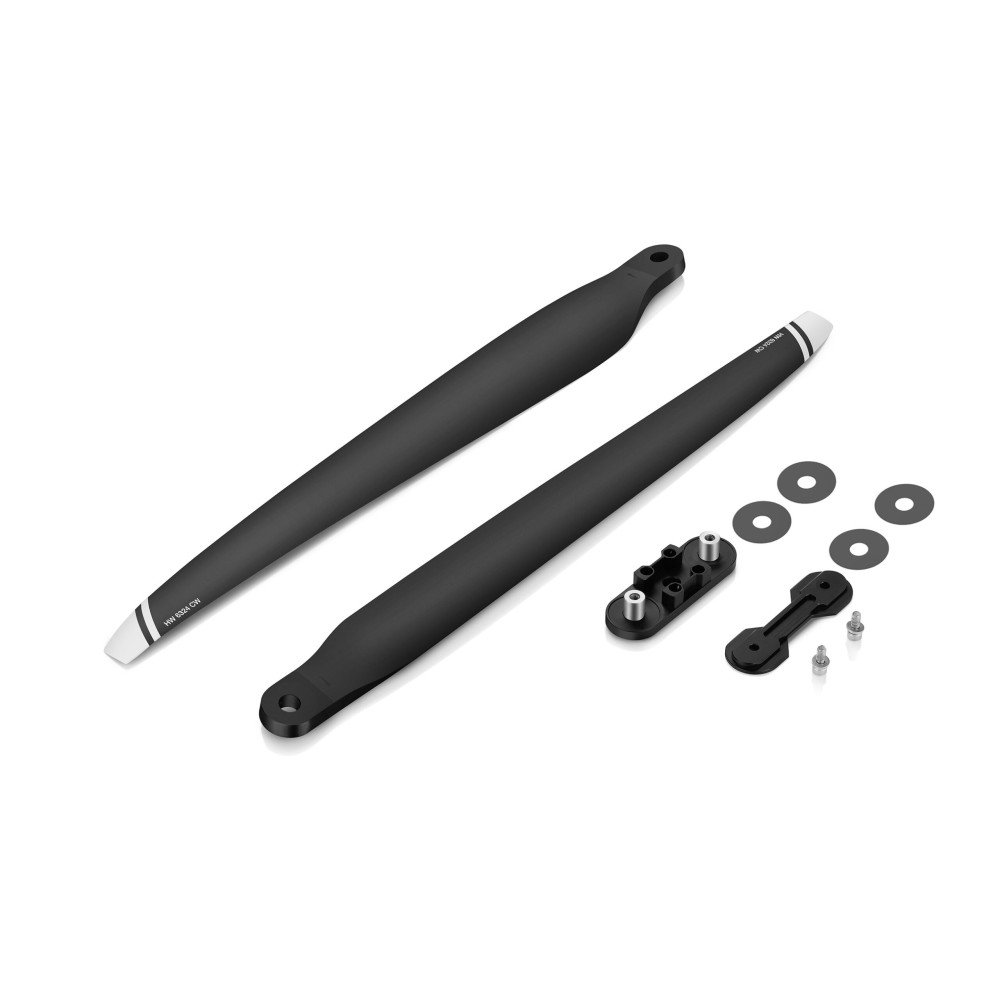

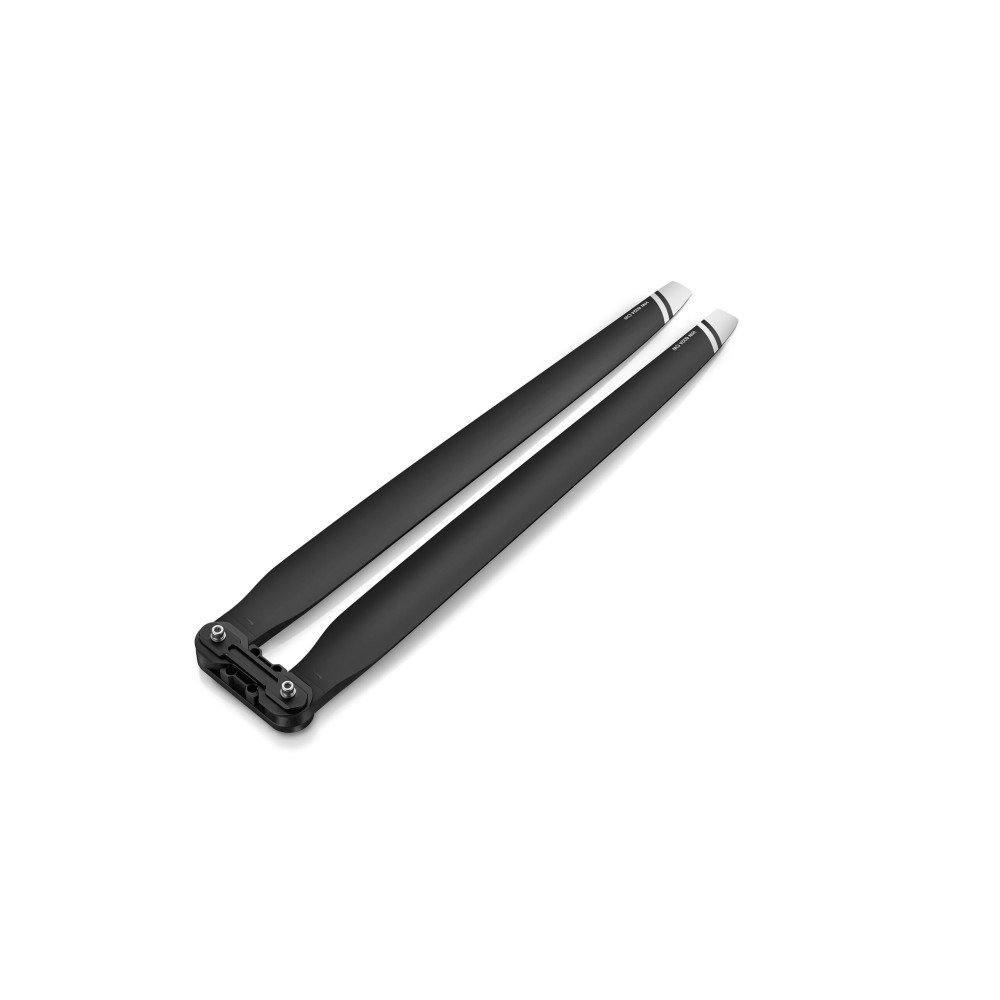

Folding Design for Professional UAV Integration
The MFC 63x24 uses a folding propeller design, making it easier to integrate into large drone platforms where compact storage, transport, and simplified installation are important.
Its aluminum alloy propeller adapter provides a strong and reliable mounting solution for professional UAV propulsion systems.
The folding construction is especially useful for large multirotor drones, coaxial systems, and heavy-lift UAV frameswhere space efficiency and robust installation are required.
Optimized for Hobbywing X15 Systems
The Hobbywing MFC 63x24 Carbon Fiber Folding Propeller is recommended for use with the Hobbywing X15-15623 propulsion system.
This combination is designed to deliver efficient thrust output, stable torque response, and reliable propulsion performance for professional heavy-lift drone applications.
Technical Specifications
Product: Hobbywing MFC 63x24 Carbon Fiber Folding Propeller
Propeller Size: 63×24 inch
Rotation Versions: CW and CCW
Propeller Type: Folding propeller
Main Material: Carbon fiber + epoxy resin
Surface Technology: Matte frosted
Propeller Adapter Material: Aluminum alloy
Total Weight: 990 g including propeller adapter
Recommended Speed Range: 1200–2200 RPM
Maximum RPM: 2460 RPM
Recommended Thrust: 17–65 kg
Maximum Thrust: 80 kg
Operating Temperature: -40°C to 65°C
Storage Temperature: -10°C to 35°C
Storage Humidity: ≤85%
Recommended Motor: Hobbywing X15-15623
Recommended Use: Heavy-lift UAVs, industrial drones, cargo drones, agricultural drones, coaxial multirotor platforms and professional UAV propulsion systems
Important: The CW and CCW propellers must be installed according to the correct motor rotation direction. For safe and balanced operation, always use matched propeller pairs and follow the manufacturer’s installation requirements.
