HOBBYWING

MFC 63x24-CCW

€134.55
Tax included EU: 3/5 business days | International: 4/6 business days
Flagship heavy-lift folding propeller developed for X15 propulsion systems. Designed for maximum payload capability and operational efficiency. Suitable for large industrial UAV platforms. Sold as a complete propeller set.
€134.55
Tax included EU: 3/5 business days | International: 4/6 business days
Quantity
Add to Wishlist
Add to Compare

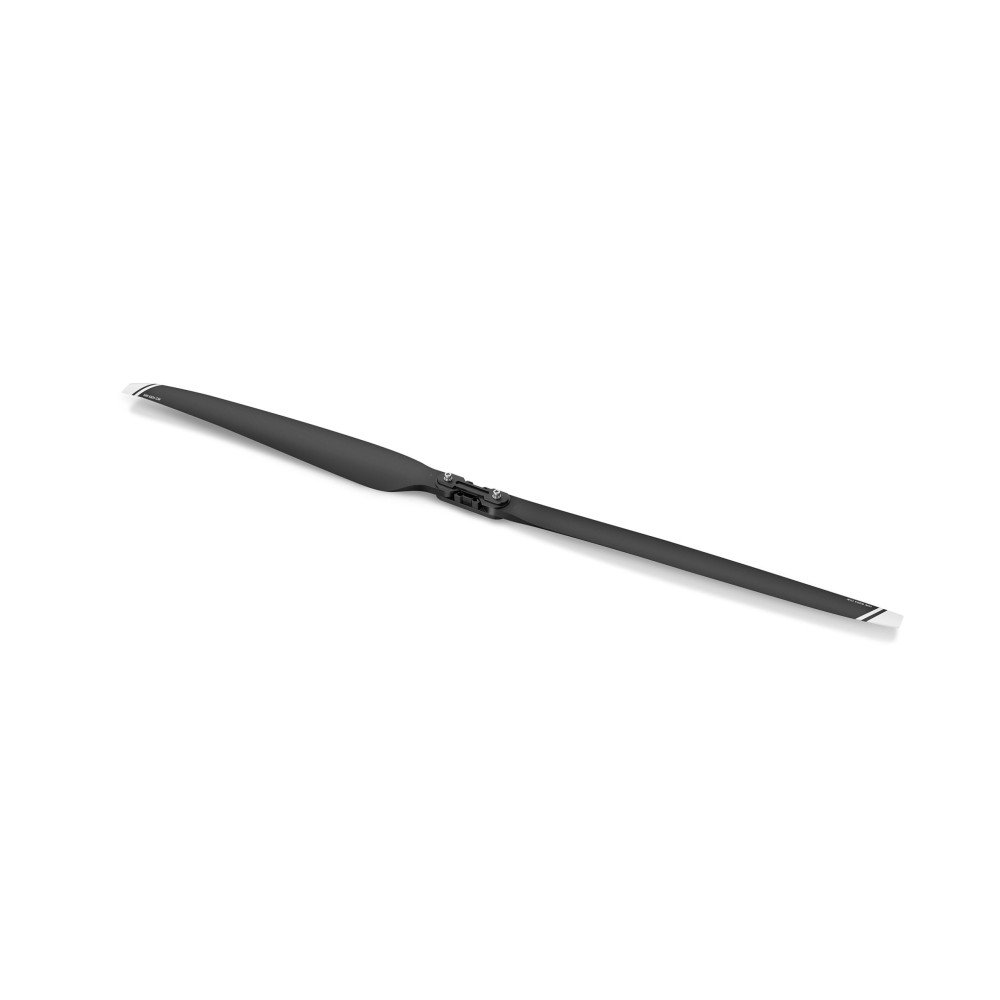

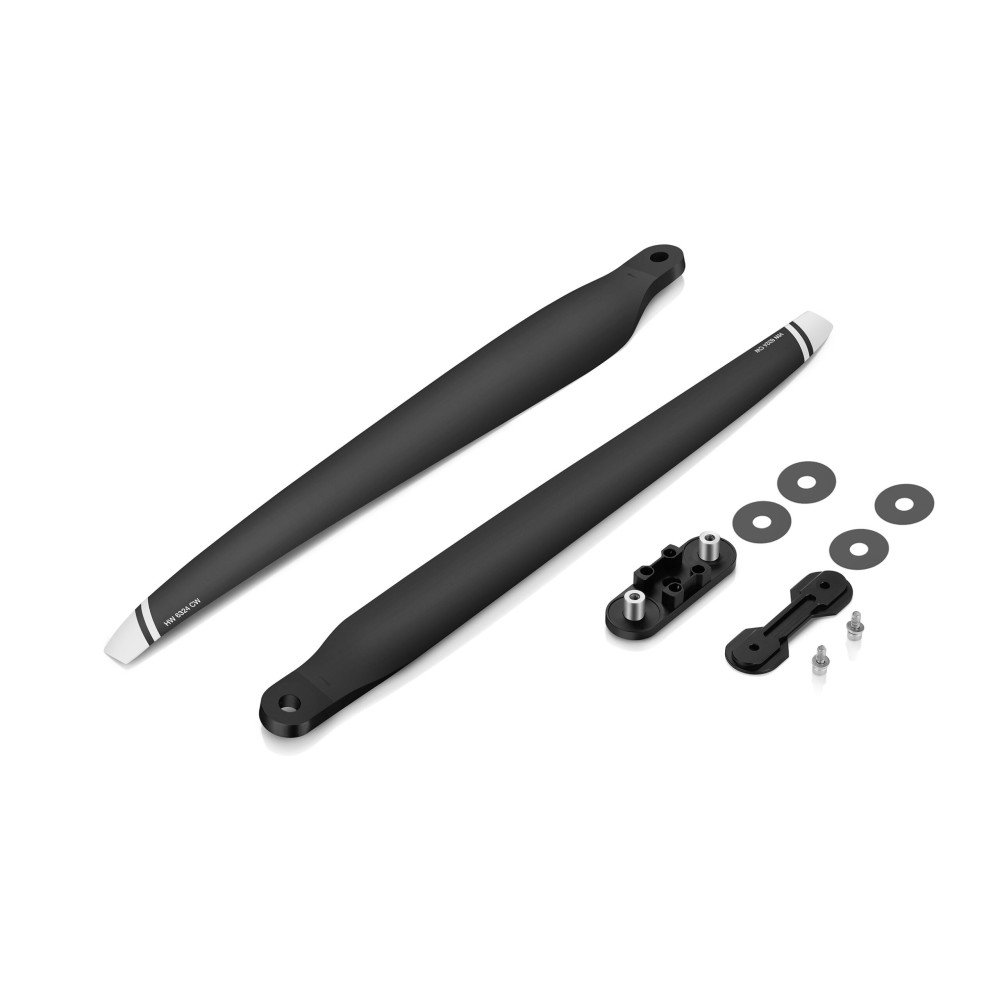

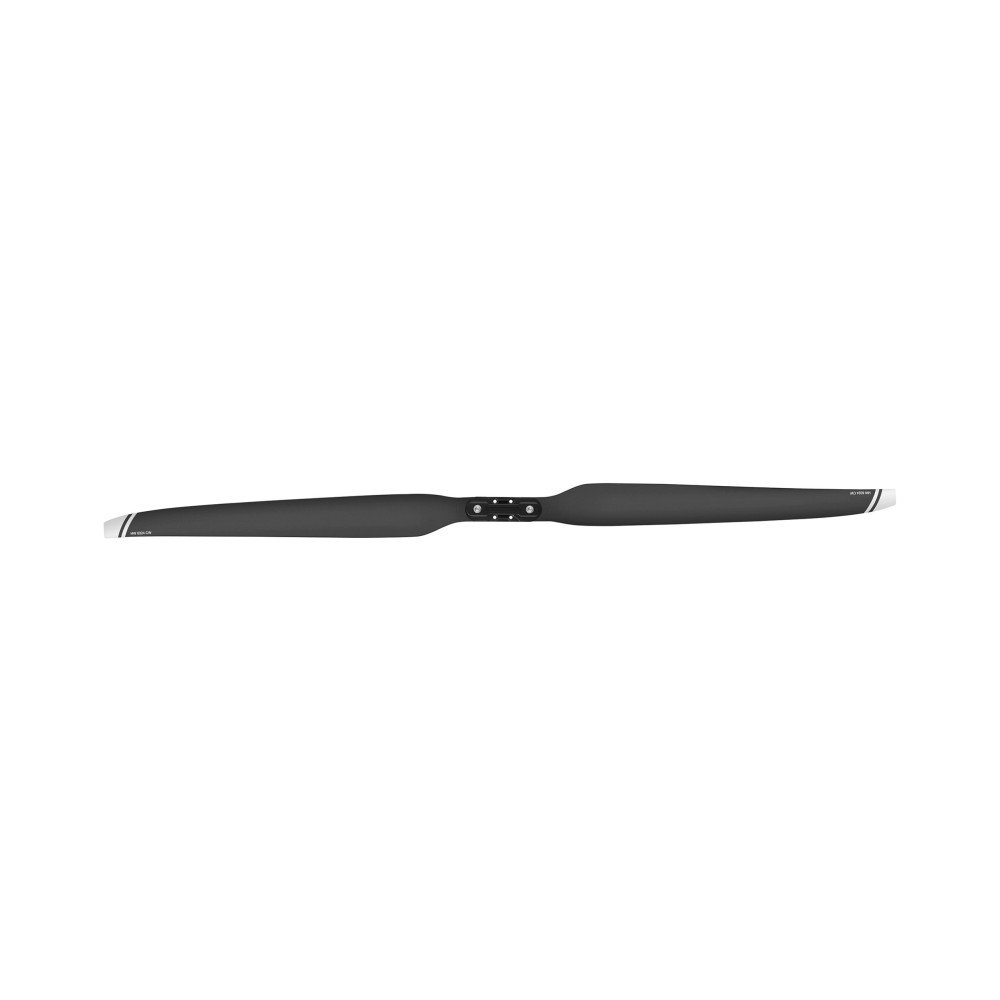

Hobbywing MFC 63×24 Large Drone Folding Carbon Fiber Propeller

The Hobbywing MFC 63×24 is a large-diameter folding carbon fiber propeller designed specifically for the H15MD coaxial propulsion system and other high-thrust heavy-lift industrial UAVs. Its meticulously optimized airfoil combines high strength, fatigue resistance, low vibration, and outstanding efficiency to significantly extend operational lifespan.

Key Features

High-Performance Carbon Fiber Construction

  • Material: Carbon fiber composite
  • Diameter × Pitch: 63 × 24 inches
  • Weight: 930 ± 9 g per propeller

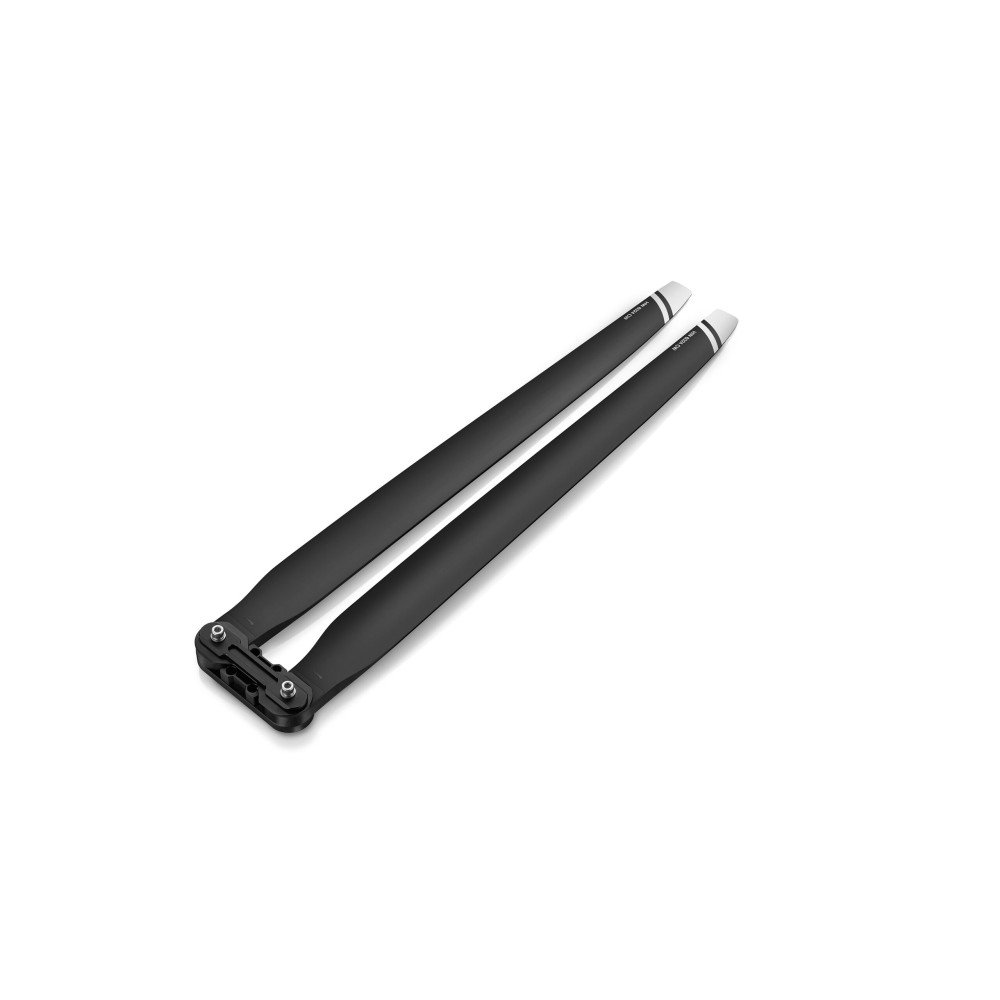

  • Folding design for compact transport and vehicle-mounted operation

Optimized Aerodynamic Airfoil

  • Engineered airfoil design balances high thrust efficiency with low vibration
  • Fatigue-resistant structure for extended service life under heavy cyclic loads

Coaxial System Compatibility

  • Mounting dimensions: D46 – 4× M6, centre hole D15
  • Designed as the primary propeller option for the H15MD (18S and 24S/28S versions)
  • Achieves 7.4 g/W efficiency in coaxial rated thrust configuration

Wide Industrial Applications

  • Material lifting and logistics transportation
  • Emergency firefighting and rescue
  • Compatible with H15MD and H15MD Plus propulsion systems
305050154AA
28 Items

Data sheet

Battery
18S
Propeller Size
63x24
Composition
Carbon Fiber
