HOBBYWING

MFC 63x24-CCW Reverse Direction

€134.55
Tax included EU: 3/5 business days | International: 4/6 business days
Efficient operating range of 2–4 kg per rotor, delivering up to 6.2 kg maximum thrust. Compatible with 6S LiPo batteries. Integrated motor and ESC system with IPX7 protection. Propeller not included. Recommended propeller: MFP 22×7.0.
€134.55
Tax included EU: 3/5 business days | International: 4/6 business days
Quantity
Add to Wishlist
Add to Compare

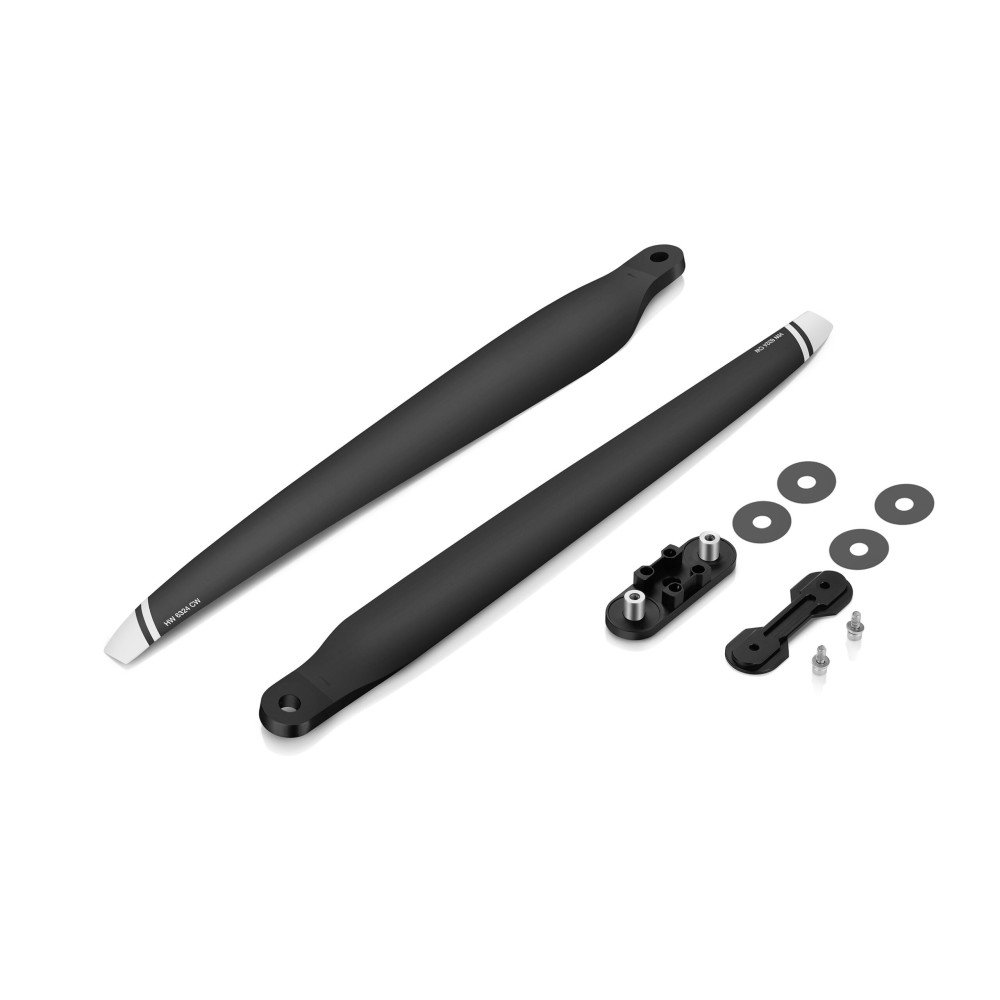

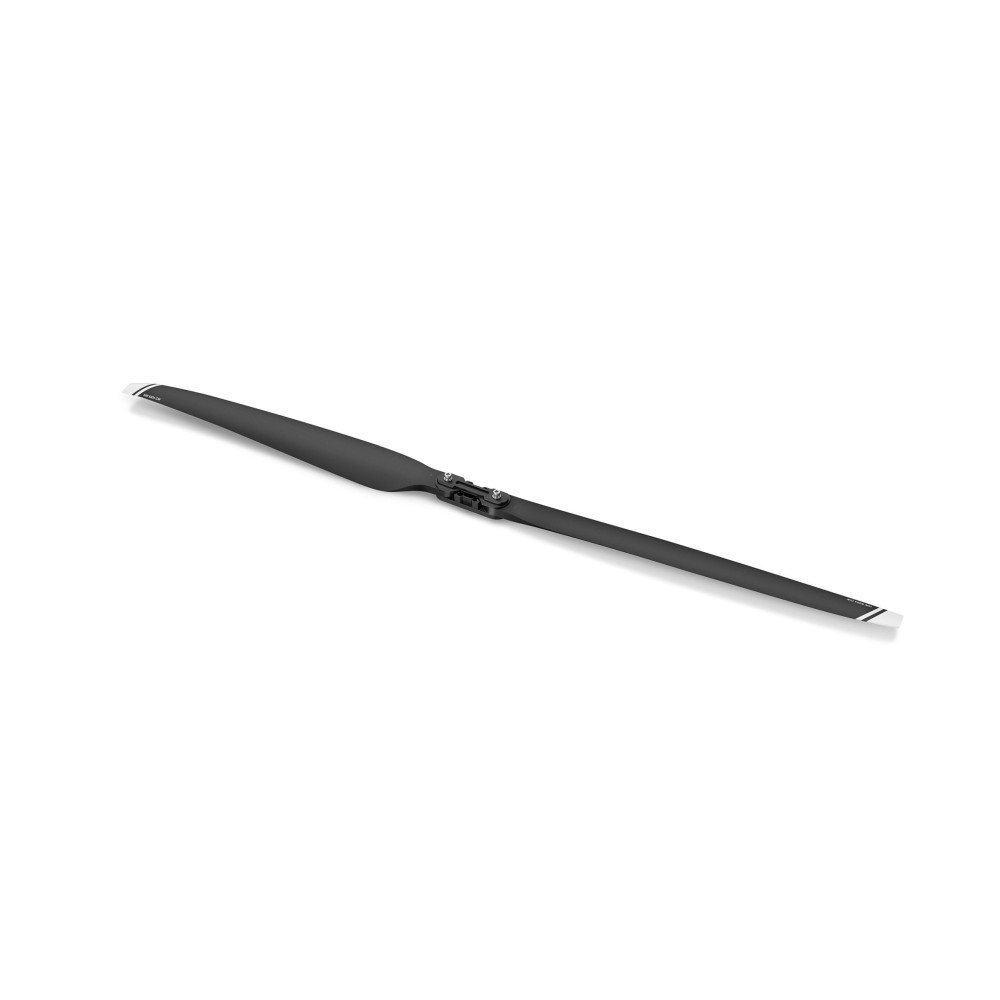

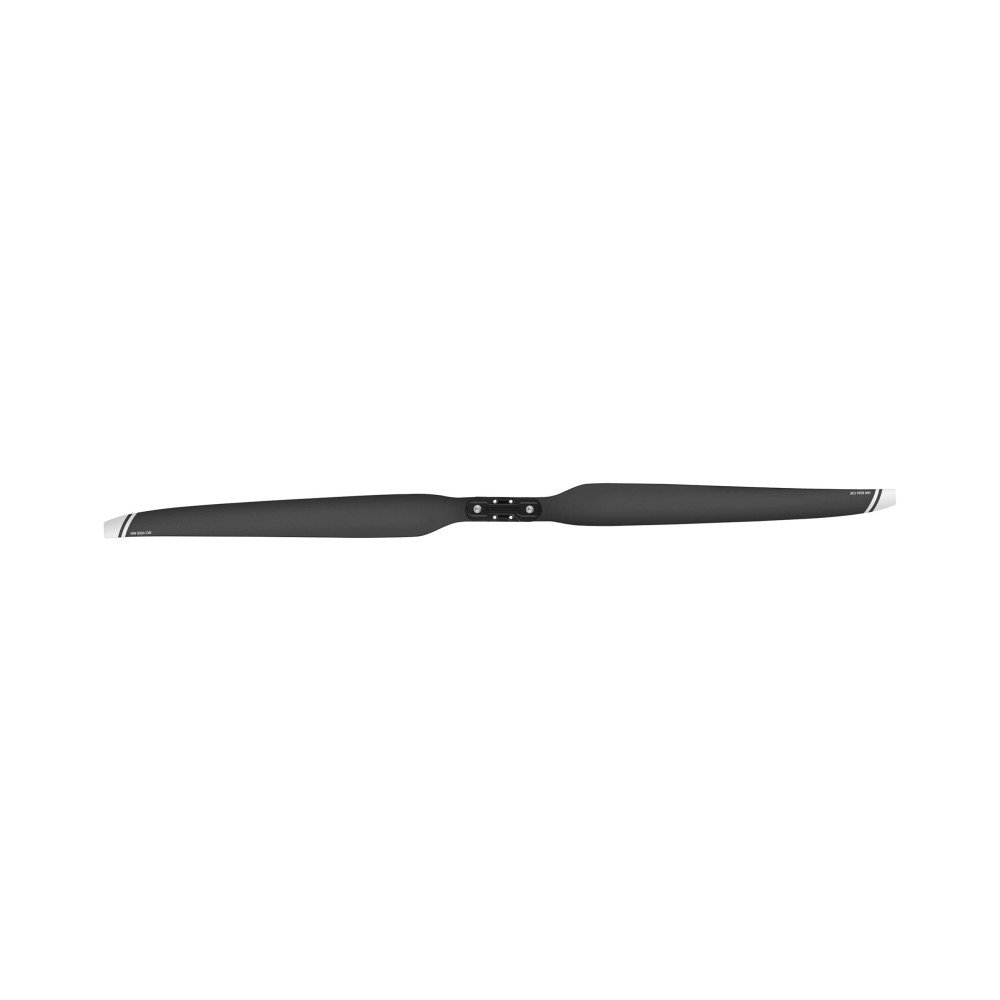

Hobbywing MFC 63×24 Large Drone Folding Carbon Fiber Propeller

The Hobbywing MFC 63×24 is a large-diameter folding carbon fiber propeller designed specifically for the H15MD coaxial propulsion system and other high-thrust heavy-lift industrial UAVs. Its meticulously optimized airfoil combines high strength, fatigue resistance, low vibration, and outstanding efficiency to significantly extend operational lifespan.

Key Features

High-Performance Carbon Fiber Construction

  • Material: Carbon fiber composite
  • Diameter × Pitch: 63 × 24 inches
  • Weight: 930 ± 9 g per propeller

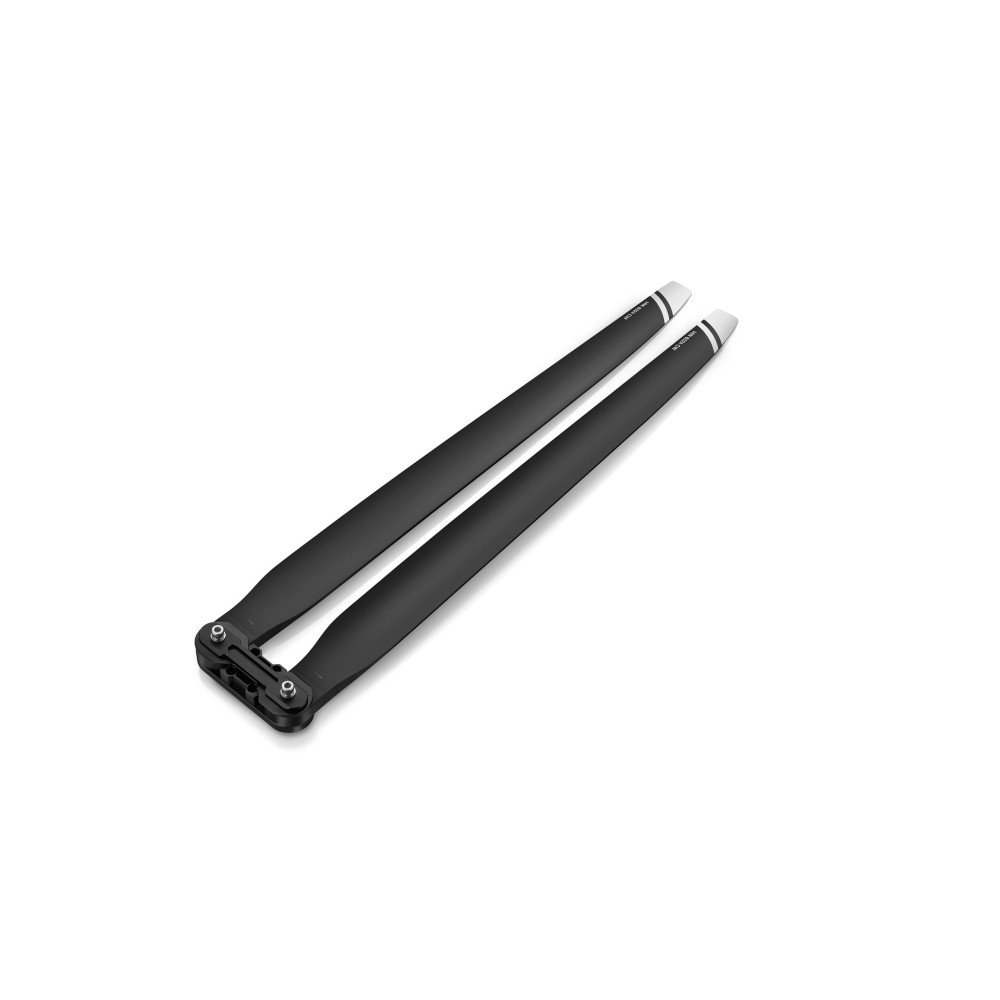

  • Folding design for compact transport and vehicle-mounted operation

Optimized Aerodynamic Airfoil

  • Engineered airfoil design balances high thrust efficiency with low vibration
  • Fatigue-resistant structure for extended service life under heavy cyclic loads

Coaxial System Compatibility

  • Mounting dimensions: D46 – 4× M6, centre hole D15
  • Designed as the primary propeller option for the H15MD (18S and 24S/28S versions)
  • Achieves 7.4 g/W efficiency in coaxial rated thrust configuration

Wide Industrial Applications

  • Material lifting and logistics transportation
  • Emergency firefighting and rescue
  • Compatible with H15MD and H15MD Plus propulsion systems
305050169AA
18 Items

Data sheet

Battery
18S
Propeller Size
63x24
Composition
Carbon Fiber
