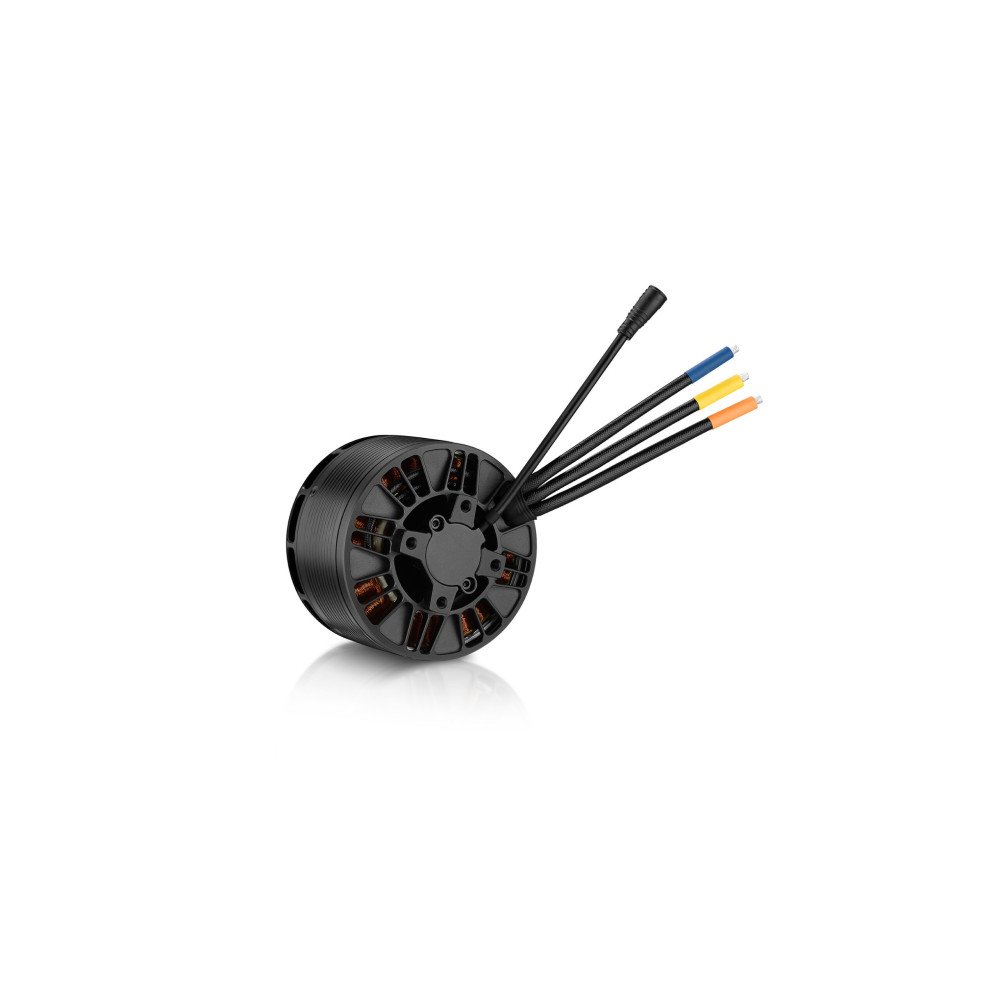

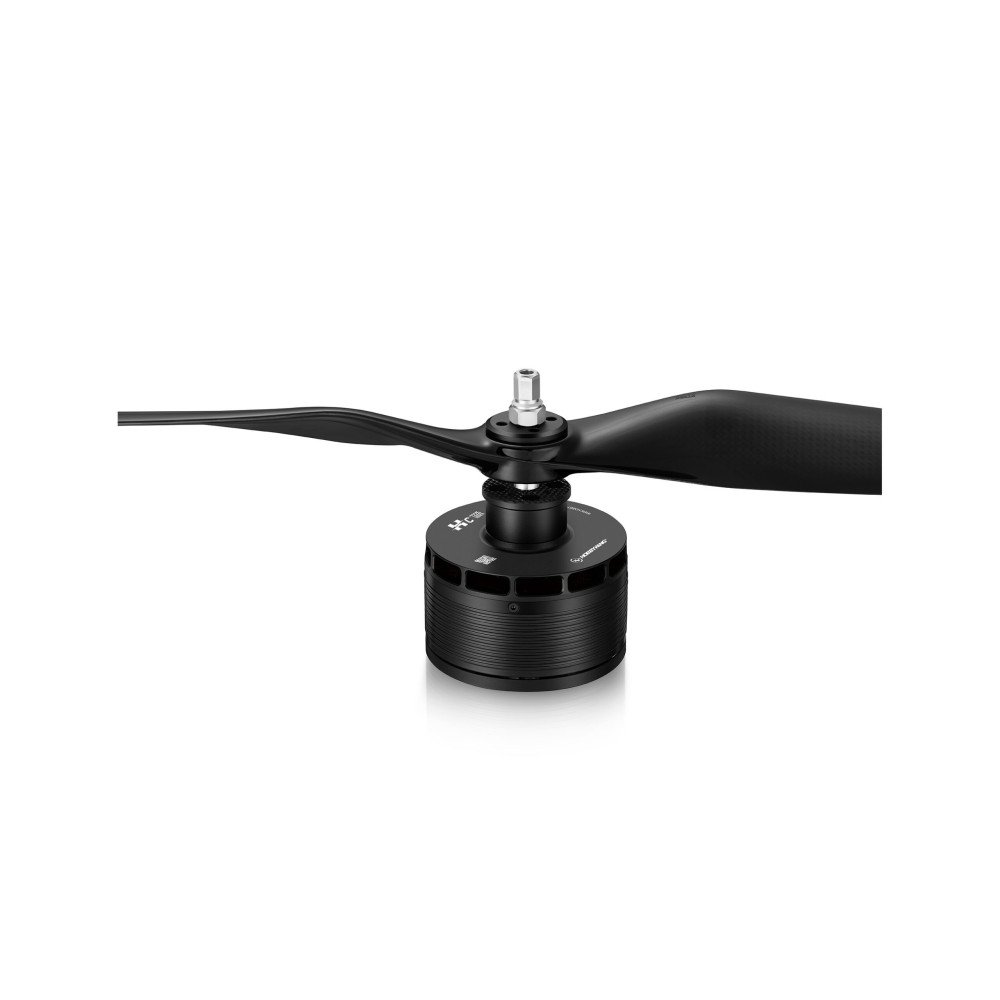

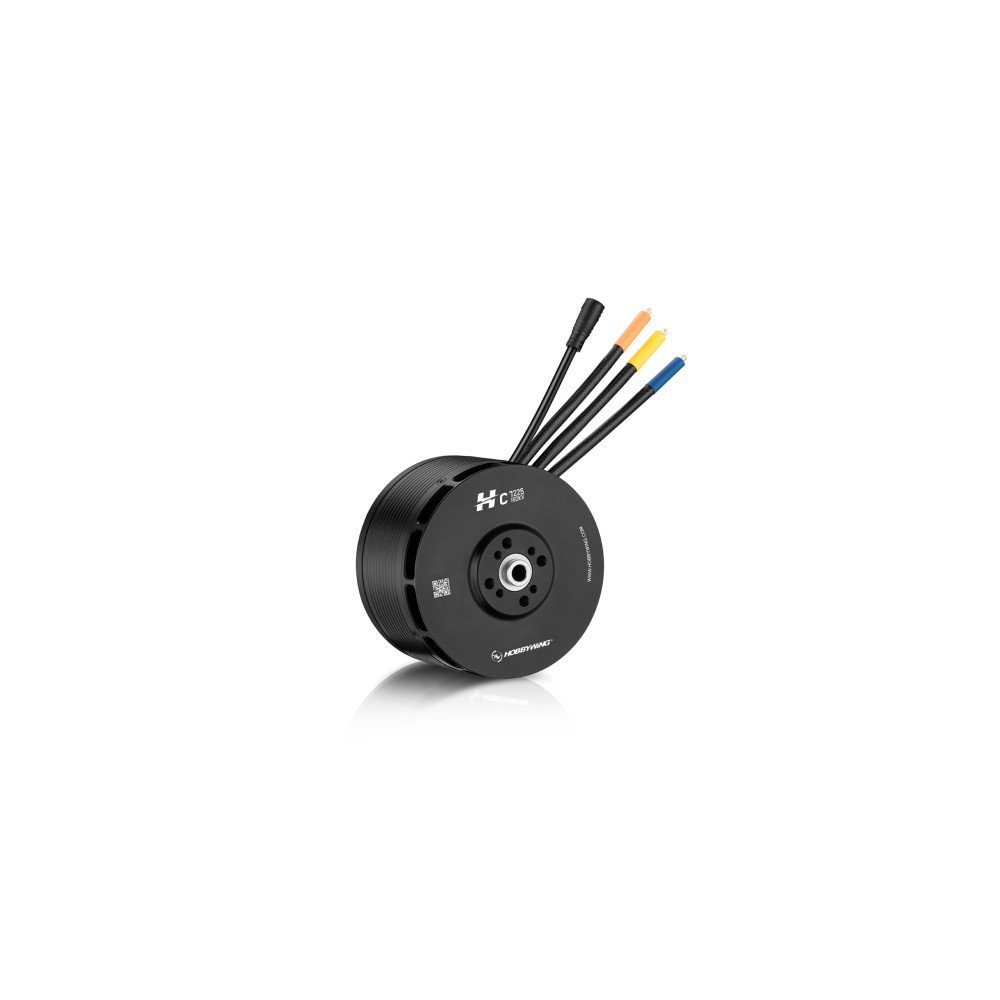

Hobbywing C7225 Fixed-Wing UAV Cruise Motor (160KV / 190KV)
The Hobbywing C7225 is a high-performance fixed-wing UAV cruise motor available in 160KV and 190KV variants, purpose-built for electric fixed-wing and VTOL UAV applications. A direct electric replacement for traditional 40CC combustion engines, it combines powerful thrust with outstanding reliability through rigorous industrial-grade engineering.
Key Features
Powerful Fixed-Wing Performance
- Available in 160KV and 190KV versions
- Delivers up to 21.7 kg thrust with 24-inch propellers at 48V
- Ideal electric alternative to 40CC gasoline engines
- Outperforms comparable motors under the same voltage conditions
Innovative Magnetic Circuit Design
- Proprietary magnetic circuit optimally matches drive parameter requirements
- Enables faster propulsion system response for improved flight dynamics
- Rectangular rotor bracket outlet reduces airflow resistance and improves cooling efficiency
Rigorous Industrial Validation
- Validated per industry standards: Drive Performance Validation (DPV), Water Ingress Testing, Salt Spray Testing, Mechanical Stress Testing, and Tri-Comprehensive (Temperature, Humidity, Vibration) Testing
- 1,000-hour laboratory fatigue life validation ensures sustained performance in harsh environments
Premium Materials & Build Quality
- Industry-leading 0.2 mm low-loss silicon steel cores with 220°C heat-resistant enameled wires
- High-grade curved magnetic tiles for enhanced magnetic energy density and torque
- Premium international-brand bearings for low friction torque and long service life
- Titanium alloy propeller mount nuts for optimal weight reduction
Versatile Application Support
- Supports tractor and pusher configurations
- Compatible with HOBBYWING IPC (Intelligent Propeller Control) ESC
- Suitable for electric fixed-wing UAVs and VTOL cruise phases
Applications
- Electric fixed-wing UAV cruise propulsion
- VTOL UAV cruise motor
- Electric replacement solution for gasoline engines
