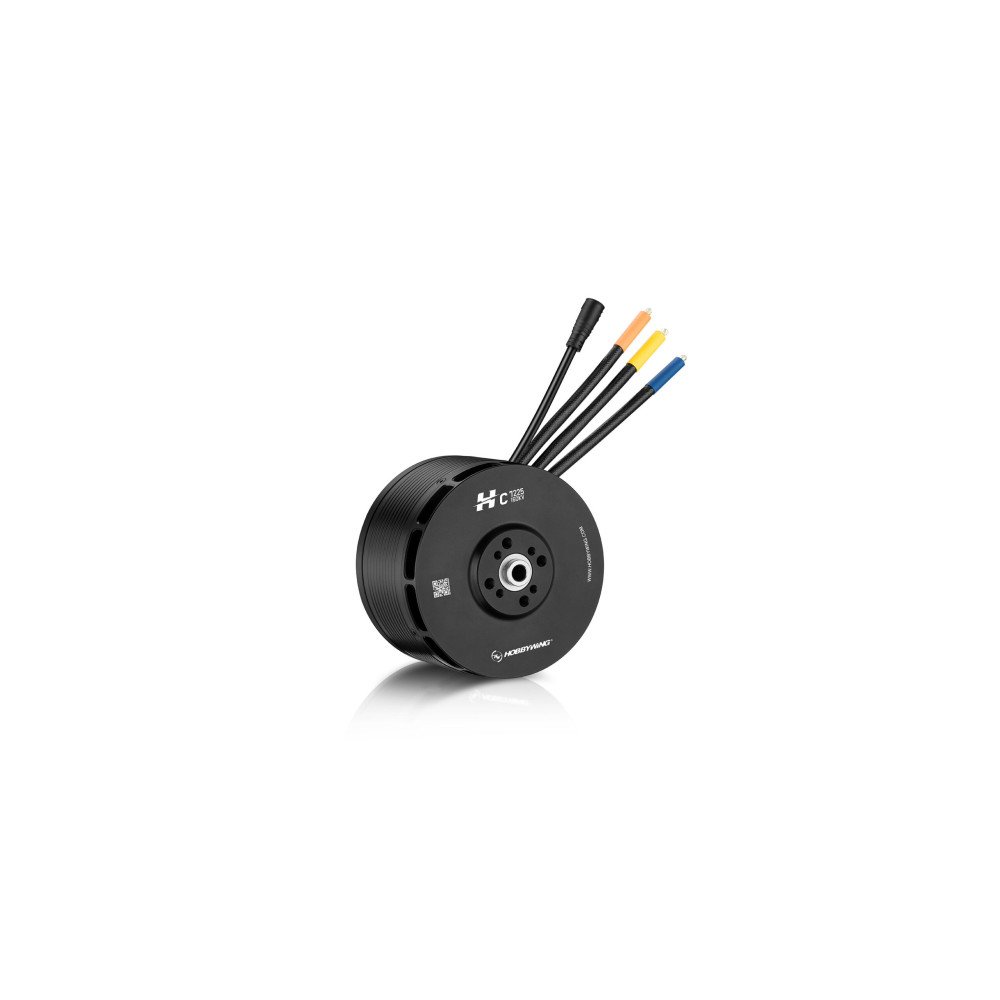

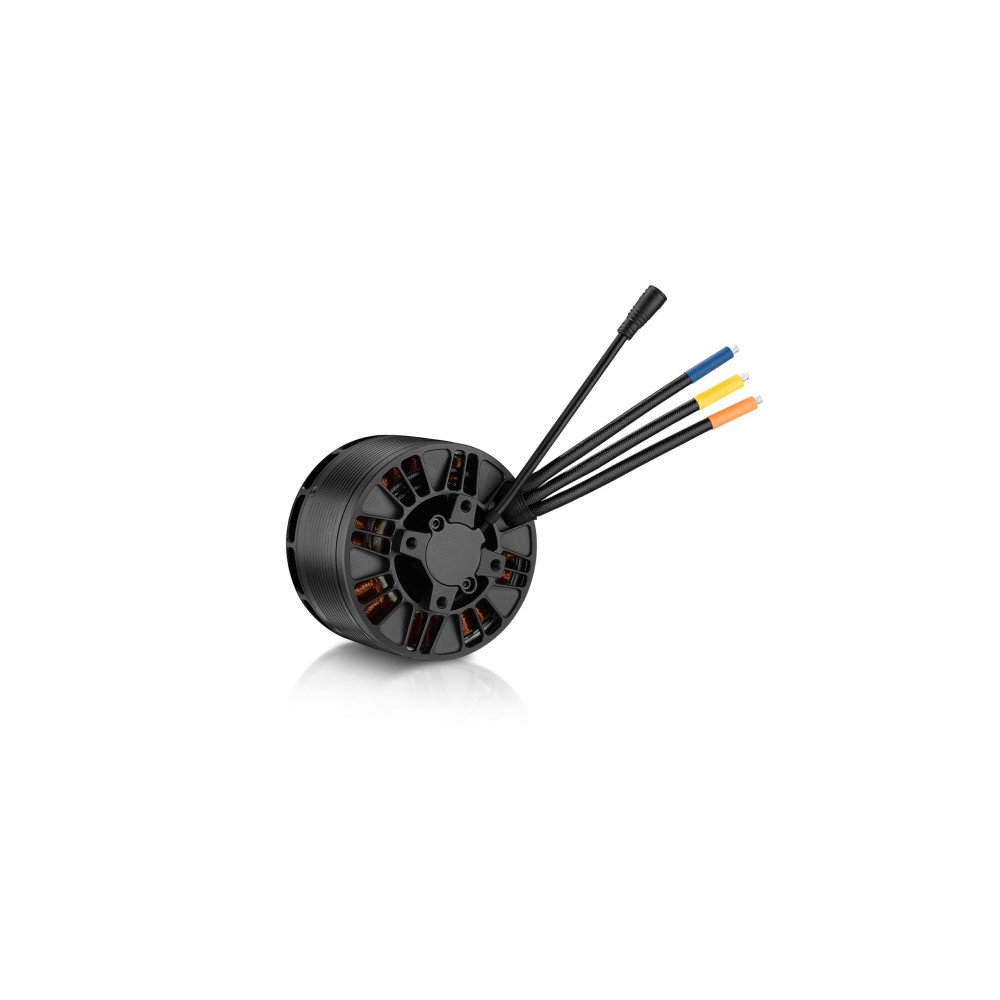

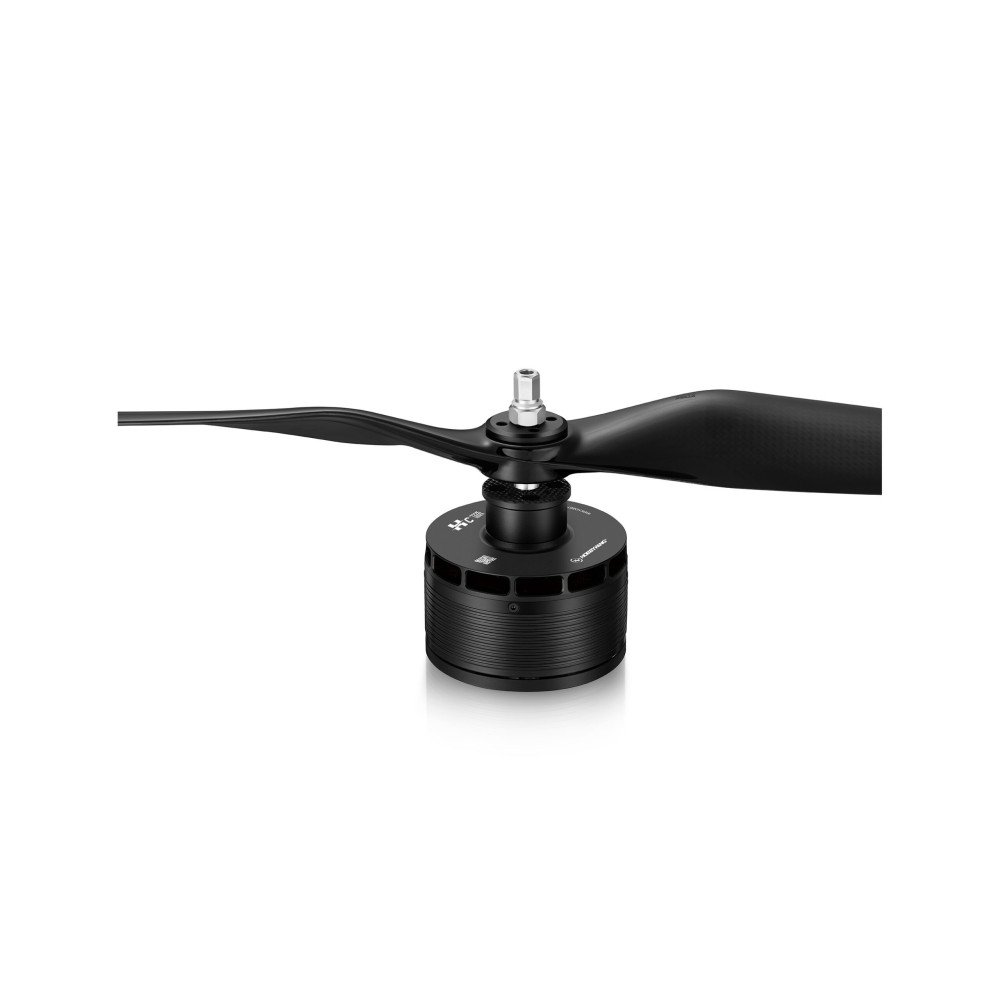

The Hobbywing C7225 160KV IPC Brushless Motor is a high-performance propulsion solution specifically designed for professional electric fixed-wing UAVs and hybrid VTOL aircraft. Engineered to deliver powerful thrust, fast throttle response, and exceptional cruise efficiency, it is the ideal electric replacement for 40cc gasoline engines, making it perfectly suited for long-endurance missions such as mapping, inspection, surveillance, cargo transport, and emergency response.
Built with premium industrial materials, an advanced cooling architecture, and Hobbywing Intelligent Propeller Control (IPC) technology, the C7225 provides reliable performance under continuous heavy loads while maximizing efficiency and flight endurance.
Powerful & Efficient Performance
The C7225 160KV IPC delivers up to 21.7 kg of maximum thrust while weighing only 755 g, providing an exceptional power-to-weight ratio for professional fixed-wing UAV applications.
Designed for 12S LiPo (48V) power systems, the motor offers:
Compared with similar motors in its class, the C7225 provides:
The recommended application is single-motor fixed-wing UAVs with a take-off weight of 30–35 kg.
Advanced Cooling System
The C7225 features an innovative rectangular exhaust airflow design, significantly improving heat evacuation and reducing internal airflow resistance.
This advanced thermal design provides:
-
20% higher cooling efficiency
-
Lower operating temperatures
-
Improved continuous power capability
-
Increased motor lifespan
-
Stable performance during extended high-load flights
The optimized cooling system ensures maximum efficiency throughout long-endurance missions.
Intelligent Propeller Control (IPC)
The IPC (Intelligent Propeller Control) version is designed to operate with Hobbywing IPC ESCs, enabling intelligent propeller positioning during cruise flight.
The IPC system provides several advanced features:
-
Automatic propeller stop positioning
-
Reduced aerodynamic drag during forward flight
-
Improved cruise efficiency
-
Extended flight endurance
-
Precise digital motor positioning
-
Optimized power consumption
This makes the IPC version the ideal solution for hybrid VTOL aircraft where maximizing endurance and aerodynamic efficiency is essential.
Premium Construction & Reliability
Designed for demanding industrial UAV operations, the C7225 incorporates premium materials to ensure maximum durability and long service life.
Key features include:
-
IPX5 protection rating
-
High-quality waterproof bearings
-
180°C high-temperature permanent magnets
-
220°C enamelled copper windings
-
Premium low-loss silicon steel stator
-
Triple-bearing structure for enhanced durability
-
Patented anti-loosening propeller adapter
-
Detachable propeller adapter compatible with folding and rigid propellers
-
High-precision dynamic balancing (≤15 mg)
Every motor undergoes extensive testing for waterproofing, durability, insulation, corrosion resistance, vibration, and long-term reliability to ensure dependable performance in harsh operating environments.
Optimized for Professional Fixed-Wing UAVs
The C7225 has been specifically developed for electric fixed-wing cruise propulsion, providing exceptional efficiency and reliable performance during long-endurance missions.
Recommended system configuration:
This combination delivers maximum cruise efficiency, smooth power delivery, and outstanding reliability for professional UAV platforms.
Technical Specifications
Product: Hobbywing C7225 160KV IPC Brushless Motor
-
Version: IPC
-
KV Rating: 160 KV
-
Battery: 12S LiPo (48V)
-
Maximum Thrust: 21.7 kg
-
Maximum Current: 132.7 A
-
Maximum Power: 6,377 W
-
Weight: 755 g
-
Protection Rating: IPX5
-
Cooling System: High-efficiency rectangular airflow cooling
-
High-Temperature Magnets: 180°C
-
Copper Windings: 220°C
-
Recommended ESC: Hobbywing XRotor Pro H130A 14S BLDC IPC / XRotor Pro H200A 14S BLDC IPC
-
Recommended Propeller: 24×12"
-
Recommended Aircraft: Professional electric fixed-wing UAV with 30–35 kg take-off weight
ESC and propeller are sold separately.
