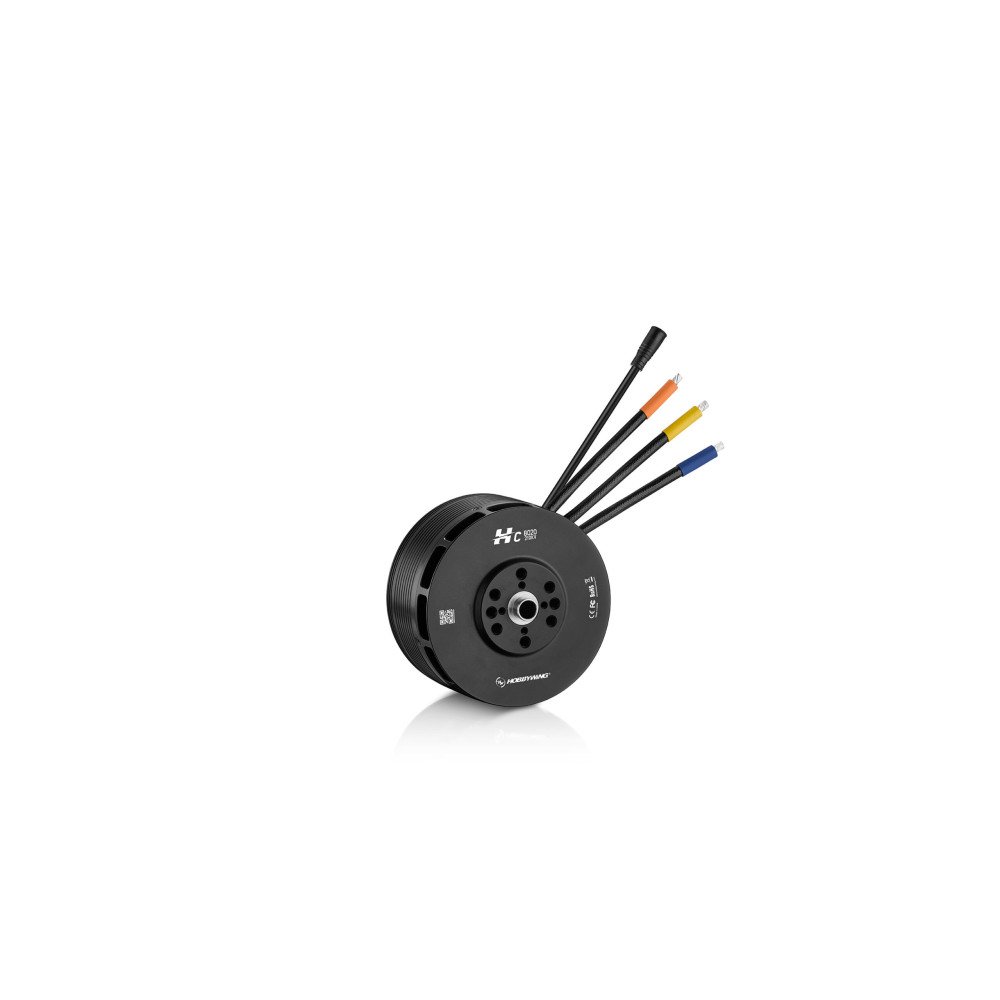

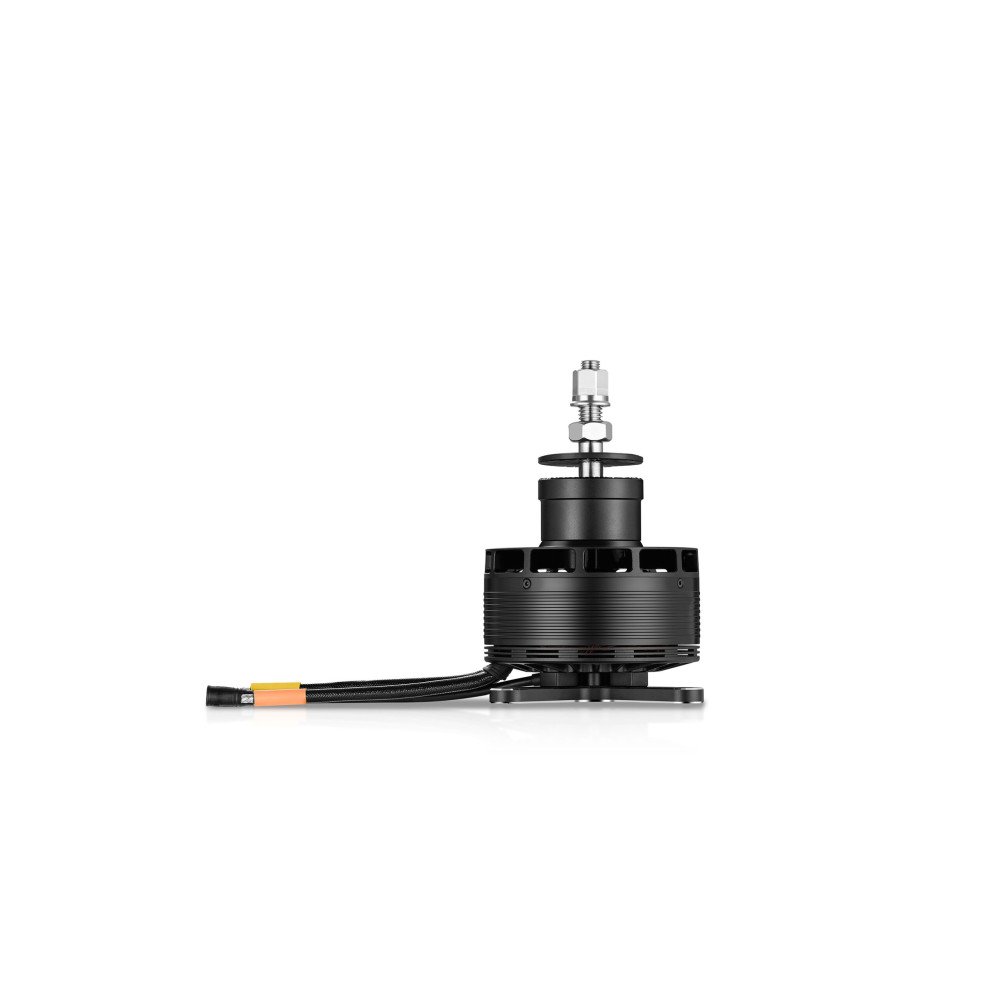

Hobbywing C8020 Fixed-Wing Drone Motor
The Hobbywing C8020 is a heavy-duty fixed-wing UAV cruise motor designed for superior reliability in demanding electric fixed-wing and VTOL applications. Part of the C-series 80XX family, it delivers the robust performance and exceptional durability required for professional UAV cruise operations.
Key Features
High-Thrust Fixed-Wing Performance
- 80mm stator diameter for high-power output
- Designed for fixed-wing UAV cruise and VTOL applications
- Supports both tractor and pusher propeller configurations
- Compatible with HOBBYWING IPC (Intelligent Propeller Control) ESC
Innovative Magnetic Circuit & Cooling Design
- Proprietary magnetic circuit design for optimized drive parameter matching

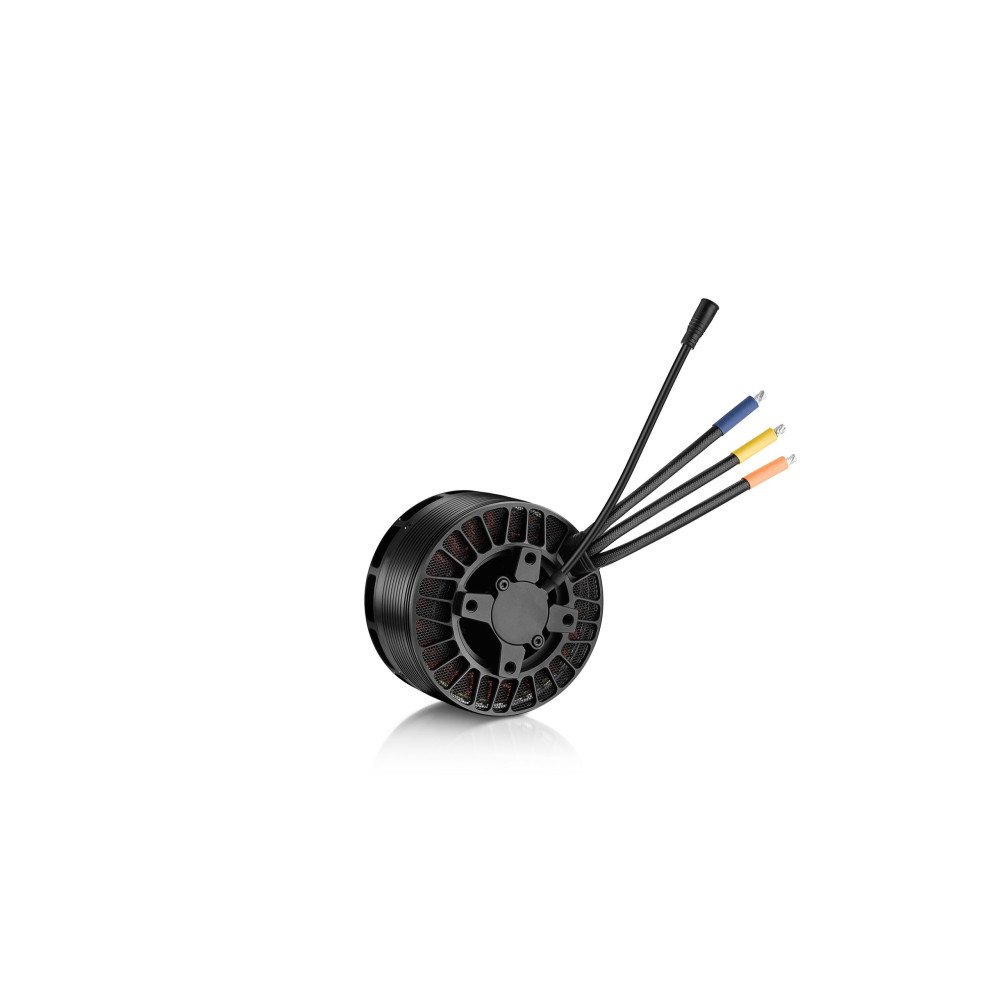

- Rectangular rotor bracket outlet reduces airflow resistance and improves heat dissipation efficiency by 20%
- Triple-bearing system for optimal dynamic balance and impact resistance
Industrial-Grade Durability
- Validated through Drive Performance Validation (DPV), Water Ingress Testing, Salt Spray Test, Mechanical Stress Testing, and Tri-Comprehensive (Temperature, Humidity, Vibration) Test
- 1,000-hour laboratory fatigue life validation
- Premium 0.2 mm silicon steel cores, 220°C enameled wires, and high-grade curved magnetic tiles

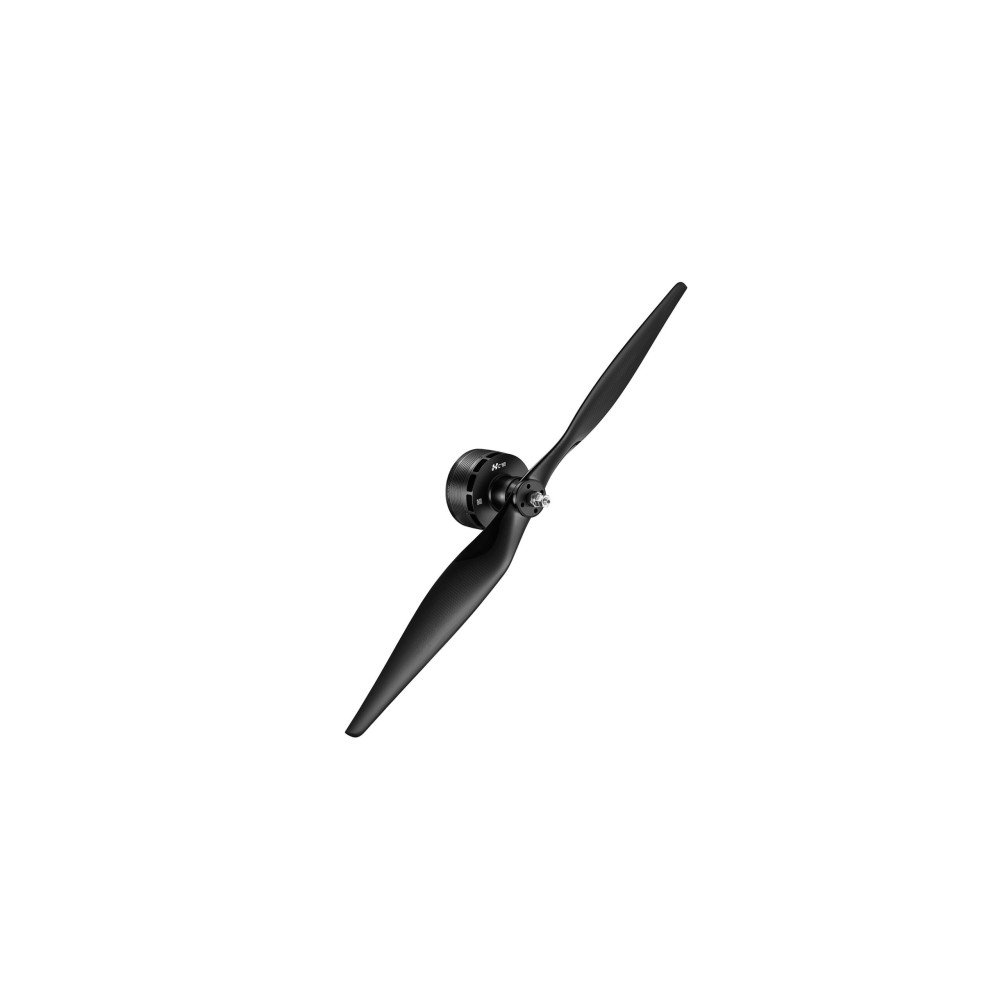

Versatile Propeller System
- Detachable propeller adapter with anti-slip, anti-rotation, and interlocking mechanisms
- Anti-loosening propeller adapter structure for enhanced flight safety
- Compatible with folding and non-folding propellers
Applications
- High-performance electric fixed-wing UAV cruise propulsion
- VTOL UAV cruise motor
- Electric replacement for combustion engines
