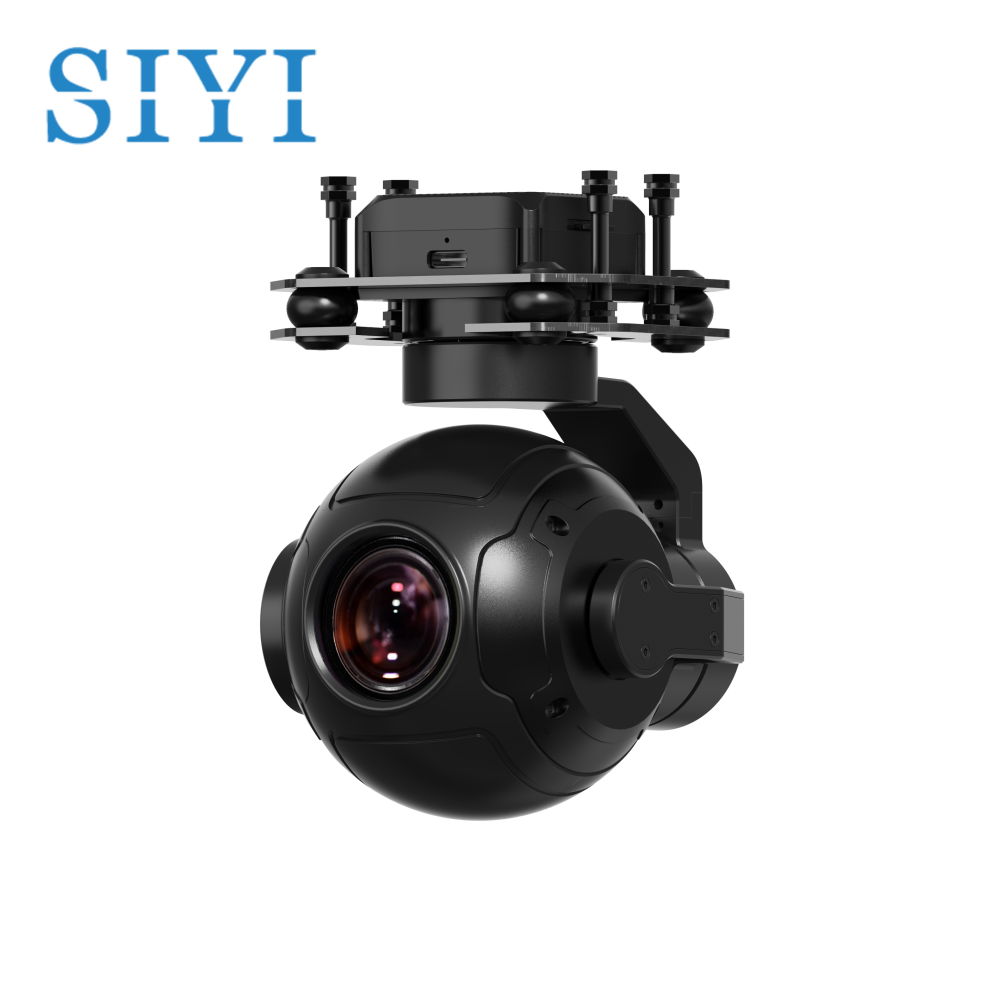

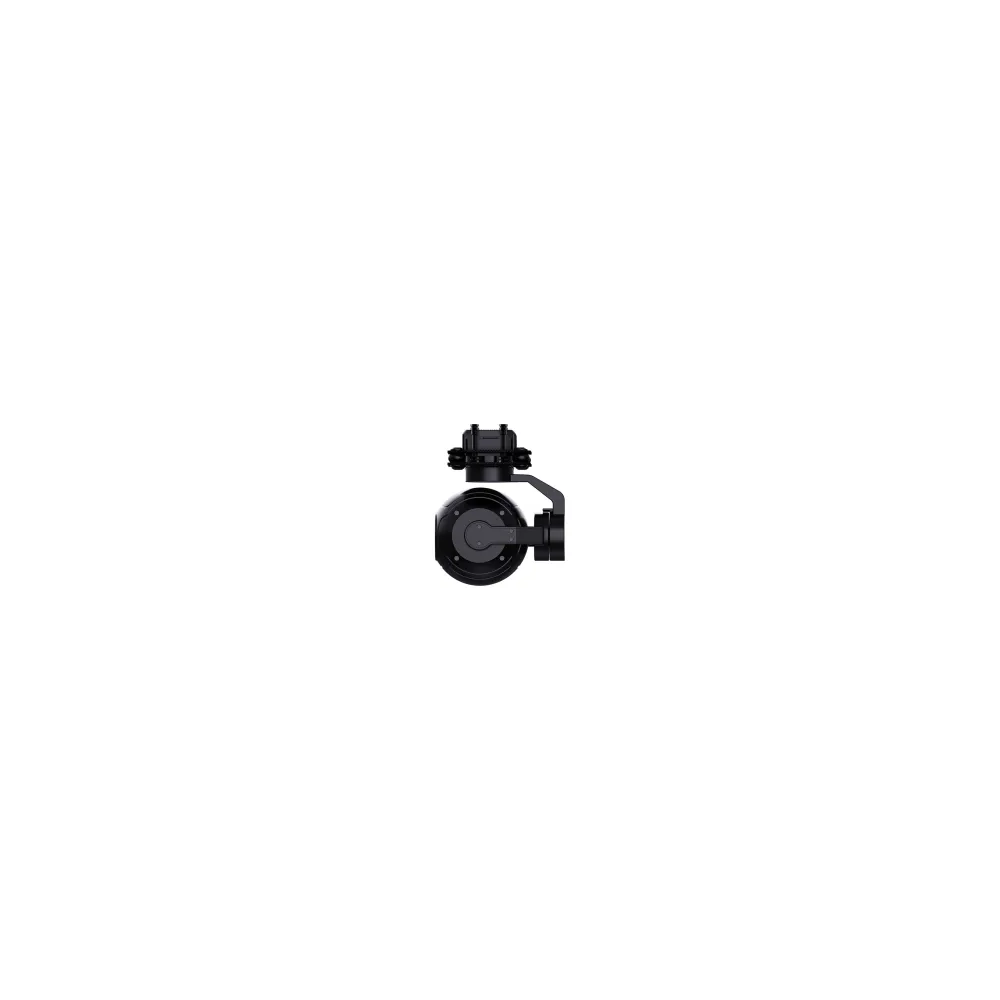

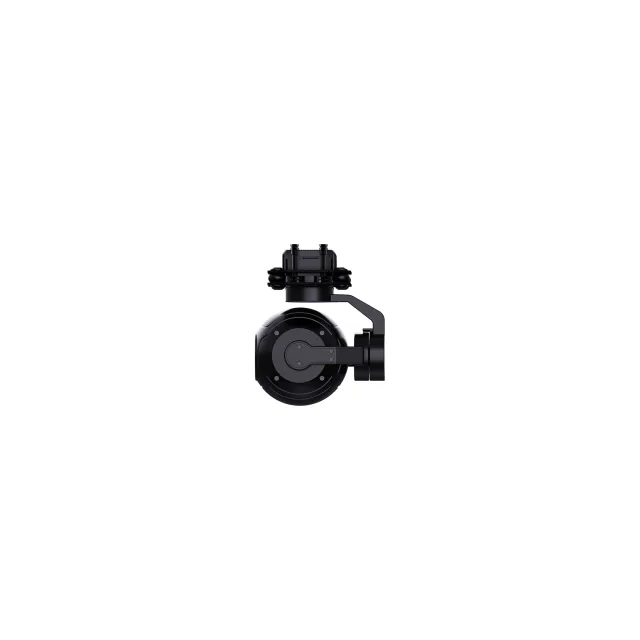

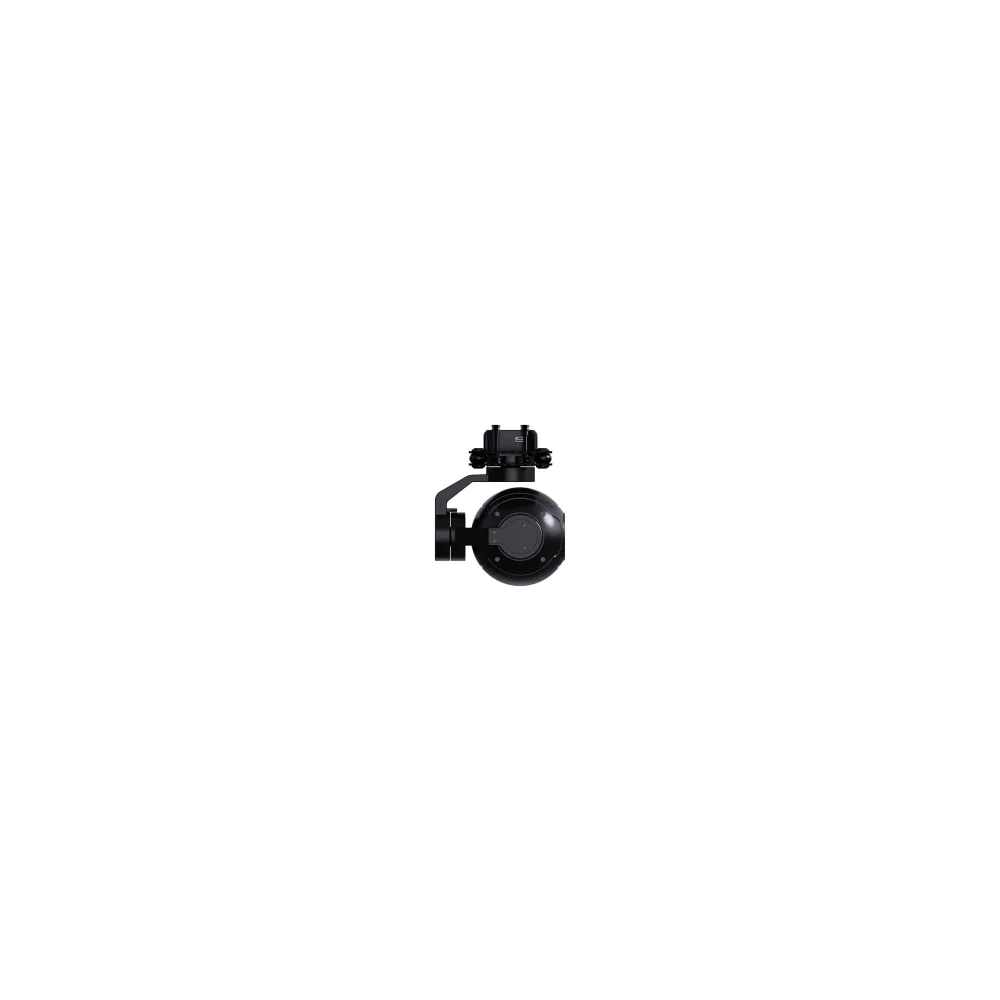

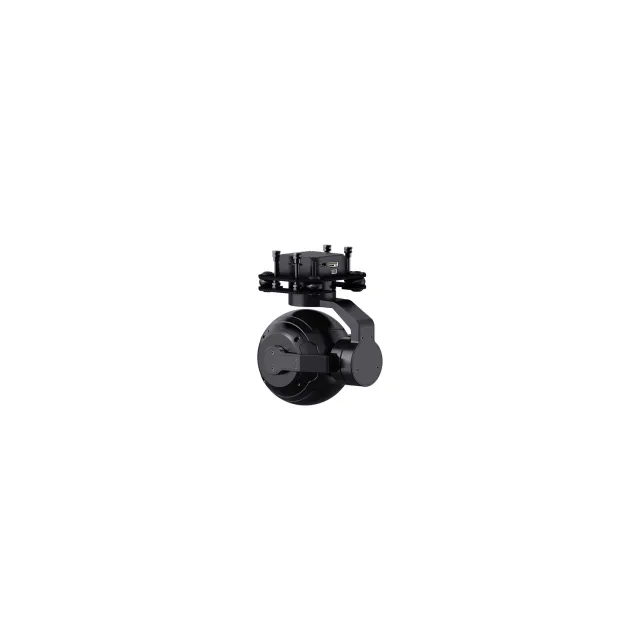

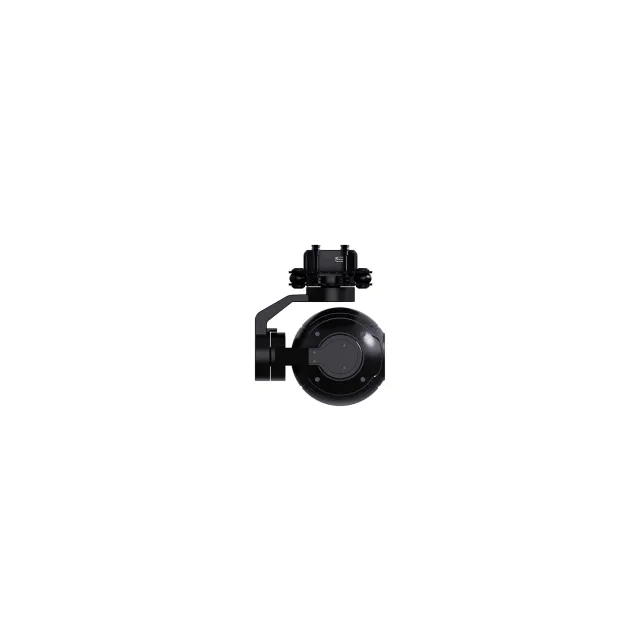

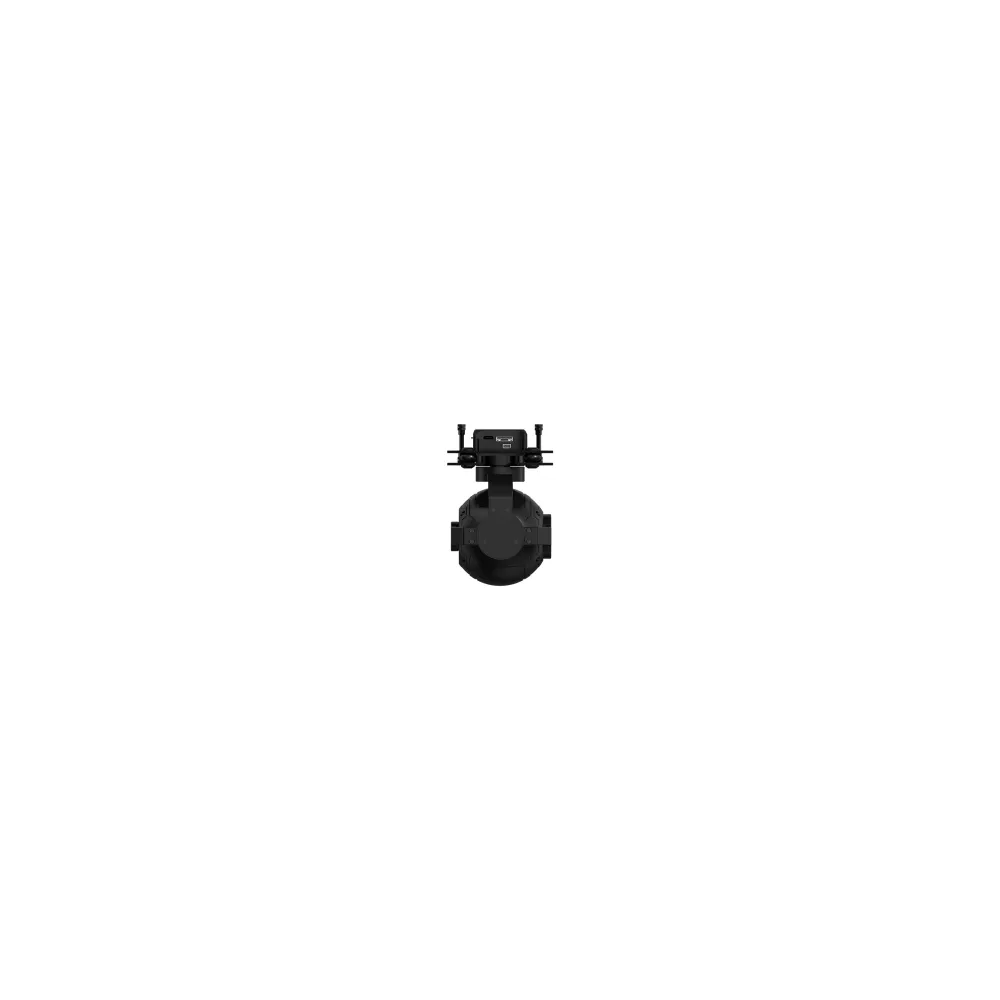

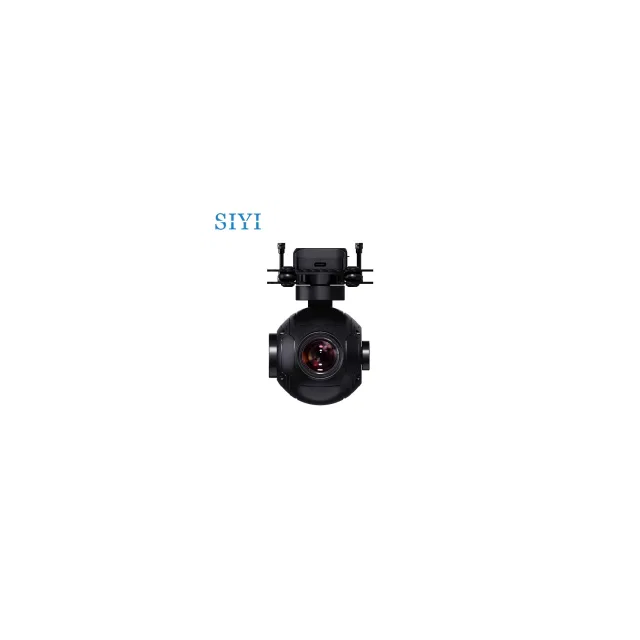

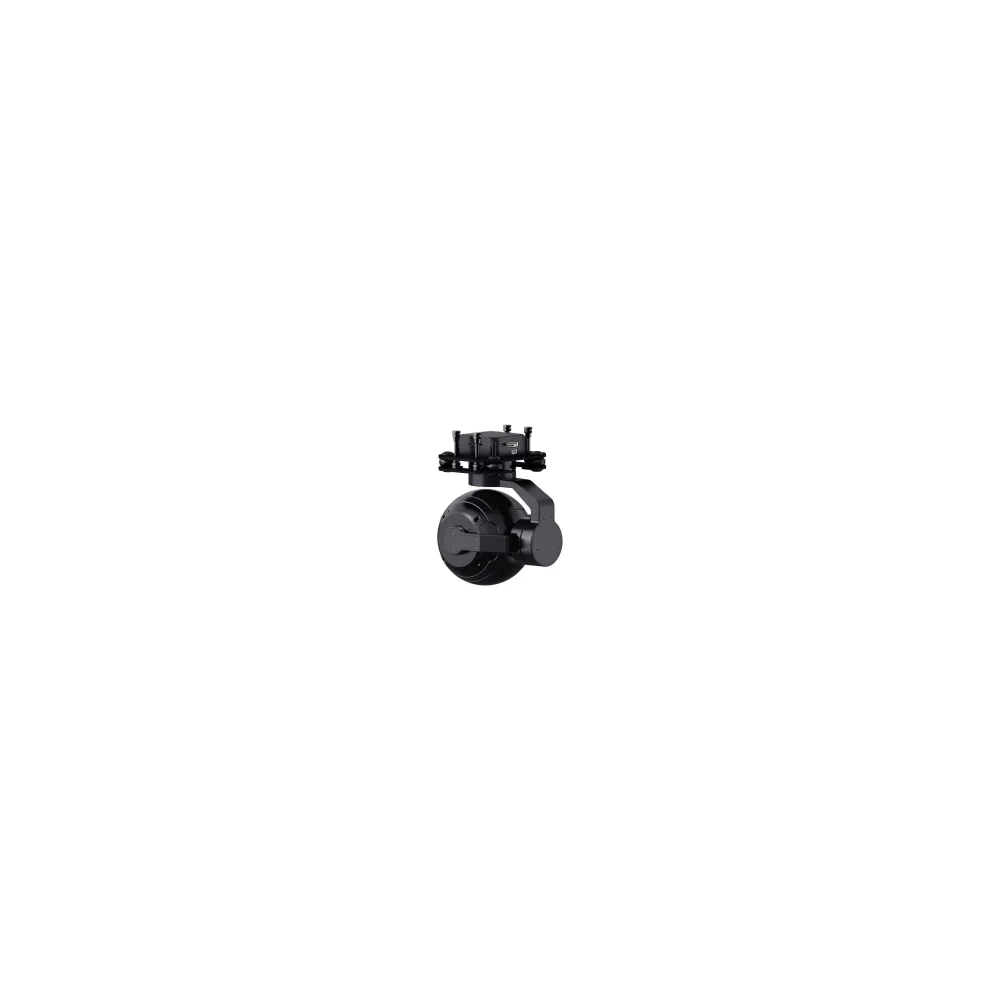

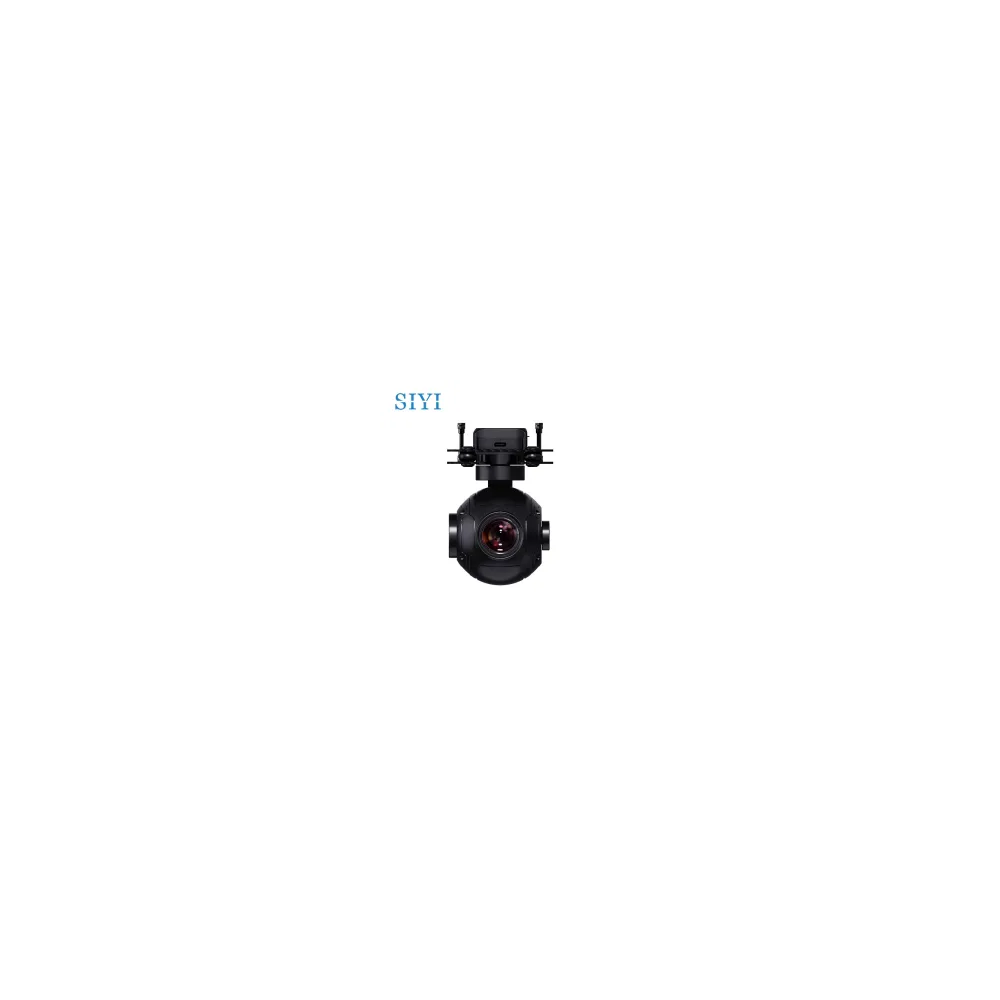

The SIYI ZR10 2K 30X Hybrid Zoom Optical Pod is a professional 3-axis stabilized gimbal camera designed for UAV, UGV, USV, and robotic applications. With 2K QHD imaging, 10× optical zoom, and up to 30× hybrid zoom, it provides clear long-distance observation for inspection, surveillance, public safety, and industrial missions.
Equipped with a 4MP 1/2.7″ CMOS sensor, HDR imaging, and starlight night vision, the ZR10 delivers reliable visual performance in complex lighting conditions, including low-light and backlit environments.
30× Hybrid Zoom
The ZR10 supports up to 30× hybrid zoom, combining 10× optical zoom with digital zoom capability.
This allows operators to observe distant targets clearly while maintaining strong image detail for inspection, monitoring, and situational awareness missions.
2K QHD Imaging
The camera captures 2K QHD video and photography with a 4MP 1/2.7″ CMOS sensor.
With video recording up to 2560 × 1440 at 30 fps, the ZR10 provides detailed image quality for professional UAV operations.
3-Axis Gimbal Stabilization
The ZR10 uses industrial-level 3-axis stabilization with high-precision FOC control algorithms.
With an angular vibration range of ±0.01°, it helps maintain stable and clear images even when the aircraft or vehicle is moving aggressively.
HDR & Starlight Night Vision
HDR imaging helps capture details in both highlights and shadows during high-contrast scenes.
The starlight sensor improves image brightness and visibility in low-light environments, making the ZR10 suitable for extended day and night operations.
Flexible Platform Integration
The ZR10 supports Ethernet video output and multiple control input options, including S.Bus, UART, and Ethernet UDP / TCP.
It is compatible with ArduPilot and PX4 via Mavlink, making it suitable for professional UAV integrations and autonomous platforms.
Smart Mounting Modes
The ZR10 supports Nose Mode and Upside Down Mode.
These modes allow more flexible installation depending on the UAV, UGV, USV, or robotic platform layout.
Technical Specifications
Product: SIYI ZR10 2K 30X Hybrid Zoom Optical Pod
Application: UAV, UGV, USV, robotics, inspection, surveillance, public safety, and industrial missions
Camera Type: 2K hybrid zoom optical pod
Gimbal Type: 3-axis stabilized gimbal
Image Sensor: 1/2.7″ CMOS
Effective Resolution: 4 MP
Optical Zoom: 10×
Hybrid Zoom: Up to 30×
Video Resolution: 2K / 2560 × 1440 @ 30 fps
Additional Video Modes: 1080p / 720p @ 30 fps
Video Codec: H.265
Focal Length: 5.2–47.4 mm
Aperture: F1.8–F2.5
Field of View Without Zoom: 79.5° diagonal / 71.5° horizontal
Field of View at 10× Optical Zoom: 7.7° diagonal / 6.7° horizontal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° to +45°
Controllable Yaw Angle: -160° to +160°
Controllable Roll Angle: -30° to +30°
Video Output Port: Ethernet
Control Signal Input: S.Bus / UART / Ethernet UDP / TCP
Working Voltage: 11–25.2 V / 3S–6S
Power Consumption: 4 W average / 12 W peak
Working Temperature: -10°C to +50°C
Dimensions: 121 × 101 × 78 mm
Weight: 381 g
Compatibility: ArduPilot / PX4 via Mavlink
Special Modes: Nose Mode / Upside Down Mode
Storage: MicroSD card support
What’s Included
1× SIYI ZR10 2K 30X Hybrid Zoom Optical Pod
