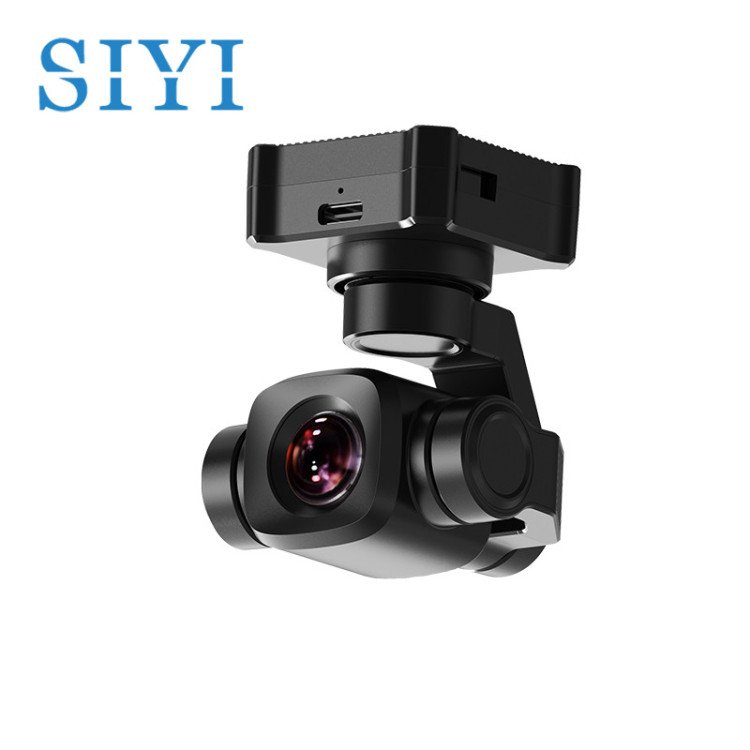

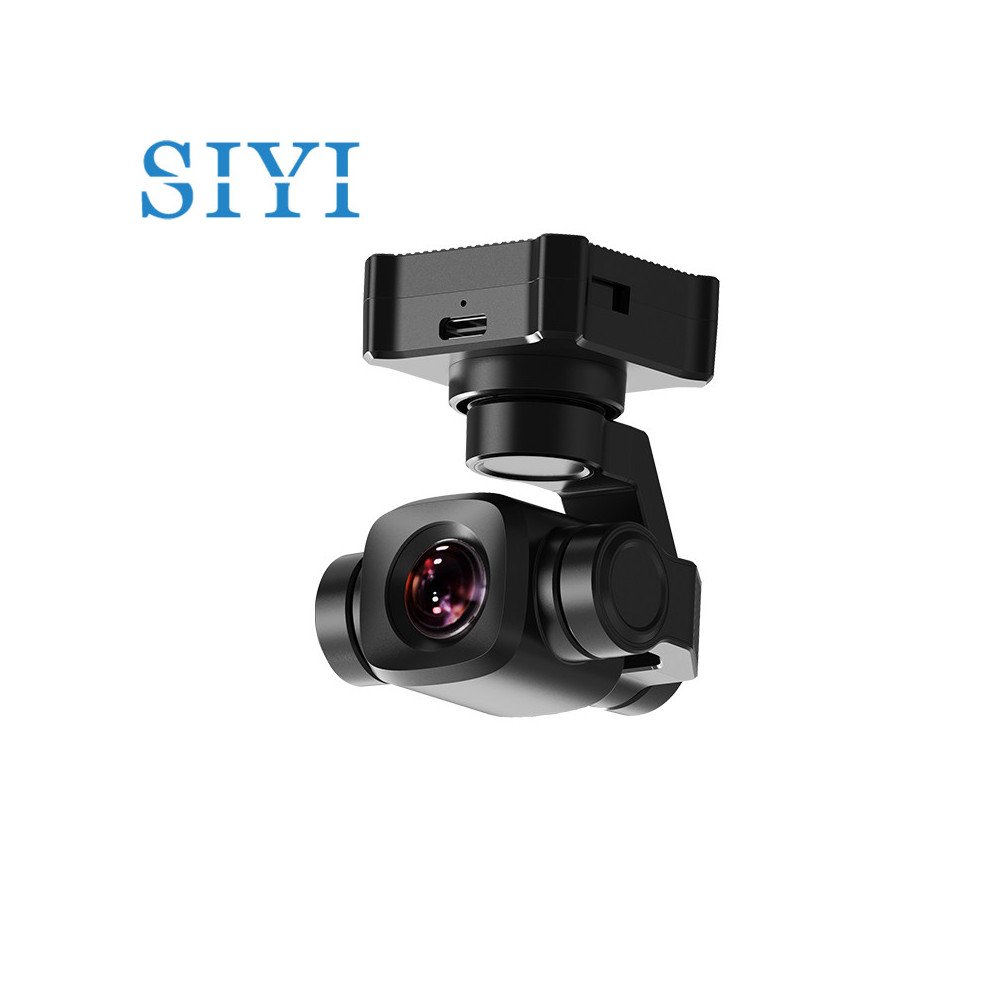

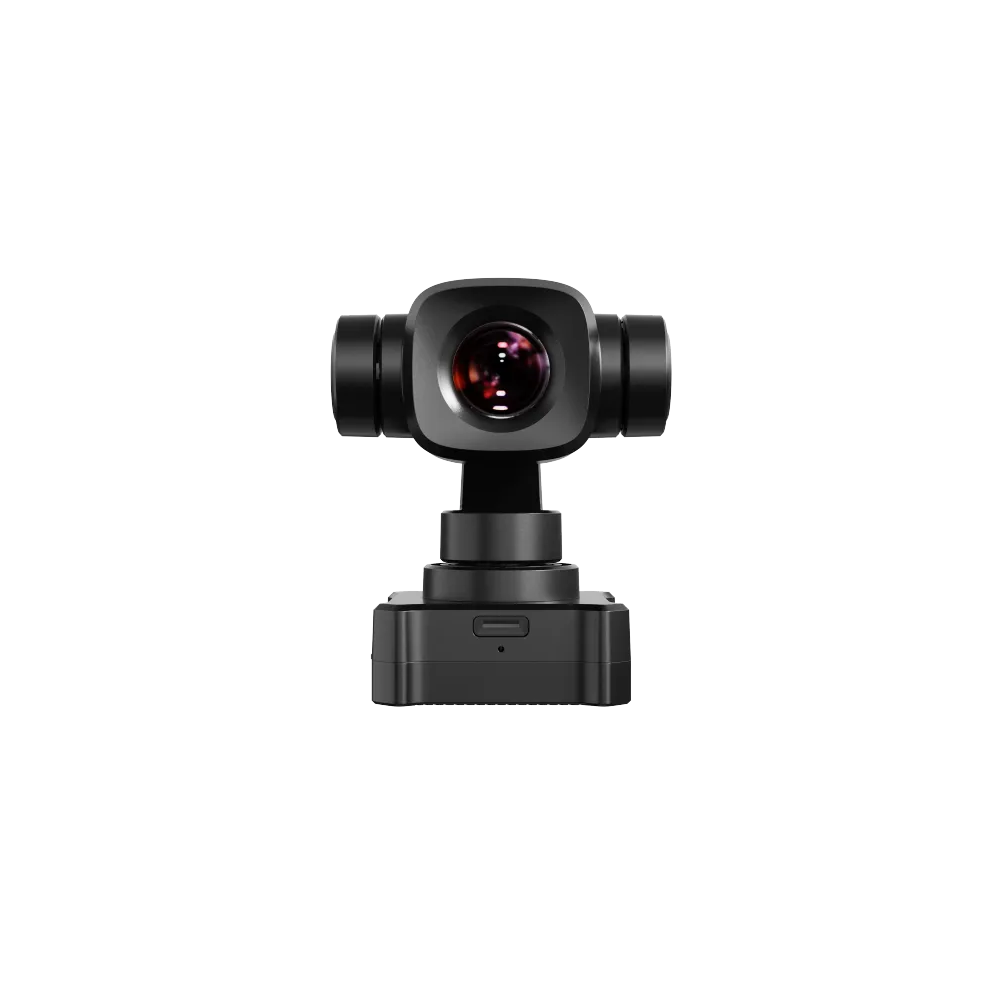

The SIYI A8 Mini 4K Mini Zoom Gimbal Camera is a compact and lightweight 3-axis stabilized camera designed for UAV, UGV, USV, RC plane, and FPV drone applications. With a 1/1.7″ Sony CMOS sensor, 8MP resolution, 4K video recording, and 6× digital zoom, it delivers sharp imaging performance in a small and easy-to-integrate format.
Designed for professional aerial imaging, FPV monitoring, inspection, and remote operation, the A8 Mini combines stable gimbal control, flexible video outputs, and advanced compatibility with modern drone platforms.
4K Ultra HD Imaging
The A8 Mini features a 1/1.7″ Sony CMOS sensor with 8MP effective resolution.
It supports 4K ultra HD video recording and high-quality photography, making it suitable for aerial imaging, inspection, and professional drone operation.
6× Digital Zoom
The integrated 6× digital zoom allows operators to observe distant subjects more clearly.
This makes the A8 Mini suitable for inspection, monitoring, surveying, and remote situational awareness missions.
3-Axis Gimbal Stabilization
The A8 Mini uses a 3-axis stabilized gimbal for smooth and stable video output.
With ±0.01° angular vibration control, it helps reduce image shake and maintain reliable framing during flight or vehicle operation.
Compact & Lightweight Design
With a weight of approximately 95 g and compact dimensions of 55 × 55 × 70 mm, the A8 Mini is easy to integrate into small and medium UAV platforms.
Its lightweight structure helps reduce payload impact while maintaining strong imaging performance.

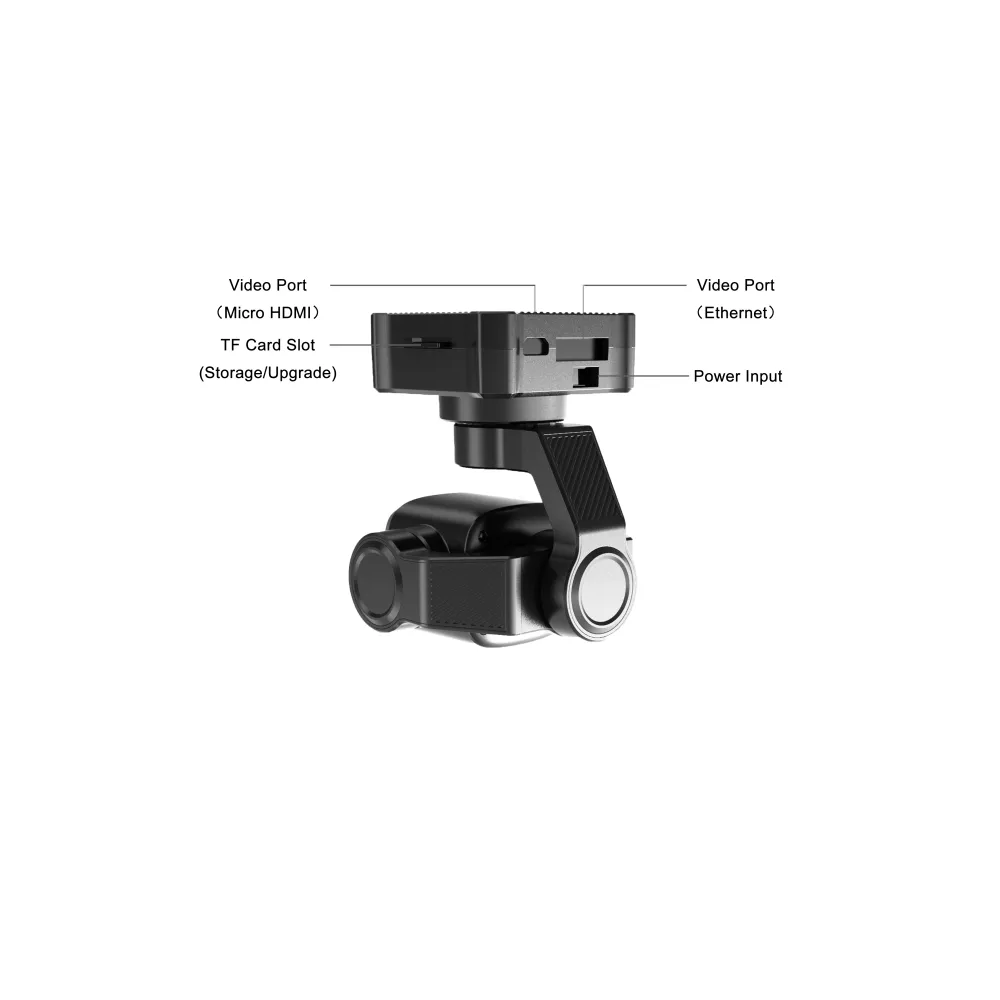

Flexible Video Output
The camera supports Ethernet, HDMI, and CVBS video output.
This provides flexible integration with different video transmission systems, ground stations, and professional UAV setups.
Wide Platform Compatibility
The A8 Mini is compatible with ArduPilot and PX4 through Mavlink.

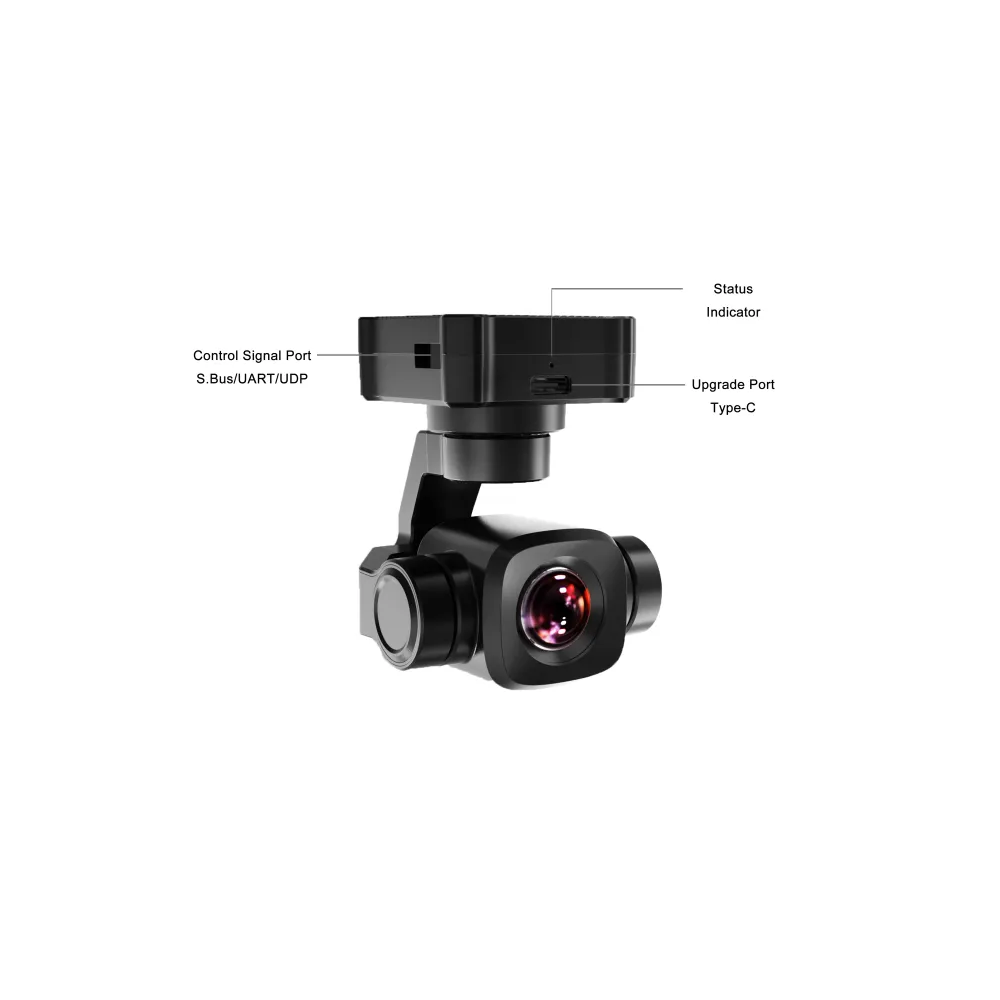

It also supports S.Bus, UART, and UDP control input, making it suitable for a wide range of UAV, UGV, USV, RC plane, and robotic applications.
Smart Mounting Modes
The A8 Mini supports Nose Mode and Upside Down Mode.
These modes provide flexible mounting options depending on the aircraft, vehicle, or mission configuration.
Technical Specifications
Product: SIYI A8 Mini 4K Mini Zoom Gimbal Camera
Application: UAV, UGV, USV, RC planes, FPV drones, inspection, monitoring, and aerial imaging
Camera Type: 4K mini zoom gimbal camera
Gimbal Type: 3-axis stabilized gimbal
Image Sensor: 1/1.7″ Sony CMOS
Effective Resolution: 8 MP
Video Resolution: 4K
Digital Zoom: 6×
Field of View: 93°
Focal Length: 21 mm
Aperture: F2.8
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° to +45°
Controllable Yaw Angle: -160° to +160°
Controllable Roll Angle: -30° to +30°
Video Output Port: Ethernet / HDMI / CVBS
Control Signal Input: S.Bus / UART / UDP
Control Signal Output: S.Bus
Working Voltage: 14.8 V
Power Consumption: 12 W
Working Temperature: -10°C to +50°C
Dimensions: 55 × 55 × 70 mm
Weight: Approx. 95 g
Compatibility: ArduPilot / PX4 via Mavlink
Special Modes: Nose Mode / Upside Down Mode
What’s Included
1× SIYI A8 Mini 4K Mini Zoom Gimbal Camera
