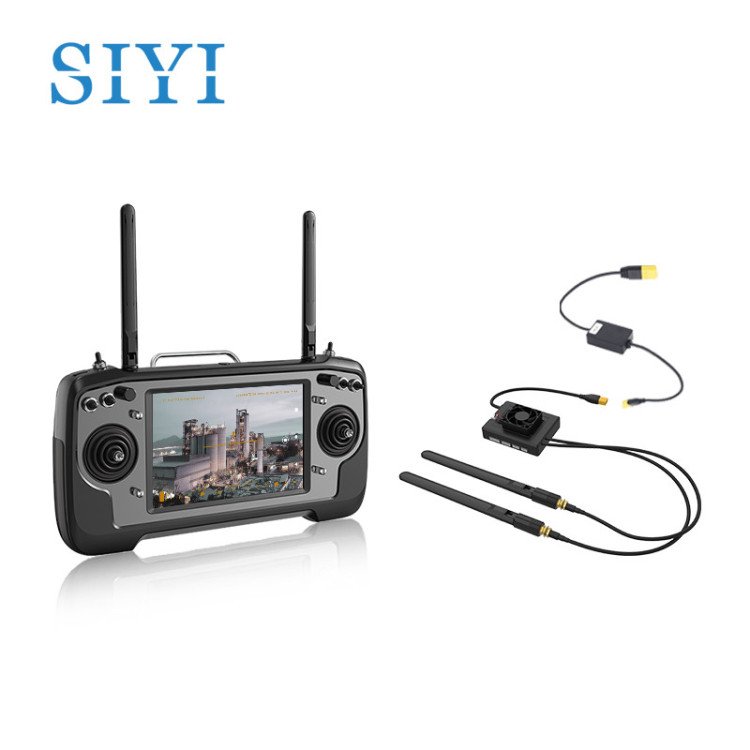

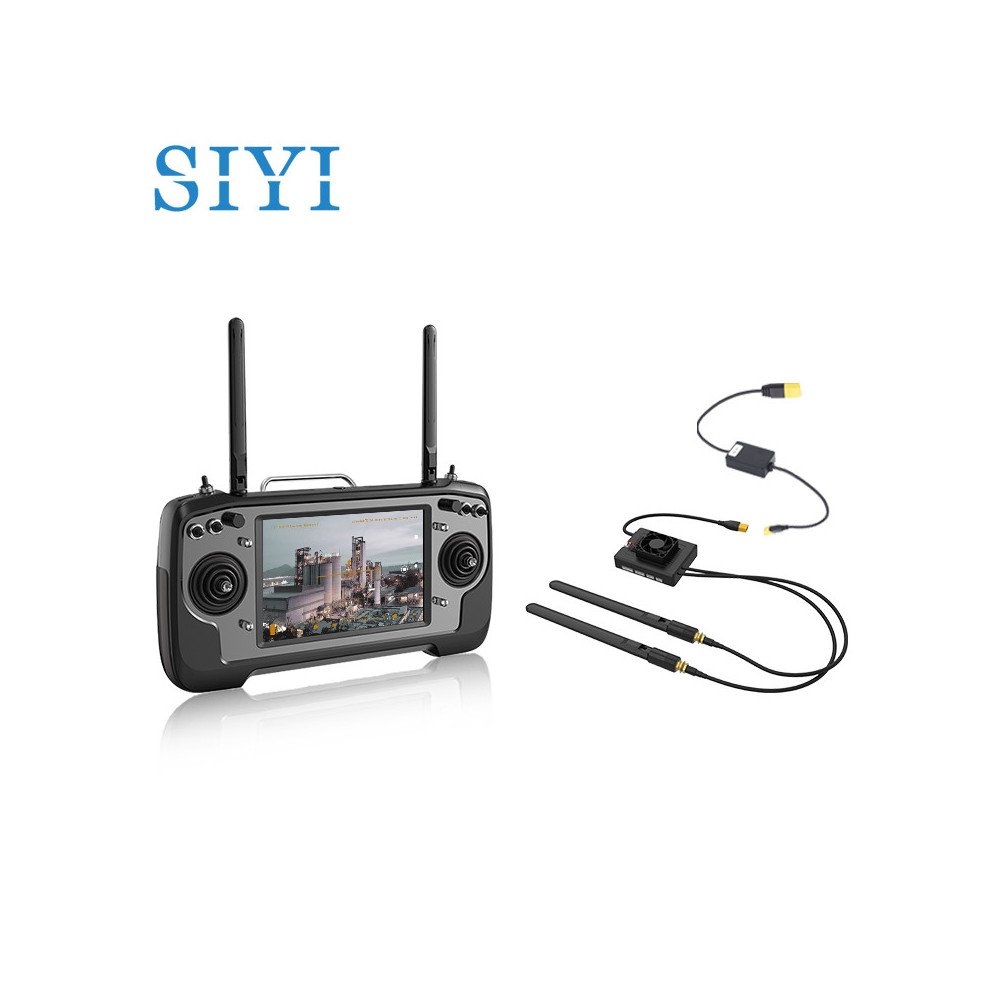

The SIYI MK32 Handheld Ground Station Standard Combo is a complete professional remote-control, telemetry datalink, and Full HD digital video transmission system designed for UAVs, UGVs, USVs, autonomous vehicles, inspection platforms, mapping aircraft, and industrial robotic applications.
The Standard Combo combines the MK32 Handheld Ground Station, MK32 Air Unit, long-range antennas, high-voltage step-down power module, connection cables, battery, storage case, and required accessories.
Unlike the MK32 HDMI Combo, the Standard Combo does not include the optional Air HDMI Input Converter.
Integrated Control, Datalink & Video Transmission
The MK32 combines three essential communication functions in one professional platform:
Remote Control
Telemetry Datalink
Dual Full HD Digital Video Transmission
This integrated architecture reduces the number of separate communication systems required and simplifies installation on professional UAV and robotic platforms.
Up to 15 km Transmission Range
The MK32 provides a maximum communication range of up to 15 km under unobstructed and interference-free operating conditions.
This makes it suitable for professional inspection, mapping, surveying, emergency response, autonomous navigation, surveillance, and long-range UAV applications.
Actual transmission range depends on local regulations, antenna installation, terrain, flight altitude, electromagnetic interference, aircraft configuration, and environmental conditions.
Dual 1080p Digital Video Transmission
The MK32 supports simultaneous dual Full HD digital video transmission.
The Qualcomm processing platform supports H.264 and H.265 hardware decoding for smooth real-time monitoring of compatible onboard cameras, FPV systems, gimbal cameras, and professional payloads.
Dual video capability is particularly useful for aircraft equipped with separate navigation and inspection cameras.
7-Inch High-Brightness Touchscreen

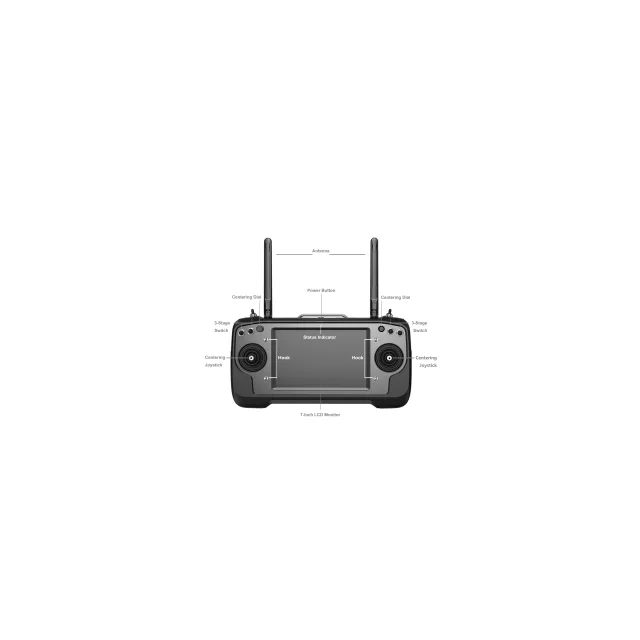

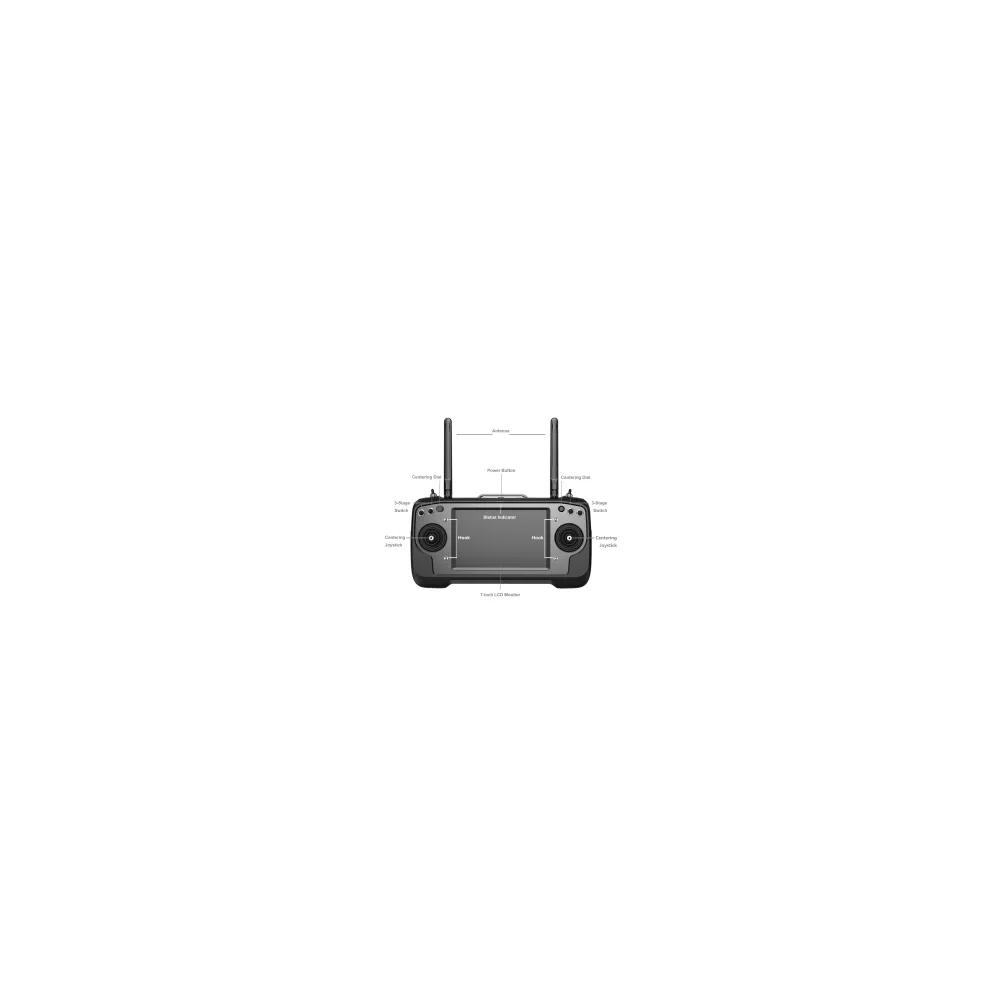

The MK32 Ground Station features a large 7-inch high-definition touchscreen designed for professional outdoor operation.
With brightness up to 1000 cd/m², the display provides clear visibility during daylight operations and allows live video, aircraft telemetry, mission information, and compatible ground-control software to be displayed directly on the controller.
Qualcomm 8-Core Android Platform
The integrated Qualcomm 8-core processor provides the performance required for professional ground-control applications and Full HD video decoding.
The Android 9.0 operating system supports compatible mission planning, telemetry, mapping, inspection, FPV, and autonomous vehicle software.
The controller includes:
4GB RAM
64GB Internal Storage
This provides storage capacity for applications, mission files, maps, operational data, and compatible ground-control software.
16 Physical Control Channels
The MK32 provides 16 physical control channels and 16 communication channels.
The configurable controls can be assigned to:
Aircraft Flight Functions
Gimbal Cameras
Landing Gear
Lighting Systems
Payloads
Servos and Actuators
Mission Equipment
Standard HDMI Output
The MK32 Ground Station includes a standard HDMI output.
Compatible video and display content can be connected to:
External Monitors
Professional Video Recorders
Command-Center Displays
Mission-Control Workstations
Broadcasting Systems
The Standard Combo does not include an aircraft-side HDMI Input Converter.
Ethernet Connectivity
The integrated LAN / Ethernet port provides wired network connectivity for compatible computers, networks, payload systems, and professional mission-control applications.
Ethernet can be used for video streaming, network communication, data transfer, and advanced system integration.
Long Battery Endurance

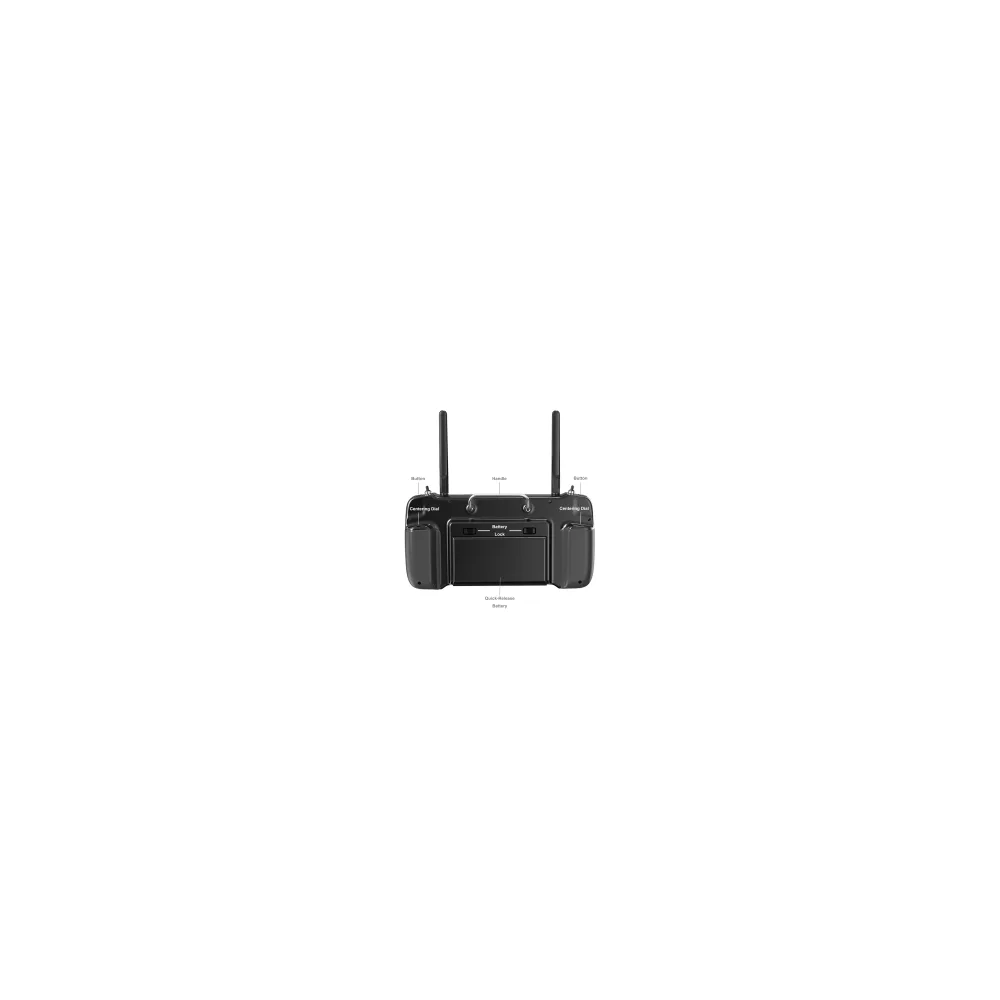

The MK32 uses a removable 10,200mAh 2S Li-ion battery with a total energy capacity of 75.48Wh.
Operating endurance can reach up to approximately 10 hours depending on display brightness, video processing, installed applications, wireless communication, operating conditions, and ambient temperature.
The controller supports 30W USB Type-C Power Delivery fast charging.
Extensive Ground Station Connectivity

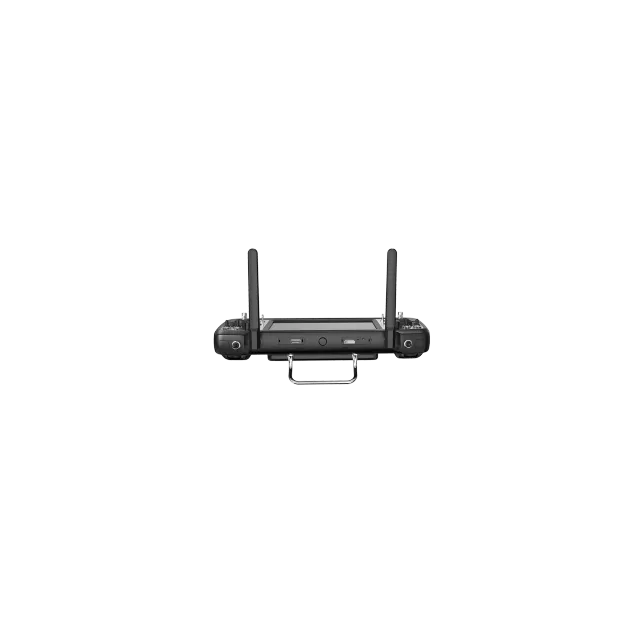

The MK32 provides multiple professional interfaces:
Standard HDMI Output
LAN / Ethernet Port
USB Type-A Port
USB Type-C Charging Port
USB Type-C Firmware Upgrade Interface
TF / MicroSD Card Slot
SIM Card Slot
RC Signal Input and Output
These interfaces provide flexible integration with external displays, computers, storage devices, mobile networks, and professional mission equipment.
MK32 Air Unit
The included MK32 Air Unit provides aircraft-side remote-control output, telemetry communication, digital video transmission, and Ethernet connectivity.
Available interfaces include:
16-Channel S.Bus Output
5-Channel PWM Output
UART Flight Controller Datalink
Ethernet Video and Network Input
USB Type-C Firmware Upgrade Interface
Wide Aircraft Voltage Compatibility
The included 4S–18S to 12V step-down power module allows the Air Unit to be integrated into high-voltage professional UAV power systems.
The module supports battery systems from 16.8V to 75.6V and provides regulated power for the aircraft-side communication equipment.
PX4 & ArduPilot Compatibility
The MK32 datalink supports PX4 and ArduPilot-based flight controllers.
It is compatible with SIYI N7, Pixhawk-compatible autopilots, and other supported professional flight-control platforms.
Compatible Ground-Control Software
The Android platform supports compatible applications including:
SIYI FPV
QGroundControl
Mission Planner
Compatible telemetry and video streams can also be accessed through supported Windows ground-control software.
Professional Applications
The SIYI MK32 Standard Combo is suitable for:
Professional Multirotor UAVs
Fixed-Wing Aircraft
VTOL Platforms
Inspection UAVs
Mapping and Surveying Aircraft
Emergency Response Systems
Security and Surveillance Platforms
UGVs and Autonomous Vehicles
USVs and Marine Robotics
Industrial Robotic Platforms
Research and Development Systems
Technical Specifications
Product: SIYI MK32 Handheld Ground Station Standard Combo
Application: UAVs, UGVs, USVs, autonomous vehicles, robotics, inspection, mapping, surveying, and professional video transmission
System Functions: Remote Control / Telemetry Datalink / Dual Full HD Video Transmission
Maximum Transmission Range: Up to 15 km
Transmission Conditions: Unobstructed and free of interference
Physical Control Channels: 16
Communication Channels: 16
Operating Temperature: -10°C to +50°C
MK32 Ground Station Specifications
Processor: Qualcomm 8-Core CPU
Operating System: Android 9.0
RAM: 4GB
Internal Storage: 64GB
Display Size: 7″
Display Type: High-Definition High-Brightness Touchscreen
Maximum Display Brightness: Up to 1000 cd/m²
Video Decoding: H.264 / H.265
Integrated Battery: 10,200mAh / 7.4V / 2S Li-ion
Battery Energy: 75.48Wh
Maximum Operating Time: Up to Approx. 10 Hours
Charging Standard: USB Type-C / PD 30W
Typical Charging Time: Approx. 3.5 Hours
Protection Level: IP4X
Video Output: Standard HDMI
Network Interface: LAN / Ethernet
External Device Interface: USB Type-A
Charging Interface: USB Type-C
Firmware Upgrade Interface: USB Type-C
File Transfer: USB Type-C / USB Type-A
Mobile Network: SIM Card Slot
External Storage: TF / MicroSD Card Slot / USB Storage
RC Signal Input and Output: Supported
Dimensions: 308 × 148 × 72 mm
Weight: Approx. 1440 g
MK32 Air Unit Specifications
Function: Remote Control / Telemetry / Digital Video Transmission
RC Signal Output: 16-Channel S.Bus
PWM Outputs: 5 Channels
S.Bus Interface: GH1.25 3-Pin
Flight Controller Datalink: UART / GH1.25 4-Pin
PWM Interface: GH1.25 6-Pin
Video and Network Interface: Ethernet / GH1.25 8-Pin
Firmware Upgrade Interface: USB Type-C
Standard Omnidirectional Antenna Gain: 5 dBi
Air Unit Input Voltage: 3–6S / 12.6–25.2V
Included Step-Down Power Module Input: 4–18S / 16.8–75.6V
Dimensions: 70 × 55 × 16 mm excluding antennas
Weight: Approx. 74 g excluding antennas
Weight with High-Voltage Power Module: Approx. 109 g
Average Power Consumption: Approx. 2.8W
Maximum Power Consumption: Approx. 12W
Package Specifications
Package Dimensions: 340 × 260 × 135 mm
Package Weight: Approx. 2418 g
What’s Included
1× SIYI MK32 Handheld Ground Station
1× SIYI MK32 Air Unit
1× MK32 Storage Case
1× MK32 Ground Station Battery
4× 5 dBi Omnidirectional Antennas
2× Range Extender Antennas
1× 30W PD Power Adapter
1× USB-C to USB-C PD Fast-Charging Cable
1× USB-C to USB-A Adapter
1× MK32 Air Unit S.Bus Cable
1× MK32 PWM Cable
1× MK32 Air Unit Data Cable
1× MK32 Air Unit 8-Pin Cable
1× GH1.25 4-Pin to RJ45 Ethernet Cable
1× 4S–18S to 12V Step-Down Power Module
1× MK32 Neck Strap
Flight controller, camera, gimbal, optical pod, Air HDMI Input Converter, aircraft frame, aircraft battery, propulsion system, and other UAV components are not included.
