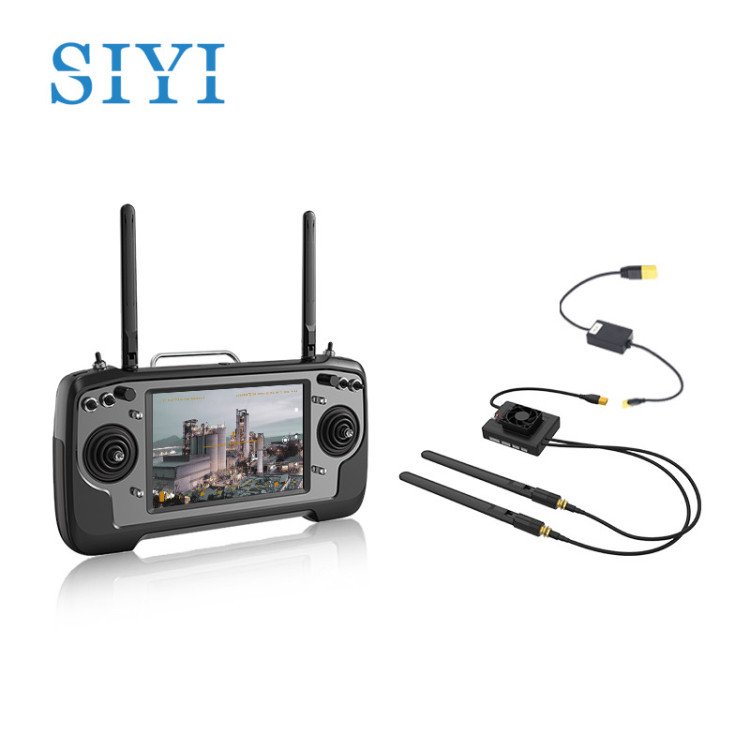

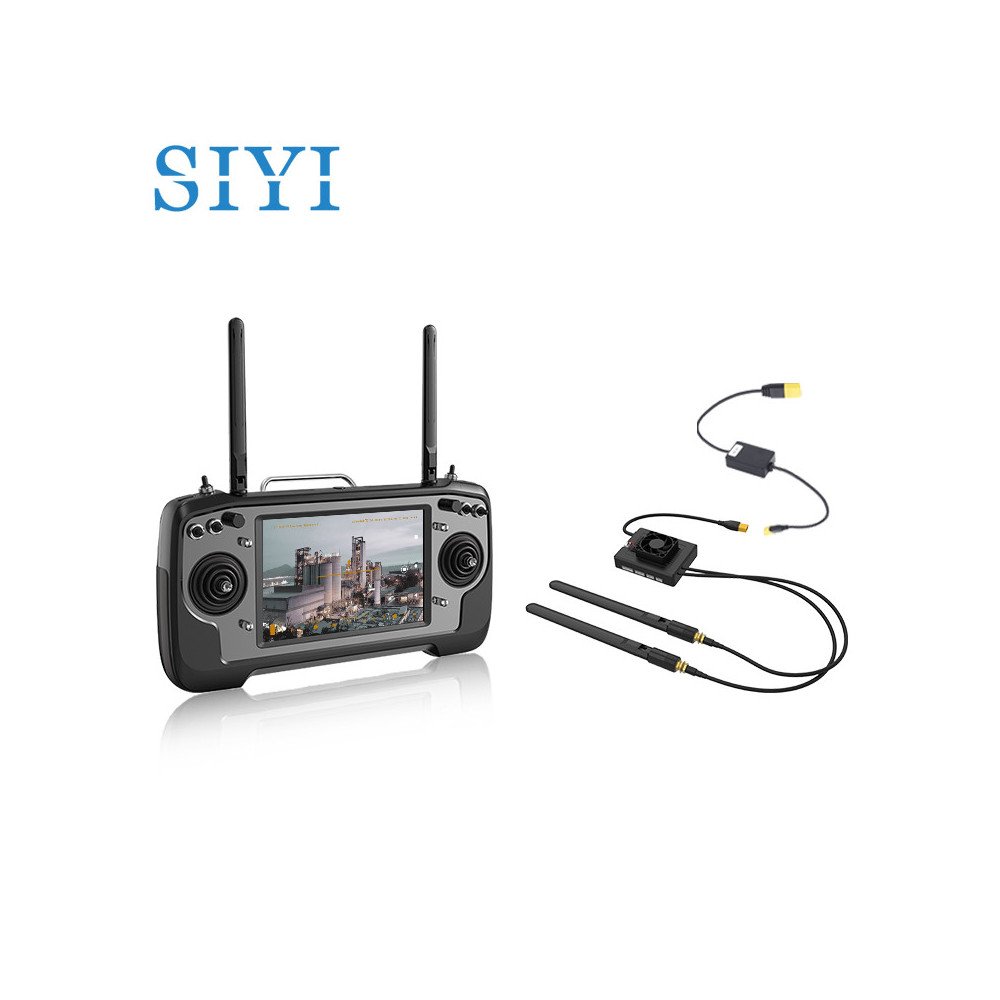

The SIYI MK32 Handheld Ground Station HDMI Combo is a complete professional remote-control, telemetry datalink, and Full HD digital video transmission system designed for UAVs, UGVs, USVs, autonomous vehicles, inspection platforms, mapping aircraft, and industrial robotic applications.
The HDMI Combo combines the MK32 Handheld Ground Station, MK32 Air Unit, long-range communication hardware, and SIYI Air HDMI Input Converter to provide aircraft control, telemetry transmission, real-time Full HD video, and direct integration with compatible Micro HDMI cameras and professional payloads.
Complete Control, Datalink & Video Transmission System
The MK32 integrates three essential communication functions into one professional platform:
Remote Control
Telemetry Datalink
Dual Full HD Digital Video Transmission
This integrated architecture reduces the number of separate communication devices required and simplifies installation on professional UAV and robotic systems.
Up to 15 km Transmission Range
The MK32 system provides a maximum transmission range of up to 15 km under unobstructed and interference-free operating conditions.
The included high-gain range extender antennas help optimize communication performance for professional inspection, mapping, surveillance, emergency response, autonomous navigation, and long-range UAV applications.
Actual transmission range depends on local regulations, antenna installation, operating altitude, terrain, electromagnetic interference, aircraft configuration, and environmental conditions.
Dual 1080p Digital Video Transmission
The MK32 supports dual Full HD digital image transmission.
Its integrated Qualcomm processing platform provides smooth hardware decoding of H.264 and H.265 video streams, allowing professional operators to monitor compatible onboard cameras and payload systems directly from the ground station.
Dual video support is particularly useful for aircraft equipped with multiple cameras, FPV systems, gimbal cameras, or professional inspection payloads.

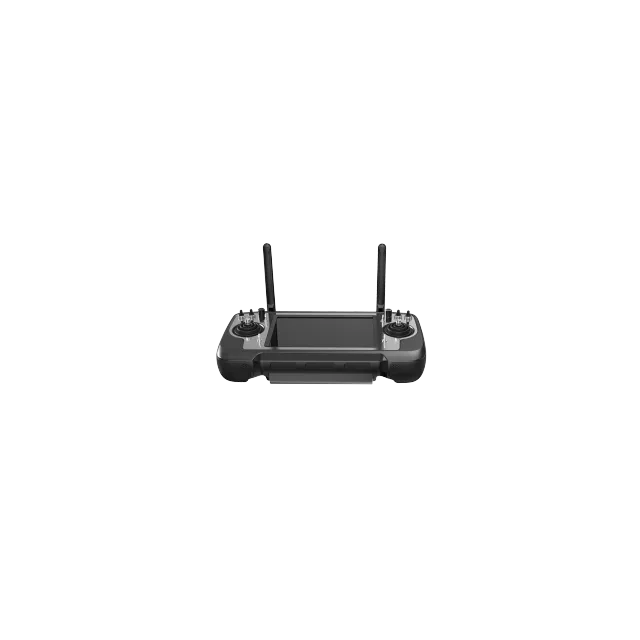

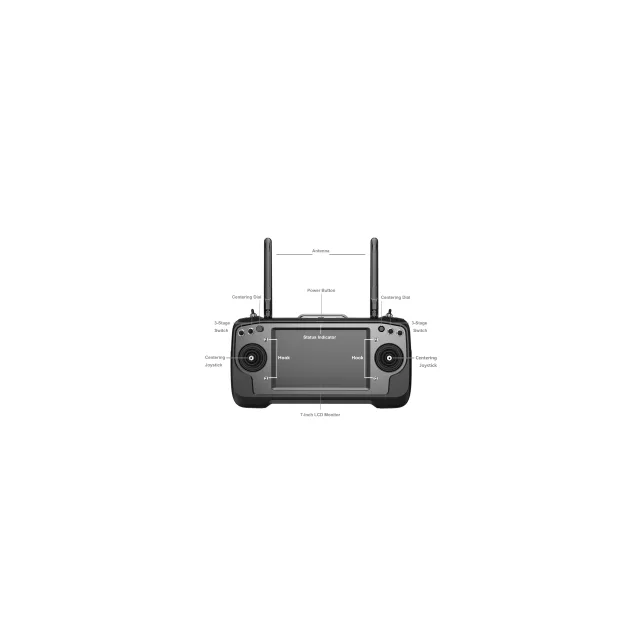

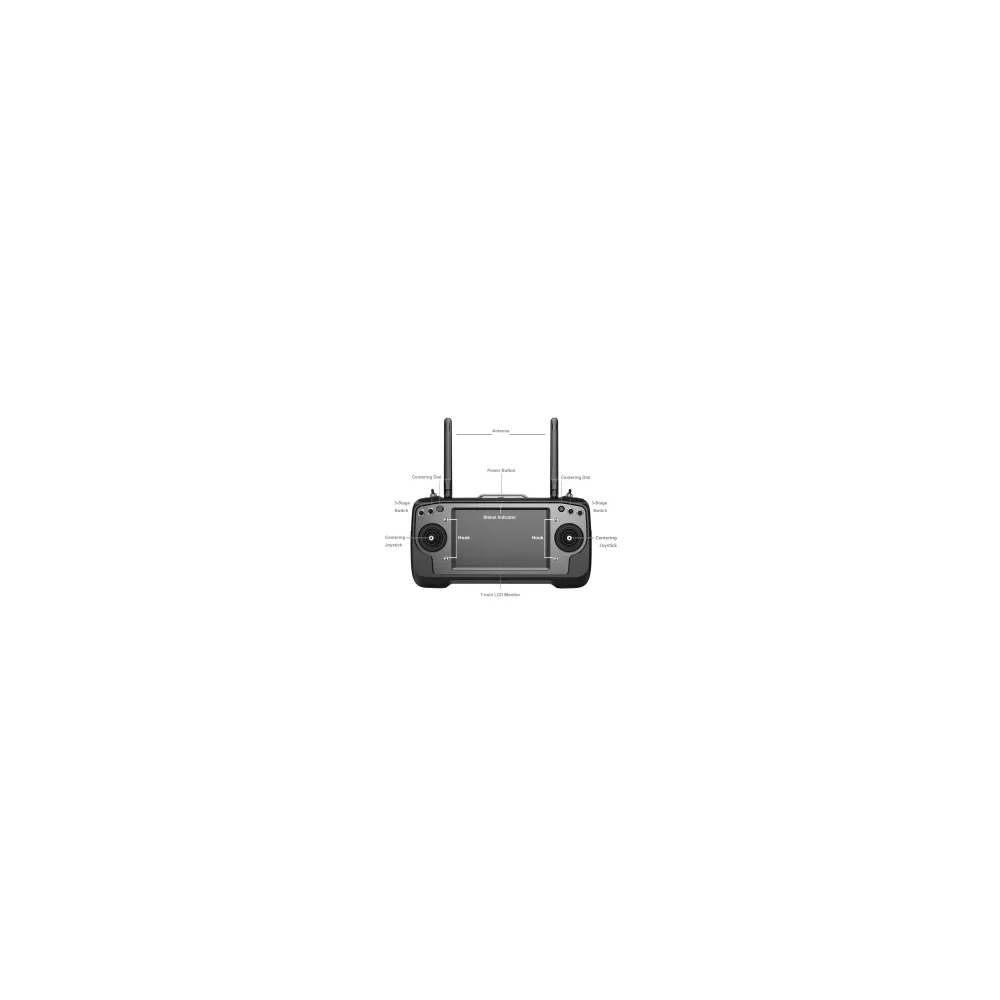

7-Inch High-Brightness Touchscreen
The MK32 Ground Station features an integrated 7-inch high-definition touchscreen designed for professional outdoor operation.
With brightness up to 1000 cd/m², the display provides clear visibility during daylight operations and allows live video, aircraft telemetry, mission information, and compatible ground-control software to be displayed directly on the controller.
Qualcomm 8-Core Android Platform
The integrated Qualcomm 8-core processor provides the computing performance required for smooth Full HD video decoding and professional ground-control applications.
The Android operating system supports compatible mission planning, telemetry, mapping, inspection, FPV, and autonomous vehicle software.
The controller includes:
4GB RAM
64GB Internal Storage
This provides sufficient performance and storage for professional applications, mission files, maps, software, and operational data.
16 Physical Control Channels
The MK32 provides 16 physical control channels and 16 communication channels.
The configurable control system supports aircraft functions, cameras, gimbals, landing gear, lighting systems, payloads, actuators, and additional mission equipment.
Integrated Ground HDMI Output
The MK32 Ground Station includes a standard HDMI video output.
This allows compatible display content and live video to be connected to:
External Monitors
Professional Video Recorders
Command-Center Displays
Broadcasting Systems
Mission-Control Workstations
Air HDMI Input Converter Included
The HDMI Combo includes the SIYI Air HDMI Input Converter.
The converter allows compatible cameras and payloads with a Micro HDMI output to be connected to the aircraft-side SIYI digital transmission system.
The converter receives the Micro HDMI video signal and outputs the video stream through Ethernet for transmission by the MK32 Air Unit.
Integrated HDMI Video Recording
The Air HDMI Input Converter supports onboard H.265 video recording.
Supported recording resolutions include:
1920 × 1080 @ 30 fps
1280 × 720 @ 30 fps
Recorded files can be stored on a compatible MicroSD Class 10 card.
Long Battery Endurance
The MK32 Ground Station uses a 10,200mAh 2S Li-ion battery with a total energy capacity of 75.48Wh.
Operating endurance can reach up to approximately 10 hours depending on display brightness, video decoding load, wireless communication, installed applications, environmental conditions, and operating temperature.
The controller supports 30W USB Type-C Power Delivery fast charging.

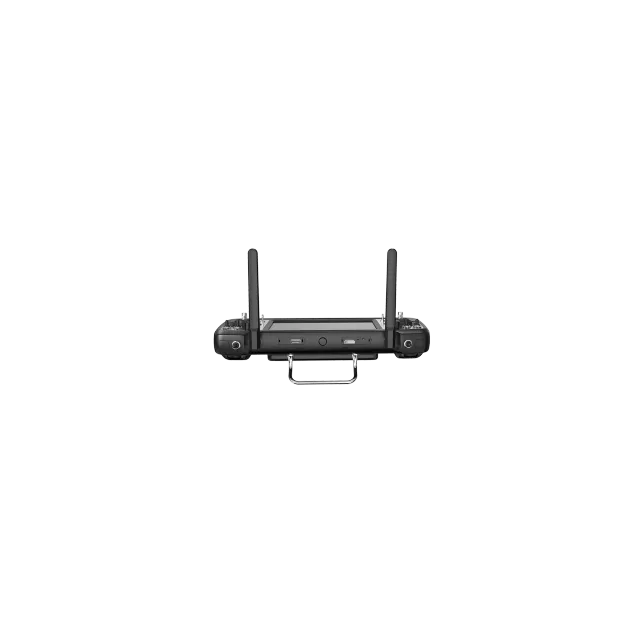

Extensive Ground Station Connectivity
The MK32 provides a wide range of professional interfaces:
Standard HDMI Video Output
LAN / Ethernet Port
USB Type-A Port
USB Type-C Charging Port
USB Type-C Firmware Upgrade Interface
TF / MicroSD Card Slot
SIM Card Slot
RC Signal Input and Output
These interfaces provide flexible integration with external displays, computers, storage devices, networks, remote-control systems, and professional mission equipment.
MK32 Air Unit
The included MK32 Air Unit provides aircraft-side remote-control output, telemetry communication, digital video transmission, and Ethernet connectivity.
Available interfaces include:
16-Channel S.Bus Output
5-Channel PWM Output
UART Flight Controller Datalink
Ethernet Video and Network Input
USB Type-C Firmware Upgrade Interface
Wide Aircraft Voltage Compatibility
The included 4S–18S step-down power module allows the aircraft-side communication system to operate from professional UAV battery systems.
The step-down module supports an input voltage from 16.8V to 75.6V and provides regulated power for the Air Unit and HDMI conversion system.
PX4 & ArduPilot Compatibility
The MK32 datalink supports PX4 and ArduPilot-based flight controllers.
It is compatible with SIYI N7, Pixhawk-compatible autopilots, and other supported professional flight-control platforms.
Compatible Ground-Control Software
The Android platform supports compatible applications including:
SIYI FPV
QGroundControl
Mission Planner
Compatible video and telemetry streams can also be accessed through supported Windows ground-control software.
Professional Applications
The SIYI MK32 HDMI Combo is suitable for:
Professional Multirotor UAVs
Fixed-Wing Aircraft
VTOL Platforms
Inspection UAVs
Mapping and Surveying Aircraft
Emergency Response Systems
Security and Surveillance Platforms
UGVs and Autonomous Vehicles
USVs and Marine Robotics
Industrial Robotic Platforms
Professional HDMI Cameras and Payloads
Technical Specifications
Product: SIYI MK32 Handheld Ground Station HDMI Combo
Application: UAVs, UGVs, USVs, autonomous vehicles, robotics, inspection, mapping, and professional video transmission
System Functions: Remote Control / Telemetry Datalink / Dual Full HD Digital Video Transmission
Maximum Transmission Range: Up to 15 km
Transmission Conditions: Unobstructed and free of interference
Physical Control Channels: 16
Communication Channels: 16
Operating Temperature: -10°C to +50°C
MK32 Ground Station Specifications
Processor: Qualcomm 8-Core CPU
Operating System: Android 9.0
RAM: 4GB
Internal Storage: 64GB
Display Size: 7″
Display Type: High-Definition High-Brightness Touchscreen
Maximum Display Brightness: Up to 1000 cd/m²
Video Decoding: H.264 / H.265
Integrated Battery: 10,200mAh / 7.4V / 2S Li-ion
Battery Energy: 75.48Wh
Maximum Operating Time: Up to Approx. 10 Hours
Charging Standard: USB Type-C / PD 30W
Typical Charging Time: Approx. 3.5 Hours
Protection Level: IP4X
Video Output: Standard HDMI
Network Interface: LAN / Ethernet
External Device Interface: USB Type-A
Charging Interface: USB Type-C
Firmware Upgrade Interface: USB Type-C
File Transfer: USB Type-C / USB Type-A
Mobile Network: SIM Card Slot
External Storage: TF / MicroSD Card Slot / USB Storage
RC Signal Input and Output: Supported
Dimensions: 308 × 148 × 72 mm
Weight: Approx. 1440 g
MK32 Air Unit Specifications
Function: Remote Control / Telemetry / Digital Video Transmission
RC Signal Output: 16-Channel S.Bus
PWM Outputs: 5 Channels
S.Bus Connector: GH1.25 3-Pin
Flight Controller Datalink: UART / GH1.25 4-Pin
PWM Connector: GH1.25 6-Pin
Video and Network Interface: Ethernet / GH1.25 8-Pin
Firmware Upgrade Interface: USB Type-C
Omnidirectional Antenna Gain: 5 dBi
Air Unit Input Voltage: 3–6S / 12.6–25.2V
Included Step-Down Power Module Input: 4–18S / 16.8–75.6V
Dimensions: 70 × 55 × 16 mm excluding antennas
Weight: Approx. 74 g excluding antennas
Weight with High-Voltage Power Module: Approx. 109 g
Average Power Consumption: Approx. 2.8W
Peak Power Consumption: Approx. 12W
Air HDMI Input Converter Specifications
Video Input: Micro HDMI
Video Output: Ethernet
Operating Voltage: 12V
Power Consumption: Approx. 3W
Recording Resolution: 1920 × 1080 @ 30 fps / 1280 × 720 @ 30 fps
Recording Codec: H.265
Recording Bitrate: Approx. 12 Mbps
File System: FAT32
Supported Memory Card: MicroSD Class 10 / Less Than 32GB
Dimensions: 42 × 41 × 11 mm
Weight: Approx. 26 g
Operating Temperature: -10°C to +50°C
Package Specifications
Package Dimensions: 340 × 260 × 135 mm
Package Weight: Approx. 2418 g
What’s Included
1× SIYI MK32 Handheld Ground Station
1× SIYI MK32 Air Unit
1× SIYI Air HDMI Input Converter
1× MK32 Storage Case
1× MK32 Ground Station Battery
4× 5 dBi Omnidirectional Antennas
2× Range Extender Antennas
1× 30W PD Power Adapter
1× USB-C to USB-C PD Fast-Charging Cable
1× USB-C to USB-A Adapter
1× MK32 Air Unit S.Bus Cable
1× MK32 PWM Cable
1× MK32 Air Unit Data Cable
1× MK32 Air Unit 8-Pin Cable
1× GH1.25 4-Pin to RJ45 Ethernet Cable
1× 4S–18S to 12V Step-Down Power Module
1× MK32 Neck Strap
Flight controller, camera, gimbal, optical pod, MicroSD card, aircraft frame, battery, propulsion system, and other UAV components are not included.
