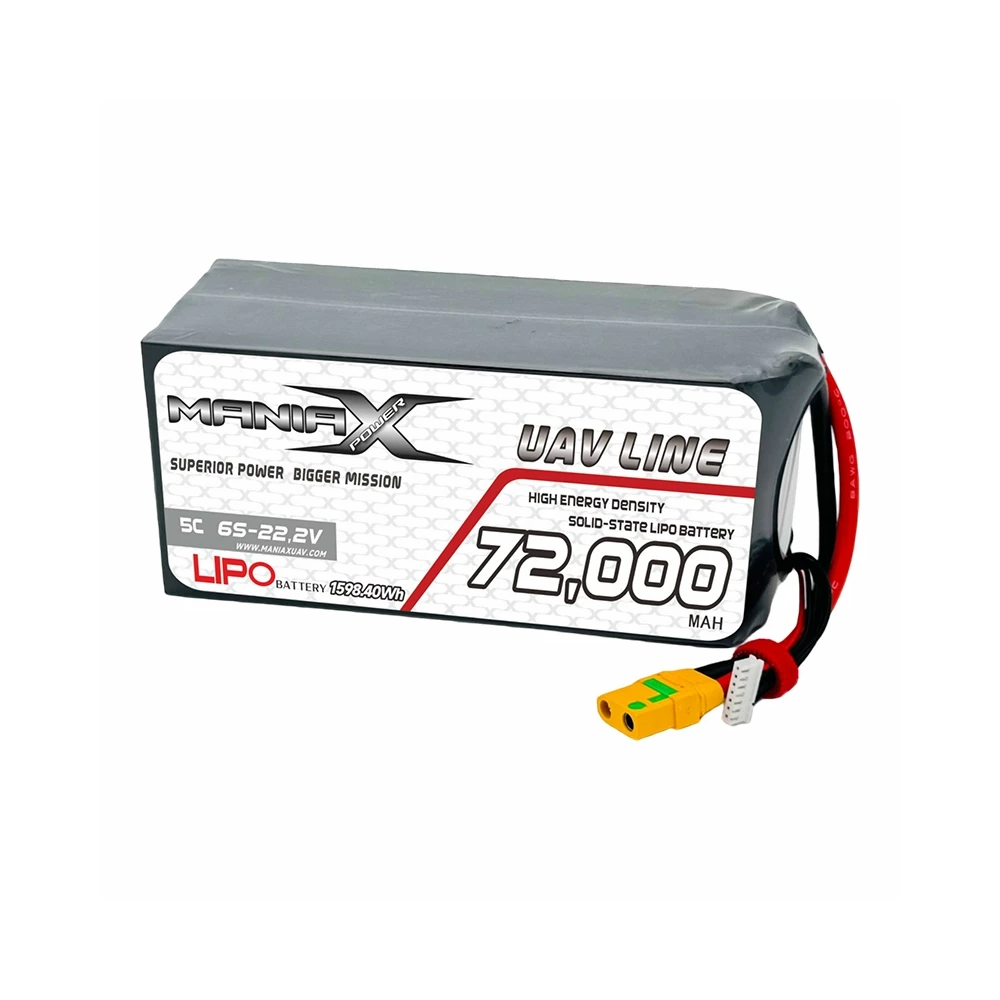

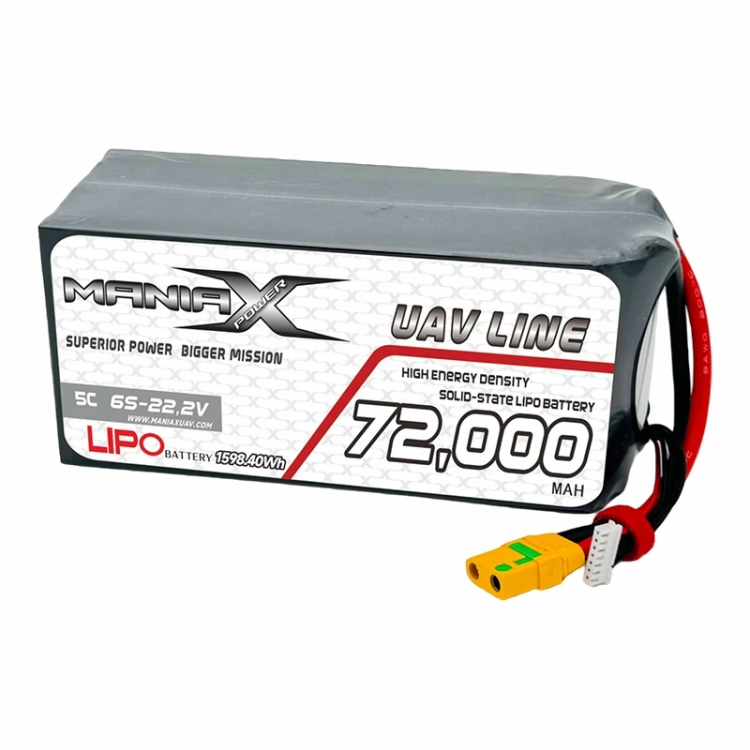

MANIAX-6S-72AH-5C-400WH

The ManiaX 400Wh/kg Solid-State LiPo 6S 22.2V 72,000mAh 5C Drone Battery is a professional high-energy UAV battery designed for industrial drones, eVTOL aircraft, long-endurance multirotors, mapping platforms, inspection drones, and professional electric propulsion systems.

Built with 400Wh/kg solid-state LiPo battery technology, this 6S 22.2V ManiaX battery offers a strong balance between high energy density, large capacity, stable discharge performance, and reliable power delivery for demanding drone operations.

High-Capacity 6S UAV Battery

The ManiaX 6S 22.2V 72,000mAh battery is designed for UAV platforms requiring a large energy reserve and efficient battery performance.

With its 72Ah capacity and 22.2V nominal voltage, it provides reliable energy storage for professional drone systems where flight endurance, voltage stability, and energy efficiency are important.

This makes it suitable for industrial UAVs, eVTOL systems, long-range drones, mapping aircraft, aerial survey platforms, and professional multirotor applications.

400Wh/kg Solid-State LiPo Technology

This ManiaX 400Wh/kg Solid-State LiPo battery is part of ManiaX’s high-energy density UAV battery range.

The solid-state LiPo technology is designed to improve energy density and support longer flight duration compared with conventional battery solutions.

Its construction helps optimize the balance between capacity, weight, voltage stability, and power output, making it a strong choice for professional UAV builders and integrators.

5C Continuous Discharge Performance

The ManiaX 6S 72Ah 5C battery supports a 5C continuous discharge rate, making it suitable for drone applications requiring smooth and stable current delivery during long-duration flight.

This discharge capability helps power motors, ESCs, and onboard electronics with consistent performance during professional UAV missions.

It is especially useful for long-endurance platforms, efficient multirotor systems, eVTOL aircraft, and industrial drones where stable power output is required.

Compact Format for Large Capacity

With dimensions of 50 × 150 × 285 mm and a weight of approximately 4320 g, the ManiaX 6S 72,000mAh batteryoffers a high-capacity format for professional UAV integration.

Its design is suitable for aircraft where battery placement, center of gravity, payload capacity, and flight endurancemust be carefully optimized.

Professional UAV Applications

The ManiaX 400Wh/kg Solid-State LiPo 6S 22.2V 72,000mAh 5C Battery is ideal for professional UAVs, industrial drones, eVTOL platforms, mapping aircraft, inspection drones, long-endurance multirotors, and electric propulsion systems.

Its combination of 6S voltage, 72Ah capacity, 400Wh/kg energy density, and solid-state LiPo technology makes it a reliable power solution for demanding drone missions.

Technical Specifications

Product: ManiaX 400Wh/kg Solid-State LiPo 6S 22.2V 72,000mAh 5C Drone / UAV / eVTOL Battery
Brand: ManiaX
Battery Type: Solid-State LiPo Battery
Energy Density: 400Wh/kg
Voltage: 6S / 22.2V
Capacity: 72,000mAh
Continuous Discharge Rate: 5C
Charging Current: 1–3C
Dimensions: 50 × 150 × 285 mm
Weight: Approx. 4320 g
Balance Connector: JST-XHR
Discharge Plug: XT90 & Optional
Recommended Use: UAVs, eVTOL aircraft, industrial drones, mapping drones, inspection drones, long-endurance multirotors and professional electric propulsion systems
