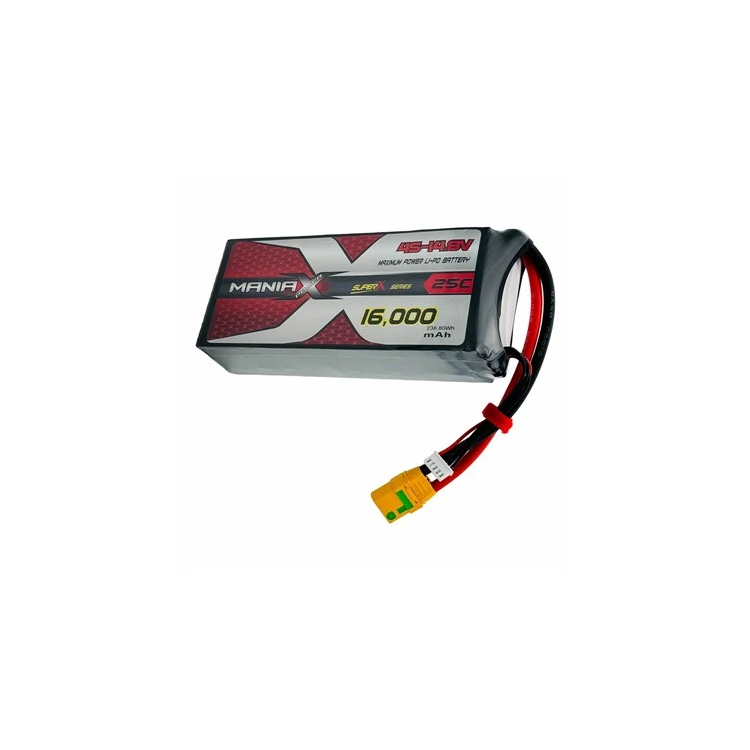

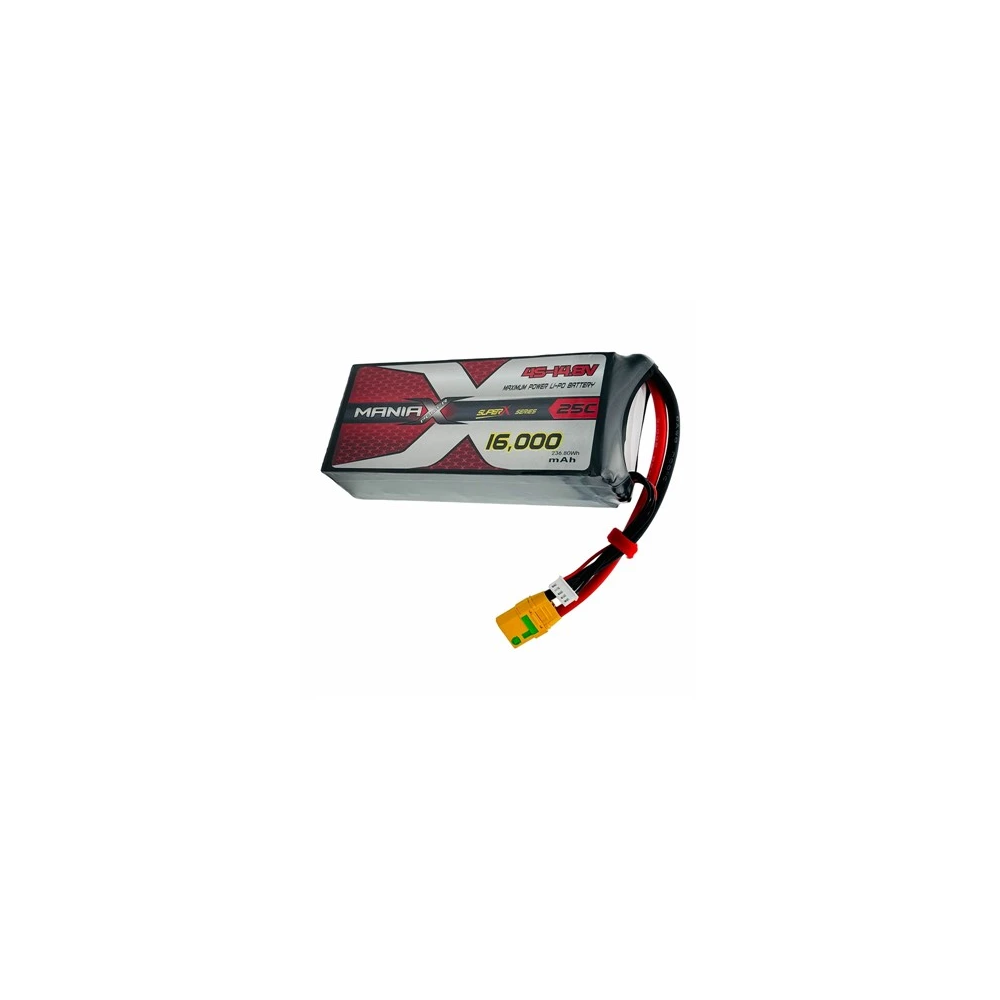

ManiaX 4S 16Ah 25C LiPo Battery

The ManiaX 4S 14.8V 16,000mAh 25C LiPo Battery is designed for professional drones, UAVs, multirotors, and electric aerial platforms requiring high capacity, reliable discharge performance, and extended operating endurance.

With a nominal voltage of 14.8V, a capacity of 16Ah, and a 25C discharge rating, this battery provides a strong balance between energy capacity, power delivery, and integration weight for demanding UAV applications.

High-Capacity 4S UAV Battery

The 16,000mAh capacity provides a large onboard energy reserve for extended flight duration and improved mission efficiency.

Its 4S / 14.8V configuration is suitable for UAV propulsion systems and professional platforms designed around lower-voltage, high-capacity battery architectures.

236.8Wh Nominal Energy

With a nominal energy capacity of approximately 236.8Wh, the battery provides substantial energy storage for professional aerial applications.

This makes it suitable for platforms where endurance, payload capability, and consistent power delivery are important.

25C Discharge Performance

The 25C discharge rating provides stable current delivery for demanding drone and UAV propulsion systems.

With a 16Ah capacity, the battery offers a theoretical continuous discharge capability of up to 400A.

Actual usable current depends on the connector, wiring, cooling, battery temperature, operating conditions, and propulsion-system configuration.

Low Internal Resistance

The ManiaX battery is designed with low internal resistance to help reduce voltage sag during demanding flight phases.

This supports stable motor response, efficient ESC operation, and consistent propulsion performance throughout the discharge cycle.

1–3C Charging Capability

The battery supports a charging current from 1C to 3C when used with an appropriate LiPo balance charger.

Always follow the battery manufacturer’s charging recommendations and use suitable charging equipment with the correct voltage, current, and cell-count settings.

Compact High-Capacity Format

With dimensions of 45 × 75 × 184 mm and a weight of approximately 1320 g, the battery is designed for integration into professional UAV and multirotor platforms.

Its rectangular format simplifies battery mounting and helps with aircraft center-of-gravity adjustment.

XT90 Power Connection

The battery is available with an XT90 discharge connector or optional connector configurations.

The JST-XHR balance connector allows individual cell monitoring and balancing during charging.

Always verify that the power connector, wiring, ESCs, and power-distribution system are correctly rated for the expected operating current.

Professional UAV Applications

The ManiaX 4S 16Ah 25C LiPo Battery is suitable for:

Professional Multirotor UAVs
Industrial Drones
Mapping and Surveying Platforms
Inspection Drones
Long-Endurance UAV Systems
Research and Development Aircraft
Custom Electric Propulsion Platforms

Technical Specifications

Product: ManiaX 4S 16Ah 25C LiPo Battery
Brand: ManiaX
Battery Type: Lithium Polymer / LiPo
Application: Professional Drones, UAVs, and Multirotor Platforms
Cell Configuration: 4S1P
Nominal Voltage: 14.8V
Capacity: 16,000mAh / 16Ah
Nominal Energy: Approx. 236.8Wh
Continuous Discharge Rate: 25C
Theoretical Continuous Current: Up to 400A
Recommended Charging Current: 1–3C
Balance Connector: JST-XHR
Discharge Connector: XT90 or Optional
Dimensions: 45 × 75 × 184 mm
Weight: Approx. 1320 g

Safety Precautions

Do not overcharge or over-discharge the battery.

Always use a compatible LiPo balance charger with the correct cell count and charging settings.

Do not short-circuit, puncture, crush, impact, disassemble, or modify the battery.

Do not expose the battery to fire, water, excessive heat, or direct sunlight for extended periods.

Always inspect the battery, cables, and connectors before use.

Do not use or charge a damaged, swollen, leaking, or overheated battery.

Store the battery at an appropriate LiPo storage voltage in a cool, dry, and fire-resistant location.

What’s Included

1× ManiaX 4S 14.8V 16,000mAh 25C LiPo Battery
