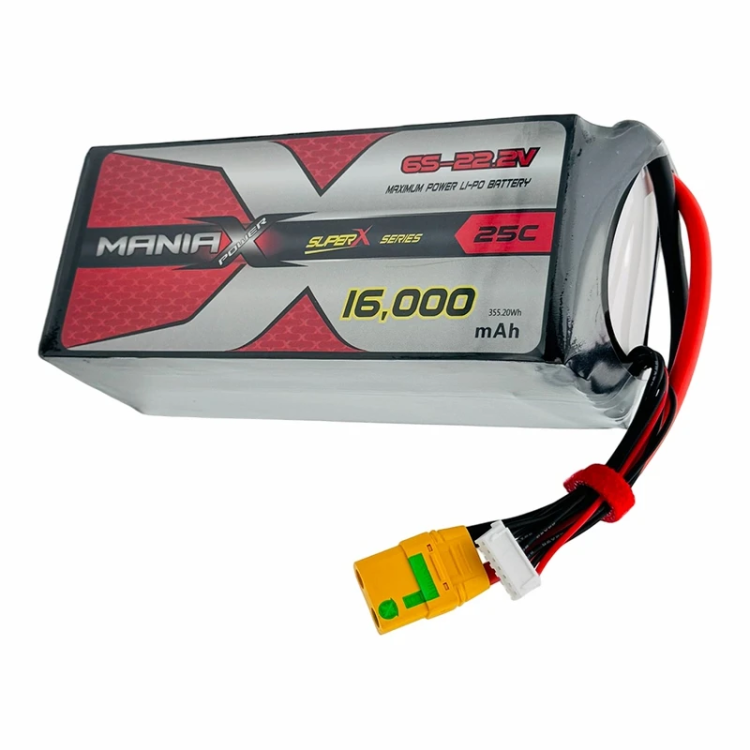

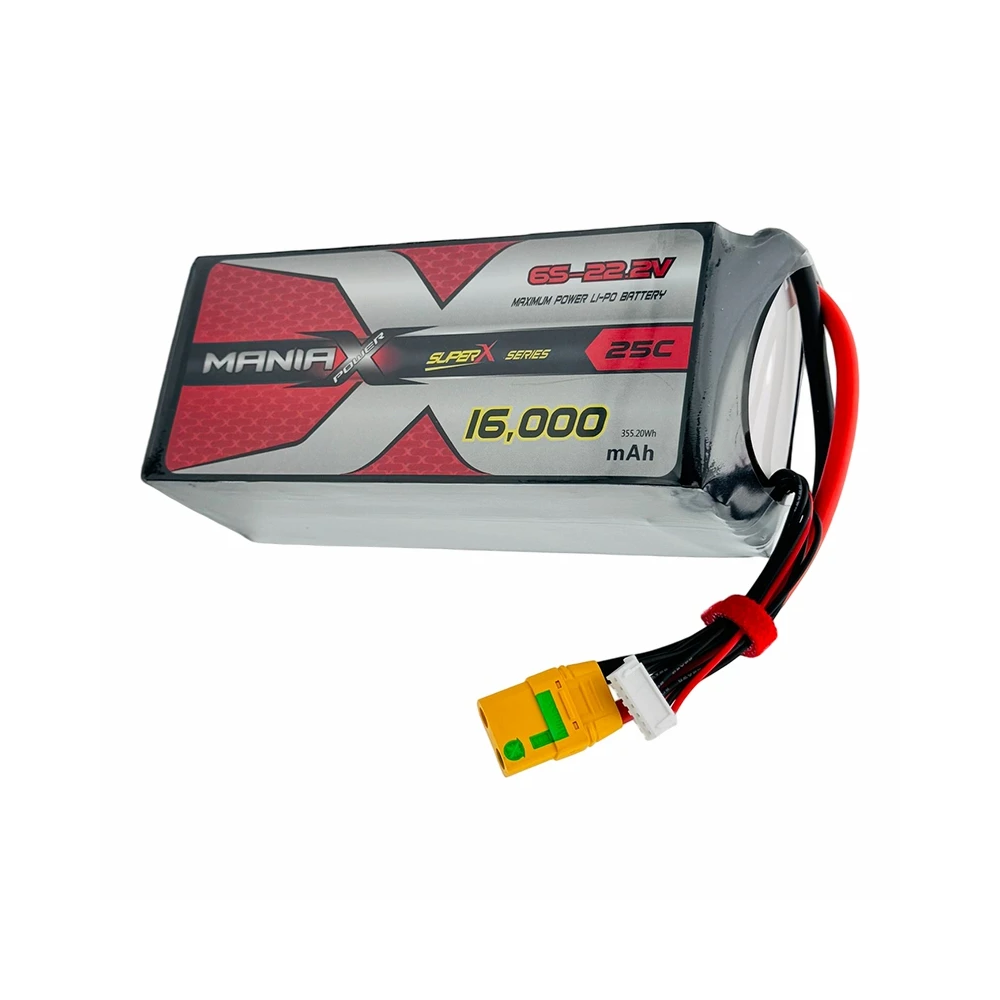

ManiaX 6S 16Ah 25C LiPo Battery

The ManiaX 6S 22.2V 16,000mAh 25C LiPo Battery is designed for professional drones, UAVs, industrial multirotors, and aerial platforms requiring high capacity, reliable discharge performance, and extended flight endurance.

With a nominal voltage of 22.2V, a capacity of 16Ah, and a 25C discharge rate, this battery provides stable power delivery for demanding electric propulsion systems.

High-Capacity 6S UAV Battery

The 16,000mAh capacity provides a large energy reserve for extended flight duration and improved mission efficiency.

Its 6S / 22.2V configuration is suitable for UAV propulsion systems requiring reliable voltage stability and consistent power output.

355.2Wh Energy Capacity

With a total nominal energy of approximately 355.2Wh, the battery is designed for aircraft requiring increased endurance and high onboard energy capacity.

It is suitable for professional applications where flight time, payload capability, and reliable power delivery are essential.

25C Discharge Performance

The 25C discharge rating provides stable current delivery for demanding drone and UAV propulsion systems.

With a 16Ah capacity, the battery offers a theoretical continuous discharge capability of up to 400A under suitable operating conditions.

Actual usable current depends on the connector, cable configuration, cooling, battery temperature, aircraft setup, and manufacturer operating limits.

Stable Power Delivery

The ManiaX battery is designed to provide consistent voltage and reliable performance throughout the discharge cycle.

Its high-capacity cell configuration helps reduce voltage drop during demanding flight phases and supports efficient operation of motors, ESCs, and onboard systems.

Heavy-Duty 8AWG Power Cables

The battery is equipped with heavy-duty 8AWG power cables for efficient current transmission.

The 14 cm cable length provides flexibility when integrating the battery into professional UAV frames and power-distribution systems.

XT90 Power Connector

The integrated XT90 connector provides a reliable connection for compatible UAV propulsion systems.

Always verify that the connector, wiring, ESCs, and power-distribution system are correctly rated for the expected operating current.

Professional UAV Applications

The ManiaX 6S 16Ah 25C LiPo Battery is suitable for:

Professional Multirotor UAVs
Industrial Drones
Agricultural UAVs
Mapping and Surveying Platforms
Inspection Drones
Heavy-Lift Multirotors
Long-Endurance UAV Systems
Custom Electric Propulsion Platforms

Technical Specifications

Product: ManiaX 6S 16Ah 25C LiPo Battery
Brand: ManiaX
Battery Type: Lithium Polymer / LiPo
Application: Professional Drones, UAVs, and Multirotor Platforms
Cell Configuration: 6S
Nominal Voltage: 22.2V
Capacity: 16,000mAh / 16Ah
Nominal Energy: Approx. 355.2Wh
Continuous Discharge Rate: 25C
Theoretical Continuous Current: Up to 400A
Power Connector: XT90
Power Cable Gauge: 8AWG
Power Cable Length: 14 cm
Dimensions: 67 × 75 × 184 mm
Weight: Approx. 1980 g

Safety Precautions

Do not overcharge or over-discharge the battery.

Always use a compatible LiPo balance charger with the correct cell count and charging settings.

Do not short-circuit, puncture, crush, impact, disassemble, or modify the battery.

Do not expose the battery to fire, water, excessive heat, or direct sunlight for extended periods.

Always inspect the battery, cables, and connectors before use.

Do not use or charge a damaged, swollen, leaking, or overheated battery.

Store the battery at an appropriate LiPo storage voltage in a cool, dry, and fire-resistant location.

What’s Included

1× ManiaX 6S 22.2V 16,000mAh 25C LiPo Battery with XT90 Connector
