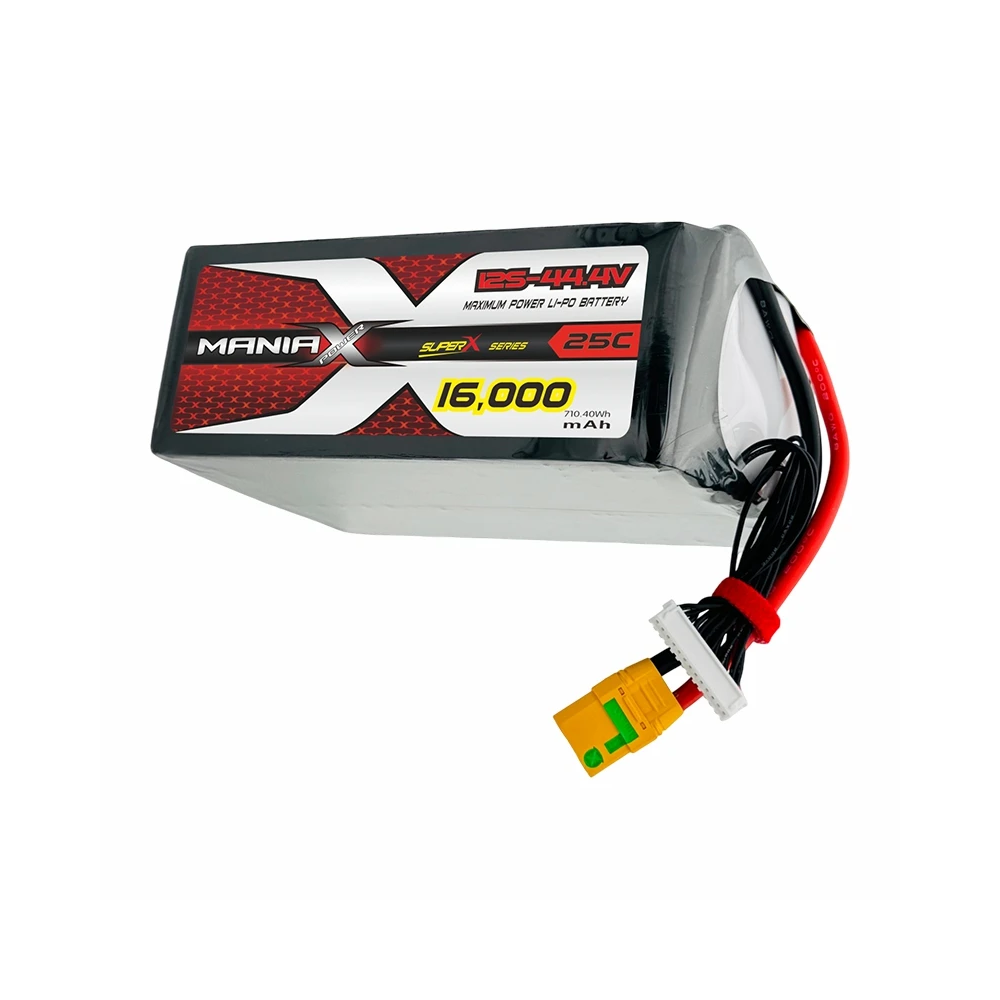

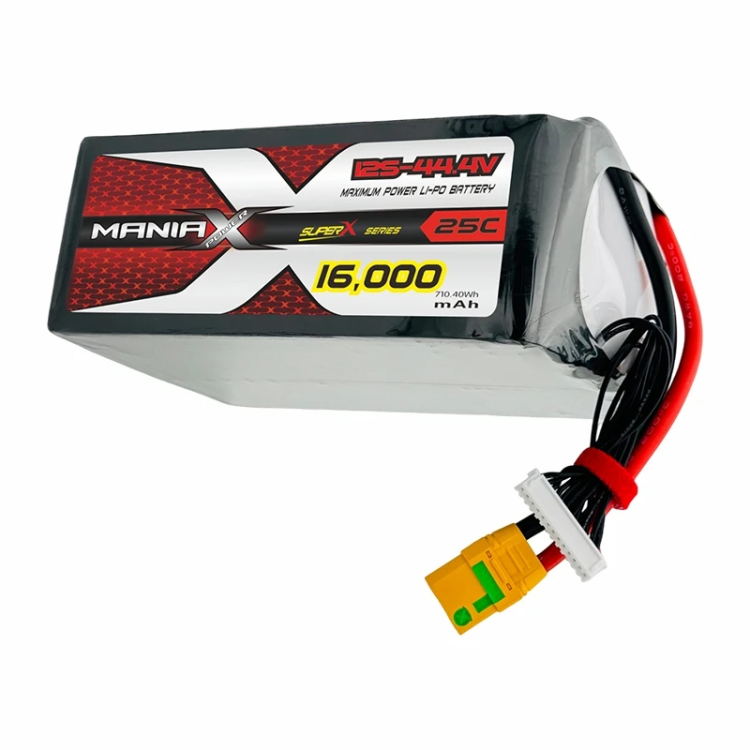

ManiaX 12S 16Ah 25C LiPo Battery

The ManiaX 12S 44.4V 16,000mAh 25C LiPo Battery is designed for professional drones, industrial UAVs, heavy-lift multirotors, and electric aircraft requiring high capacity, reliable discharge performance, and extended operating endurance.

With a nominal voltage of 44.4V, a capacity of 16Ah, and a 25C discharge rating, this battery provides a strong balance between onboard energy, power output, and reliable performance for demanding UAV propulsion systems.

High-Capacity 12S UAV Battery

The 16,000mAh capacity provides a large onboard energy reserve for extended flight duration and improved mission efficiency.

Its 12S / 44.4V configuration is suitable for professional UAV propulsion systems requiring high operating voltage and consistent power delivery.

710.4Wh Nominal Energy

With a nominal energy capacity of approximately 710.4Wh, the battery provides substantial energy storage for large multirotors and professional UAV platforms.

This makes it suitable for aircraft where flight endurance, payload capability, and reliable energy delivery are essential.

25C Discharge Performance

The 25C discharge rating provides strong and stable current delivery for demanding UAV propulsion systems.

With a 16Ah capacity, the battery offers a theoretical continuous discharge capability of up to 400A.

Actual usable current depends on the connector, power cables, battery temperature, cooling, operating conditions, and complete propulsion-system configuration.

Stable Power Delivery

The ManiaX battery is designed to provide consistent voltage and reliable discharge performance throughout professional flight operations.

Low internal resistance helps reduce voltage sag during demanding flight phases and supports efficient operation of motors, ESCs, and onboard electronic systems.

1–3C Charging Capability

The battery supports charging rates from 1C to 3C when used with suitable charging equipment.

Always use a compatible 12S LiPo balance charger and follow the recommended charging current, battery temperature limits, and manufacturer safety procedures.

Heavy-Duty 8AWG Power Cables

The battery is equipped with heavy-duty 8AWG power cables designed for efficient current transmission.

The 14 cm cable length provides installation flexibility when connecting the battery to a professional UAV power-distribution system.

XT90 Power Connector

The integrated XT90 connector provides a reliable power connection for compatible drone and UAV platforms.

The JST-XHR balance connector allows individual cell monitoring and balancing during charging.

Always verify that the connector, wiring, ESCs, and power-distribution system are correctly rated for the expected operating current.

Professional UAV Applications

The ManiaX 12S 16Ah 25C LiPo Battery is suitable for:

Professional Multirotor UAVs
Industrial Drones
Agricultural UAVs
Heavy-Lift Multirotors
Mapping and Surveying Platforms
Inspection Drones
Long-Endurance UAV Systems
Custom Electric Propulsion Platforms

Technical Specifications

Product: ManiaX 12S 16Ah 25C LiPo Battery
Brand: ManiaX
Battery Type: Lithium Polymer / LiPo
Application: Professional Drones, UAVs, and Heavy-Duty Multirotor Platforms
Cell Configuration: 12S1P
Nominal Voltage: 44.4V
Capacity: 16,000mAh / 16Ah
Nominal Energy: Approx. 710.4Wh
Continuous Discharge Rate: 25C
Theoretical Continuous Current: Up to 400A
Recommended Charging Rate: 1–3C
Balance Connector: JST-XHR
Discharge Connector: XT90
Power Cable Gauge: 8AWG
Power Cable Length: 14 cm
Dimensions: 126 × 75 × 184 mm
Weight: Approx. 3920 g

Safety Precautions

Do not overcharge or over-discharge the battery.

Always use a compatible 12S LiPo balance charger with the correct voltage, cell count, and charging settings.

Do not short-circuit, puncture, crush, impact, disassemble, or modify the battery.

Do not expose the battery to fire, water, excessive heat, or direct sunlight for extended periods.

Always inspect the battery, power cables, balance connector, and discharge connector before use.

Do not use or charge a damaged, swollen, leaking, or overheated battery.

Store the battery at an appropriate LiPo storage voltage in a cool, dry, and fire-resistant location.

What’s Included

1× ManiaX 12S 44.4V 16,000mAh 25C LiPo Battery with XT90 Connector
