EFT K30

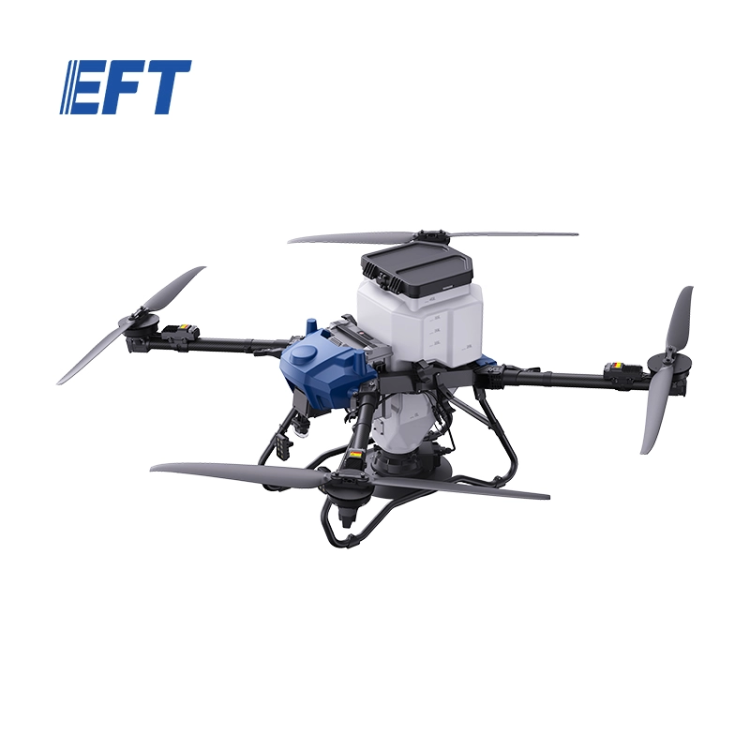

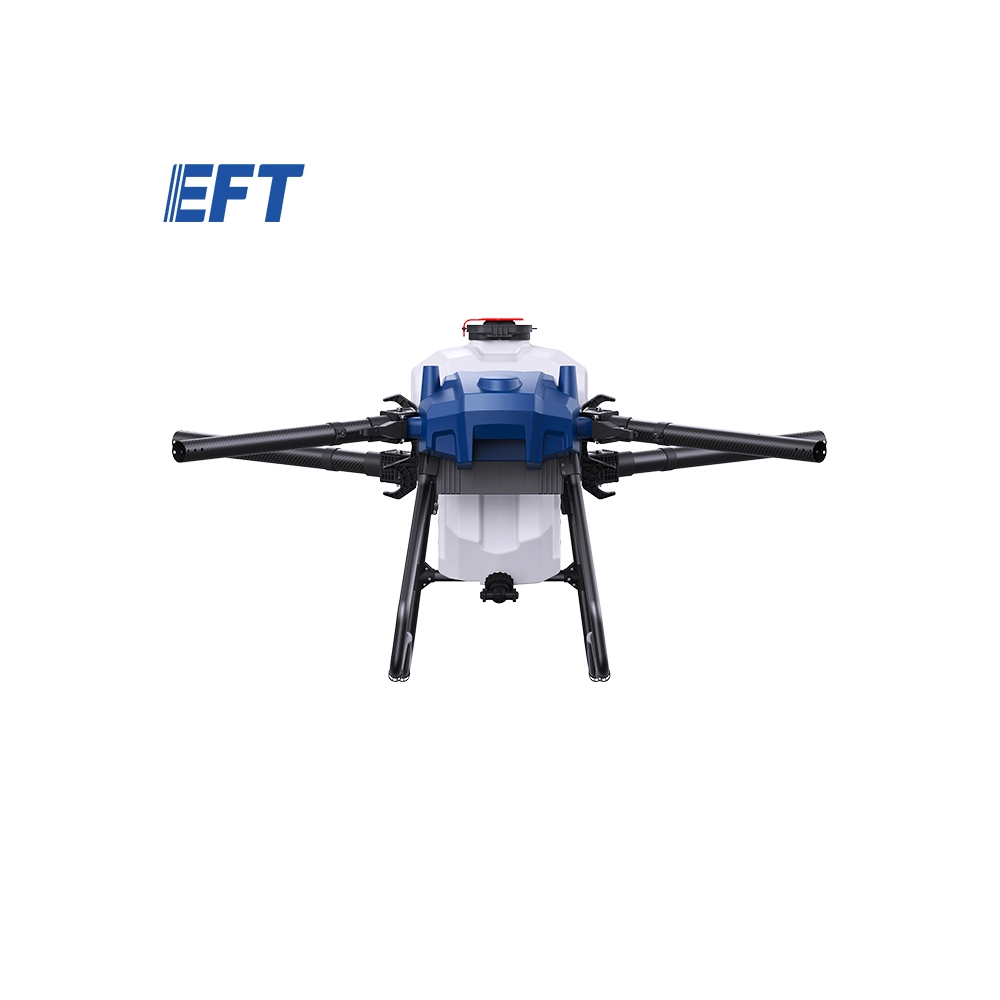

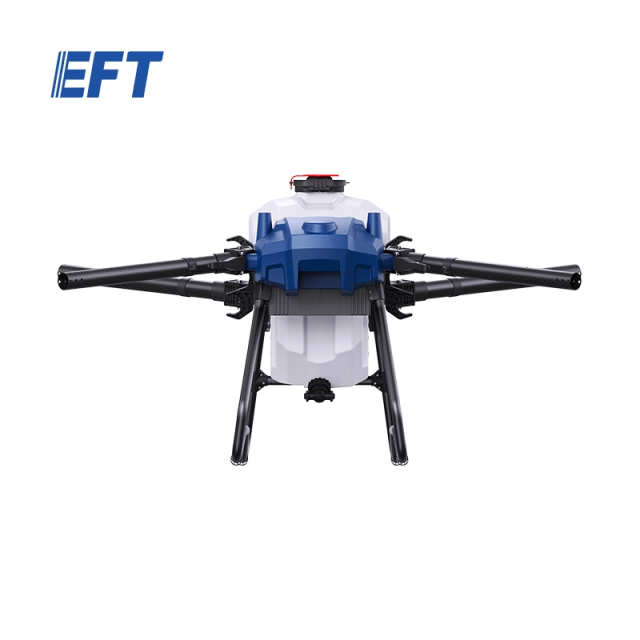

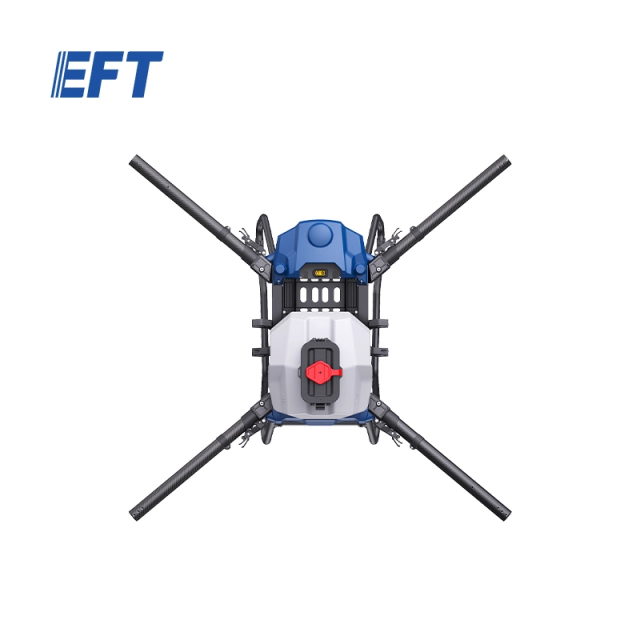

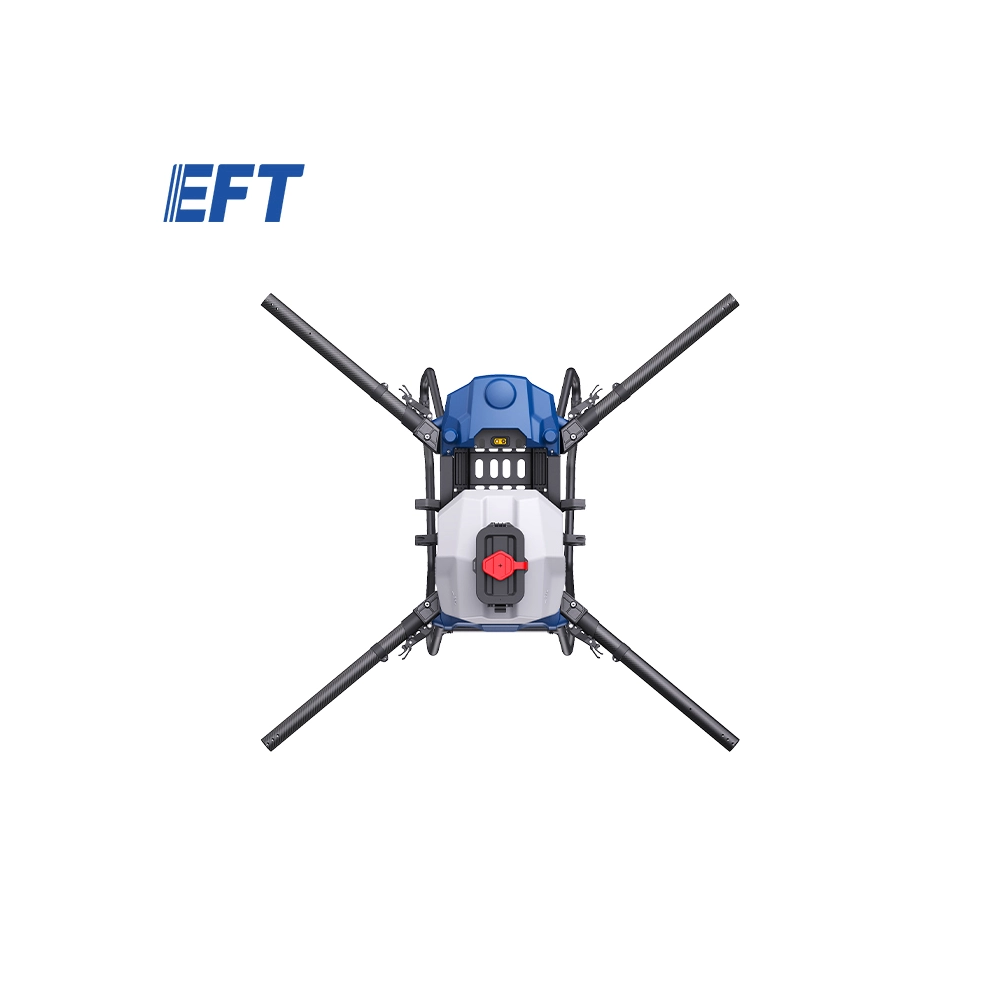

The EFT K30 Agricultural Drone Frame is a new-generation professional agricultural UAV frame designed for crop spraying, fertilizer spreading, cleaning applications, delivery missions, and multi-purpose unmanned vehicle operations.

Developed as part of the EFT K20 / K30 new-gen frame platform, the K30 combines a compact foldable structure, modular three-part layout, high-strength truss frame, and larger 30L payload configuration to provide a reliable base for agricultural UAV builders, drone manufacturers, and professional operators.

30L Agricultural Spraying Platform

The EFT K30 is designed for 30L agricultural spraying applications, making it suitable for crop protection, plant protection, liquid fertilizer spraying, pesticide application, orchard treatment, and precision agriculture.

Its 30L water tank configuration provides higher working capacity than smaller agricultural drone frames, helping reduce refill frequency and improve field productivity during professional spraying missions.

Multi-Purpose Modular Design

The K30 Agricultural Drone Frame is designed as a versatile UAV platform that can support multiple payload types.

Depending on configuration, one body can be equipped with a 30L water tank or a 40L spreading tank, making it suitable for spraying, spreading, cleaning, delivery, and custom industrial applications.

This makes the EFT K30 a strong choice for users who need one drone frame for several professional mission types.

New Three-Part Layout

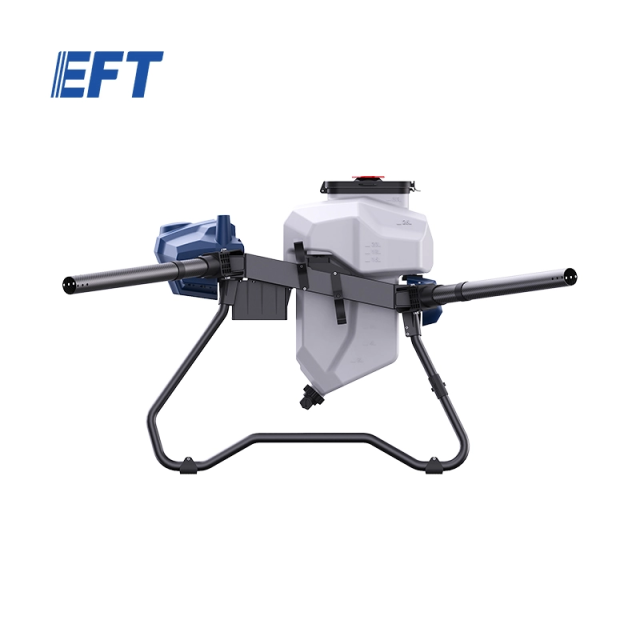

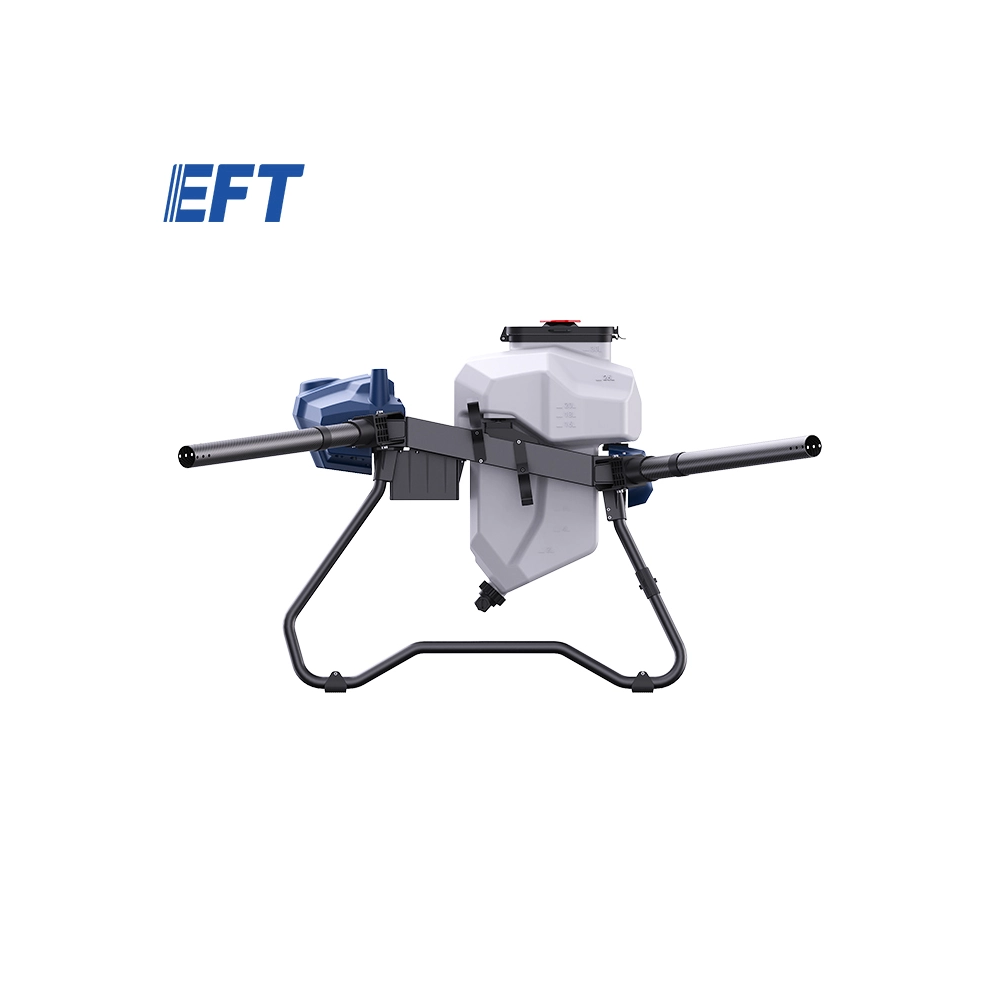

The EFT K30 features a new three-part layout with front electronics, central battery placement, and rear payload installation.

This structure helps improve balance, simplify integration, and create a cleaner internal layout for professional UAV assembly.

By separating the flight control area, battery area, and payload area, the frame supports easier maintenance and more organized installation.

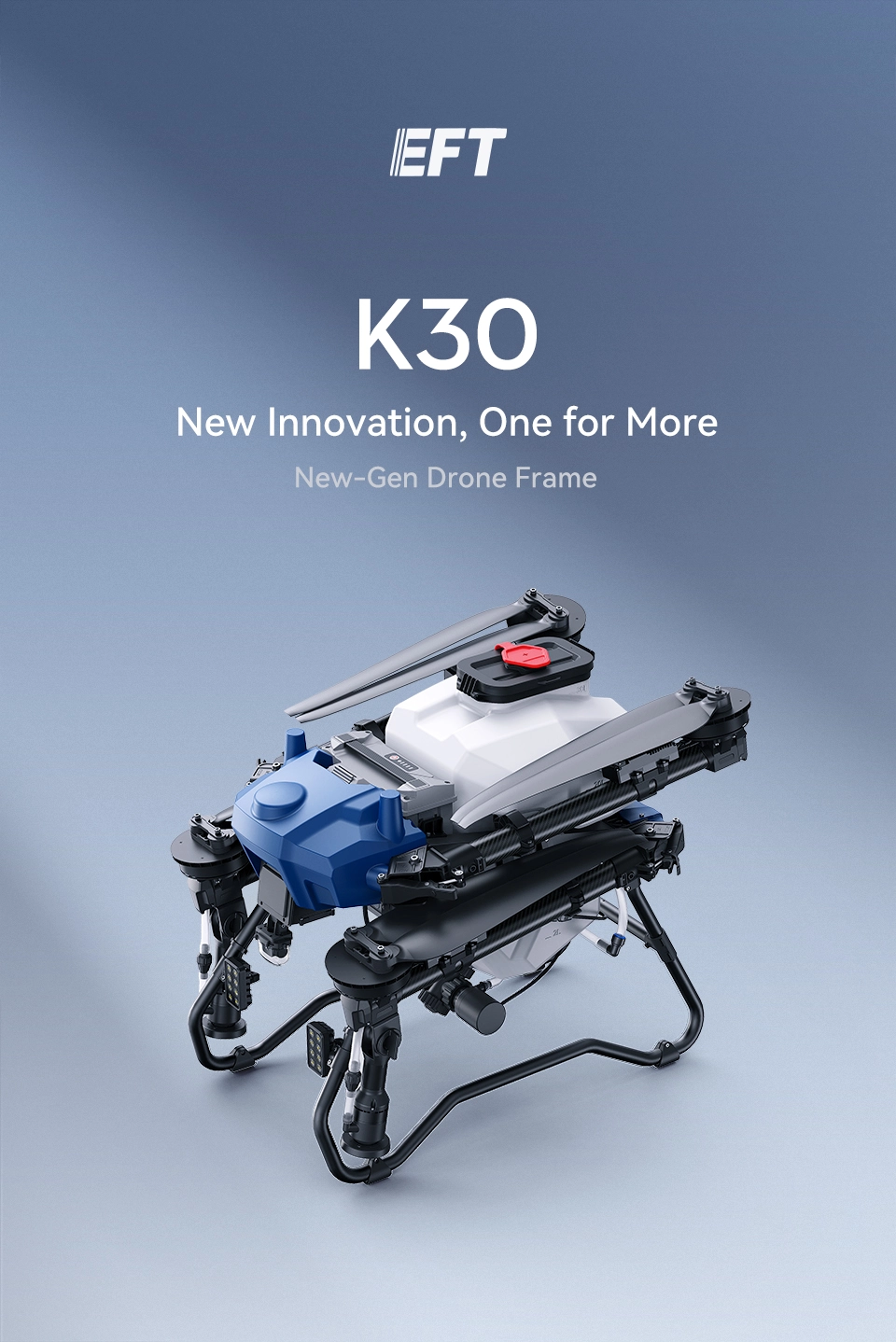

Compact Foldable Structure

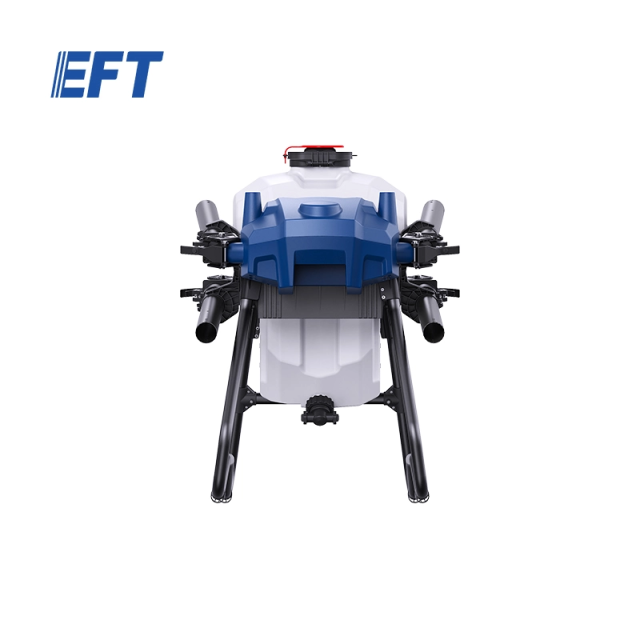

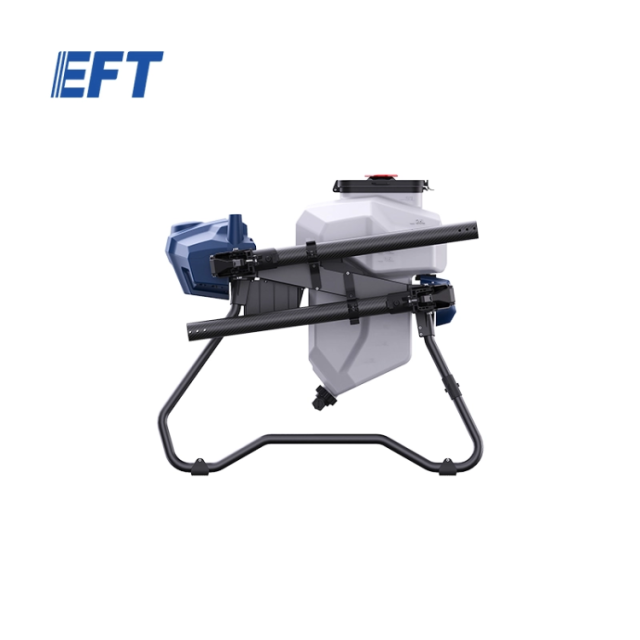

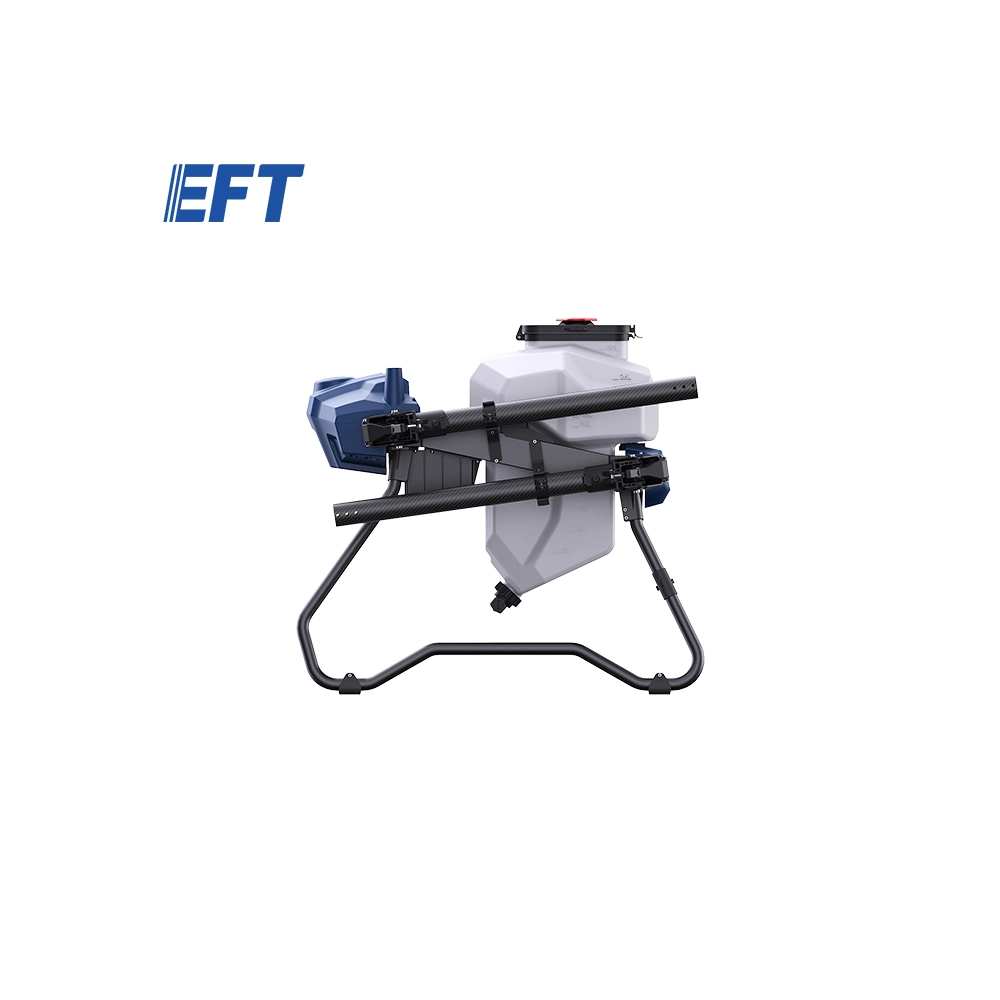

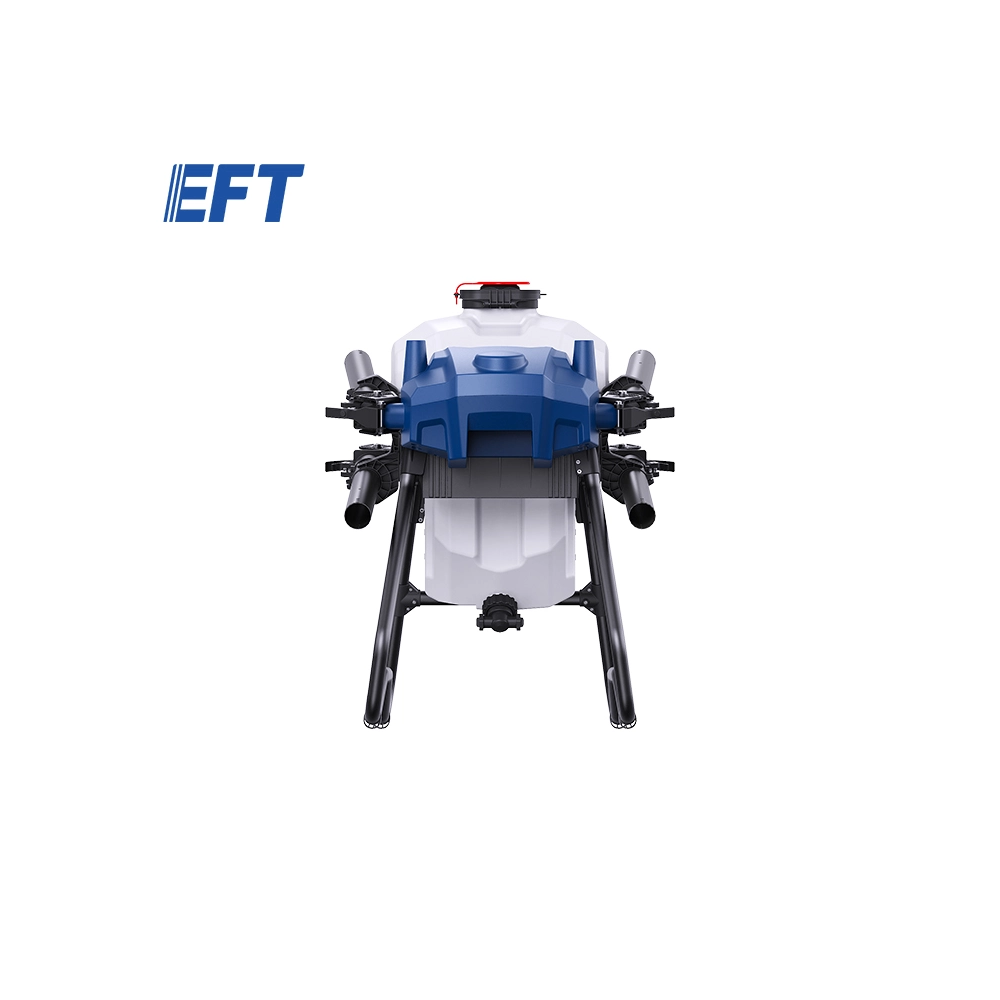

The EFT K30 Agricultural Drone Frame features a compact foldable design, making it easier to transport, store, and deploy in the field.

Its folded structure is designed for practical field use and easier handling, helping agricultural operators move efficiently between different work sites.

This makes the K30 suitable for mobile spraying teams, agricultural service providers, and professional UAV operators.

High-Strength Truss Frame

The EFT K30 uses an integrated truss frame structure designed for strength, rigidity, and impact resistance.

This robust design helps provide the stability required for 30L spraying missions, fertilizer spreading, cleaning operations, and delivery applications.

The strong frame structure supports reliable operation in demanding agricultural and industrial environments.

Adjustable Battery Bay

The K30 frame features an adjustable battery bay designed to support different battery installation requirements.

The recommended battery configuration for the EFT K30 is 14S 30000mAh, depending on the final propulsion setup, payload, and mission profile.

This gives UAV integrators flexibility when building professional agricultural drones.

Professional Propulsion Compatibility

The EFT K30 Agricultural Drone Frame is recommended for use with 11115 95KV motors, providing the power needed for larger agricultural payloads.

This configuration is designed to support the 30L spraying platform and professional agricultural UAV applications where stable lift, reliable control, and efficient operation are important.

Simplified Electrical Layout

The EFT K30 includes a simplified electrical layout designed to reduce cable clutter and make installation cleaner.

The centralized electronics area helps with the integration of flight controllers, power distribution systems, GNSS modules, spraying electronics, spreading systems, and other professional UAV components.

This makes the frame suitable for OEM drone projects, custom agricultural UAV builds, and professional integration workflows.

Professional Agricultural & Industrial Applications

The EFT K30 Agricultural Drone Frame is suitable for crop spraying, fertilizer spreading, plant protection, high-altitude cleaning, payload delivery, field operations, and industrial UAV development.

Its combination of 30L tank capacity, foldable structure, modular payload compatibility, and professional frame design makes it a strong platform for demanding UAV operations.

Technical Specifications

Product: EFT K30 Agricultural Drone Frame
Frame Type: 4-axis agricultural UAV frame
Tank Capacity: 30L water tank configuration

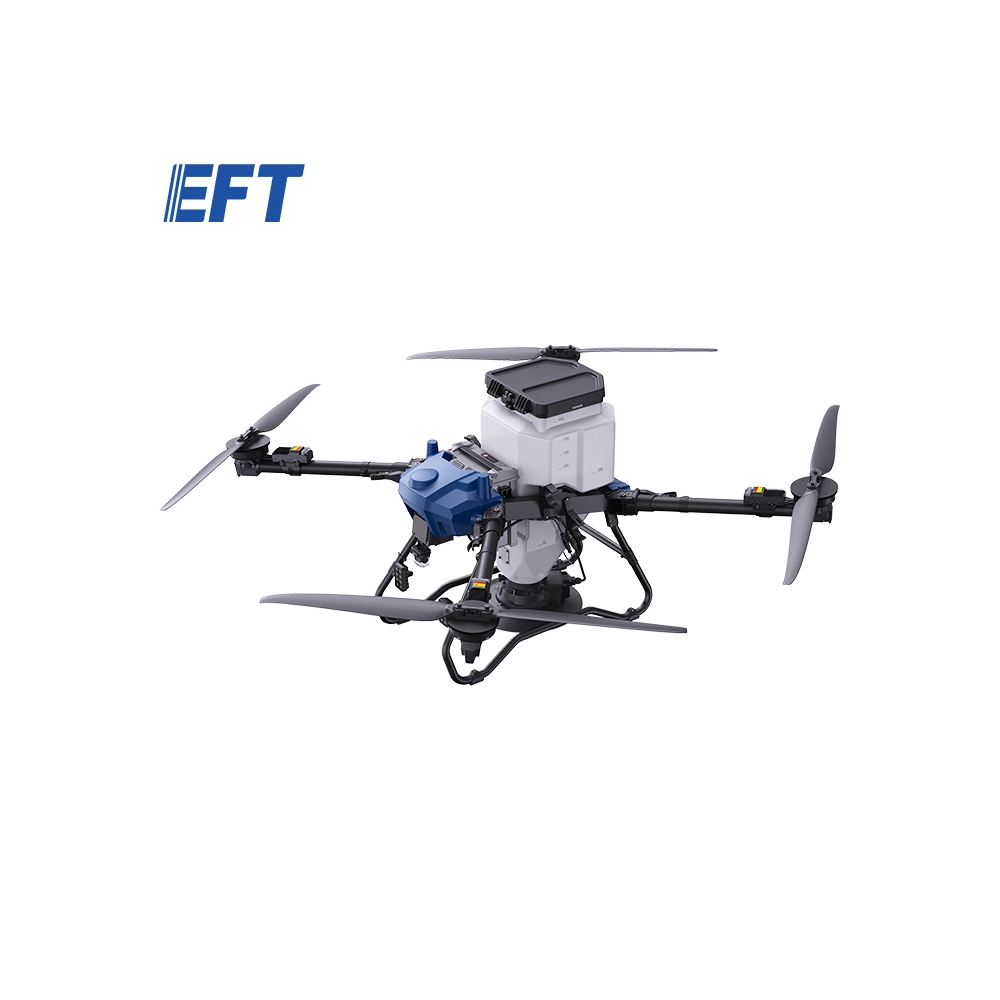

Optional Payload Configuration: 40L spreading tank depending on setup
Wheelbase: 1737 mm
Frame Weight: 8.75 kg
Tank Weight: 2.52 kg
Unfolded Size: 1289 × 1228 × 730 mm
Folded Size: 571 × 793 × 730 mm
Color: Blue
Recommended Motor: 11115 95KV
Recommended Battery: 14S 30000mAh
Battery Bay Size: Length 163–253 mm adjustable × Width 125 mm × Height 97 mm
Recommended Use: Agricultural spraying drones, spreading drones, cleaning UAVs, delivery drones, plant protection UAVs and professional multi-purpose drone platforms
