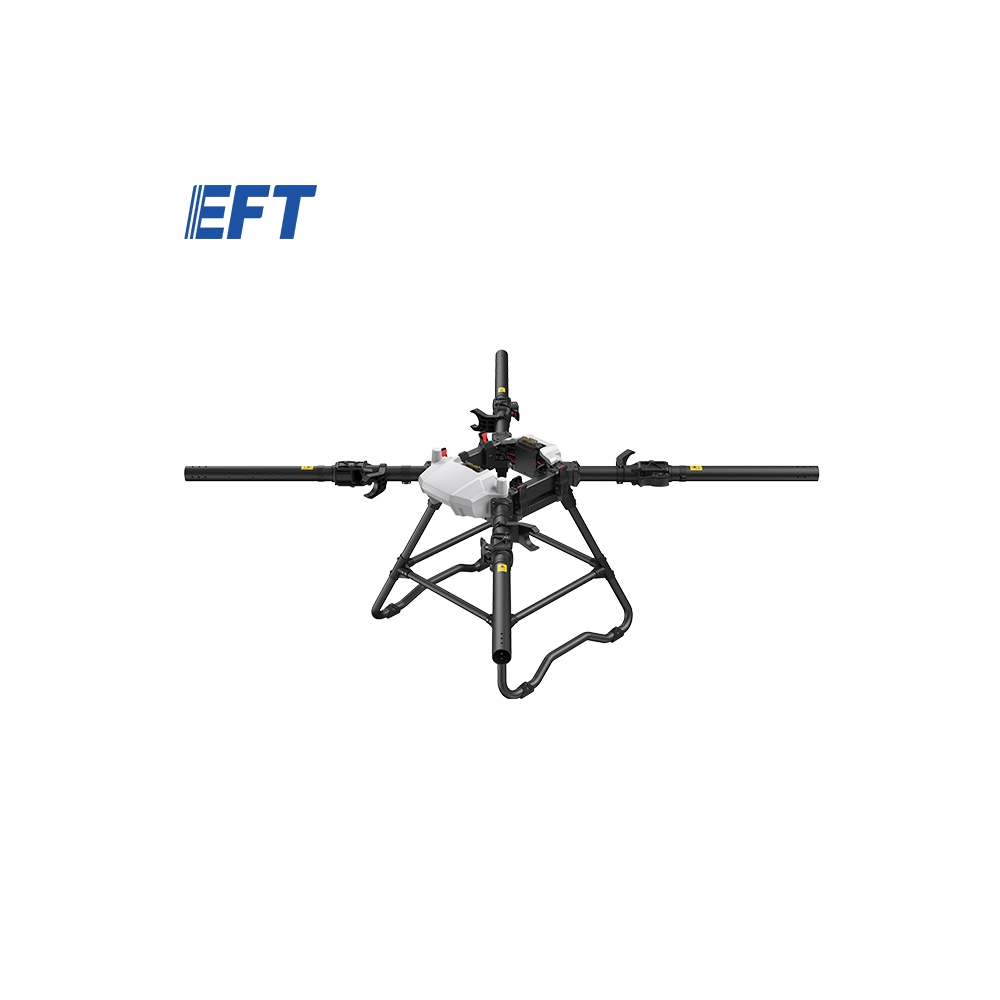

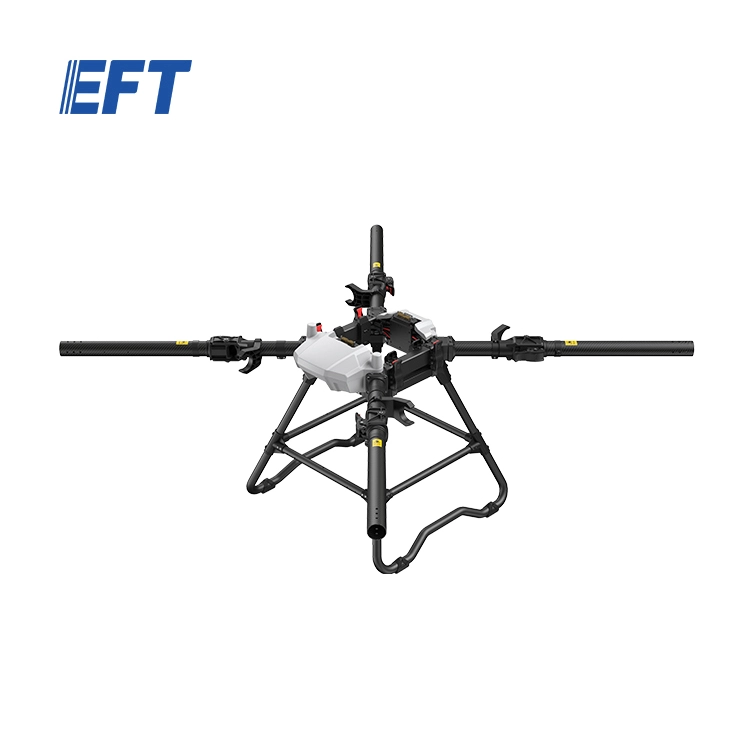

EFT X2300 Heavy-Lift Drone Frame

The EFT X2300 Heavy-Lift Drone Frame is a large industrial UAV platform designed for heavy payload transport, mountain lifting, firefighting, cargo delivery, agriculture, forestry transport, and professional heavy-duty drone applications.

Built with a robust truss metal frame, reinforced joints, and a modular split-body design, the X2300 provides the strength, stability, and integration flexibility required for demanding industrial UAV missions.

Heavy-Lift Industrial Drone Platform

The EFT X2300 is designed for professional heavy-lift drone applications where strength, payload capacity, and flight stability are essential.

With a payload capability of up to 100 kg, this platform is suitable for applications such as material transport, emergency response, firefighting support, construction lifting, agricultural transport, and industrial logistics.

2317 mm Wheelbase for High Stability

The X2300 drone frame features a large 2317 mm wheelbase, providing a stable platform for heavy-lift UAV configurations.

Its large frame geometry helps improve flight stability, payload distribution, and overall system balance during demanding missions with heavy loads.

Truss Metal Frame & Reinforced Joints

The EFT X2300 uses a truss aluminum alloy frame with reinforced structural joints, designed to resist stress and deformation during heavy-lift operations.

The symmetrical frame layout helps distribute forces evenly across the airframe, improving reliability during high-load flights.

Modular Split-Body Design

The X2300 Heavy-Lift Drone Frame adopts a modular split-body structure for easier assembly, transport, maintenance, and customization.

This design allows professional drone builders and integrators to adapt the platform for different mission profiles, payload systems, landing gear configurations, and industrial applications.

Snap-Fit Folding Structure

The frame uses snap-fit folding parts and quick-lock connection points for practical field deployment.

This folding design helps reduce storage and transport volume while maintaining secure locking and strong mechanical reliability during operation.

Dual-Battery Design

The EFT X2300 supports a dual-battery installation, helping provide the energy reserve required for heavy-lift drone missions.

The frame is designed to support different battery integration options, including high-current connector configurations such as 500A / QS10, depending on the system setup.

Optimized Electrical Layout

The X2300 features an optimized power distribution layout designed to improve system stability and high-current reliability.

Its battery and power connection design helps support demanding electric propulsion systems used in large industrial UAVs and heavy-lift drone platforms.

Multiple Landing Gear Options

The EFT X2300 supports flexible landing gear configurations, including high, low, and custom landing gear options.

This allows the platform to be adapted for different payloads and mission scenarios, including lifting, transport, firefighting, and custom industrial drone applications.

Professional Heavy-Lift Applications

The EFT X2300 Heavy-Lift Drone Frame is suitable for industrial transport, cargo delivery, mountain lifting, firefighting, construction material transport, agricultural logistics, forestry operations, and custom heavy-lift UAV development.

Its combination of large wheelbase, heavy-lift structure, dual-battery support, modular design, and reinforced metal frame makes it a strong platform for professional UAV integrators.

Technical Specifications

Product: EFT X2300 Heavy-Lift Drone Frame
Brand: EFT / Effort Tech
Product Type: Heavy-Lift Industrial Drone Frame / UAV Platform
Wheelbase: 2317 mm
Frame Weight: Approx. 18 kg
Unfolded Size: 1758 × 1758 × 846 mm
Folded Size: 1146 × 1146 × 846 mm
Battery Compartment Size: 250 × 260 mm
Battery Plug: 500A / QS10
Arm Diameter: 60 mm
Optional Color: White
Working Temperature: -10°C to 50°C
Frame Design: Truss metal frame, modular split-body structure, snap-fit folding parts and reinforced joints
Battery Layout: Dual-battery design
Recommended Applications: Heavy-lift transport, cargo delivery, firefighting, hoisting, mountain lifting, agriculture, forestry transport and industrial UAV integration
