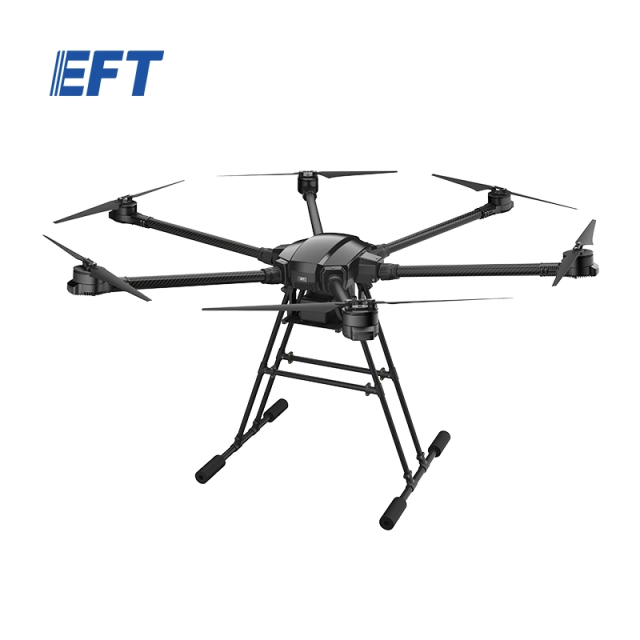

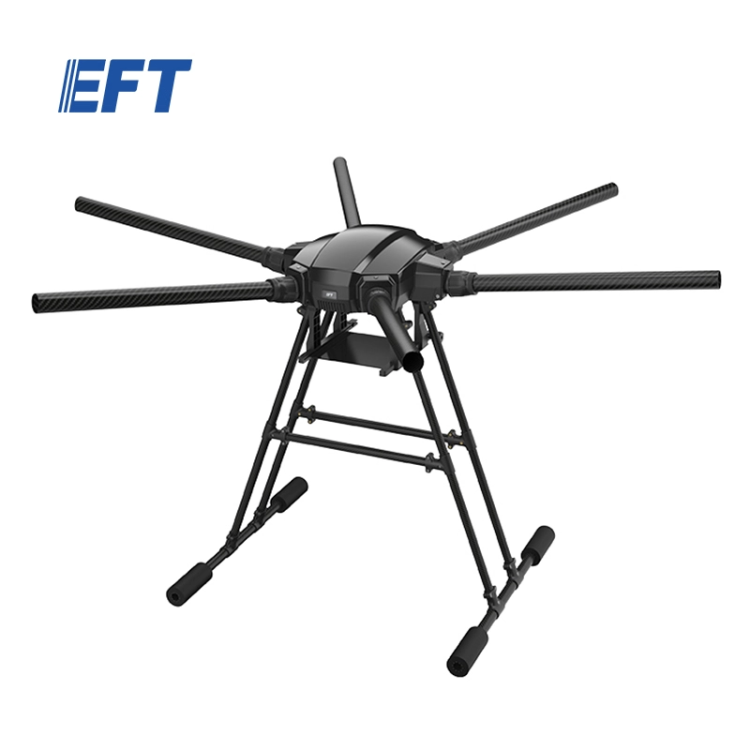

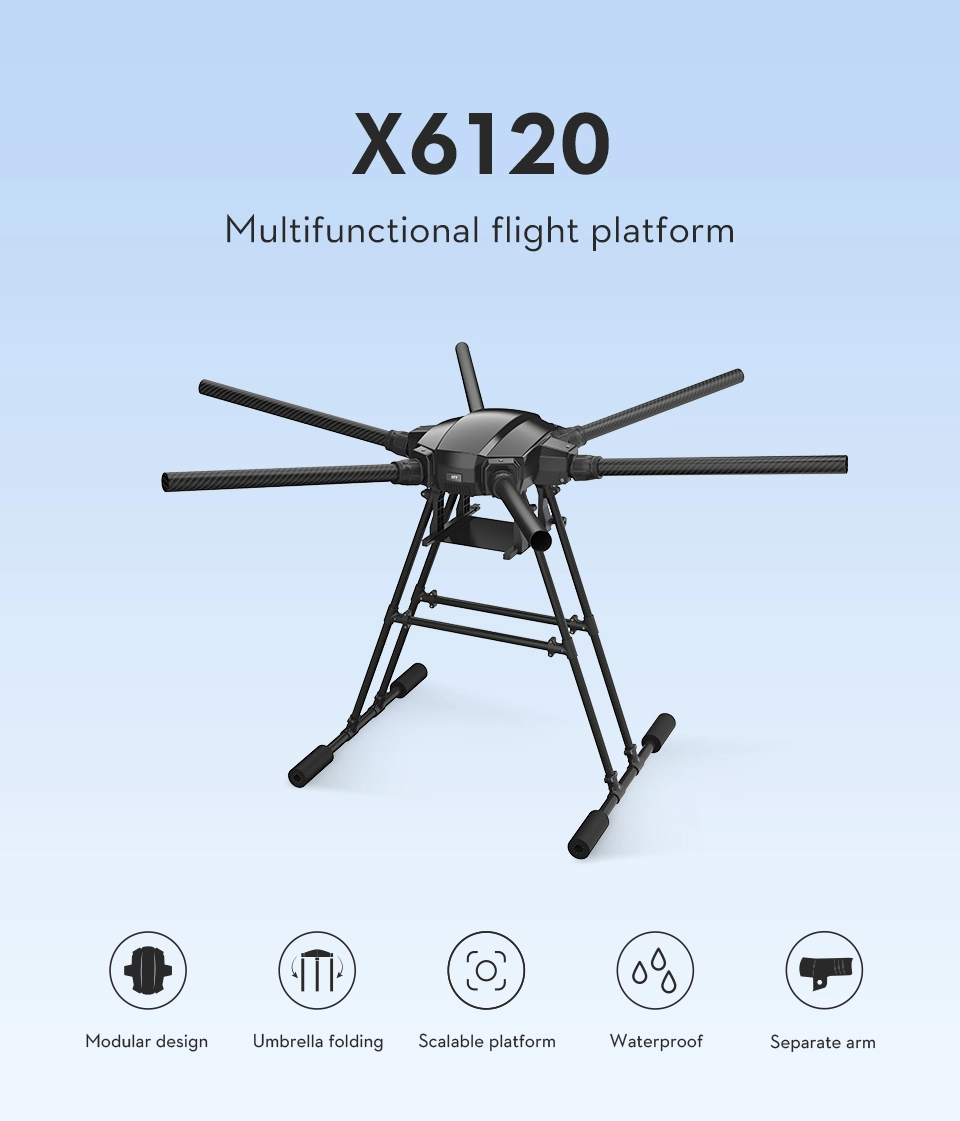

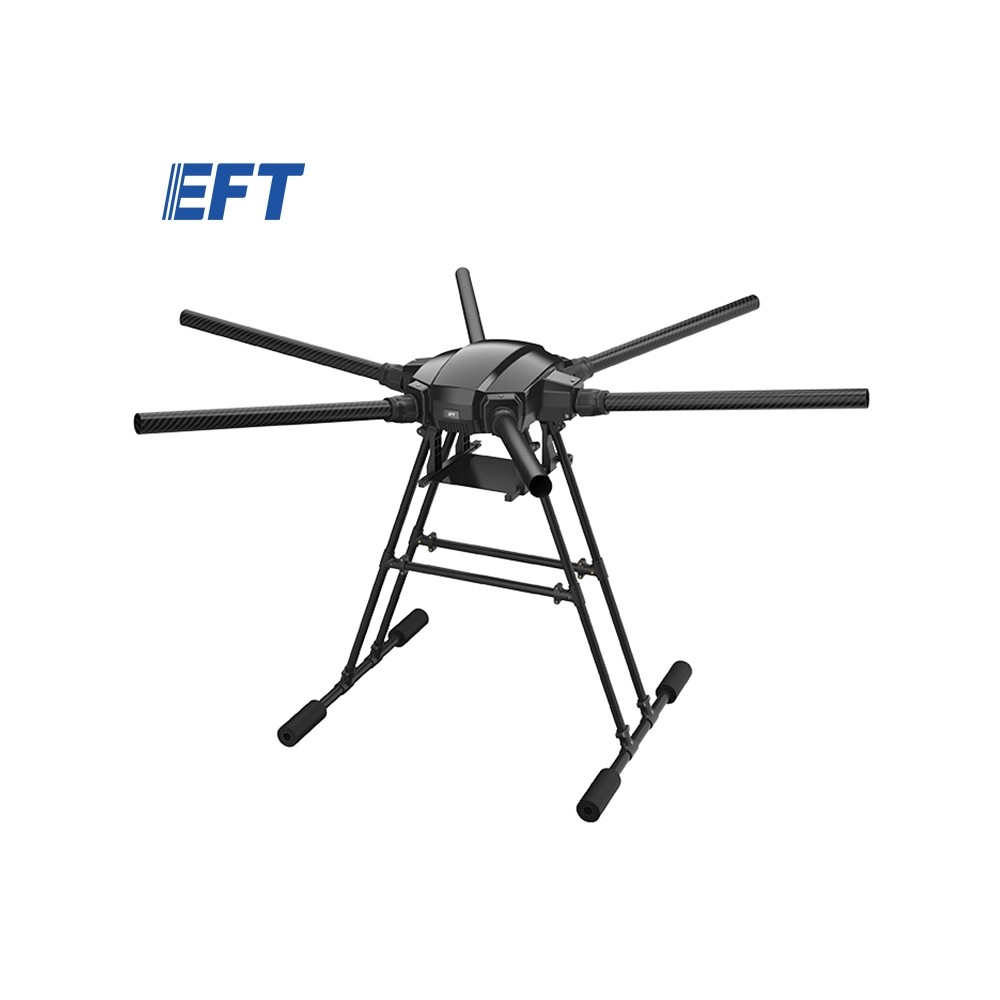

The EFT X6120 Drone Frame is a medium-size industrial drone platform designed for professional UAV builders, drone integrators, training centers, and industrial operators requiring a stable, modular, and easy-to-deploy airframe.
Part of EFT’s X6 Series Industrial Drone Platform, the X6120 is designed for applications such as inspection, surveying, forest patrol, education and training, emergency response, monitoring, and multi-purpose UAV development.
Medium-Payload Industrial UAV Platform
The EFT X6120 is built for professional applications where payload flexibility, endurance, and simple field deployment are important.
With a 1290 mm wheelbase and a 3.04 kg frame weight, it offers a strong balance between frame size, payload capability, and transportability for industrial drone missions.
0–6 kg Payload Capacity
The X6120 drone frame supports an effective payload range of 0–6 kg, making it suitable for carrying cameras, gimbals, loudspeakers, droppers, pods, sensors, and other mission equipment.
This makes the X6120 a strong choice for inspection, monitoring, public safety, surveying, training, and industrial UAV development.

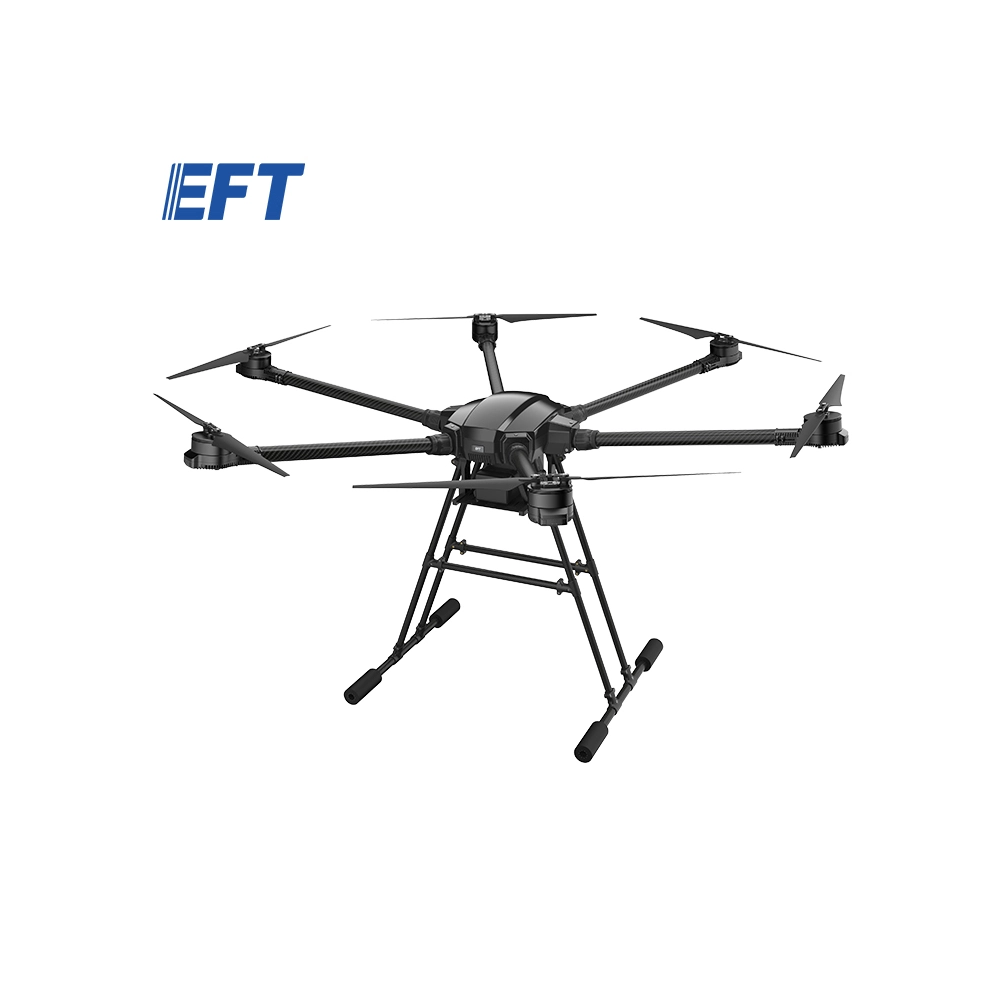

24-Inch Propeller Compatibility
The EFT X6120 is designed for 24-inch propellers and is recommended with the X6 Plus motor system.
This setup makes it suitable for medium-payload drone platforms requiring stable thrust, efficient lift generation, and reliable performance for professional operations.
12S Battery Compatibility
The X6120 is designed around 16,000–22,000mAh 12S battery configurations, providing the voltage and energy capacity required for medium-sized industrial UAV missions.
This higher-voltage setup helps support stronger propulsion efficiency compared with smaller 6S systems, making it more suitable for heavier payloads and longer missions.

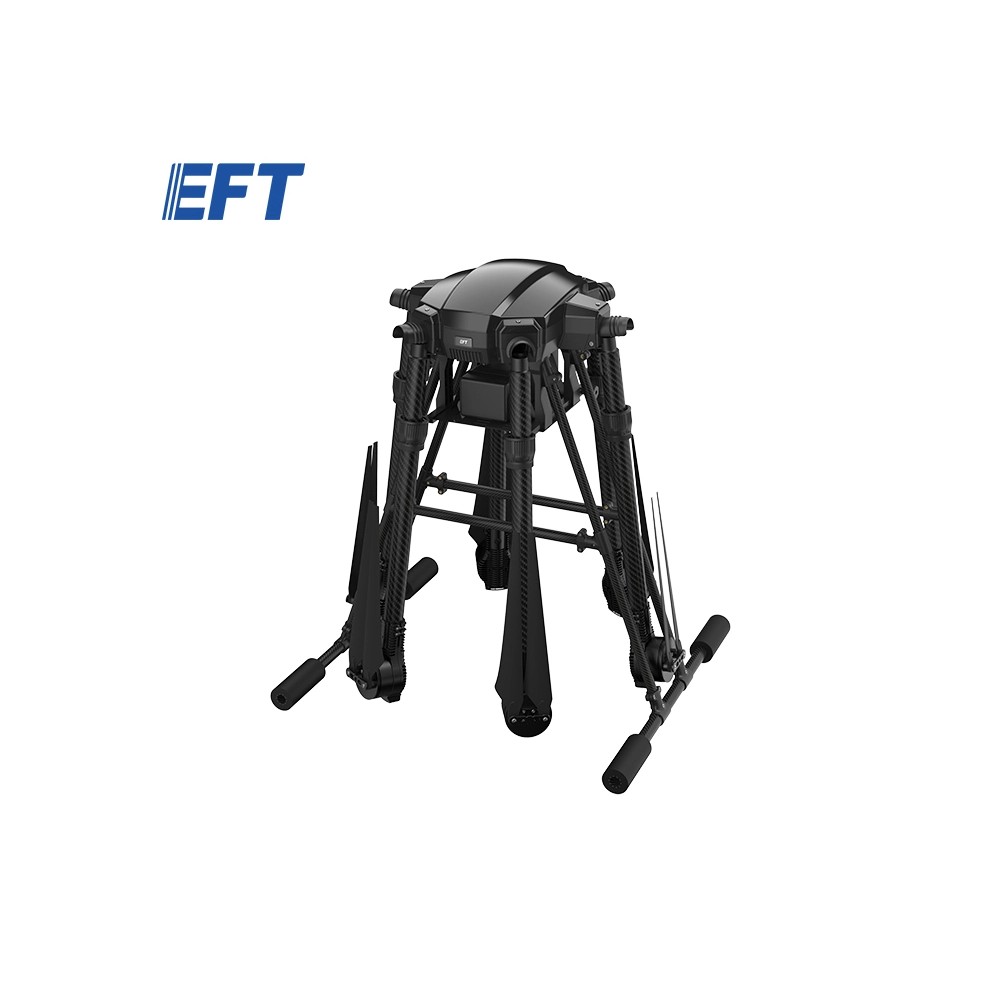

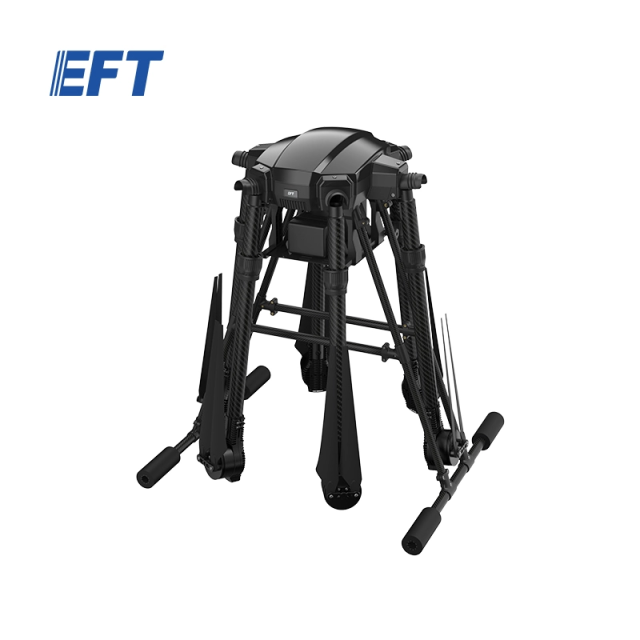

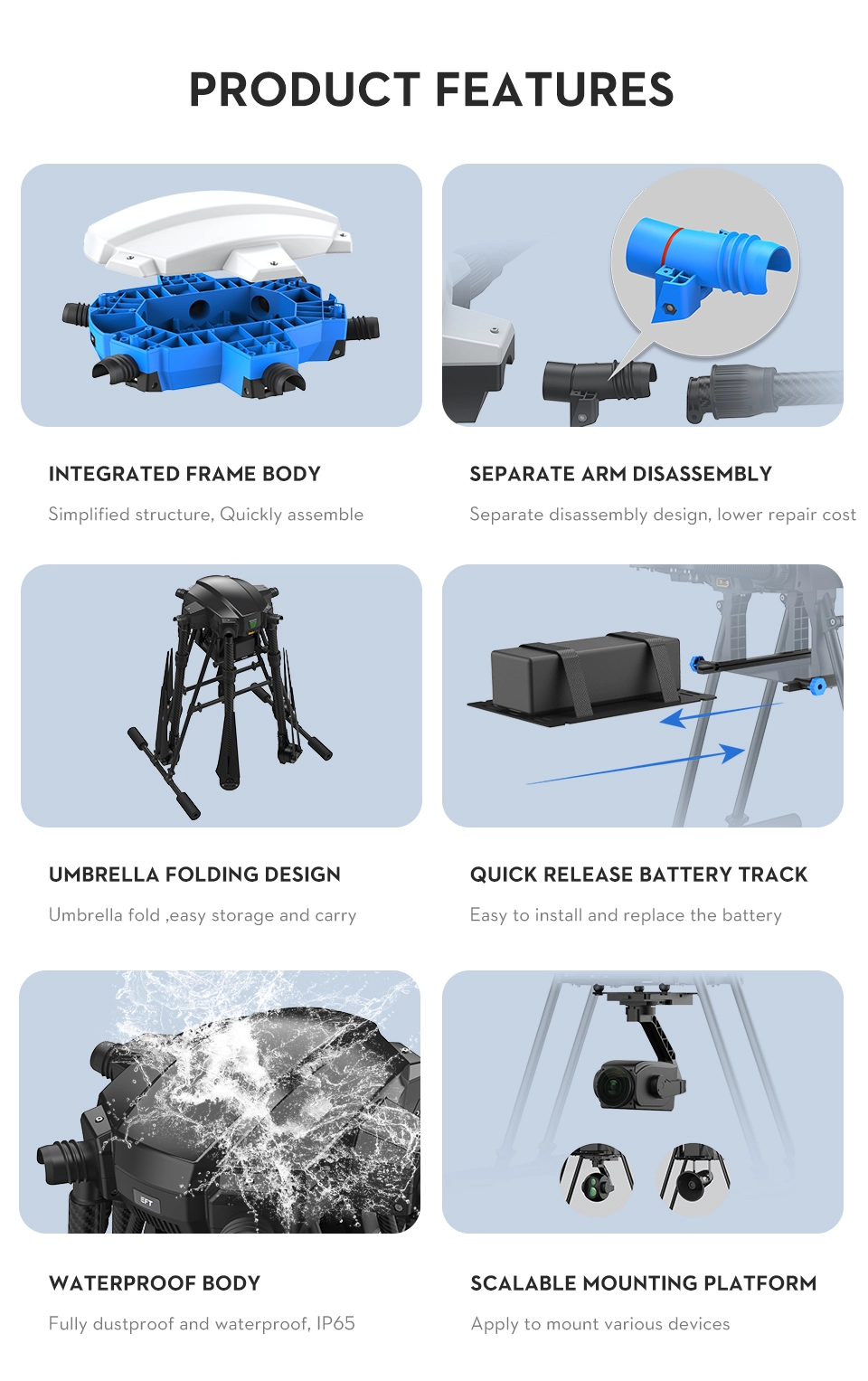

Foldable & Modular Frame Design

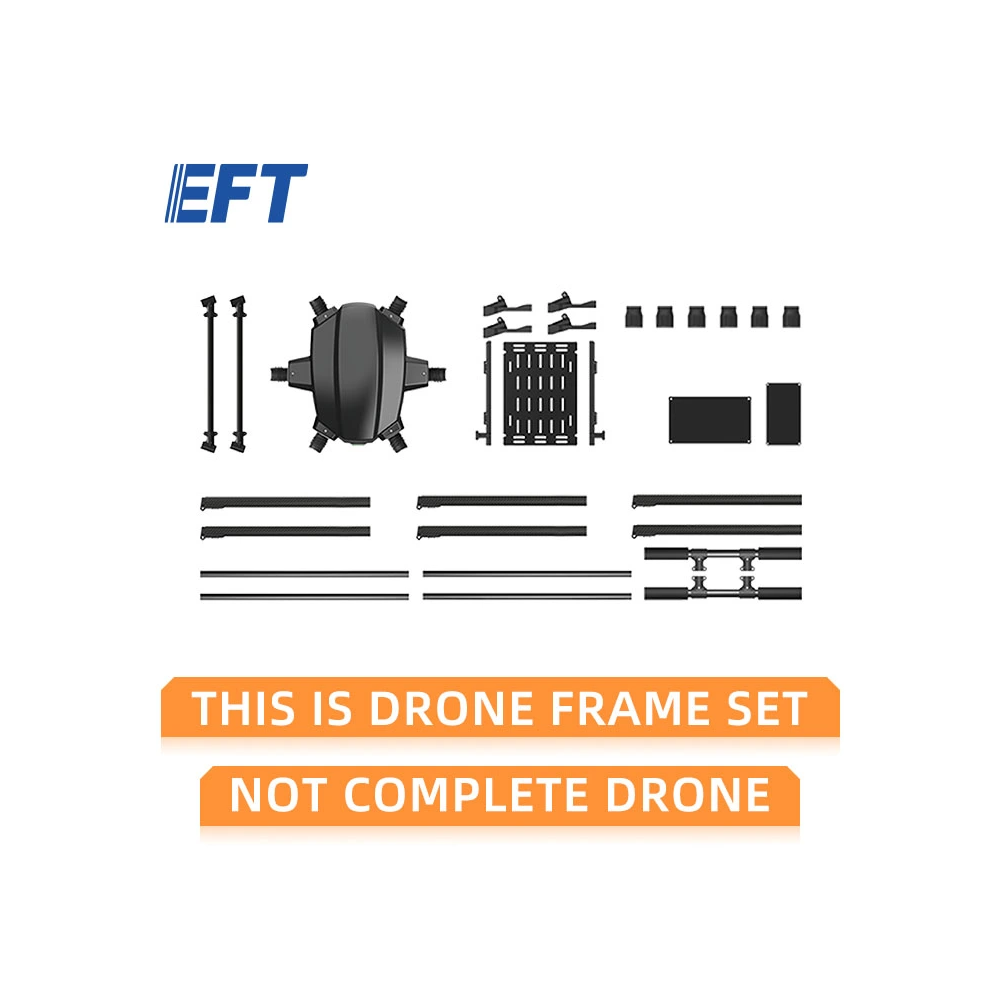

The EFT X6120 uses a practical foldable and modular structure, making transport, storage, maintenance, and field deployment easier.
Its design helps reduce setup time and makes the frame suitable for mobile teams working in inspection, surveying, rescue, forest patrol, and industrial monitoring environments.
Multi-Purpose Expansion Platform
The EFT X6120 Drone Frame includes reserved expansion ports and payload mounting options for different mission equipment.
It can support equipment such as gimbal cameras, loudspeakers, droppers, pods, and other lightweight to medium-payload systems, making it adaptable to many professional UAV applications.
Professional UAV Applications
The EFT X6120 Drone Frame is ideal for inspection drones, surveying platforms, forest patrol UAVs, education and training drones, emergency response platforms, monitoring systems, and medium-payload industrial UAV development.
Its combination of 1290 mm wheelbase, 0–6 kg payload capacity, 24-inch propeller compatibility, 12S battery support, and modular foldable structure makes it a versatile platform for professional drone projects.

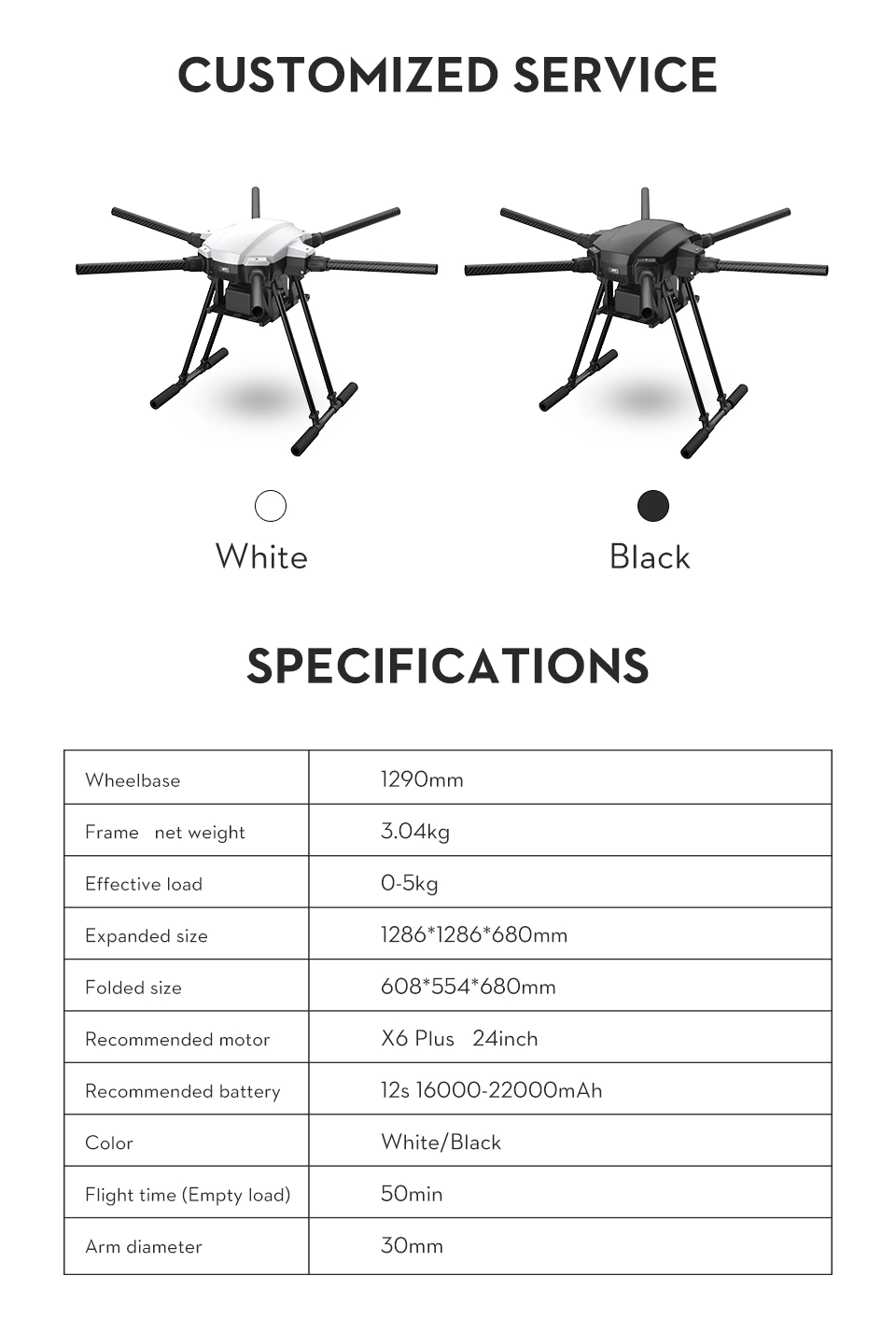

Technical Specifications
Product: EFT X6120 Drone Frame
Brand: EFT / Effort Tech
Product Type: Industrial Drone Frame / UAV Platform
Series: X6 Series
Wheelbase: 1290 mm
Frame Weight: Approx. 3.04 kg
Empty Weight: Approx. 7.5 kg
Full Load Weight: Approx. 18 kg
Effective Payload: 0–6 kg

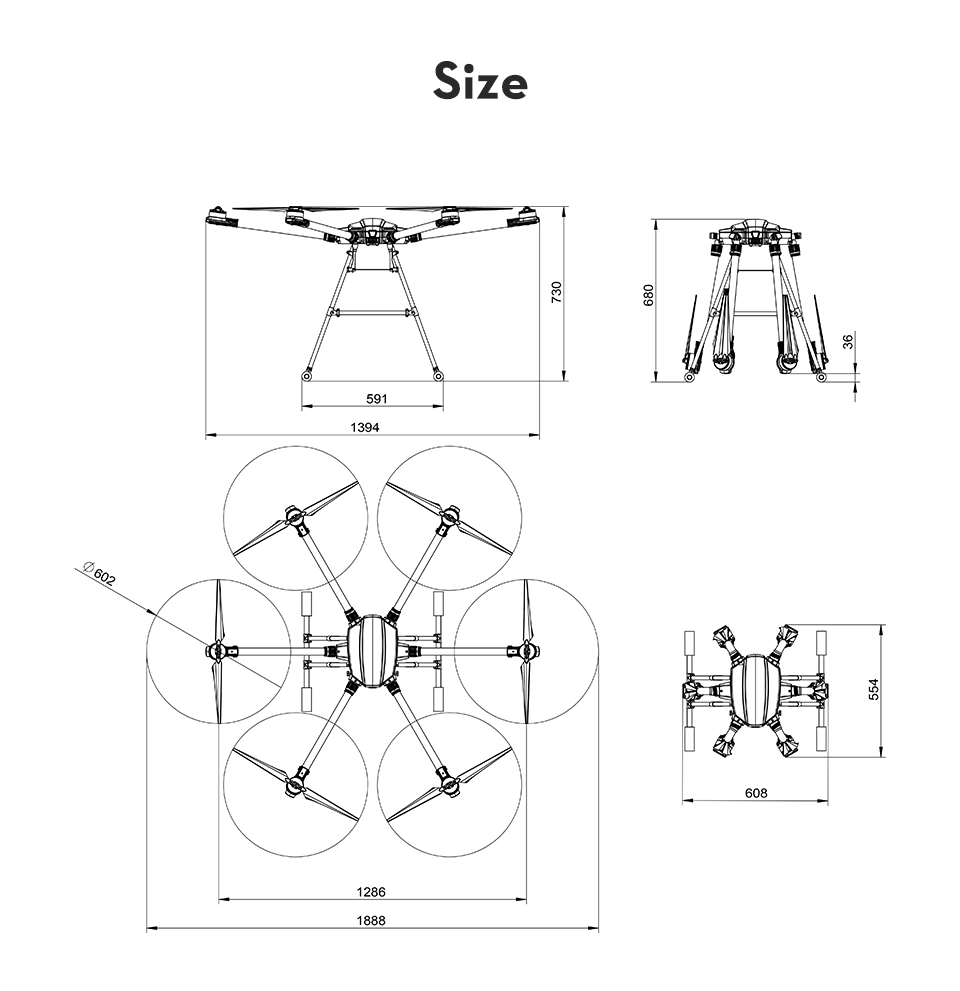

Expanded Size: 1888 × 1888 × 730 mm
Folded Size: 608 × 554 × 680 mm
Recommended Motor: X6 Plus
Recommended Propeller: 24 inch
Recommended Battery: 16,000–22,000mAh 12S
Flight Time: Up to 50 min empty load
Arm Diameter: 30 mm
Color Options: White / Black

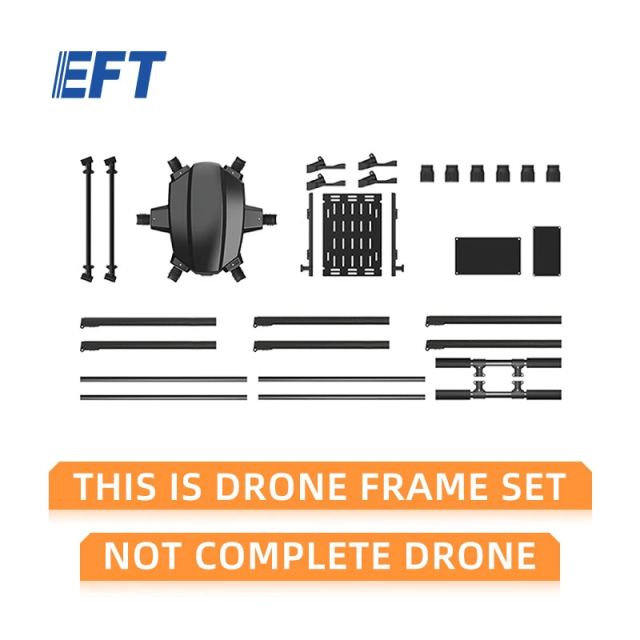

Frame Design: Modular integrated frame with foldable structure
Expansion Options: Gimbal camera, loudspeaker, dropper, pod and mission payloads
Recommended Applications: Inspection, surveying, forest patrol, education, training, rescue, monitoring and medium-payload industrial UAV missions
