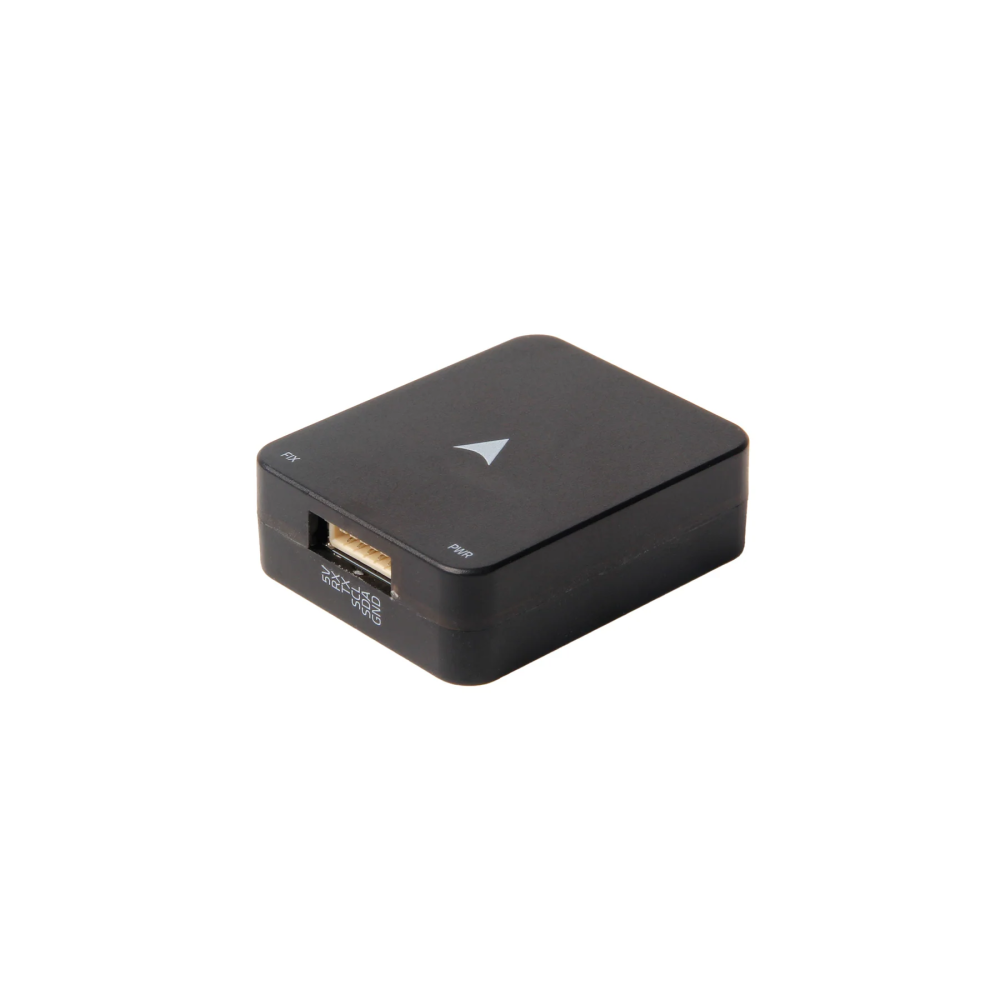

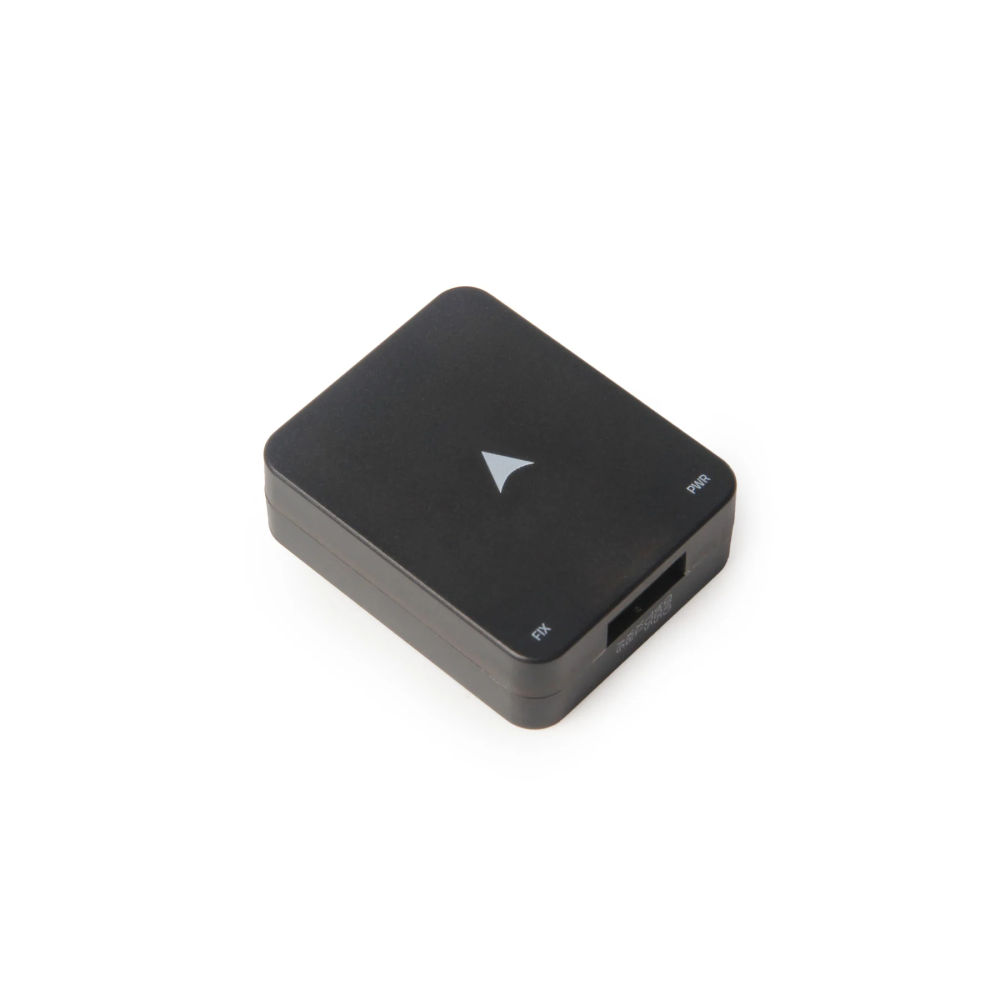

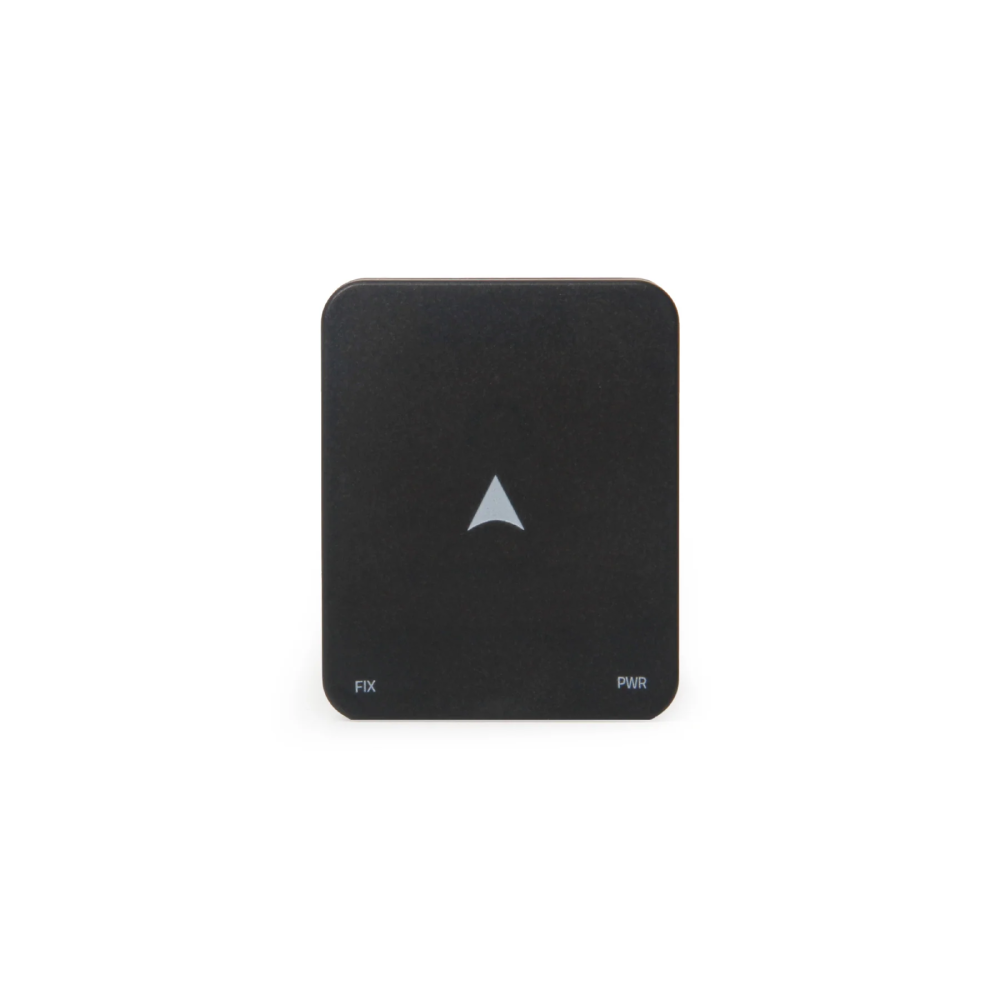

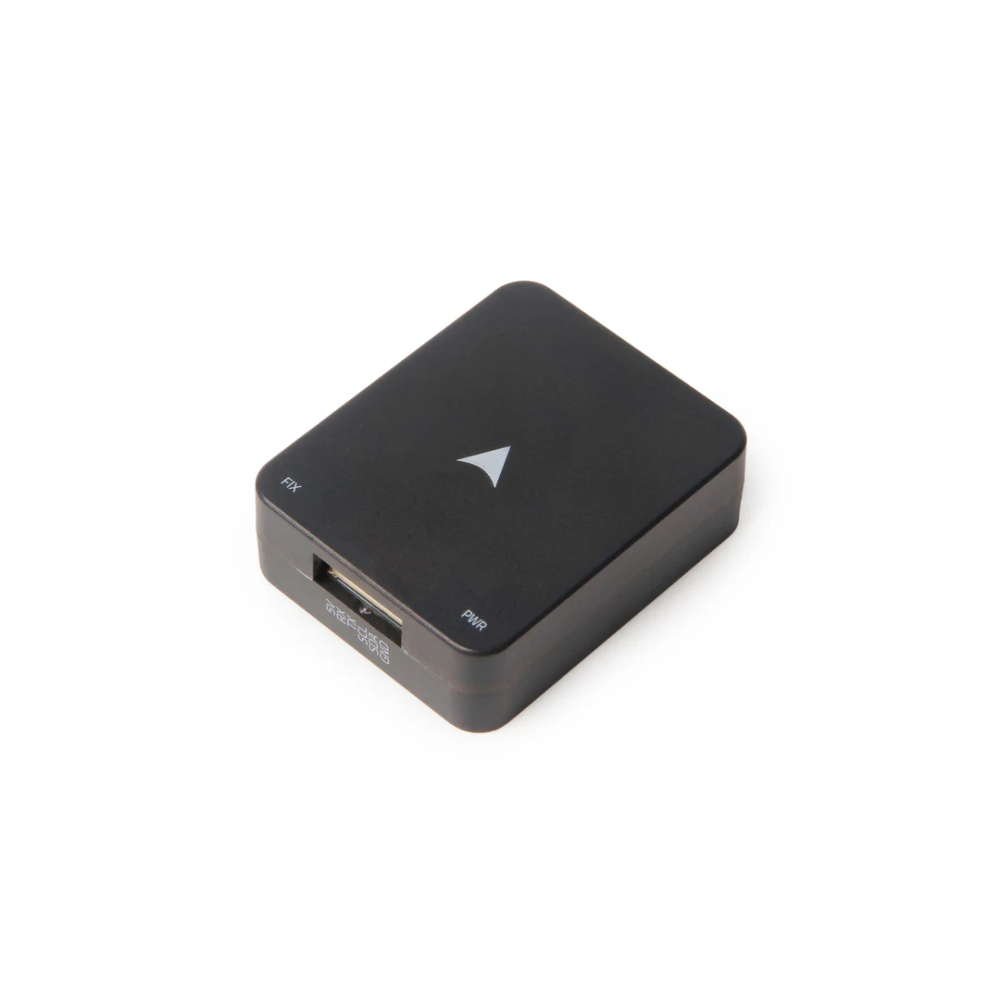

Micro M10 GPS

The Holybro Micro M10 GPS is a compact and lightweight multi-constellation GNSS module designed for UAVs, FPV drones, fixed-wing aircraft, VTOL platforms, and autonomous systems where installation space and weight are limited.

Powered by the latest-generation u-blox M10 GNSS receiver, it supports simultaneous reception from GPS, Galileo, GLONASS, and BeiDou satellite constellations for improved satellite availability and reliable positioning performance.

Available with an IST8310 or IST8308 compass and with or without a protective case, the Micro M10 GPS offers flexible integration for a wide range of aircraft platforms.

Latest-Generation u-blox M10 Receiver

The Micro M10 GPS is built around the u-blox M10 concurrent GNSS receiver.

Its multi-constellation architecture can receive and process up to four major GNSS systems simultaneously, helping improve satellite availability and positioning reliability during flight.

Multi-Constellation GNSS Support

The module supports GPS, Galileo, GLONASS, BeiDou, and QZSS satellite systems.

Simultaneous multi-GNSS reception provides more available satellites and helps maintain stable navigation performance in demanding operating environments.

Compact & Lightweight Design

The Micro M10 GPS is designed for aircraft where size and weight are critical.

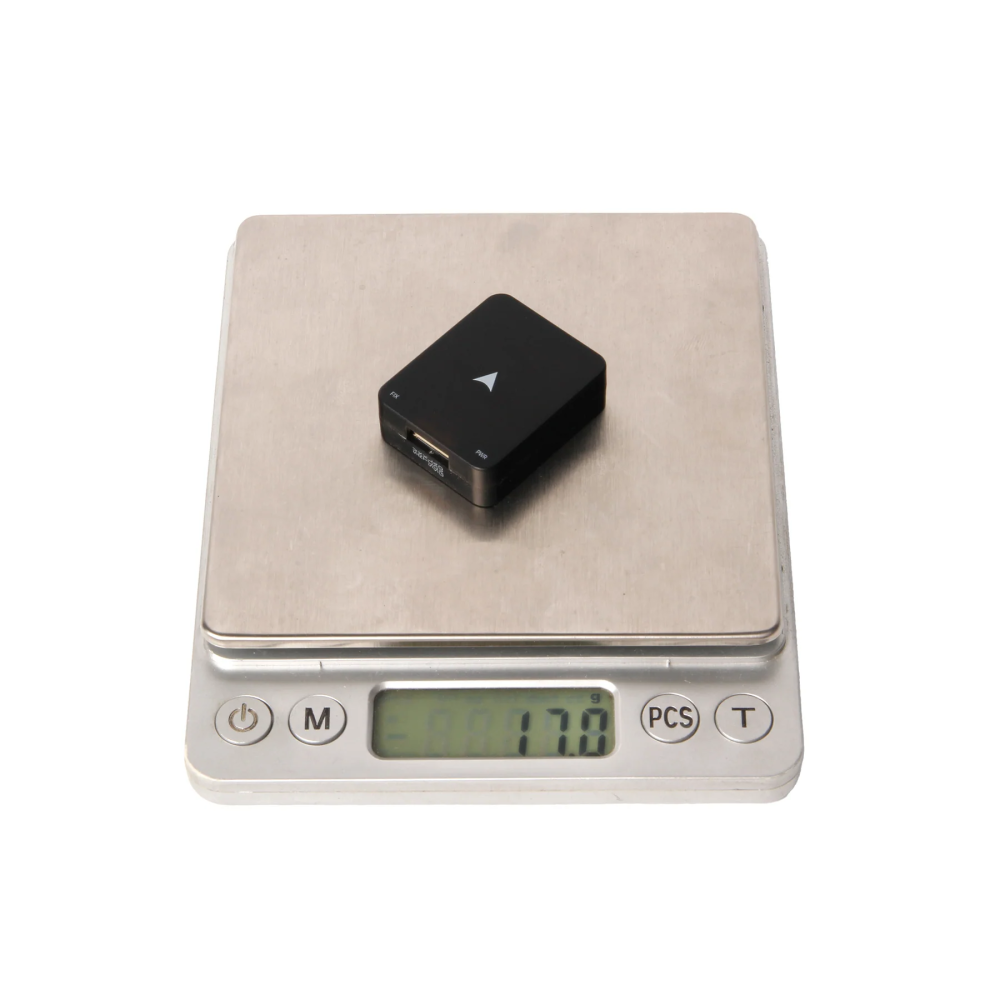

The module weighs only 14 g without the protective case and approximately 16 g with the case, making it suitable for compact UAVs, lightweight fixed-wing aircraft, and FPV platforms.

Integrated Compass

Depending on the selected version, the module is equipped with an integrated IST8310 or IST8308 compass.

The onboard magnetometer provides heading information to compatible flight controllers and simplifies installation by combining GNSS positioning and compass functions in a single compact module.

High-Gain Ceramic Patch Antenna

The integrated 25 × 25 × 4 mm ceramic patch antenna provides reliable GNSS signal reception.

Its omnidirectional radiation pattern offers greater installation flexibility, while the integrated MAX2659ELT+ low-noise RF amplifier helps improve signal performance.

High-Speed Navigation Updates

The u-blox M10 receiver supports navigation update rates of up to 25 Hz when using a single GNSS constellation.

When operating with four concurrent GNSS systems, it supports update rates of up to 10 Hz for responsive positioning during dynamic UAV operations.

Rechargeable Backup System

The integrated rechargeable backup system helps retain satellite data after power-off.

This supports faster warm-start acquisition during repeated flights and reduces the time required to restore a GNSS position fix.

Wide Firmware Compatibility

The Micro M10 GPS is compatible with modern versions of PX4, ArduPilot, INAV, and Betaflight.

It is suitable for multirotors, FPV drones, fixed-wing UAVs, VTOL aircraft, autonomous platforms, and custom aircraft projects.

Technical Specifications

Product: Holybro Micro M10 GPS
Application: FPV drones, multirotors, fixed-wing UAVs, VTOL aircraft, and autonomous platforms
GNSS Receiver: u-blox M10
Compass: IST8310 or IST8308 depending on selected version
Available Versions: With Case / Without Case
Concurrent GNSS: Up to 4 systems
Supported GNSS: GPS / Galileo / GLONASS / BeiDou / QZSS
Frequency Bands: GPS L1 / Galileo E1 / GLONASS L1 / BeiDou B1 / SBAS L1 / QZSS L1
Output Protocol: UBX / NMEA
Position Accuracy: 2.0 m CEP
Navigation Update Rate: Up to 25 Hz with single GNSS / Up to 10 Hz with four concurrent GNSS systems
GNSS Augmentation: EGNOS / GAGAN / MSAS / WAAS / QZSS L1S
Default Baud Rate: 115,200 bps
Input Voltage: 4.7–5.2 V
Power Consumption: Less than 200 mA @ 5 V
Connector: JST-GH 6-pin
Antenna: 25 × 25 × 4 mm ceramic patch antenna
Antenna Gain: 1.5 dBi
Antenna LNA Gain: 22 dB
RF Amplifier: MAX2659ELT+
Operating Temperature: -40°C to +80°C
Dimensions Without Case: 32 × 26 × 9 mm
Dimensions With Case: 34 × 28 × 11 mm
Weight Without Case: 14 g
Weight With Case: 16 g
Additional Features: Rechargeable backup system / Low-noise 3.3V regulator

Firmware Compatibility

PX4: Version 1.14 or later
ArduPilot: Version 4.3 or later
INAV: Version 5.0.0 or later
Betaflight: Version 4.3.0 or later

What’s Included

1× Holybro Micro M10 GPS Module
1× JST-GH 6-Pin Connector Cable — 15 cm
1× JST-GH 6-Pin Colored Silicone Cable — 15 cm
