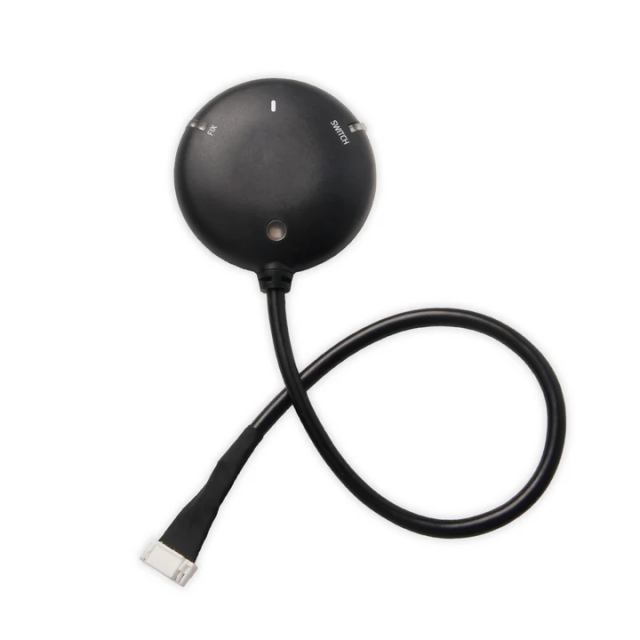

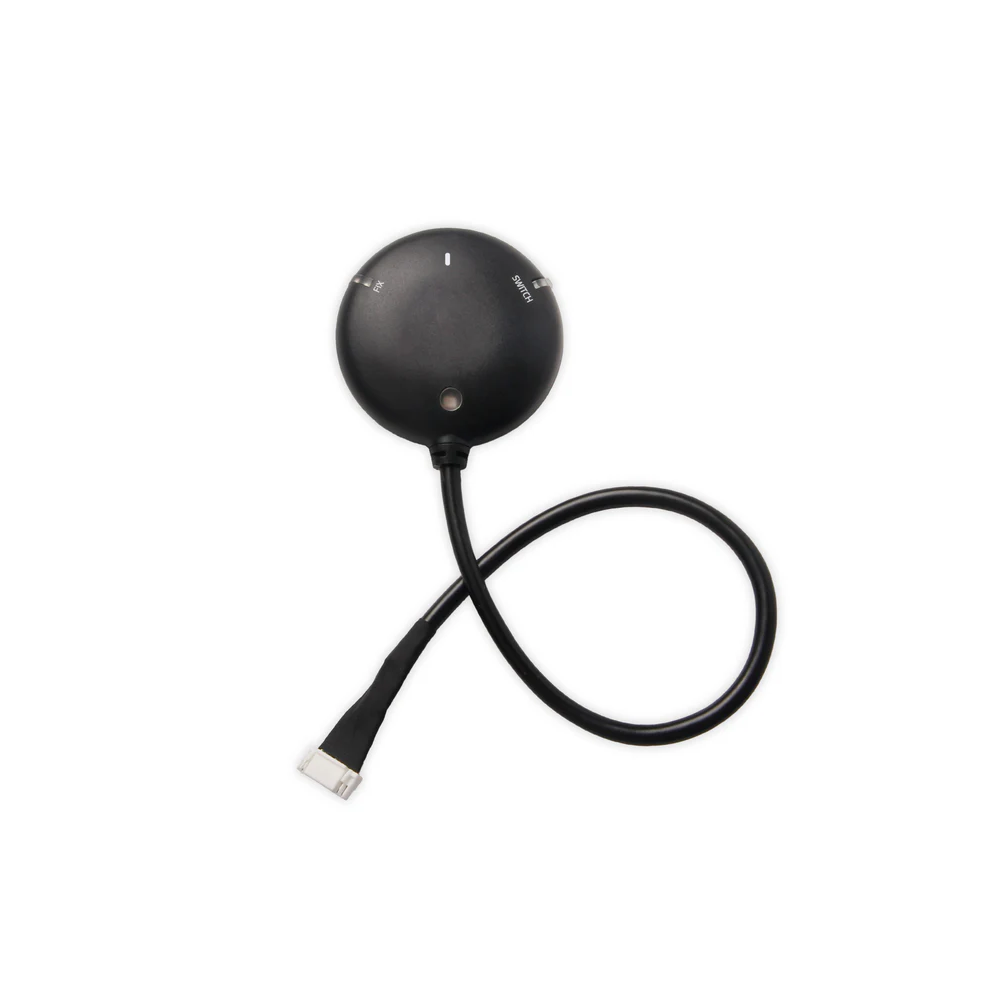

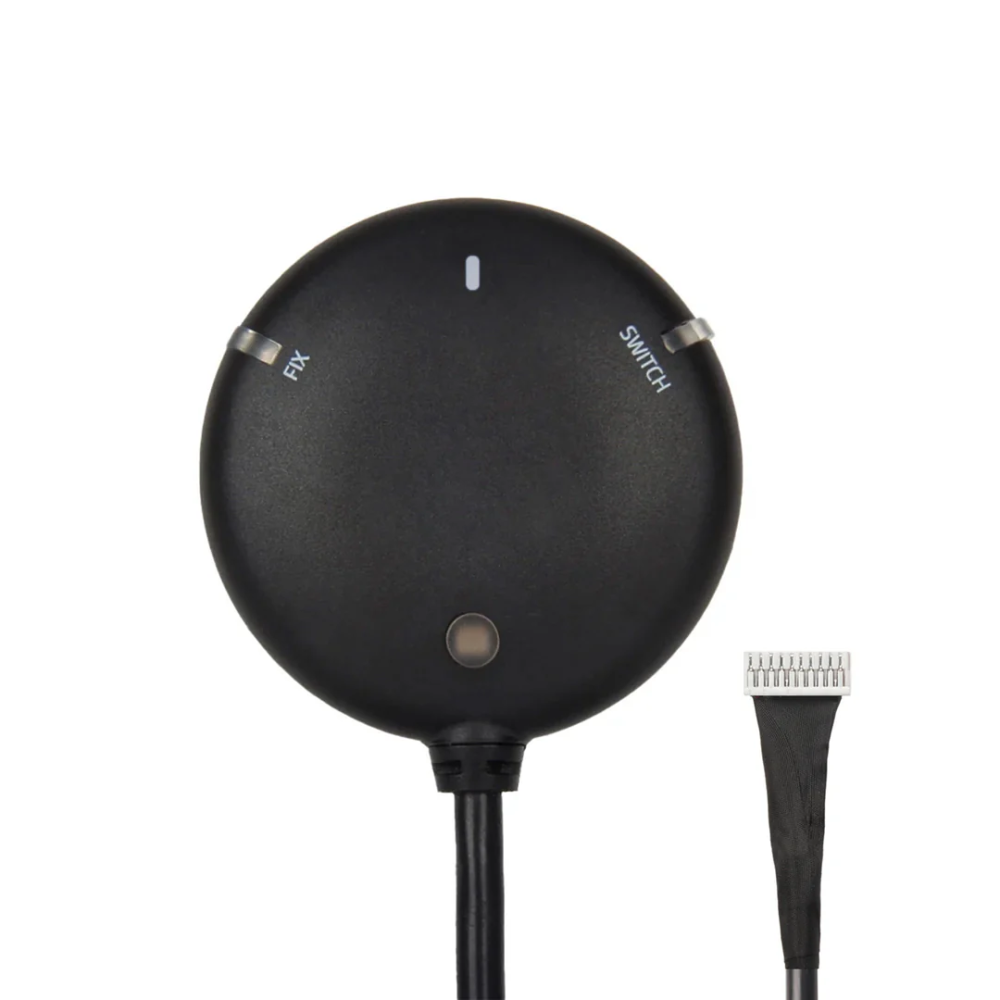

M9N GPS Standard 10-Pin

The Holybro M9N GPS Standard 10-Pin is a high-performance multi-constellation GNSS module designed for multirotors, fixed-wing UAVs, VTOL aircraft, autonomous drones, and robotic platforms.

Powered by the u-blox M9N GNSS receiver, it can receive and process GPS, Galileo, GLONASS, and BeiDou satellite signals simultaneously for improved satellite availability, accurate positioning, and reliable navigation performance.

The Standard 10-Pin version is designed for direct connection to the GPS Module or GPS1 port found on Pixhawk Standard flight controllers.

u-blox M9N GNSS Receiver

The M9N GPS is built around the u-blox M9N concurrent GNSS receiver.

Its multi-constellation architecture allows up to four major GNSS systems to be used simultaneously, helping improve satellite availability and maintain reliable positioning during UAV operations.

Multi-Constellation Positioning

The module supports GPS, Galileo, GLONASS, BeiDou, and QZSS satellite systems.

Concurrent GNSS reception provides improved positioning reliability and greater satellite coverage in demanding operating environments.

Accurate & High-Rate Navigation

The u-blox M9N receiver provides positioning accuracy of up to 1.5 m CEP under suitable operating conditions.

Navigation update rates of up to 25 Hz provide responsive position data for dynamic UAV, VTOL, and autonomous navigation applications.

Integrated Compass

The M9N GPS is available with an integrated IST8310 or IST8308 compass depending on the selected version.

The onboard magnetometer provides heading information to compatible flight controllers and helps support accurate autonomous navigation.

Standard 10-Pin Pixhawk Connection

This version uses a JST-GH 10-pin connector designed for Pixhawk Standard GPS Module and GPS1 ports.

The single connection integrates GNSS, compass, RGB status indication, buzzer, and safety switch functions for simplified installation.

High-Gain Ceramic Patch Antenna

The integrated 25 × 25 × 4 mm ceramic patch antenna provides reliable GNSS signal reception.

Its omnidirectional radiation pattern offers flexible installation, while the onboard low-noise amplifier helps improve signal quality.

Integrated LED, Buzzer & Safety Switch

The module includes a bright tri-color RGB LED for clear system status indication.

An onboard buzzer and integrated safety switch provide convenient aircraft feedback and system control during setup and operation.

Rechargeable Backup System

The onboard rechargeable backup system helps retain satellite information after power-off.

This supports faster warm-start acquisition during repeated flight operations.

Professional UAV Applications

The Holybro M9N GPS Standard 10-Pin is suitable for multirotors, fixed-wing UAVs, VTOL aircraft, mapping drones, inspection platforms, autonomous aircraft, and robotic systems requiring reliable GNSS positioning.

Technical Specifications

Product: Holybro M9N GPS Standard 10-Pin
Application: Multirotors, fixed-wing UAVs, VTOL aircraft, autonomous drones, and robotic platforms
GNSS Receiver: u-blox M9N
Compass: IST8310 or IST8308 depending on version
Concurrent GNSS: Up to 4 systems
Supported GNSS: GPS / Galileo / GLONASS / BeiDou / QZSS
Frequency Bands: GPS L1 / Galileo E1 / GLONASS L1 / BeiDou B1 / SBAS L1 / QZSS L1
Output Protocol: UBX / NMEA
Position Accuracy: 1.5 m CEP
Maximum Navigation Update Rate: Up to 25 Hz
GNSS Augmentation: EGNOS / GAGAN / MSAS / WAAS / QZSS L1S
Default Baud Rate: 115,200 bps
Connector: JST-GH 10-pin
Compatible Port: Pixhawk Standard GPS Module / GPS1 port
Input Voltage: 4.7–5.2 V
Power Consumption: Less than 200 mA @ 5 V
Antenna: 25 × 25 × 4 mm ceramic patch antenna
Antenna Gain: 1.5 dBi
Antenna LNA Gain: 22 dB
Operating Temperature: -40°C to +80°C
Dimensions: Ø50 × 14.4 mm

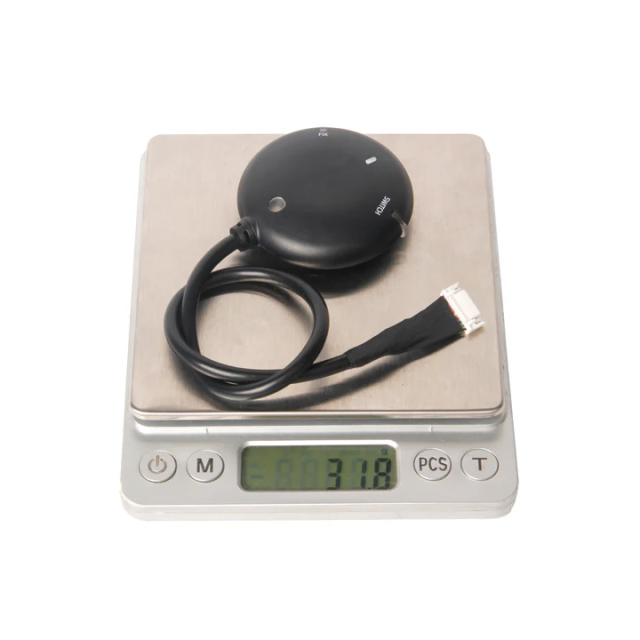

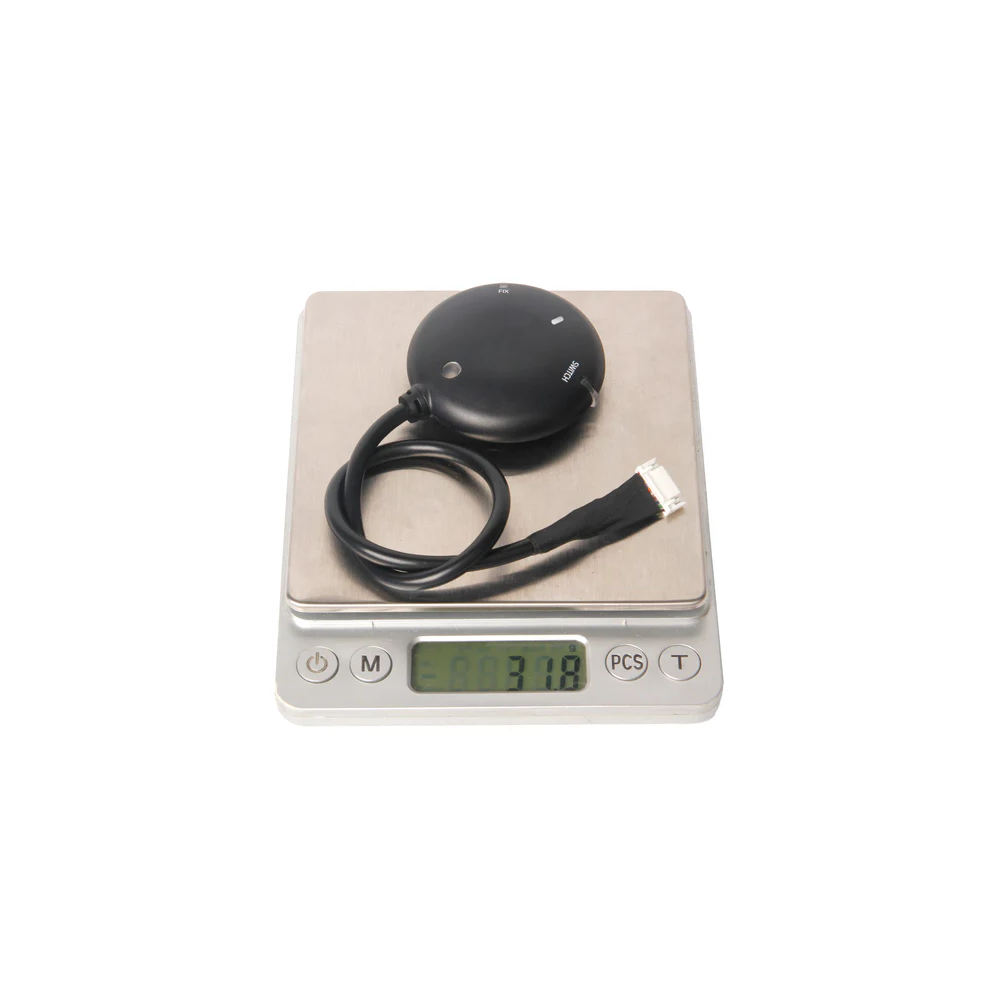

Weight: 32 g
Cable Length: Approx. 27 cm
Status Indicator: Tri-color RGB LED
Additional Features: Integrated buzzer / Safety switch / Rechargeable backup system / Low-noise 3.3V regulator

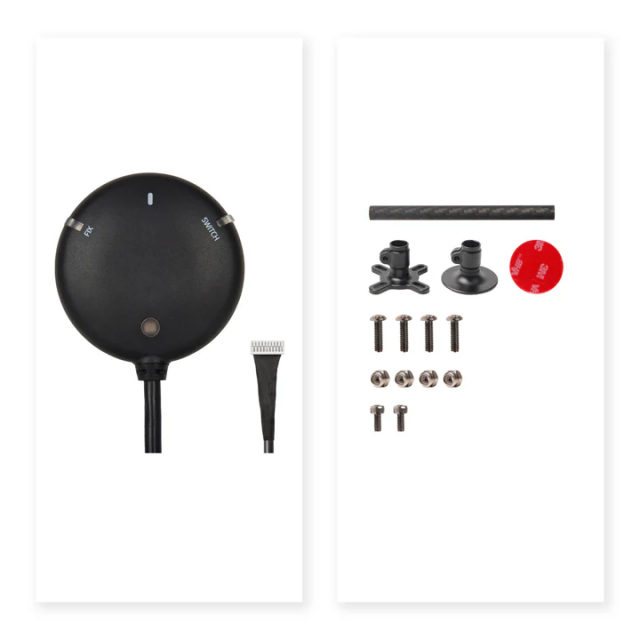

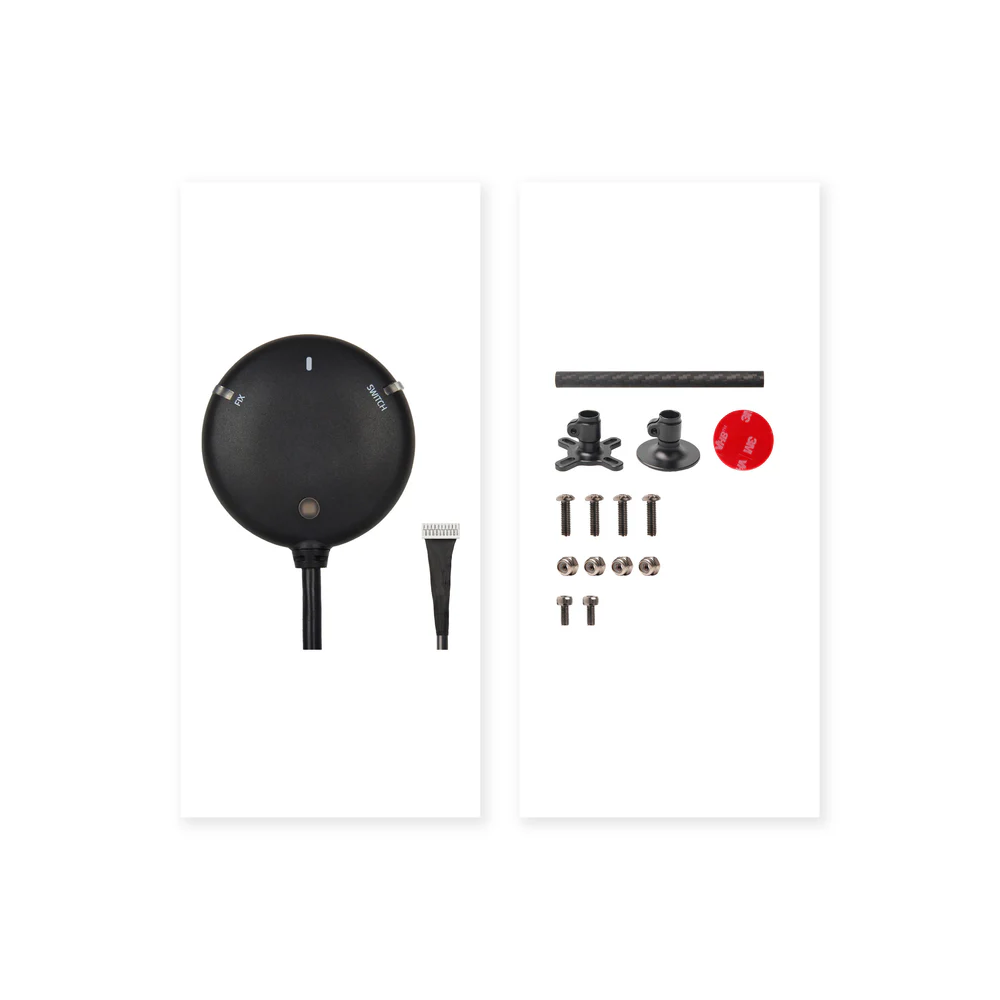

What’s Included

1× Holybro M9N GPS Standard 10-Pin Module

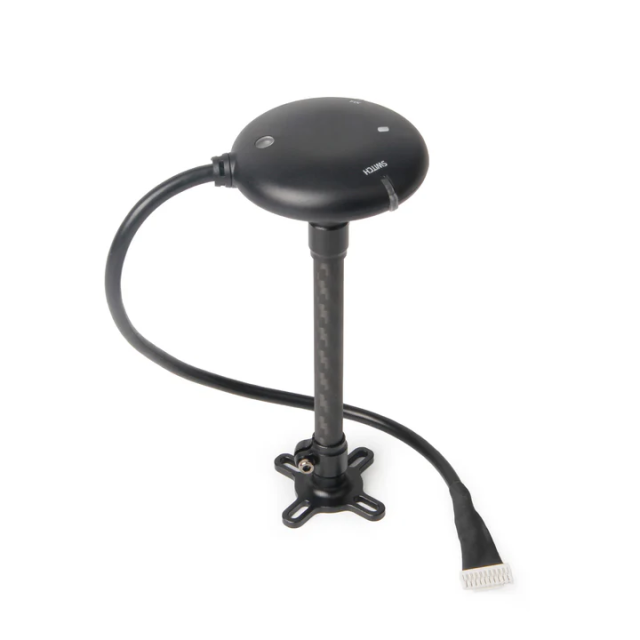

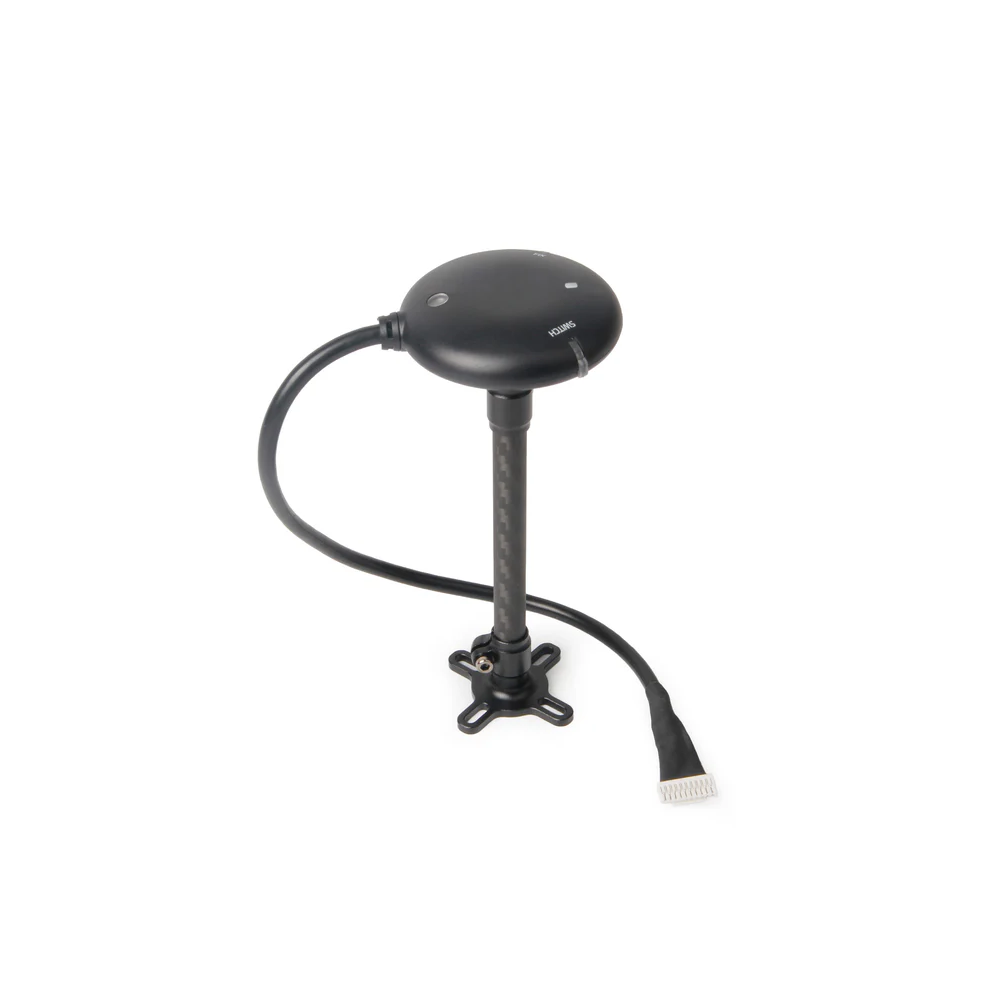

1× Fixed Carbon Fiber GPS Mount
