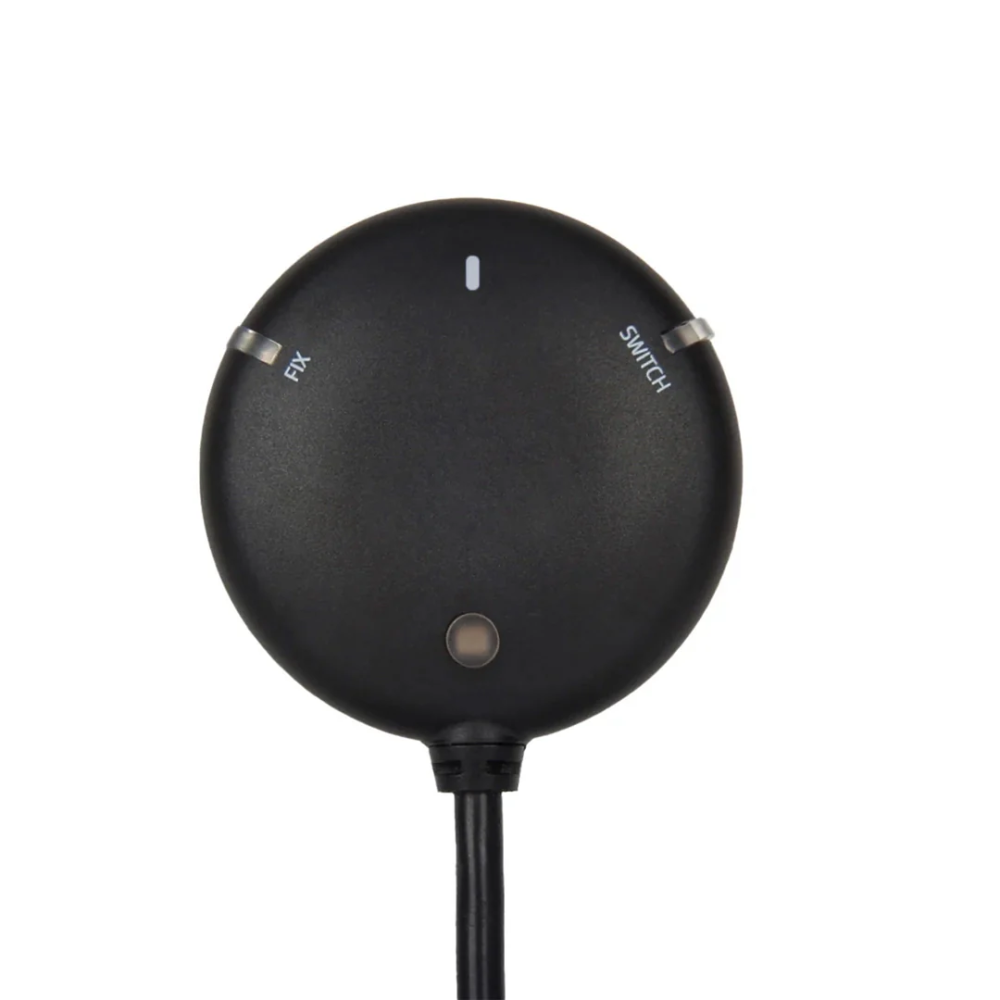

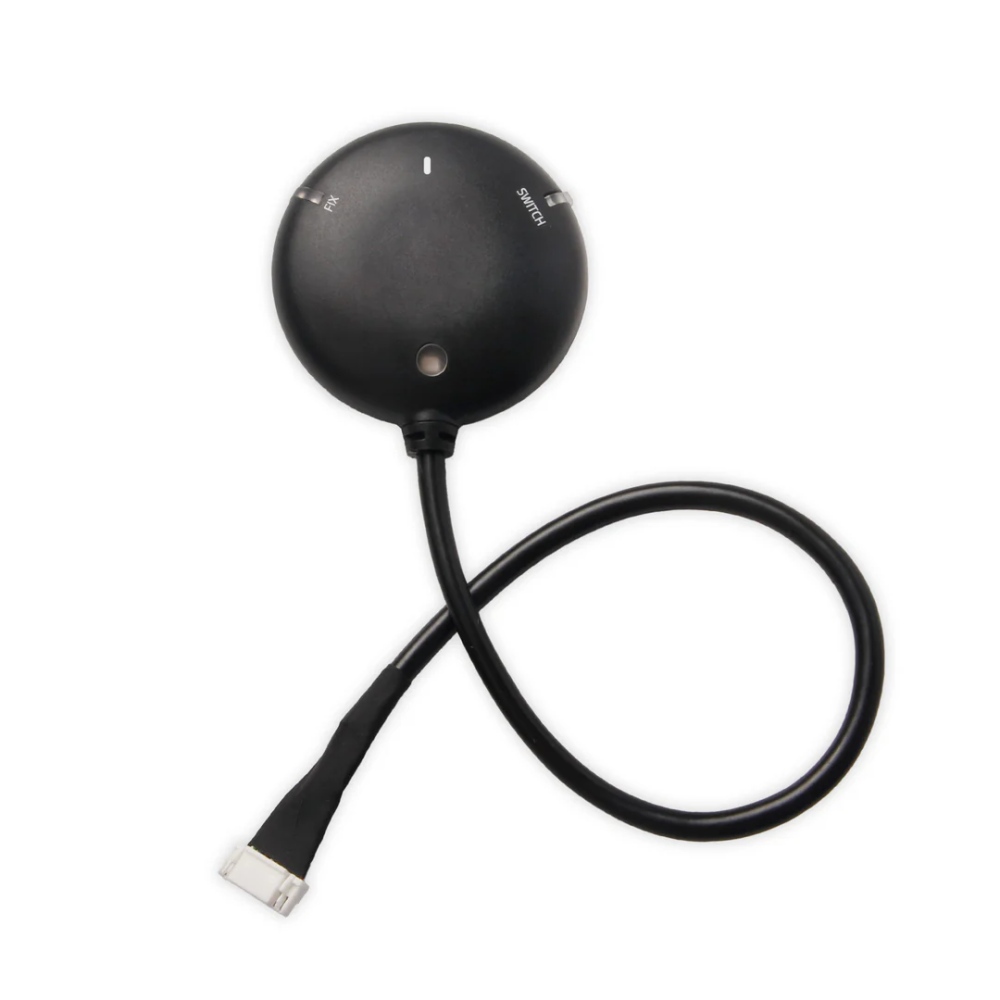

M10 GPS Standard 10-Pin

The Holybro M10 GPS Standard 10-Pin is a high-performance multi-constellation GNSS module designed for UAVs, fixed-wing aircraft, VTOL platforms, multirotors, and autonomous robotic systems.

Powered by the latest-generation u-blox M10 GNSS receiver, it supports simultaneous reception from GPS, Galileo, GLONASS, and BeiDou satellite constellations for improved satellite availability, reliable positioning, and fast navigation performance.

The Standard 10-Pin version is designed for direct connection to the GPS Module or GPS1 port found on Pixhawk-standard flight controllers.

u-blox M10 GNSS Receiver

The M10 GPS is built around the u-blox M10 GNSS receiver.

Its multi-constellation architecture can receive and track up to four major GNSS systems simultaneously, helping improve satellite availability and positioning reliability during flight.

Multi-Constellation Positioning

The module supports GPS, Galileo, GLONASS, BeiDou, and QZSS satellite systems.

Concurrent GNSS reception helps provide more consistent positioning performance in demanding operating environments.

Integrated IST8310 Compass

The integrated IST8310 magnetometer provides heading data to compatible flight controllers.

Combining GNSS positioning and compass functionality in one module simplifies UAV installation and supports reliable autonomous navigation.

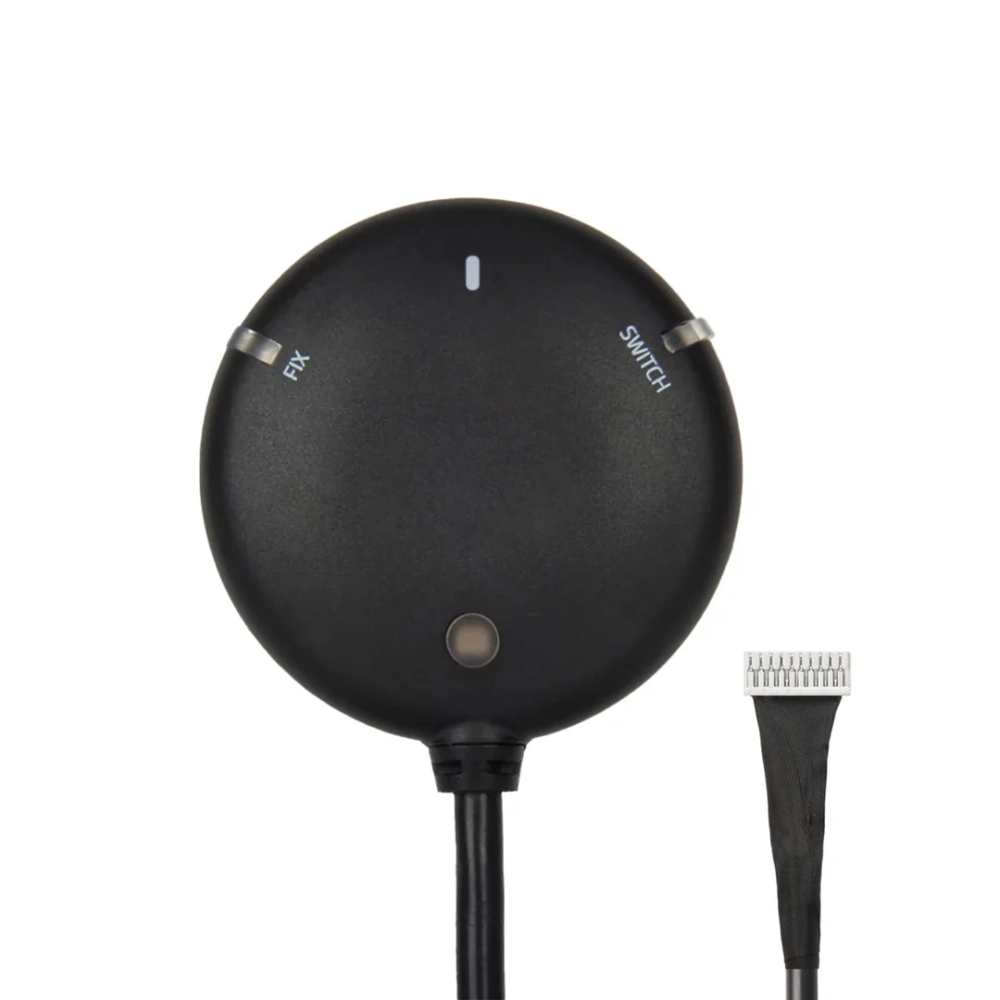

Standard 10-Pin Pixhawk Connection

This version is equipped with a JST-GH 10-pin connection designed for the GPS Module or GPS1 port used on Pixhawk-standard flight controllers.

The integrated connection provides GNSS, compass, safety switch, buzzer, and status functions through a single installation interface.

High-Gain Ceramic Patch Antenna

The integrated 25 × 25 × 4 mm ceramic patch antenna provides reliable GNSS signal reception.

Its omnidirectional radiation pattern offers greater installation flexibility while the integrated low-noise amplifier helps improve signal performance.

Fast Navigation Update Rate

The M10 receiver supports navigation update rates of up to 25 Hz when using a single GNSS constellation.

When operating with four concurrent GNSS systems, it supports update rates of up to 10 Hz for responsive positioning in dynamic UAV applications.

Integrated LED, Buzzer & Safety Switch

The module includes a bright tri-color RGB status LED for clear visual system feedback.

An onboard buzzer and integrated safety switch provide convenient aircraft status indication and system control during setup and operation.

Rechargeable Backup System

The onboard rechargeable backup system helps retain satellite data and supports faster warm-start acquisition after power cycling.

This reduces the time required to restore GNSS positioning during repeated field operations.

Flight Controller Compatibility

The M10 GPS is compatible with Pixhawk-standard flight controllers using a 10-pin GPS1 connector.

It supports modern versions of ArduPilot, PX4, INAV, and Betaflight firmware.

Technical Specifications

Product: Holybro M10 GPS Standard 10-Pin
Application: Multirotors, fixed-wing UAVs, VTOL aircraft, autonomous drones, and robotic platforms
GNSS Receiver: u-blox M10
Compass: IST8310
Concurrent GNSS: Up to 4 systems
Supported GNSS: GPS / Galileo / GLONASS / BeiDou / QZSS
Frequency Bands: GPS L1 / Galileo E1 / GLONASS L1 / BeiDou B1 / SBAS L1 / QZSS L1
Output Protocol: UBX / NMEA
Position Accuracy: 2.0 m CEP
Navigation Update Rate: Up to 25 Hz with single GNSS / Up to 10 Hz with four concurrent GNSS systems
GNSS Augmentation: EGNOS / GAGAN / MSAS / WAAS / QZSS L1S
Default Baud Rate: 115,200 bps
Connector: JST-GH 10-pin
Compatible Port: Pixhawk-standard GPS Module / GPS1 port
Input Voltage: 4.7–5.2 V
Power Consumption: Less than 200 mA @ 5 V
Antenna: 25 × 25 × 4 mm ceramic patch antenna
Antenna Gain: 1.5 dBi
Antenna LNA Gain: 22 dB
Operating Temperature: -40°C to +80°C
Dimensions: Ø50 × 14.4 mm
Weight: 32 g
Cable Length: Approx. 27 cm
Status Indicator: Tri-color RGB LED
Additional Features: Integrated buzzer / Safety switch / Rechargeable backup system / Low-noise 3.3V regulator
Firmware Compatibility: ArduPilot / PX4 / INAV / Betaflight

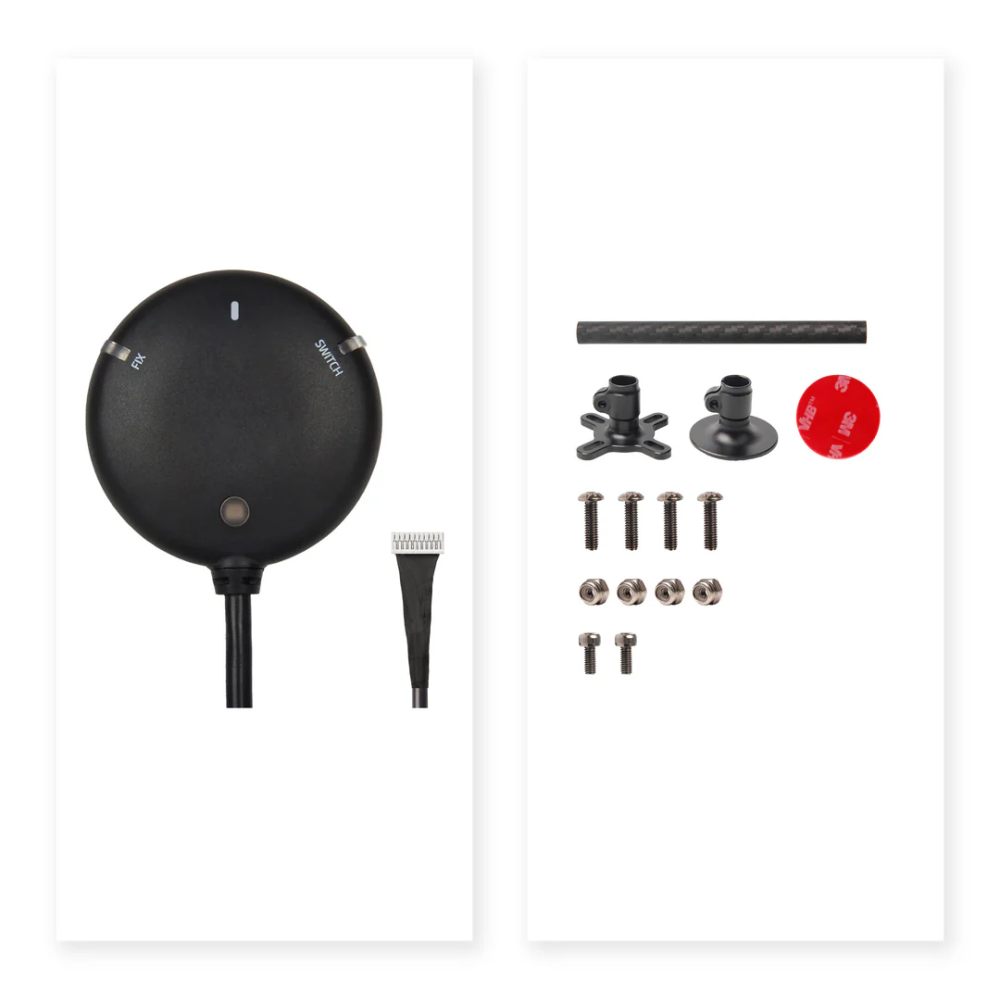

What’s Included

1× Holybro M10 GPS Standard 10-Pin Module

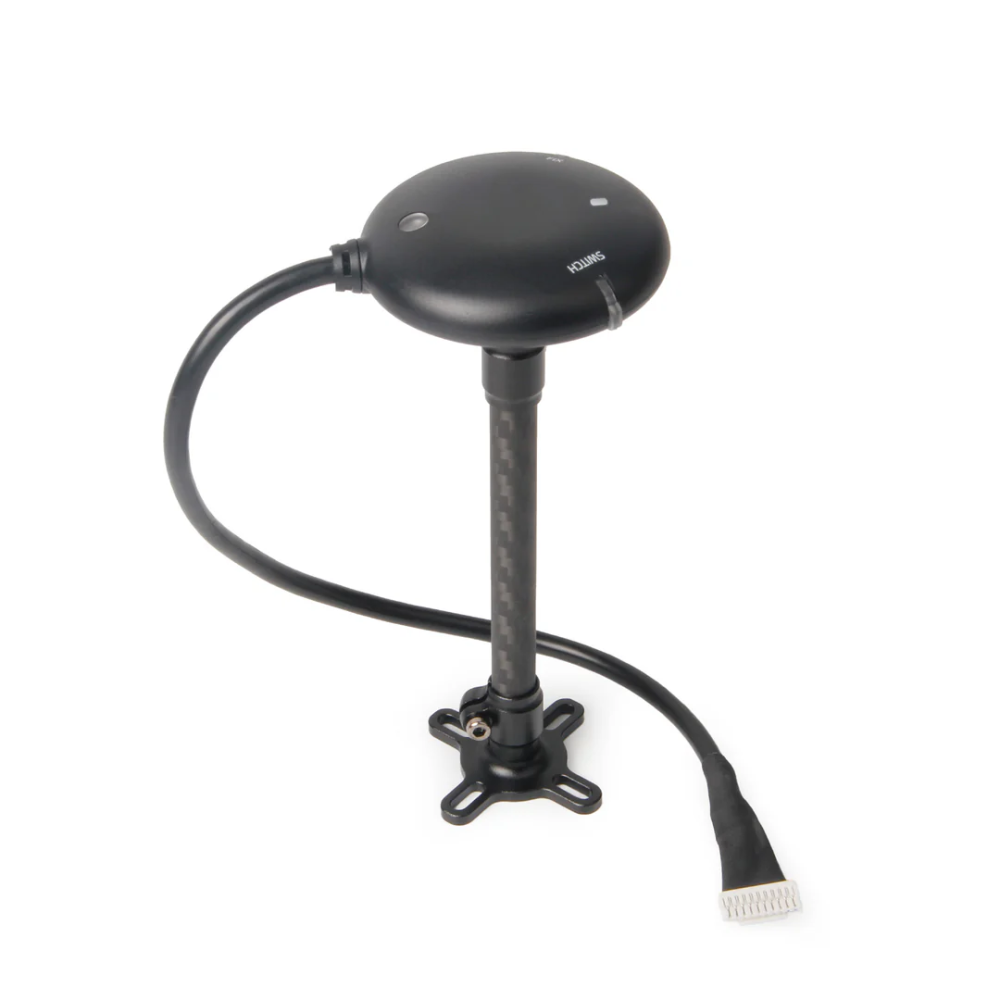

1× Fixed Carbon Fiber GPS Mount
