Micro OSD V2

The Holybro Micro OSD V2 is a compact On-Screen Display module designed for FPV drones, UAVs, fixed-wing aircraft, multirotors, and autonomous platforms using an analog video system.

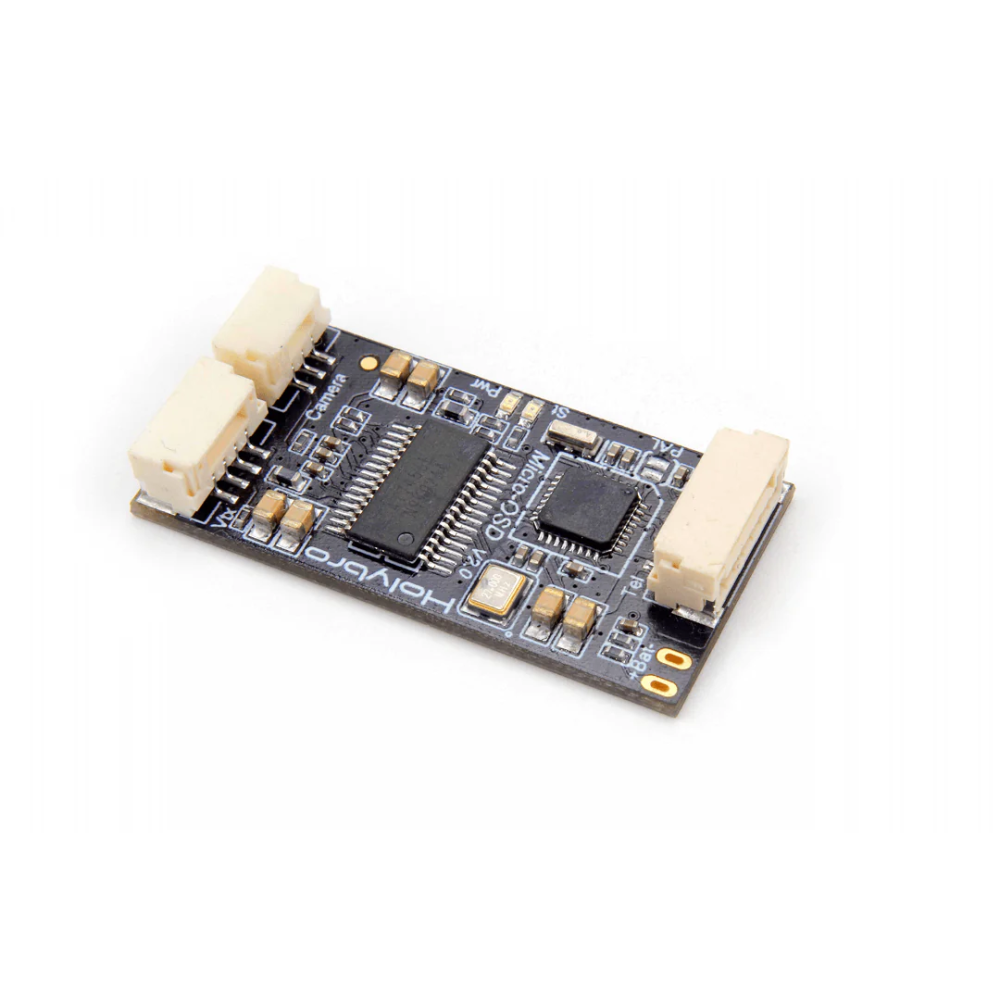

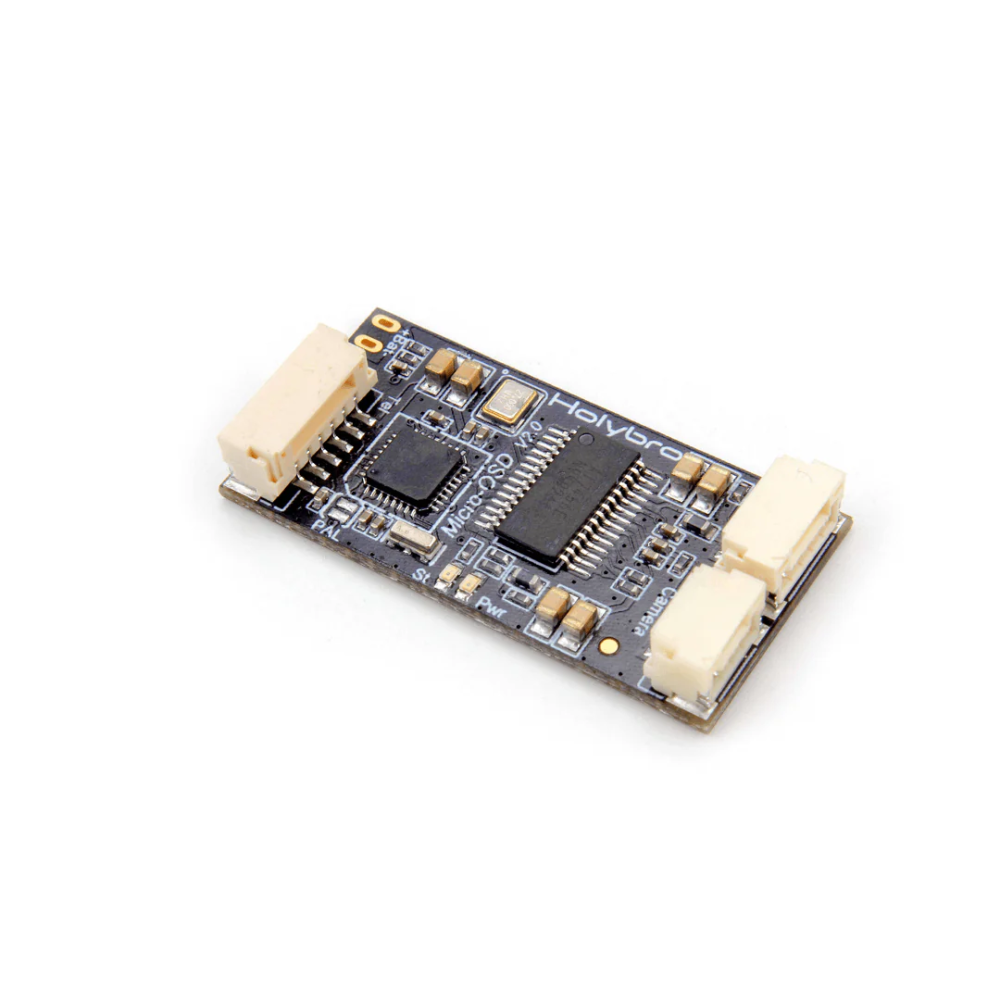

Built around an ATmega328P microcontroller and MAX7456 monochrome OSD chip, it allows important flight and telemetry information to be displayed directly on the FPV video feed.

Real-Time Flight Information

The Micro OSD V2 provides an easy way to monitor essential aircraft information during FPV operation.

Depending on the flight controller configuration and firmware, the OSD can display information such as battery voltage, flight time, altitude, GPS data, flight mode, heading, warnings, and other telemetry values directly on the video feed.

ATmega328P Microcontroller

The module uses an ATmega328P microcontroller with an Arduino bootloader.

This widely supported architecture provides reliable OSD processing and allows firmware configuration or updates through compatible tools.

MAX7456 Monochrome OSD

The integrated MAX7456 chip generates a clear monochrome overlay for analog FPV video systems.

Flight information is displayed directly over the camera image without requiring an external display processor.

Compact & Lightweight Design

With dimensions of only 17.5 × 35 mm and a weight of approximately 3 g, the Micro OSD V2 is easy to integrate into compact UAV and FPV platforms.

Its lightweight design minimizes the impact on aircraft weight and installation space.

PAL Video Configuration

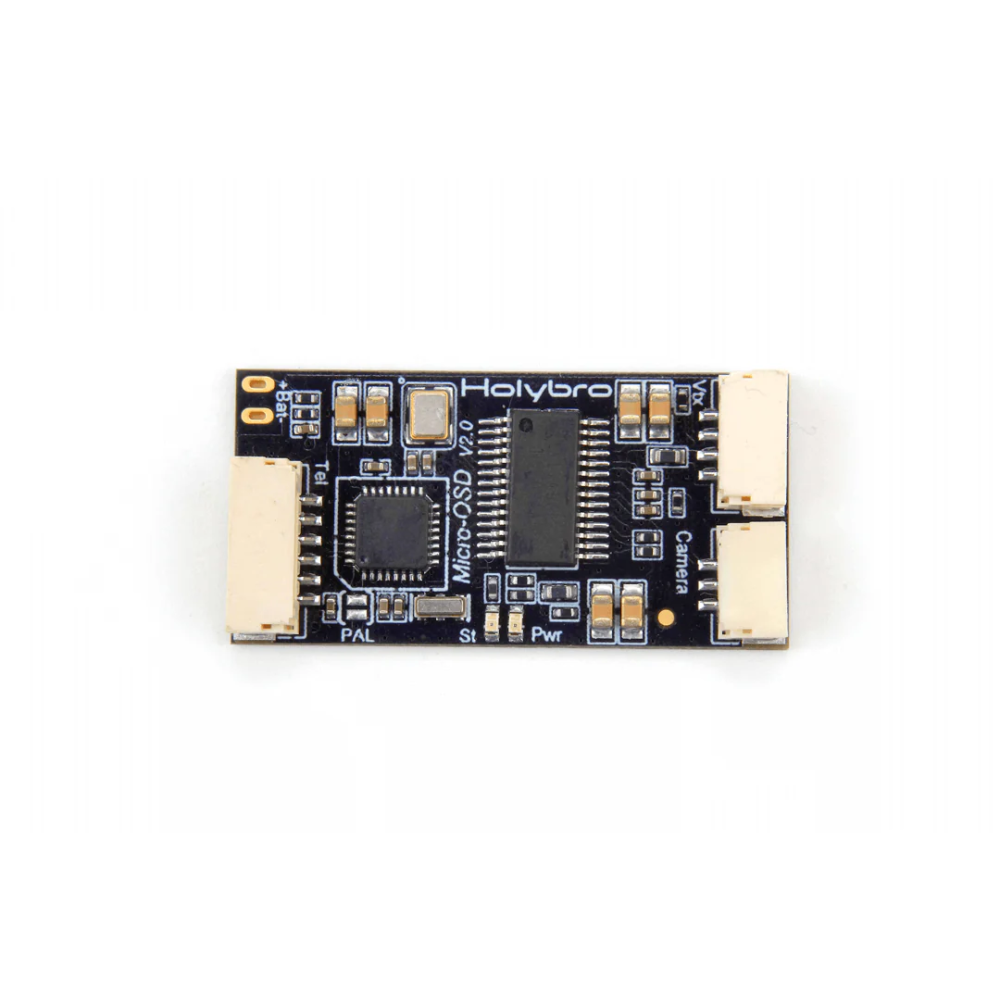

The board includes a solder jumper for PAL video configuration.

This allows the module to be adapted to compatible analog video standards depending on the camera and video system setup.

GHR Connector Interface

The Micro OSD V2 uses compact GHR connectors for connection to compatible flight controllers, cameras, and video transmitters.

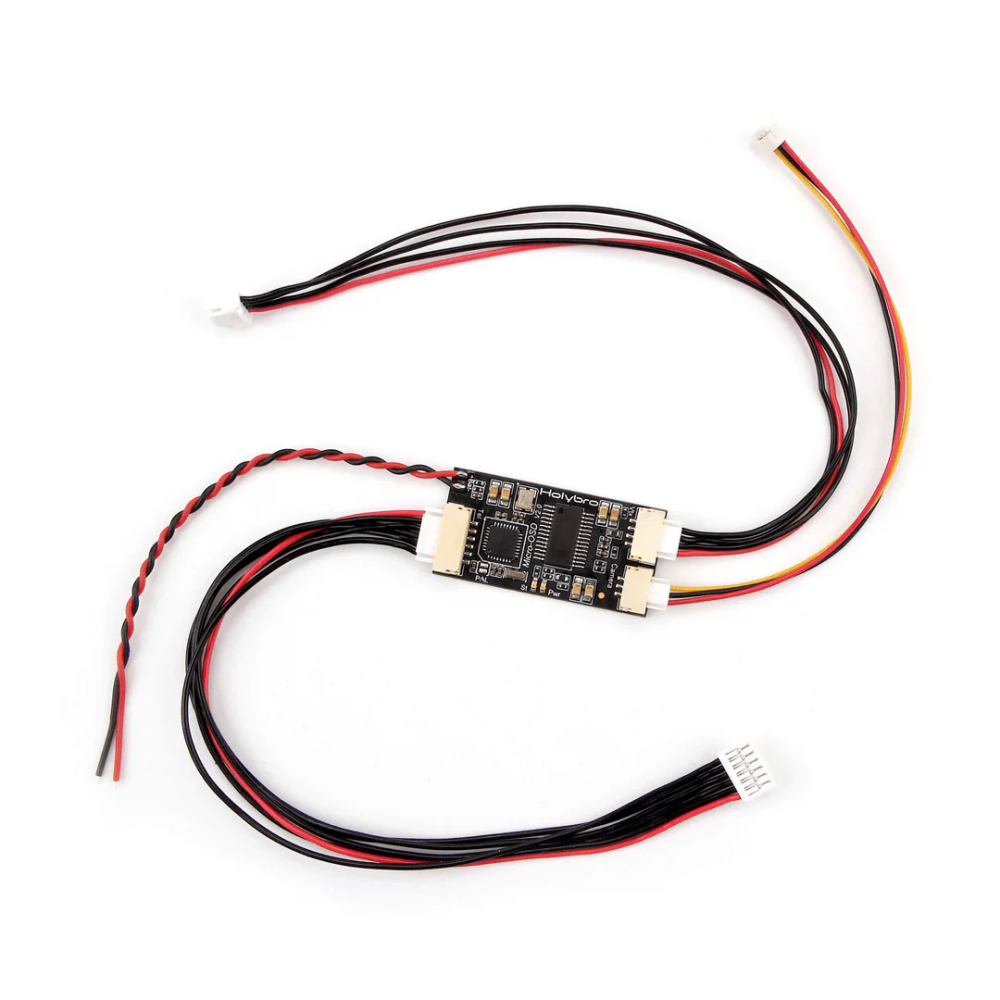

The included cable set simplifies integration into supported UAV systems.

Exposed Diagnostic Test Points

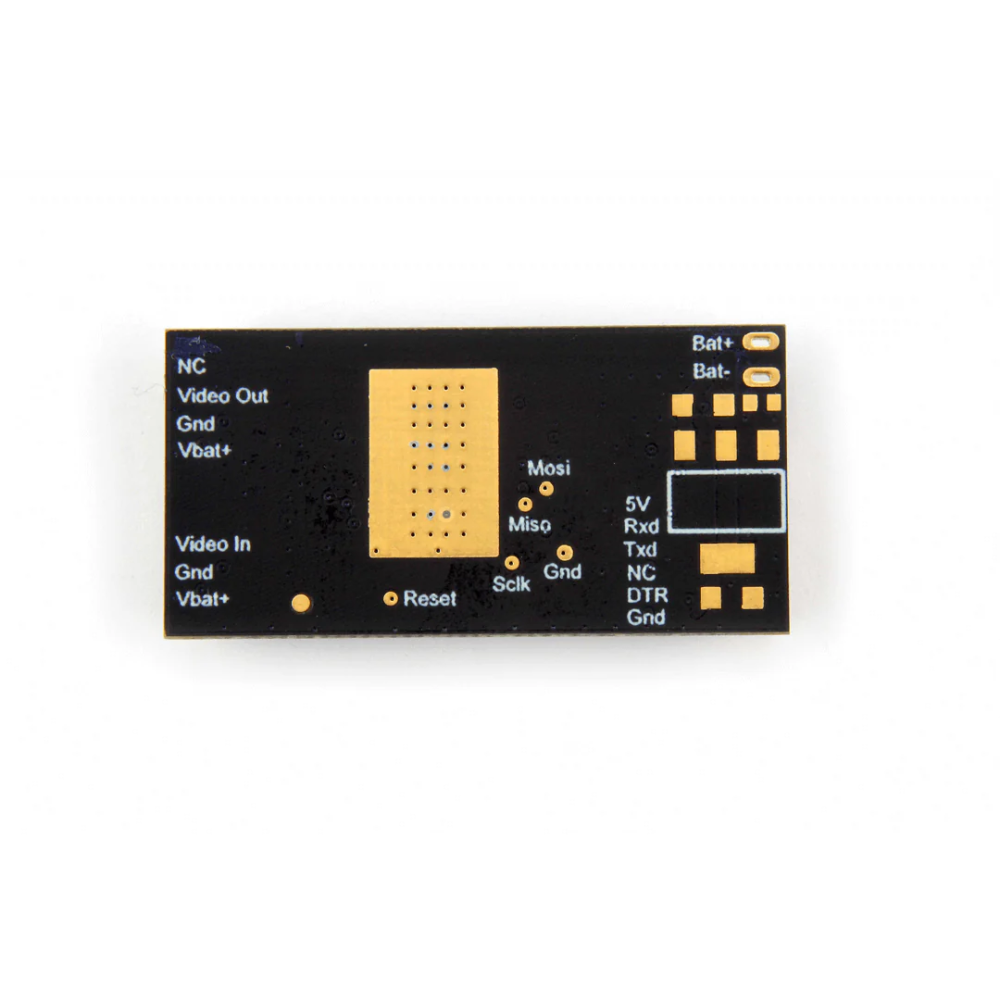

Exposed HSYNC and LOS test points are available for advanced diagnostics, development, and system troubleshooting.

Important Power Connection Note

The BAT+ input is directly connected to the camera and video transmitter power outputs.

Always verify the maximum input voltage supported by the connected camera and video transmitter before powering the system.

Technical Specifications

Product: Holybro Micro OSD V2
Application: FPV drones, multirotors, fixed-wing UAVs, and autonomous aircraft
Device Type: Analog On-Screen Display module
Microcontroller: ATmega328P
Bootloader: Arduino bootloader
OSD Chip: MAX7456
Display Type: Monochrome OSD overlay
Video System: Analog FPV video
Video Configuration: PAL selectable through solder jumper
Connectors: GHR connectors
Programming Interface: Standard 6-pin ISP header
Diagnostic Test Points: HSYNC / LOS
Dimensions: 17.5 × 35 mm
Weight: 3 g

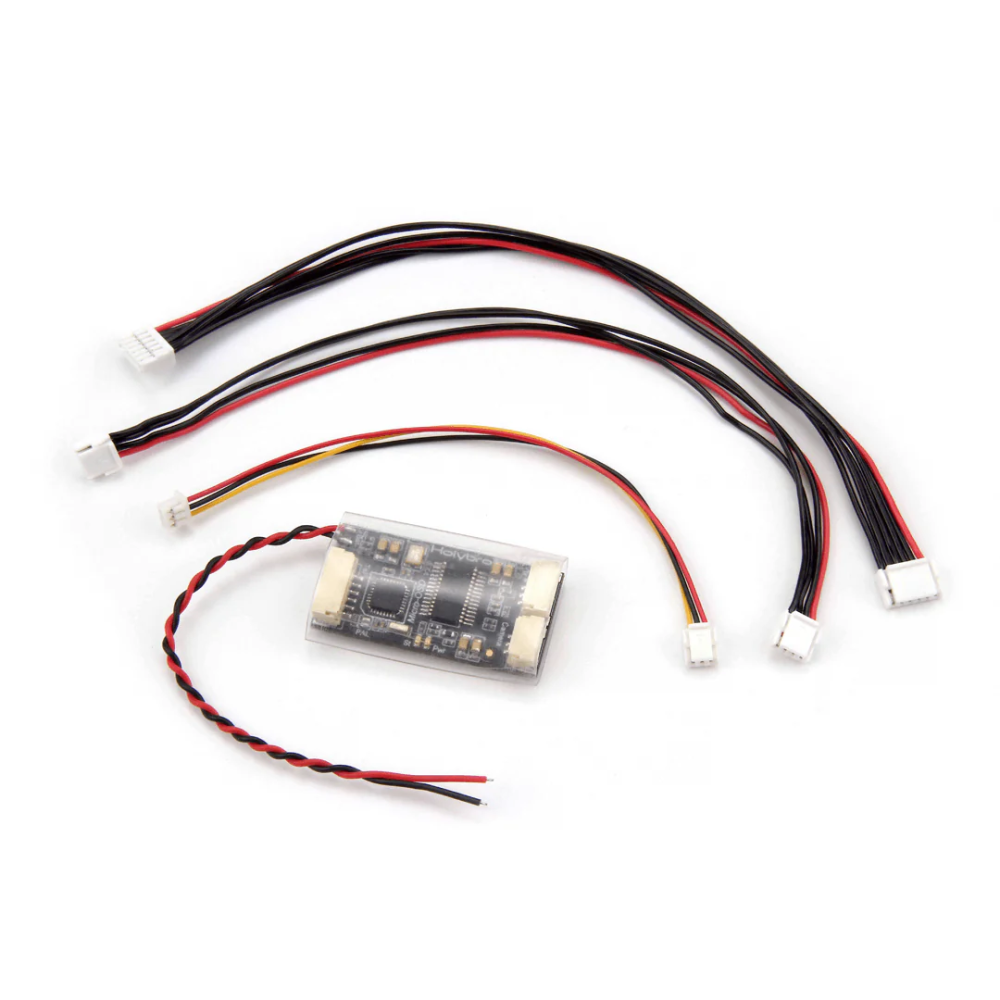

What’s Included

1× Holybro Micro OSD V2 Module
1× GH 6-Pin Cable
1× GH 4-Pin Cable
1× GH 3-Pin Cable

Camera, video transmitter, flight controller, and FPV display are not included.
