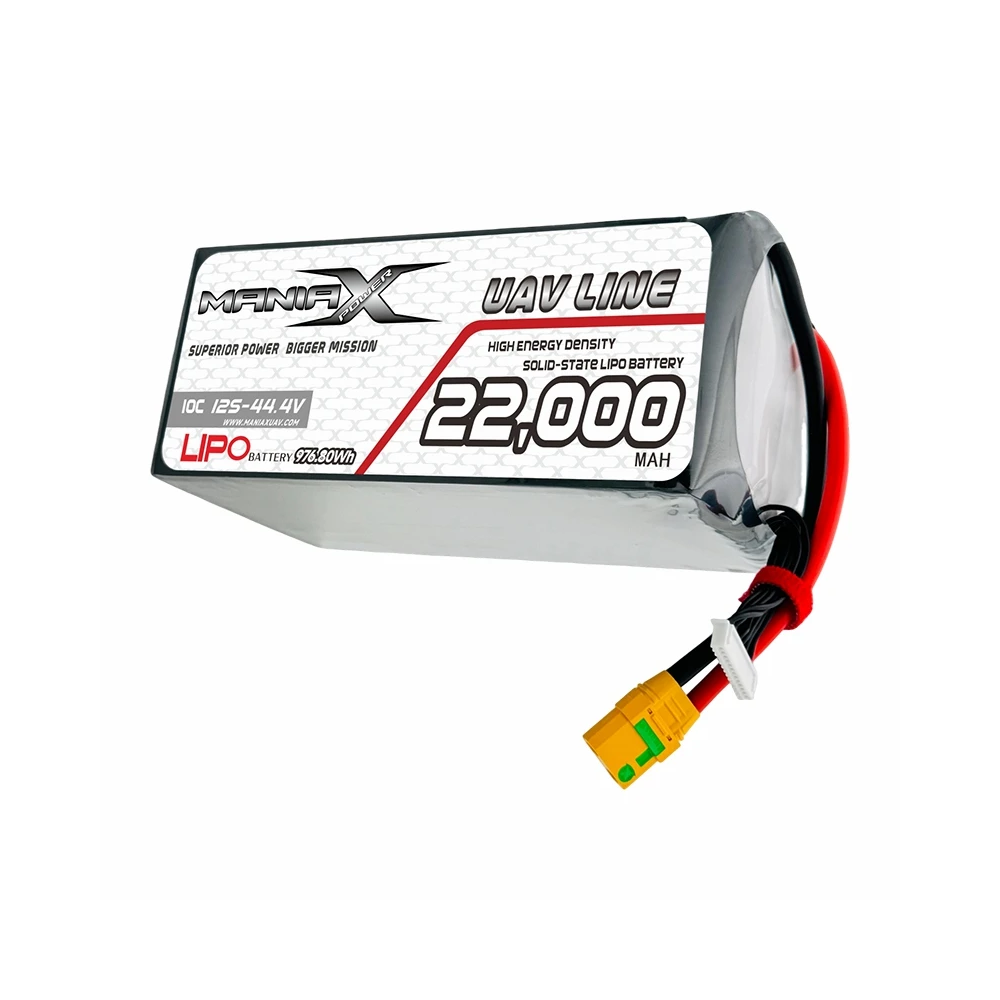

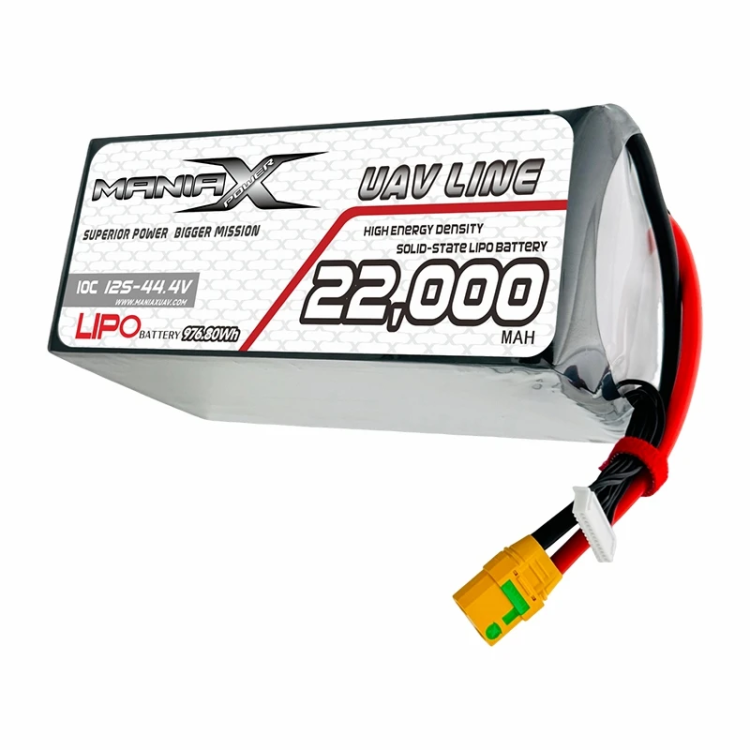

MANIAX-12S-22AH-10C-SS

The ManiaX Solid-State LiPo 12S 44.4V 22,000mAh 10C Drone Battery is a professional high-energy battery packdesigned for industrial UAVs, professional multirotors, mapping drones, inspection platforms, heavy-duty drone systems, and electric propulsion applications.

Part of the ManiaX 4.25V Solid-State LiPo 340–360Wh/kg range, this 12S 44.4V battery offers a strong balance between energy density, capacity, discharge performance, and flight endurance.

High-Energy 12S UAV Battery

The ManiaX 12S 44.4V 22,000mAh battery is designed for UAV platforms requiring a high-voltage battery solution with reliable energy storage.

With its 22Ah capacity and 44.4V nominal voltage, it provides stable power delivery for professional drone systems where flight time, voltage stability, and payload capability are important.

This makes it suitable for industrial drones, mapping UAVs, inspection drones, aerial survey platforms, large multirotors, and professional electric aircraft.

340–360Wh/kg Solid-State LiPo Technology

This ManiaX solid-state LiPo battery is built to provide improved energy density compared with conventional LiPo battery solutions.

The 340–360Wh/kg energy density range helps optimize the balance between battery weight, capacity, and flight endurance, making it a strong choice for UAV integrators and professional drone builders.

Its solid-state LiPo construction is designed to support stable performance, efficient energy storage, and reliable power delivery during demanding drone operations.

10C Continuous Discharge Performance

The ManiaX 12S 22Ah 10C battery supports a 10C continuous discharge rate, making it suitable for UAV applications requiring stronger current output than low-discharge endurance packs.

This helps provide consistent power to motors, ESCs, and onboard systems during takeoff, climb, cruise, and payload-carrying missions.

The 10C discharge capability makes this battery suitable for professional UAVs, large multirotors, industrial drone platforms, and electric propulsion systems.

Professional UAV Integration

With dimensions of 104 × 75 × 190 mm and a weight of approximately 3000 g, the ManiaX 12S 22,000mAh batteryoffers a compact and practical format for professional drone integration.

Its size and weight make it suitable for aircraft where battery placement, center of gravity, payload capacity, and flight endurance must be carefully managed.

Reliable Battery Connection

The battery uses a JST-XHR balance connector and supports professional UAV power system integration.

Depending on configuration, the discharge connector may vary, so the final connector option should be confirmed before installation into the UAV platform.

Professional Drone Applications

The ManiaX Solid-State LiPo 12S 44.4V 22,000mAh 10C Battery is ideal for industrial UAVs, mapping drones, inspection drones, large multirotors, aerial survey aircraft, professional drone platforms, and electric propulsion systems.

Its combination of 12S voltage, 22Ah capacity, 10C discharge rate, and solid-state LiPo technology makes it a reliable battery solution for demanding UAV missions.

Technical Specifications

Product: ManiaX Solid-State LiPo 12S 44.4V 22,000mAh 10C Drone / UAV Battery
Brand: ManiaX
Battery Type: Solid-State LiPo Battery
Energy Density Range: 340–360Wh/kg
Voltage: 12S / 44.4V
Capacity: 22,000mAh
Continuous Discharge Rate: 10C
Charging Current: 1–3C
Dimensions: 104 × 75 × 190 mm
Weight: Approx. 3000 g
Balance Connector: JST-XHR
Recommended Use: Industrial UAVs, mapping drones, inspection drones, long-endurance multirotors and professional electric propulsion systems
