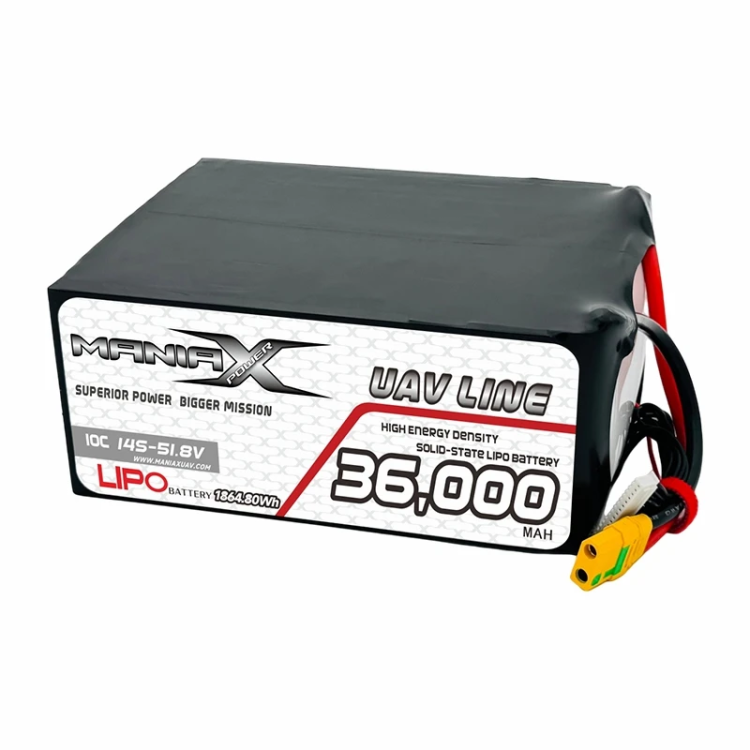

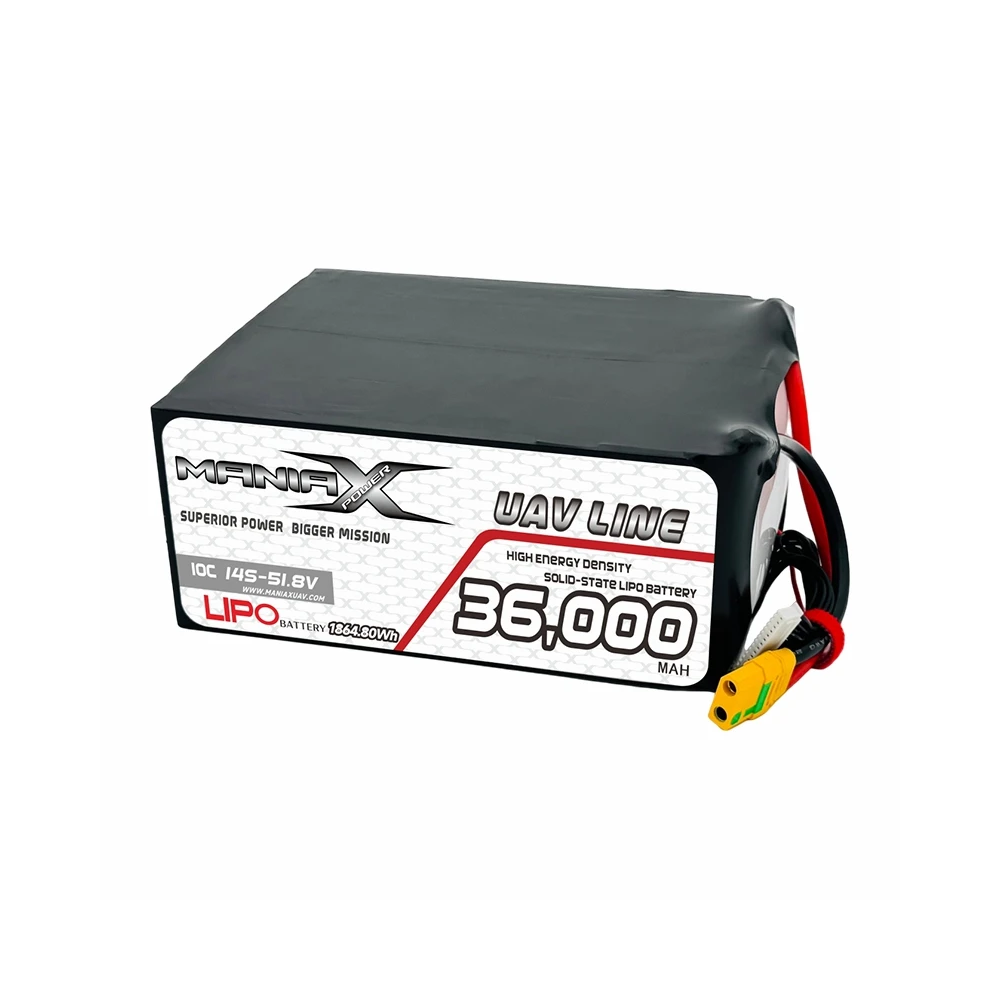

MANIAX-14S-36AH-10C-SS

The ManiaX Solid-State LiPo 14S 51.8V 36,000mAh 10C Drone Battery is a professional high-energy battery packdesigned for industrial UAVs, heavy-lift drones, long-endurance multirotors, mapping platforms, inspection drones, and electric propulsion systems.

Part of the ManiaX 4.25V Solid-State LiPo 340–360Wh/kg range, this 14S 51.8V battery offers a strong balance between energy density, capacity, discharge performance, and flight endurance.

High-Energy 14S UAV Battery

The ManiaX 14S 51.8V 36,000mAh battery is designed for UAV platforms that require a high-voltage battery solution with a large energy reserve.

With its 36Ah capacity and 51.8V nominal voltage, it provides stable energy delivery for professional drone systems where flight time, voltage stability, and payload capability are important.

This makes it suitable for industrial drones, heavy-lift multirotors, mapping UAVs, inspection platforms, aerial survey drones, and professional electric aircraft.

340–360Wh/kg Solid-State LiPo Technology

This ManiaX solid-state LiPo battery is built for applications requiring improved energy density compared with conventional LiPo battery solutions.

The 340–360Wh/kg energy density range helps optimize the balance between battery weight, capacity, and flight endurance, making it a strong choice for UAV integrators and professional drone builders.

Its solid-state LiPo construction is designed to support stable performance, efficient energy storage, and reliable power delivery during demanding drone operations.

10C Continuous Discharge Performance

The ManiaX 14S 36Ah 10C battery supports a 10C continuous discharge rate, making it suitable for UAV applications requiring higher current output than low-discharge endurance packs.

This helps provide consistent power to motors, ESCs, and onboard systems during takeoff, climb, cruise, and payload-carrying missions.

The 10C discharge capability makes this battery suitable for heavy-duty UAVs, large multirotors, industrial drones, and professional electric propulsion systems.

Large Capacity for Professional UAV Missions

With a 36,000mAh capacity, the ManiaX 14S 36Ah battery is designed for UAV platforms where endurance and power reserve are essential.

It is suitable for missions such as industrial inspection, mapping, aerial survey, cargo UAV testing, agricultural drone applications, and long-endurance multirotor flights.

Professional UAV Integration

With dimensions of 146 × 87 × 208 mm and a weight of approximately 5480 g, the ManiaX 14S 36,000mAh batteryoffers a practical format for professional UAV integration.

Its size and weight make it suitable for aircraft where battery placement, center of gravity, payload capacity, and flight endurance must be carefully managed.

Reliable Battery Connection

The battery uses a JST-XHR balance connector, making it suitable for professional charging, balancing, and maintenance procedures.

Depending on the configuration, the discharge connector may vary, so the final plug option should be confirmed before integration into the UAV power system.

Professional Drone Applications

The ManiaX Solid-State LiPo 14S 51.8V 36,000mAh 10C Battery is ideal for industrial UAVs, heavy-lift drones, long-endurance multirotors, mapping drones, inspection platforms, agricultural UAVs, and professional electric propulsion systems.

Its combination of 14S voltage, 36Ah capacity, 10C discharge rate, and solid-state LiPo technology makes it a reliable power solution for demanding drone missions.

Technical Specifications

Product: ManiaX Solid-State LiPo 14S 51.8V 36,000mAh 10C Drone / UAV Battery
Brand: ManiaX
Battery Type: Solid-State LiPo Battery
Energy Density Range: 340–360Wh/kg
Voltage: 14S / 51.8V
Capacity: 36,000mAh
Continuous Discharge Rate: 10C
Charging Current: 1–3C
Dimensions: 146 × 87 × 208 mm
Weight: Approx. 5480 g
Balance Connector: JST-XHR
Recommended Use: Industrial UAVs, heavy-lift drones, mapping drones, inspection drones, long-endurance multirotors and professional electric propulsion systems
