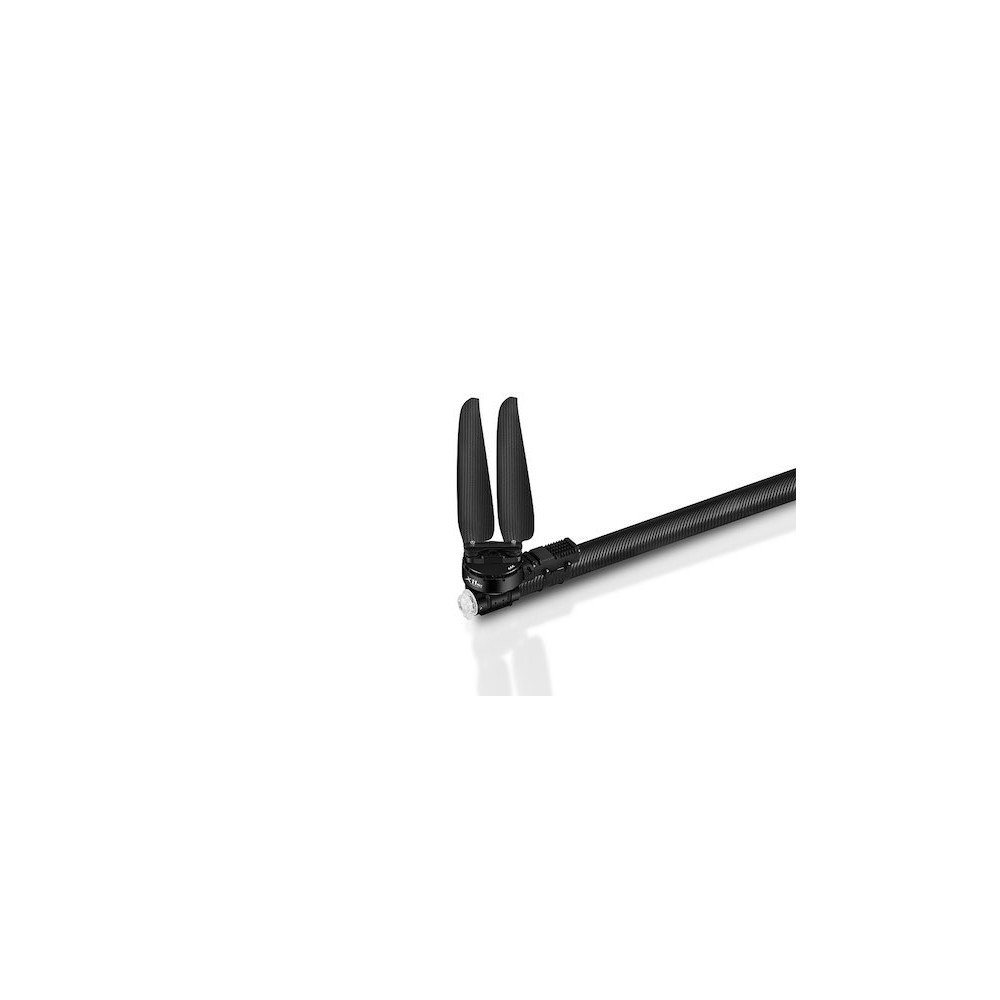

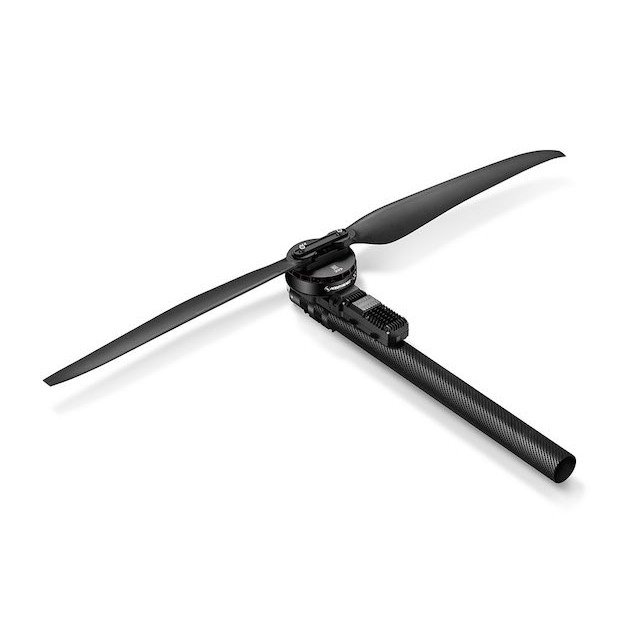

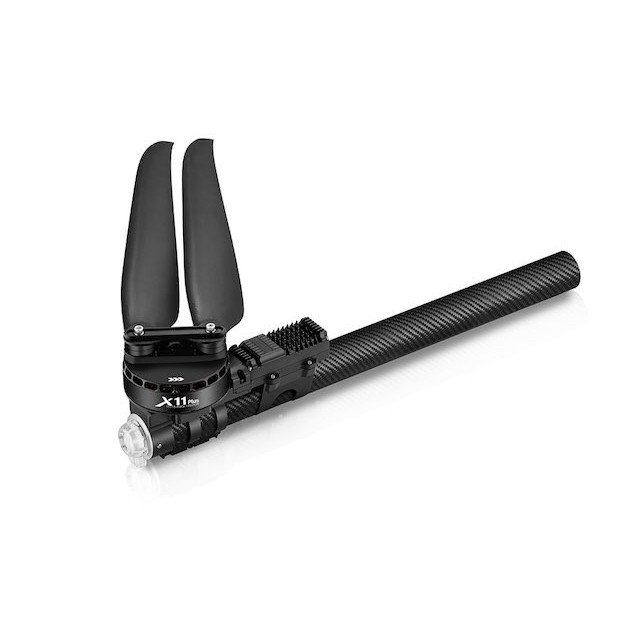

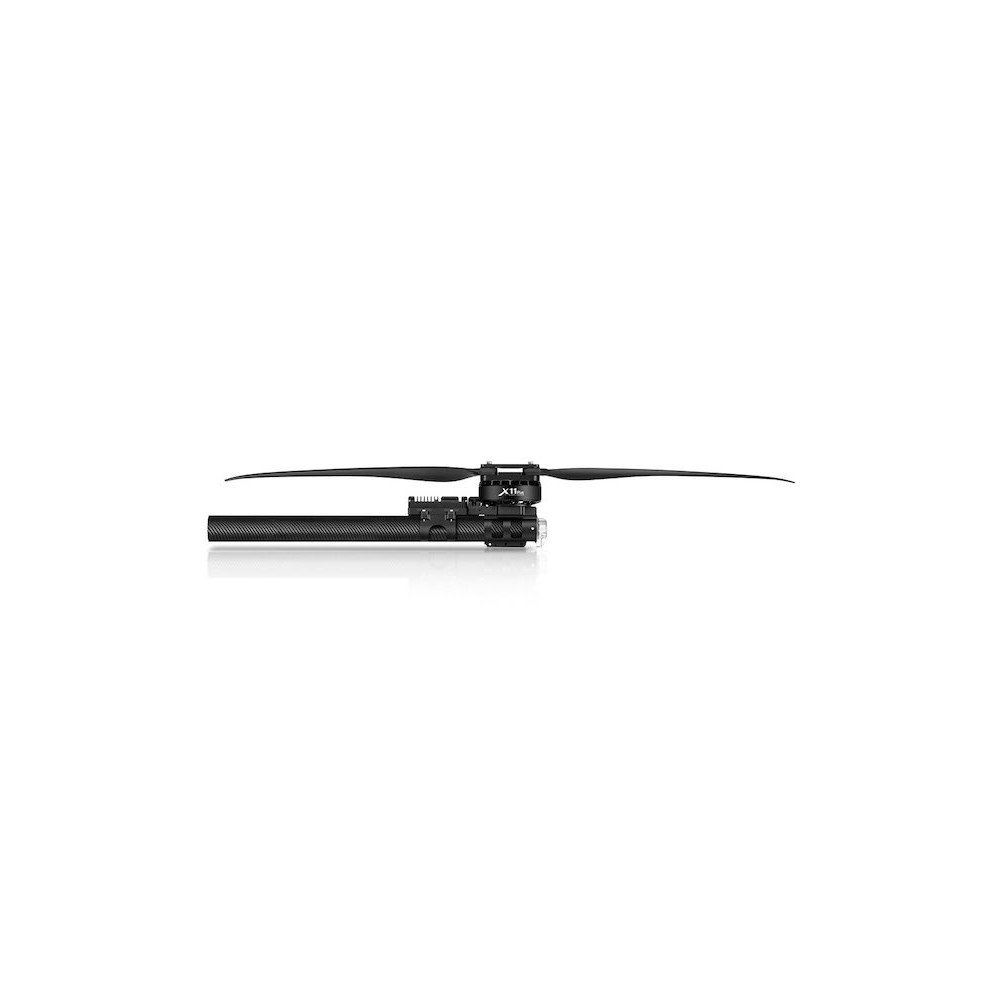

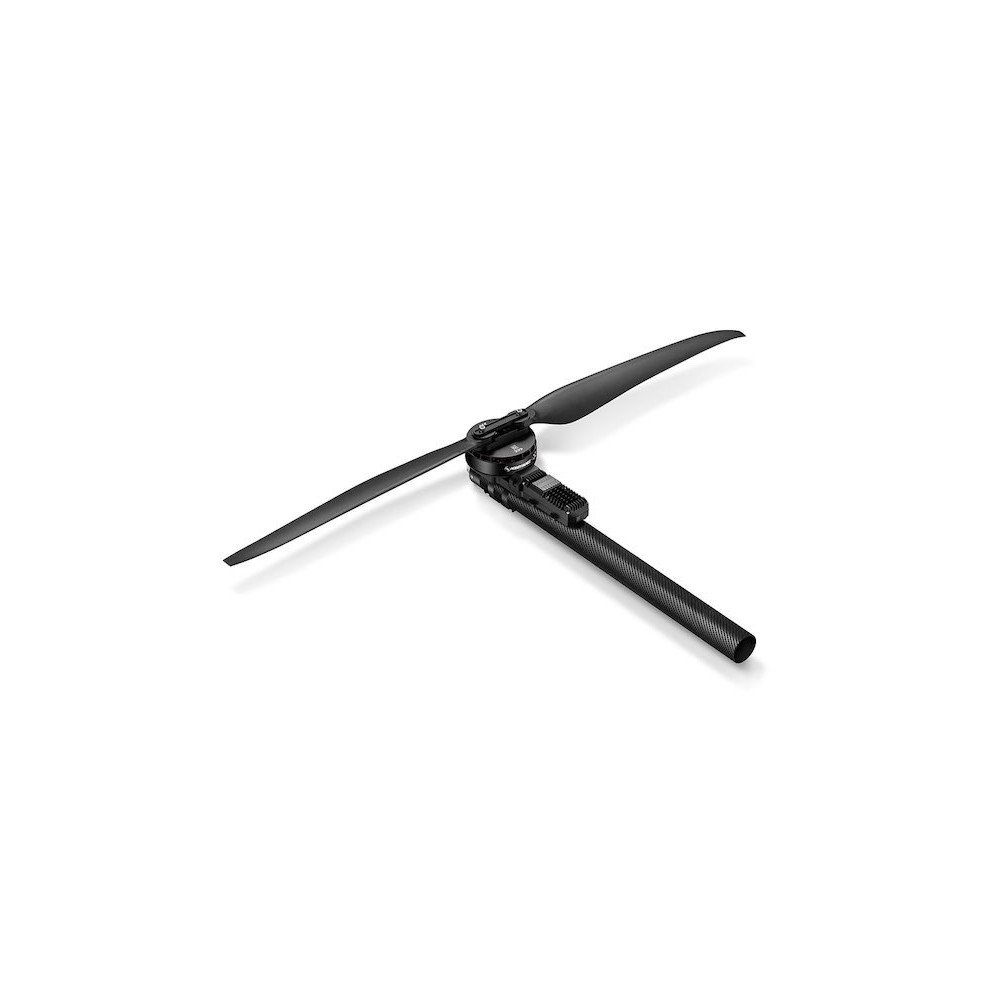

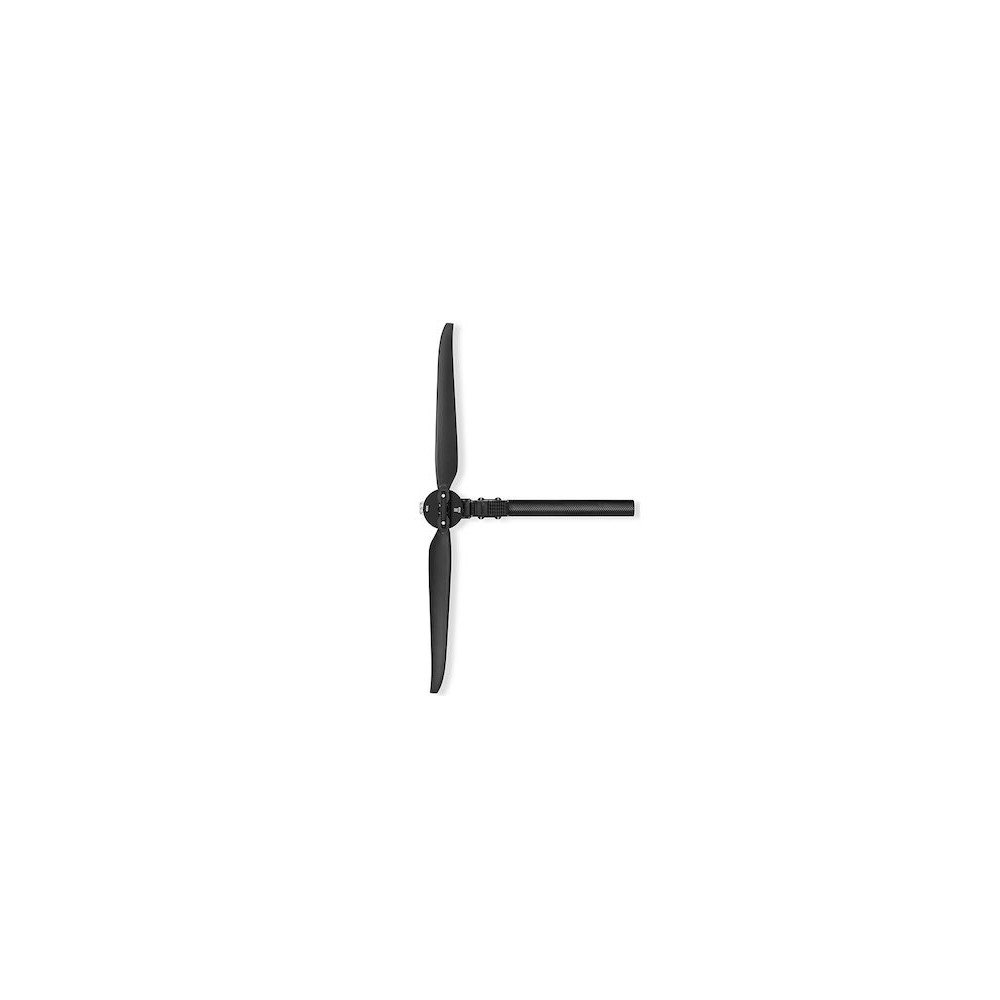

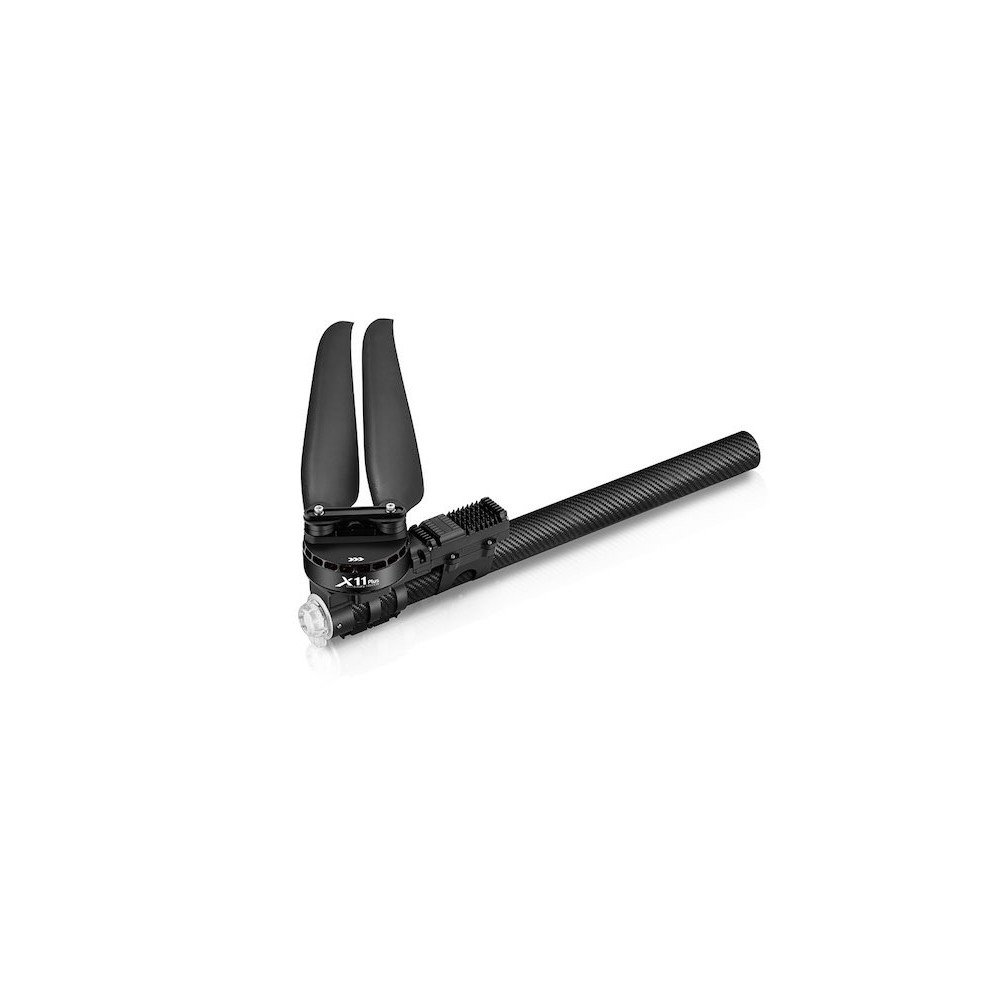

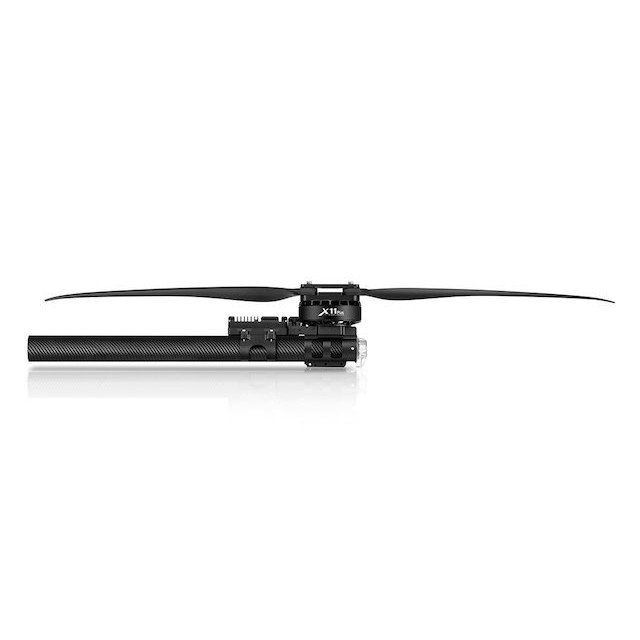

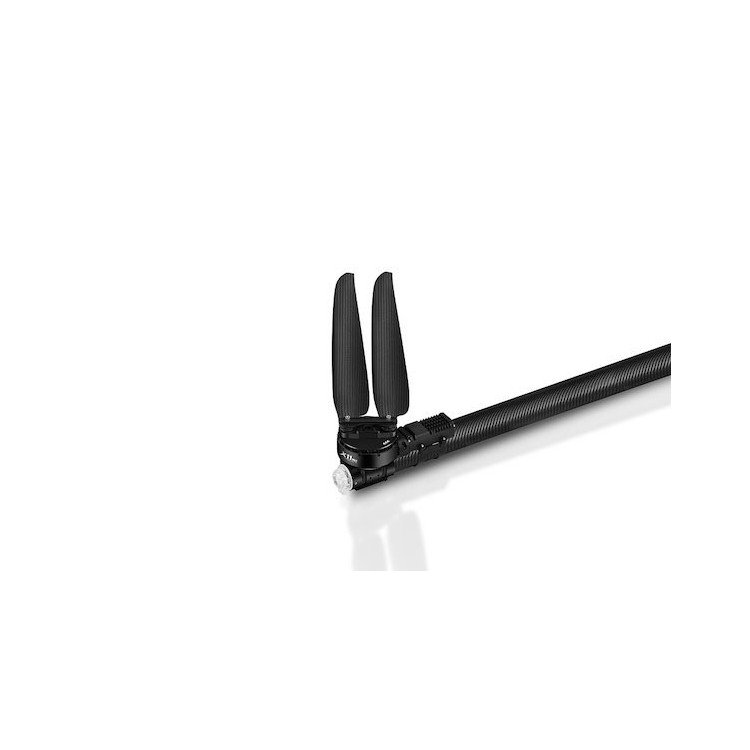

The Hobbywing XRotor X11 Plus is a next-generation propulsion system designed for agricultural and industrial UAVs. It delivers higher thrust, improved efficiency, and robust protection for demanding professional drone applications.
Compared to the previous X11 18S, the X11 Plus offers enhanced cooling, IPX6 sealing, intelligent safety features, and improved efficiency to extend flight time under the same operating conditions.
High Thrust & Efficiency
The X11 Plus delivers up to 37 kg of maximum thrust when used with 4314 carbon-plastic propellers.
The recommended takeoff weight is 15–18 kg per rotor, making it suitable for heavy-duty agricultural and industrial UAV platforms.
Its enhanced efficiency compared to the X11 18S helps extend flight time under the same conditions.
Advanced Cooling System
The upgraded motor heat dissipation structure provides stronger active cooling.
This helps keep temperatures lower under identical loads, ensuring longer service life and more reliable operation.
Reliable Dual-Signal Control
The X11 Plus supports PWM analog and CAN digital throttle control for precise and stable flight performance.
It can maintain fixed-position flight even with a single GPS, without RTK.
Intelligent Safety Protections
Intelligent Protection V2.0 provides a fault response time of less than 270 ms.
Built-in protections include power-on self-test, voltage abnormality protection, overcurrent protection, stall protection, and overload protection.
Real-time system data output enables immediate diagnostics and safer operation.
Robust IPX6 Sealing
The fully sealed ESC improves anti-corrosion and anti-rust performance.
This makes the X11 Plus suitable for agricultural spraying drones and harsh operating environments.
Communication & Upgrade
Default CAN communication enables real-time system monitoring, with serial communication available as an option.
Built-in fault storage, combined with Hobbywing DataLink support, allows easier diagnostics and maintenance.
Online ESC firmware upgrades are supported via Hobbywing DataLink or remotely through compatible flight controllers.

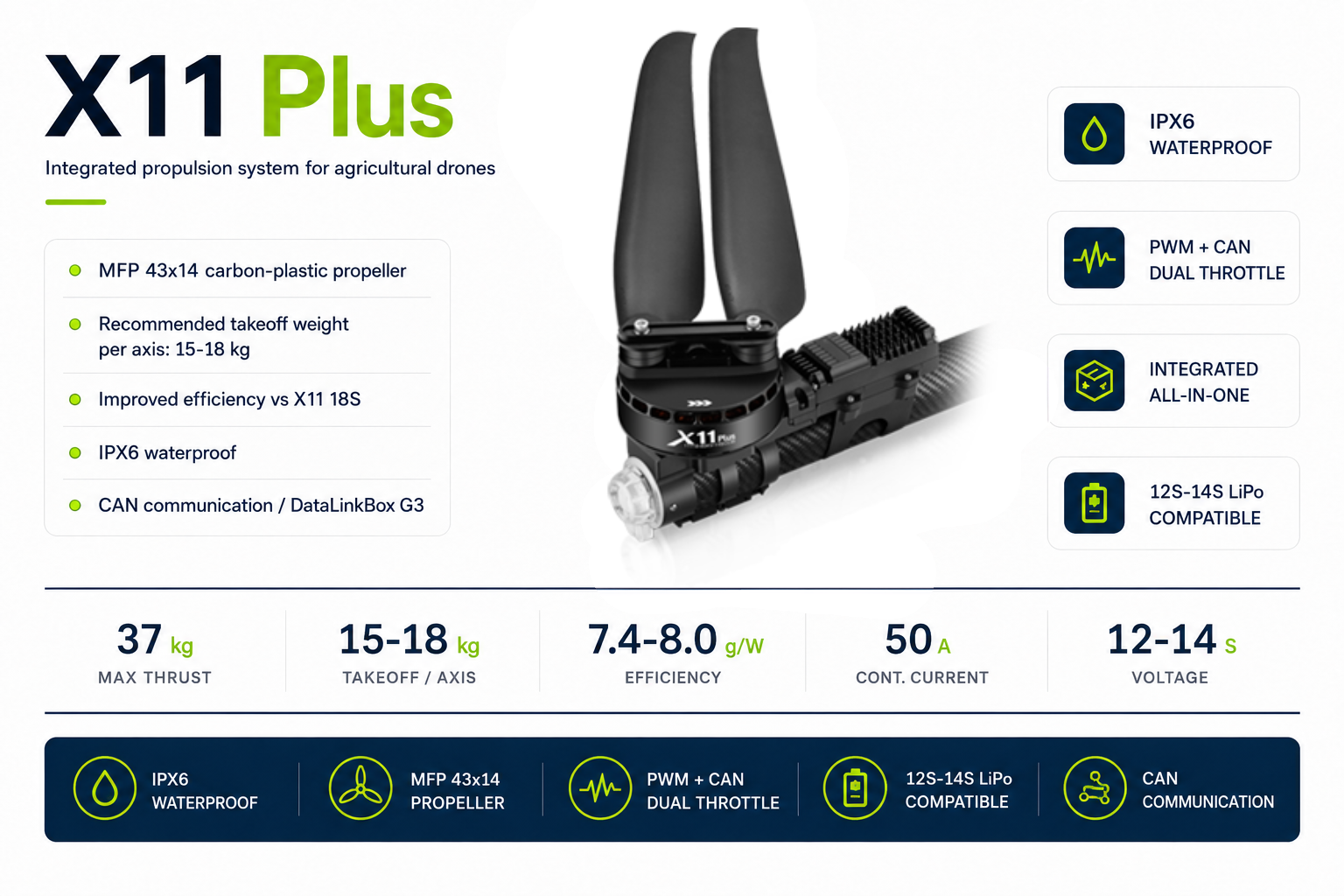

Technical Specifications
Product: Hobbywing XRotor X11 Plus UAV Propulsion System
Application: Agricultural and industrial UAVs
Maximum Thrust: 37 kg
Recommended Takeoff Weight: 15–18 kg/rotor
Recommended Propeller: 4314 carbon-plastic propeller
Throttle Control: PWM analog + CAN digital
Communication: CAN by default / Serial optional
Protection System: Intelligent Protection V2.0
Fault Response Time: <270 ms
Water Resistance: IPX6
ESC Design: Fully sealed ESC
Diagnostics: Built-in fault storage with Hobbywing DataLink support
Firmware Upgrade: Hobbywing DataLink or compatible flight controllers
Propellers are sold separately.
