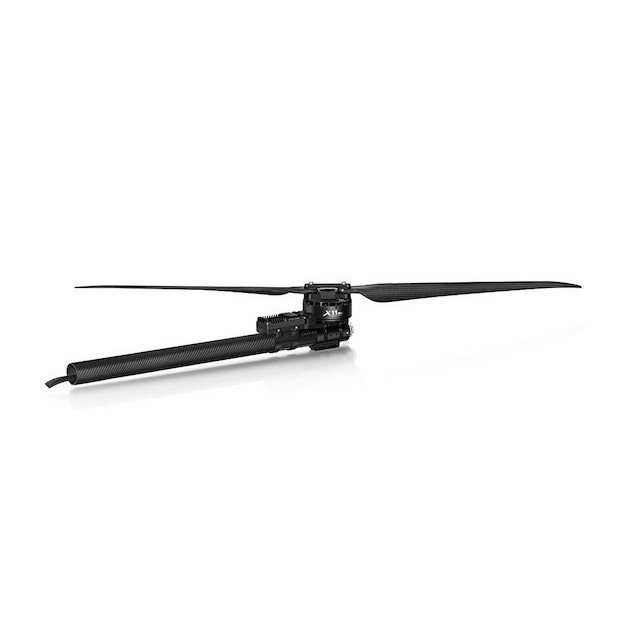

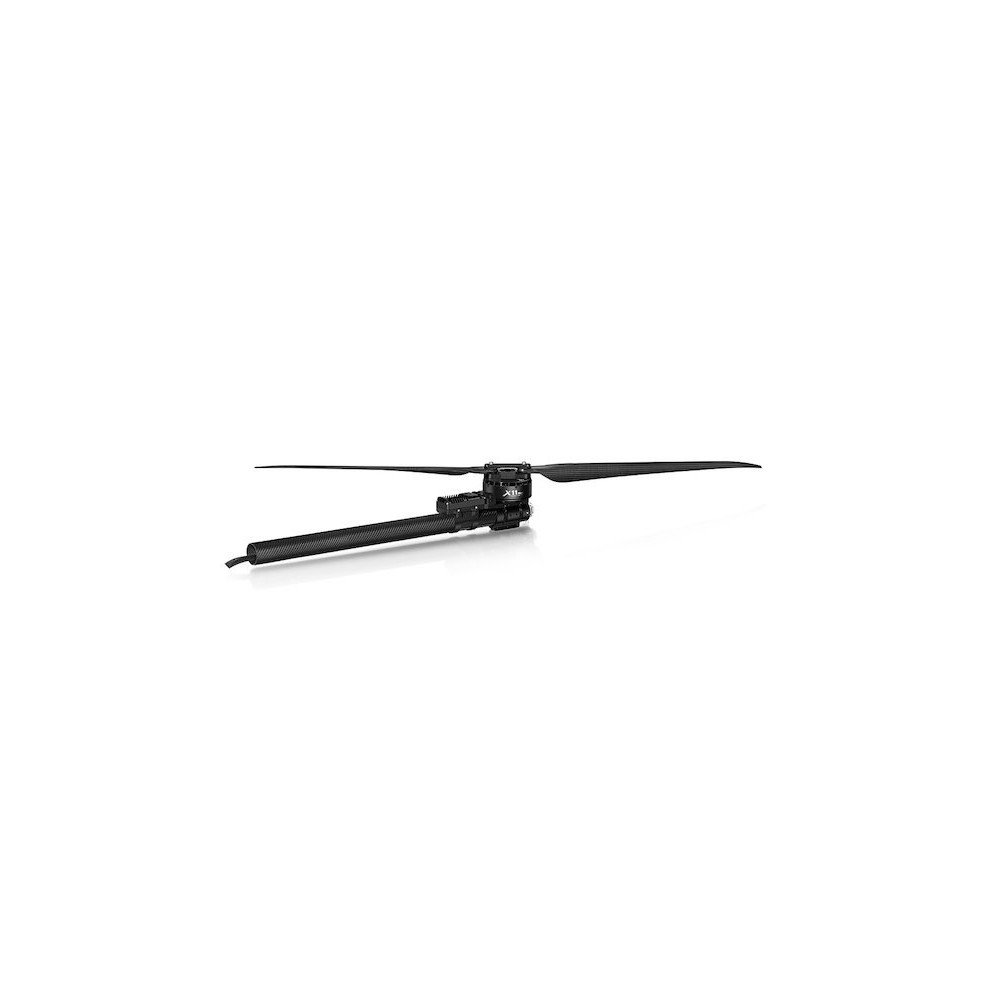

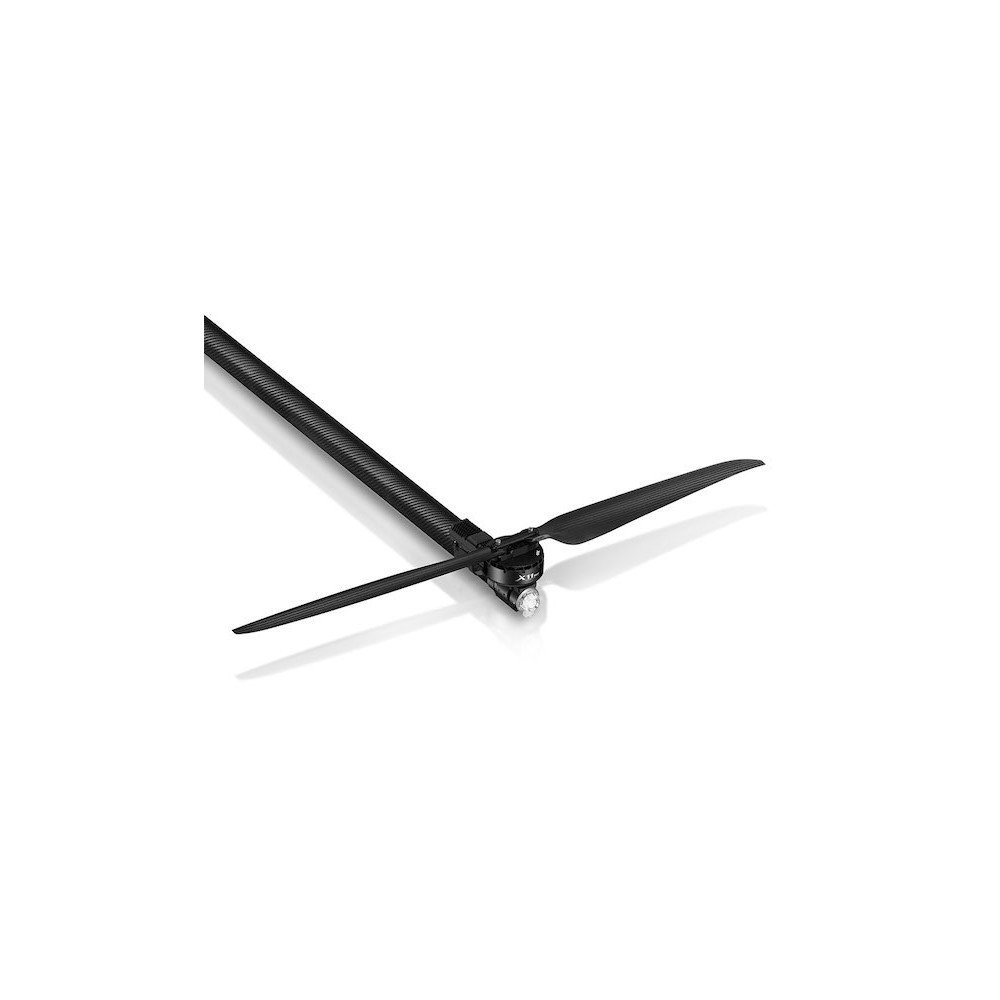

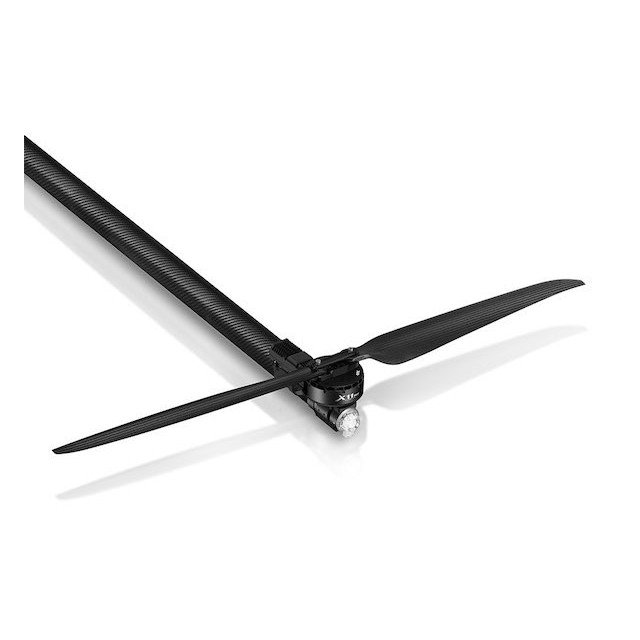

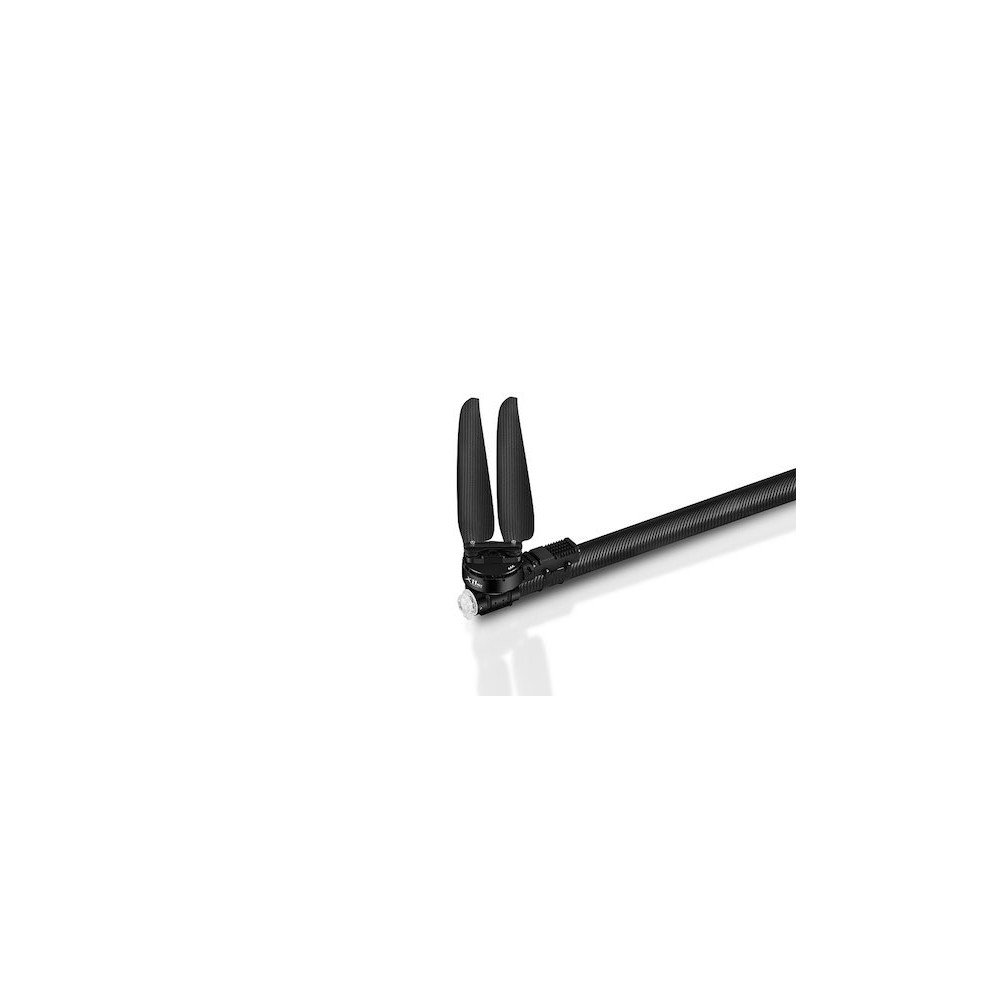

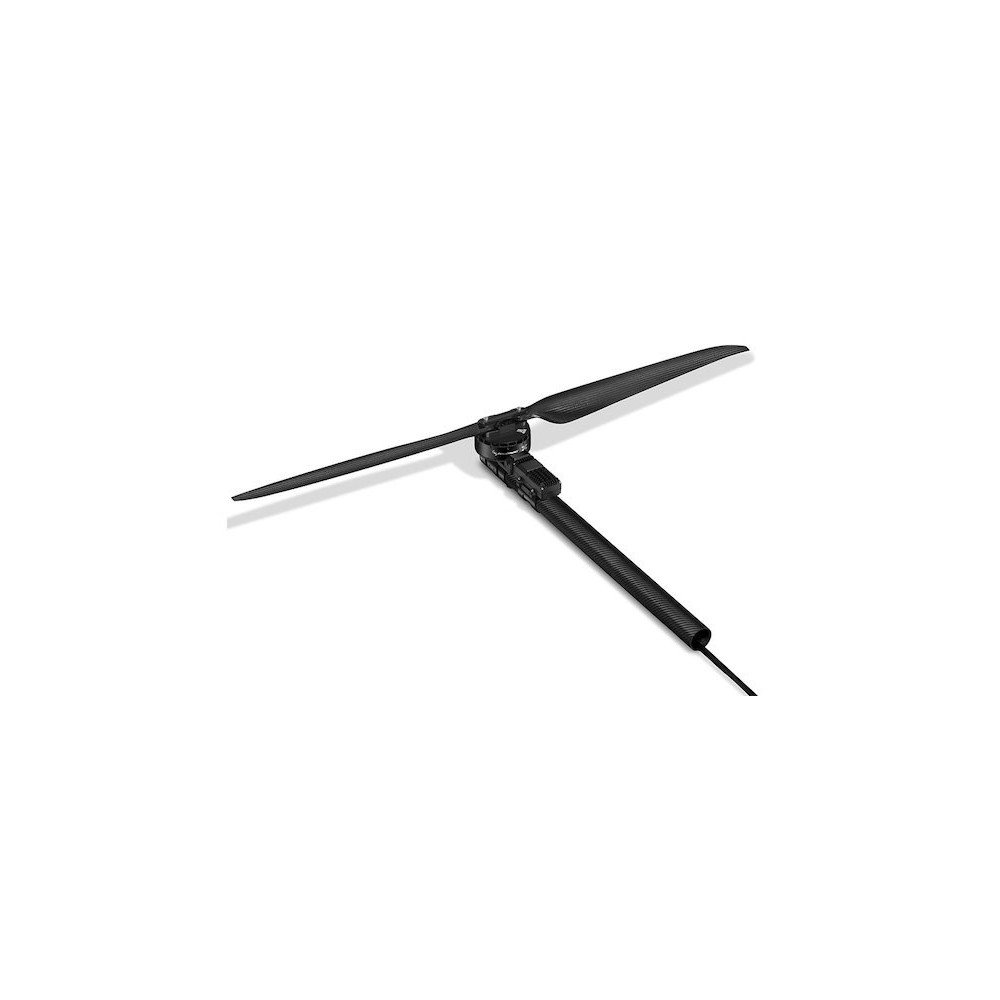

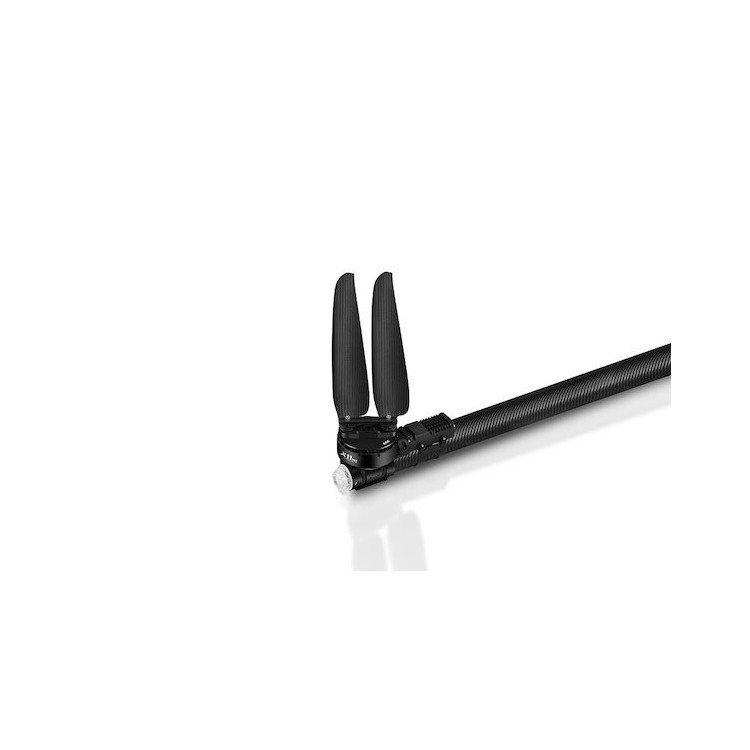

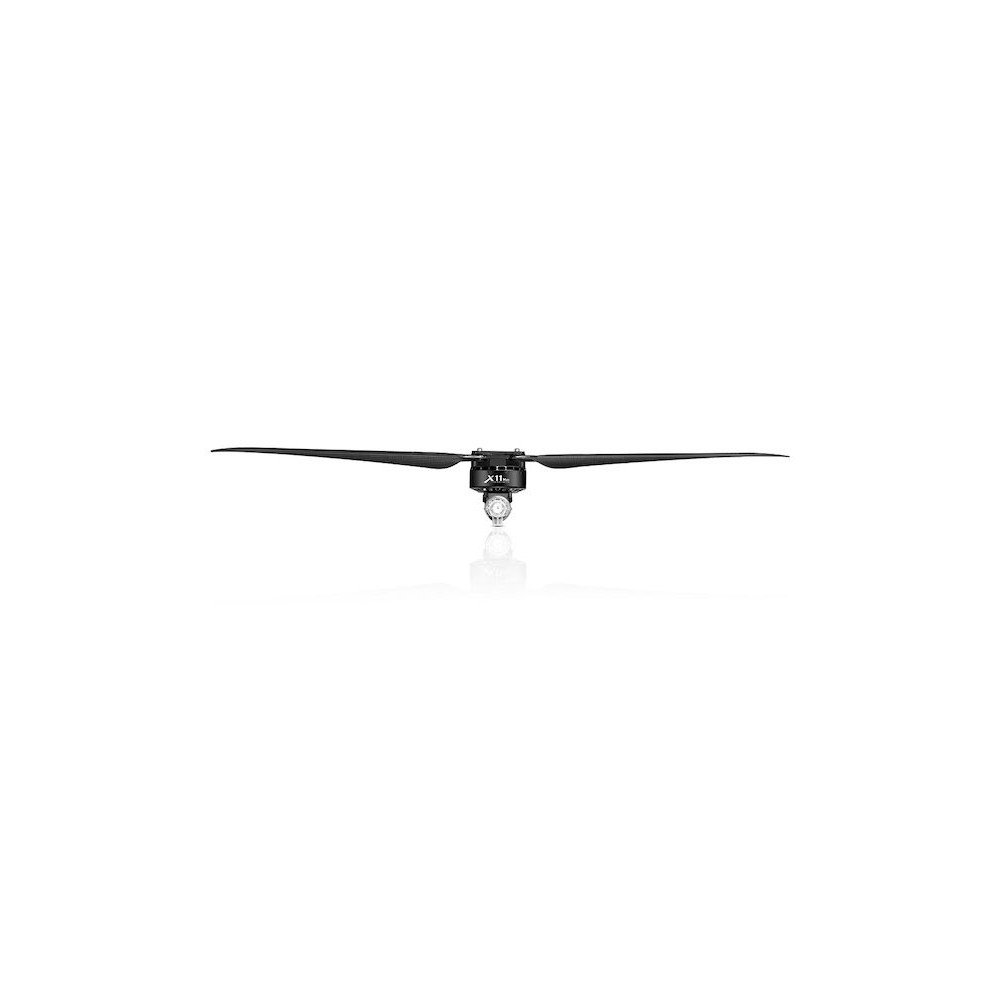

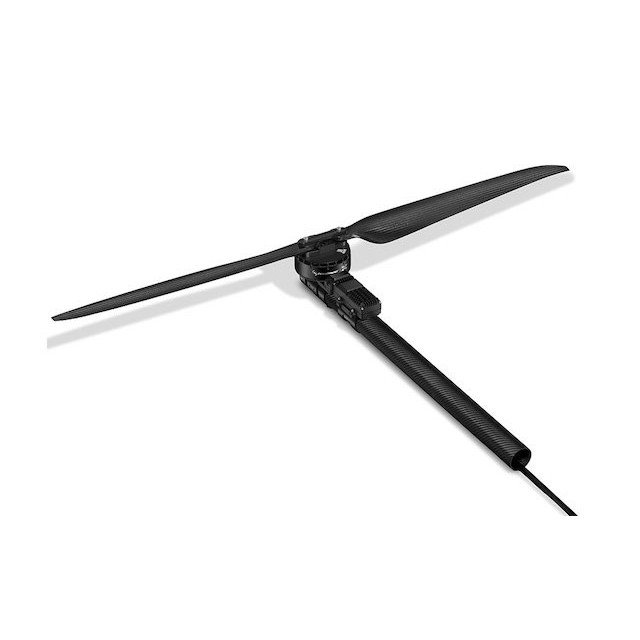

The Hobbywing X11 MAX is engineered for medium- to heavy-lift agricultural drones. It delivers high thrust, excellent efficiency, and intelligent control features for demanding plant-protection missions.
With a compact integrated design and weatherproof durability, the X11 MAX ensures reliable performance in harsh agricultural environments.
Powerful Performance
The X11 MAX delivers up to 44 kg of maximum thrust per rotor.
With an optimal takeoff load of 20–22 kg per rotor, it provides strong lift and stable flight performance for medium to large UAVs.
Optimized Efficiency
The system achieves approximately 7.8 g/W energy efficiency.
This helps support longer operation times and increased spray coverage per flight.
Advanced Motor Control
High-precision FOC ESC technology with PMSM algorithms provides smooth throttle response and improved control accuracy.
This advanced control system also helps reduce heat generation by up to 10°C.
Dual-Signal Throttle Control
The X11 MAX is compatible with both PWM and CAN protocols.
This allows flexible integration with analog and digital flight controllers while enabling real-time telemetry and adaptive response.
Rugged & Weatherproof Design
Built to IPX6 standards, the system resists rain, corrosion, salt spray, dust, mud, and high-temperature environments.
This makes it ideal for agricultural spraying operations in demanding field conditions.
Comprehensive Safety Systems
Built-in protections include power-on self-test, over-current protection, stall protection, voltage protection, and signal-loss protection.
Integrated fault logging simplifies maintenance, troubleshooting, and post-flight diagnostics.

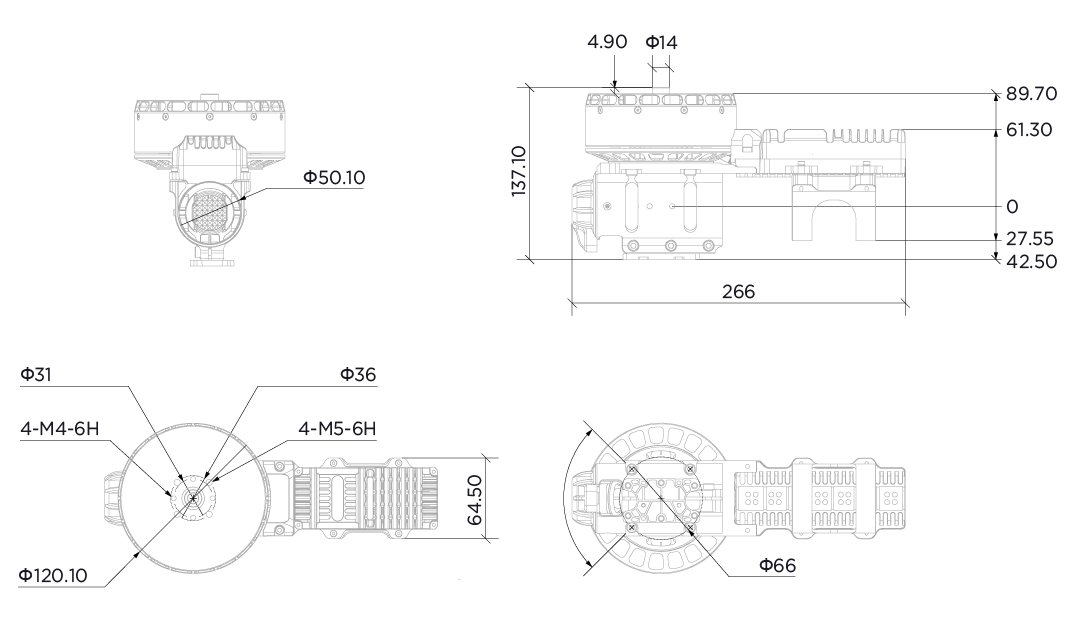

Technical Specifications
Product: Hobbywing X11 MAX Agricultural Drone Propulsion System
Arm Tube Diameter: 50 mm
KV: 60 KV
Weight: 2.30 kg
Weight with Propeller: 2,800 g
Battery: 18S
Recommended Thrust: 20–22 kg/rotor
Maximum Thrust: 44 kg/rotor
Maximum Power: 9,560 W
Maximum Current: 140 A
Recommended Propeller: 48175 / 48×17.5
CAN Protocol: Yes
PWM Range: 1050–1950 μs
Water Resistance: IPX6
What’s Included
1× Motor
1× ESC
1× Mount
Propellers are sold separately.
