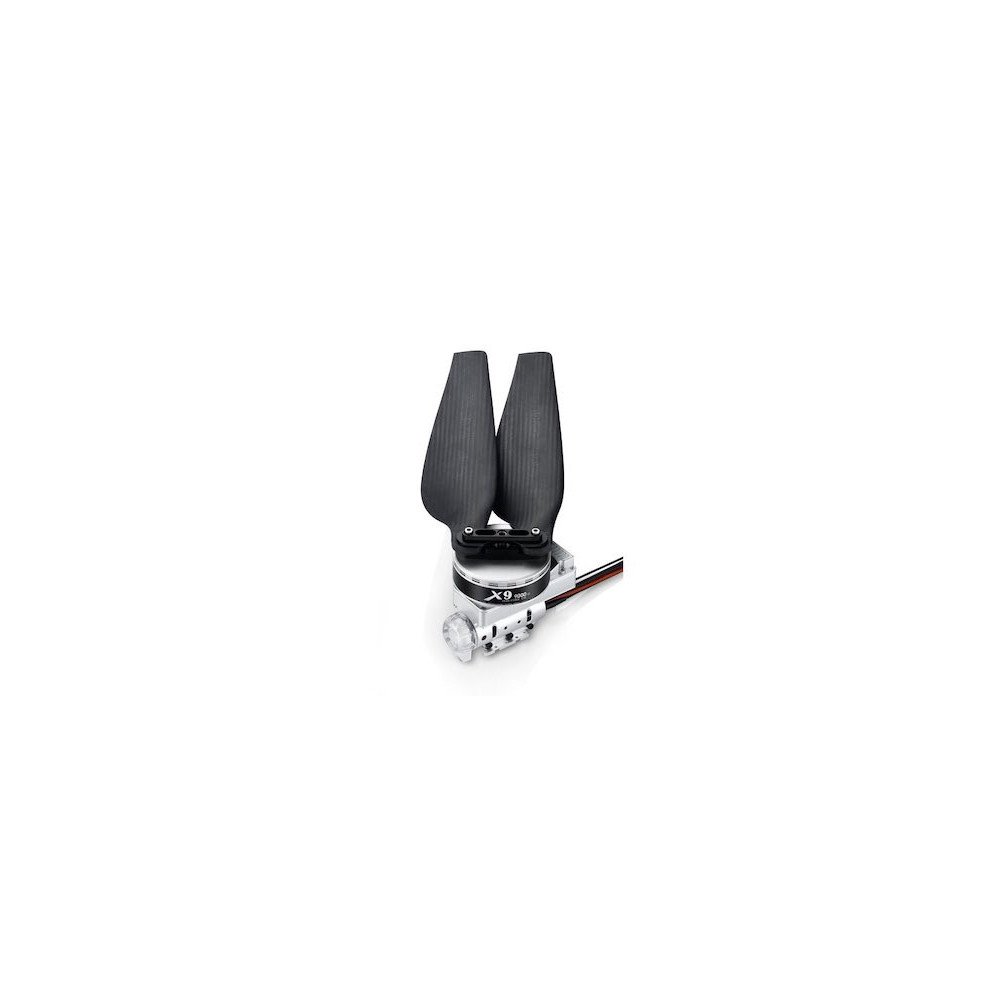

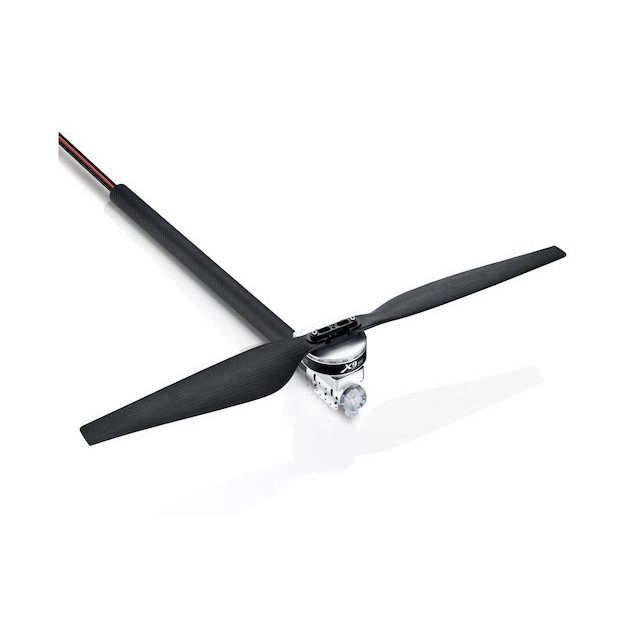

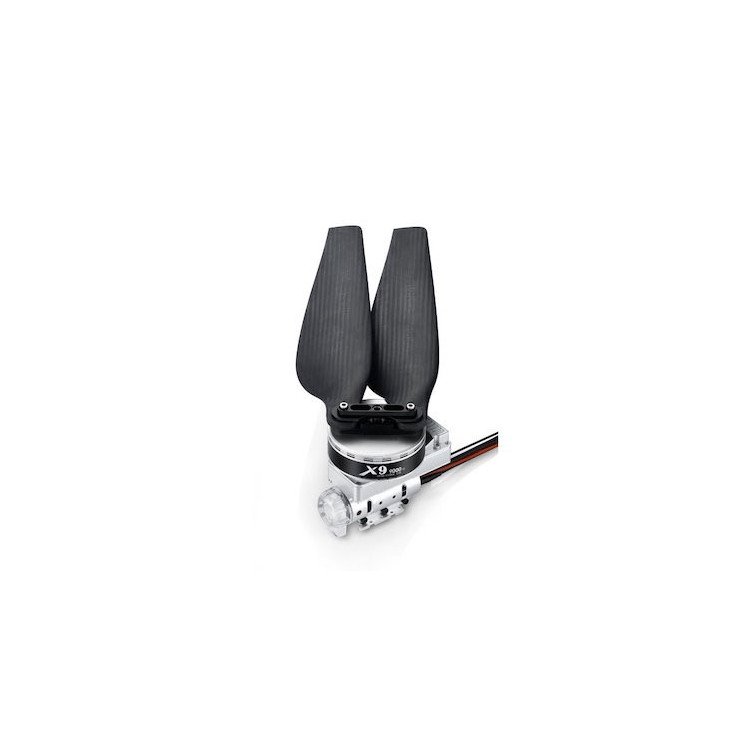

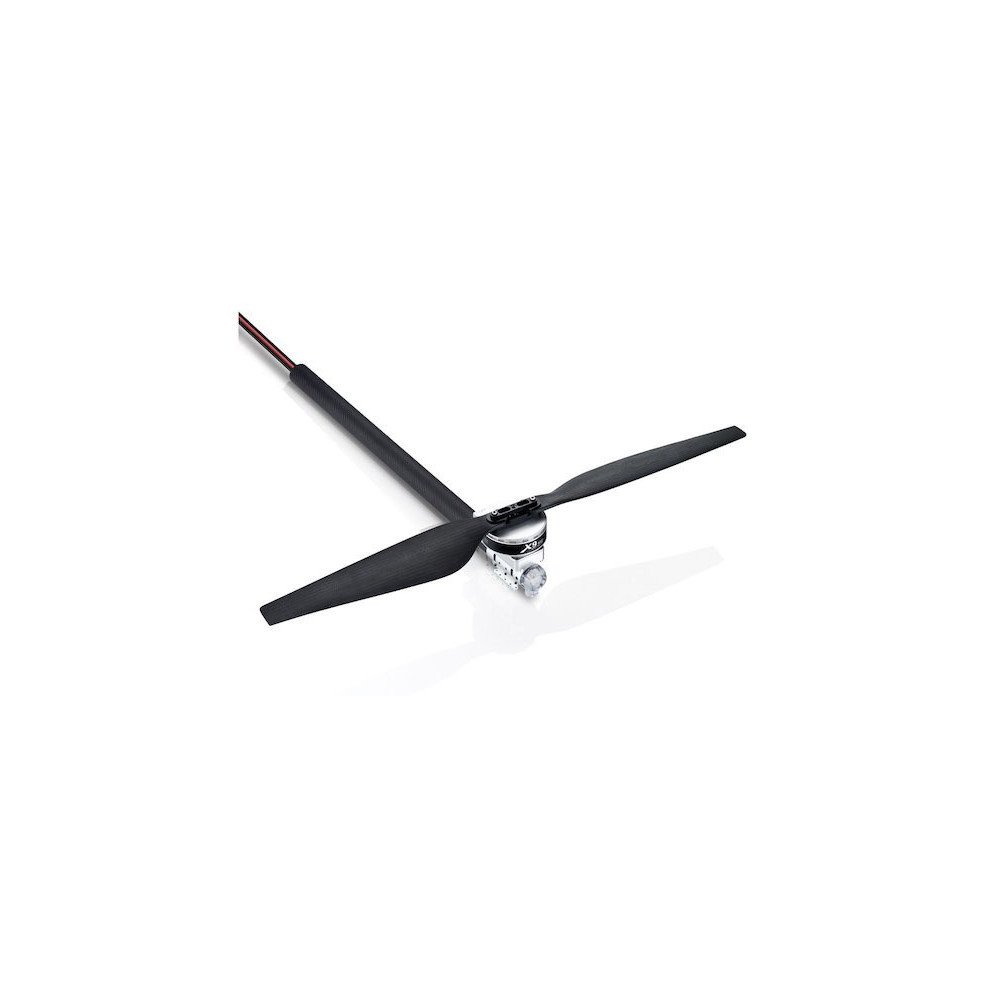

The Hobbywing X9 is a high-performance integrated propulsion system designed for heavy-duty agricultural and industrial drones. It delivers powerful thrust, intelligent safety features, and reliable performance in harsh operating environments.
Built for large multirotor platforms and plant protection UAVs, the X9 combines strong lift capability, efficient motor control, and robust environmental protection for demanding professional applications.
Heavy-Lift Capability
The X9 delivers up to 23 kg of maximum thrust per rotor.
The rated thrust range is 7–16 kg per rotor, making it suitable for large quadcopters and plant protection UAVs with payloads of 16 kg or more.
Advanced Motor & ESC Integration
The system uses a PMSM motor combined with a FOC ESC for smoother and more efficient throttle control.
This improves flight stability and ensures better compatibility with mainstream flight controllers.
An LED status indicator with customizable colors via DIP switch provides clear real-time system feedback.
Durability & Environmental Protection

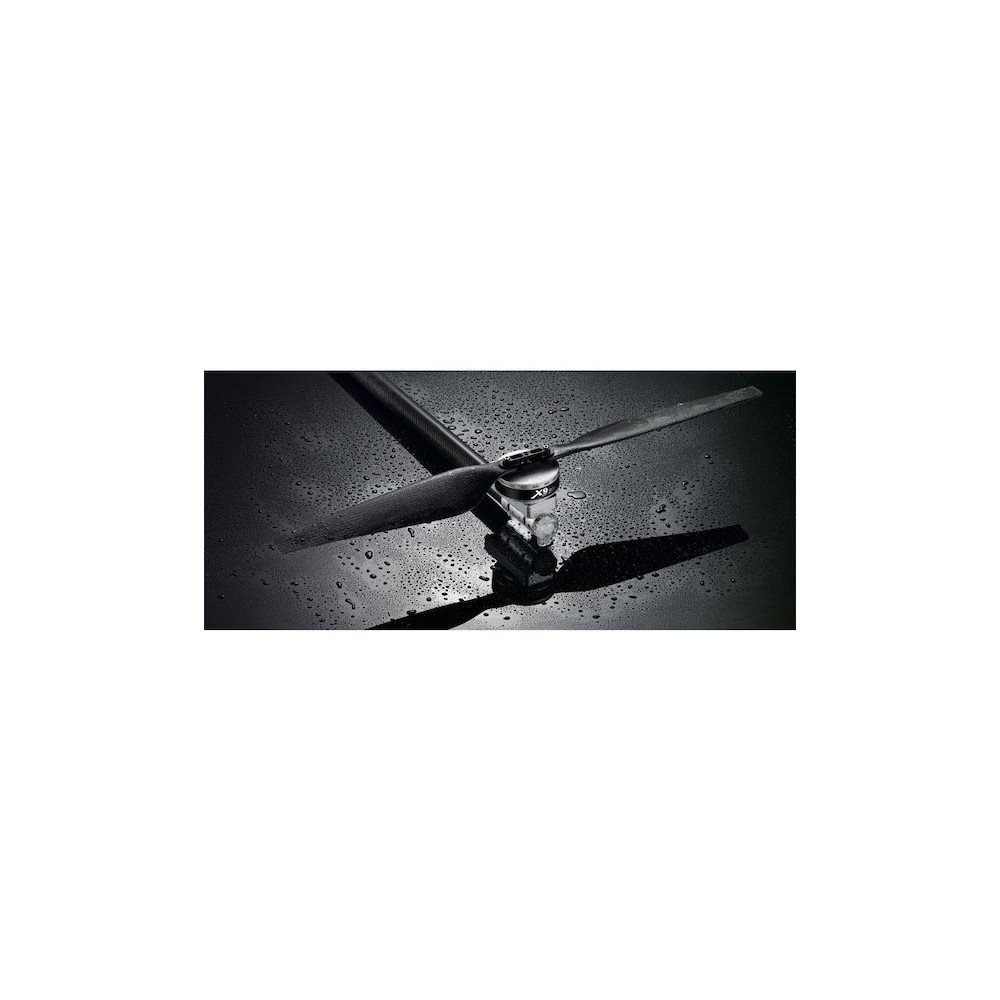

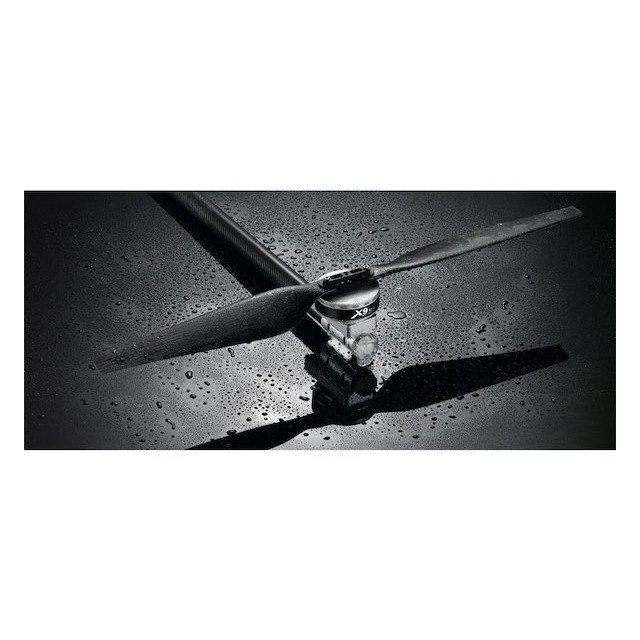

The X9 features IPX6 waterproof and dustproof protection.
Its anti-corrosion and fully sealed design allows reliable operation in all-weather agricultural environments.
The robust impact-resistant motor seat helps protect key components from crash damage.
Optimized Cooling & Reliability
The enlarged conductive area provides superior heat dissipation.
This allows the system to withstand higher power loads while maintaining stable performance.
The modular structure helps ensure long-term reliability and easier maintenance.
Smart Communication & Safety
Real-time data output to the flight controller includes throttle, motor speed, voltage, current, temperature, and other key system information.
Built-in protections include power-on self-test, voltage abnormality protection, current protection, stall protection, and overload protection.
Optional DataLink support enables closed-loop monitoring of multi-axis propulsion systems.
Flexible Propeller Options

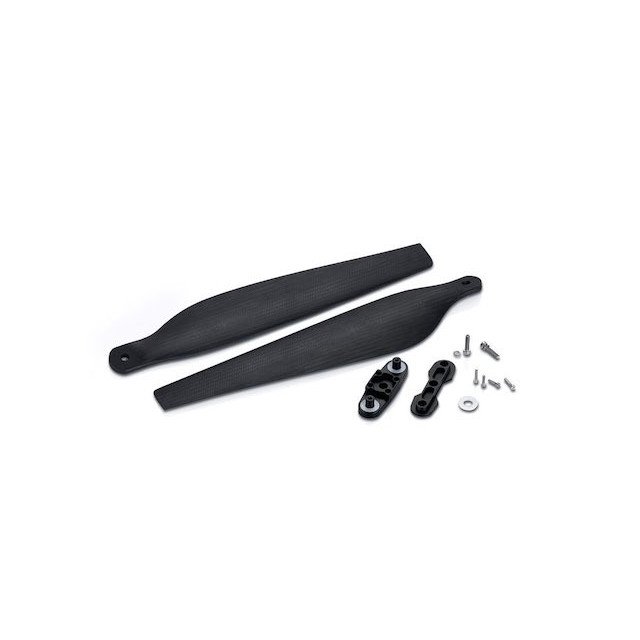

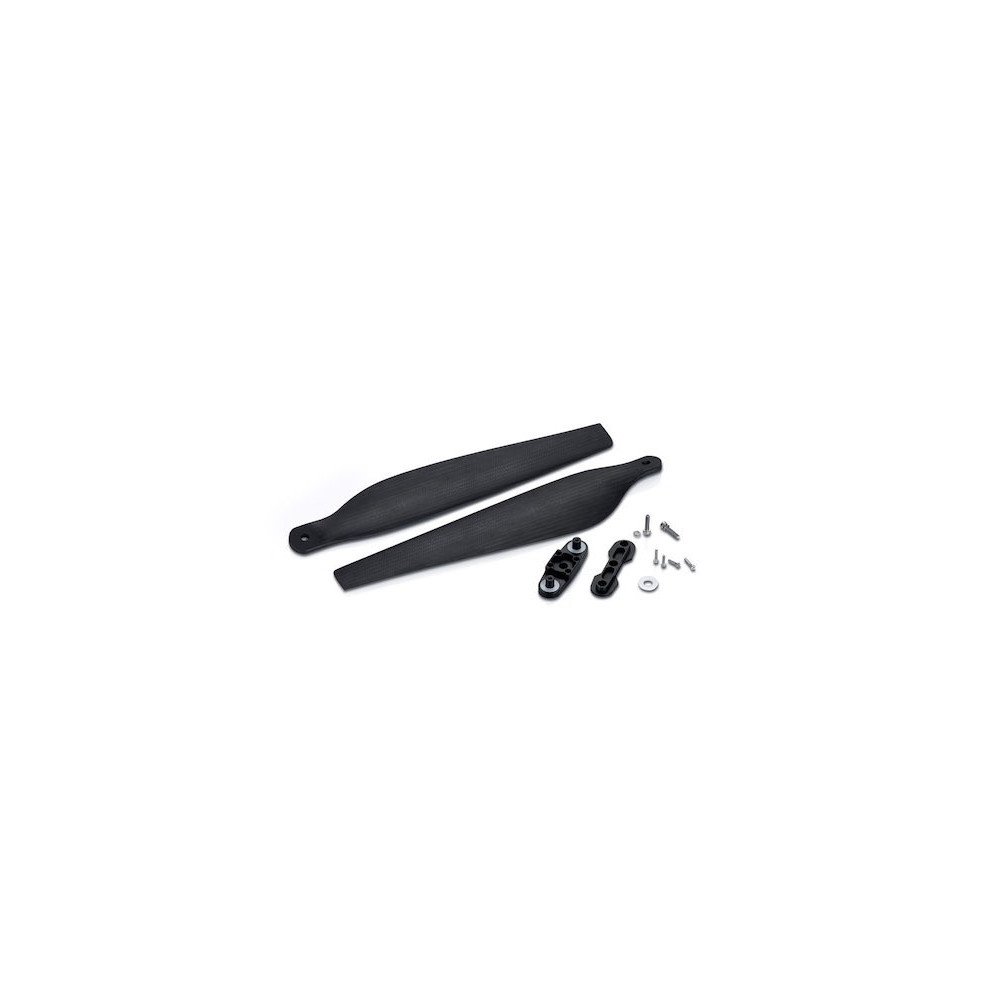

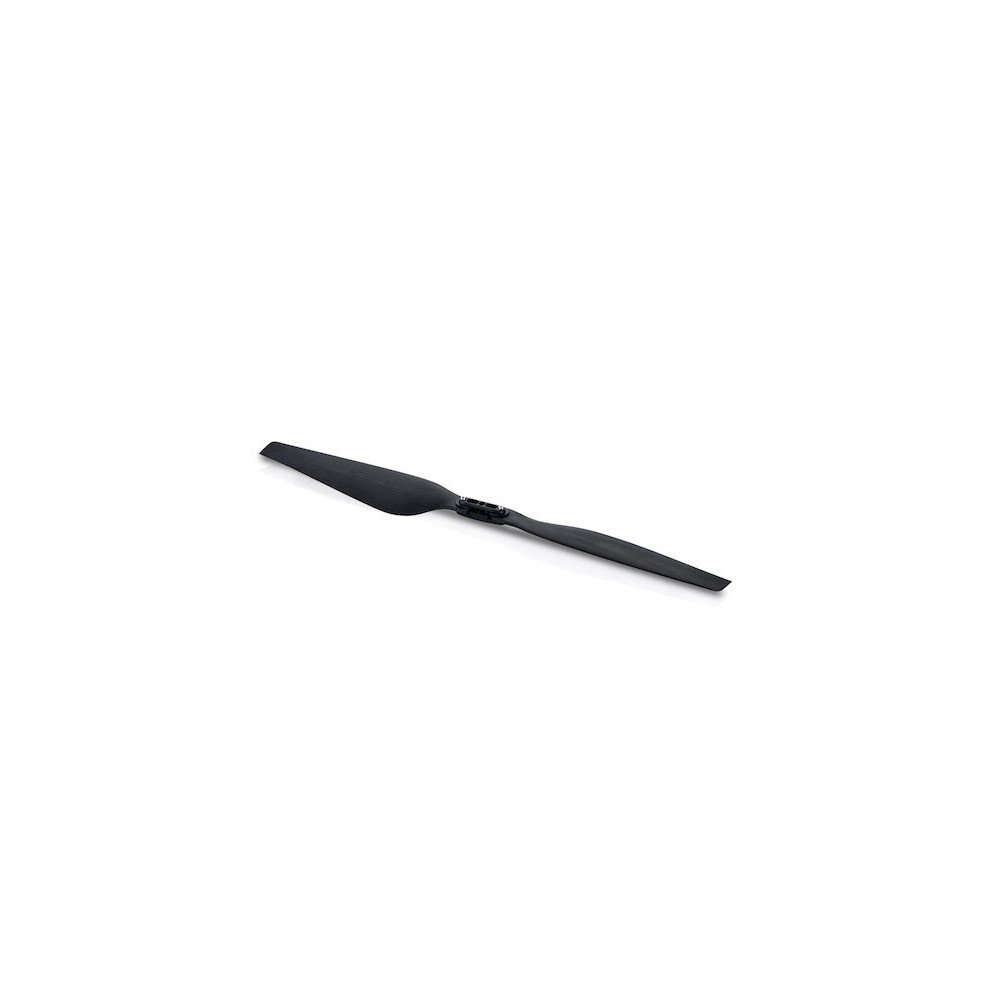

The X9 is compatible with 34.7″ carbon fiber propellers, 3411 carbon propellers, and 36190 carbon propellers.
The bottom-mounted nozzle interface supports spraying systems for agricultural drone applications.
Technical Specifications
Product: Hobbywing X9 UAV Propulsion System
Application: Heavy-duty agricultural and industrial UAVs
Maximum Thrust: 23 kg/rotor
Rated Thrust: 7–16 kg/rotor
Payload Compatibility: 16 kg+ payload UAVs
Motor Control: PMSM + FOC ESC
Water Resistance: IPX6
Protection: Waterproof, dustproof, anti-corrosion, and fully sealed design
Real-Time Data Output: Throttle, motor speed, voltage, current, temperature, and system status
Safety Protection: Power-on self-test, voltage abnormality, current, stall, and overload protection
Indicator: LED status indicator with customizable colors via DIP switch
Optional Accessory: Hobbywing DataLink
Compatible Propellers: 34.7″ carbon fiber, 3411 carbon, and 36190 carbon propellers
Agricultural Compatibility: Bottom-mounted nozzle interface for spraying systems
Propellers are sold separately.
