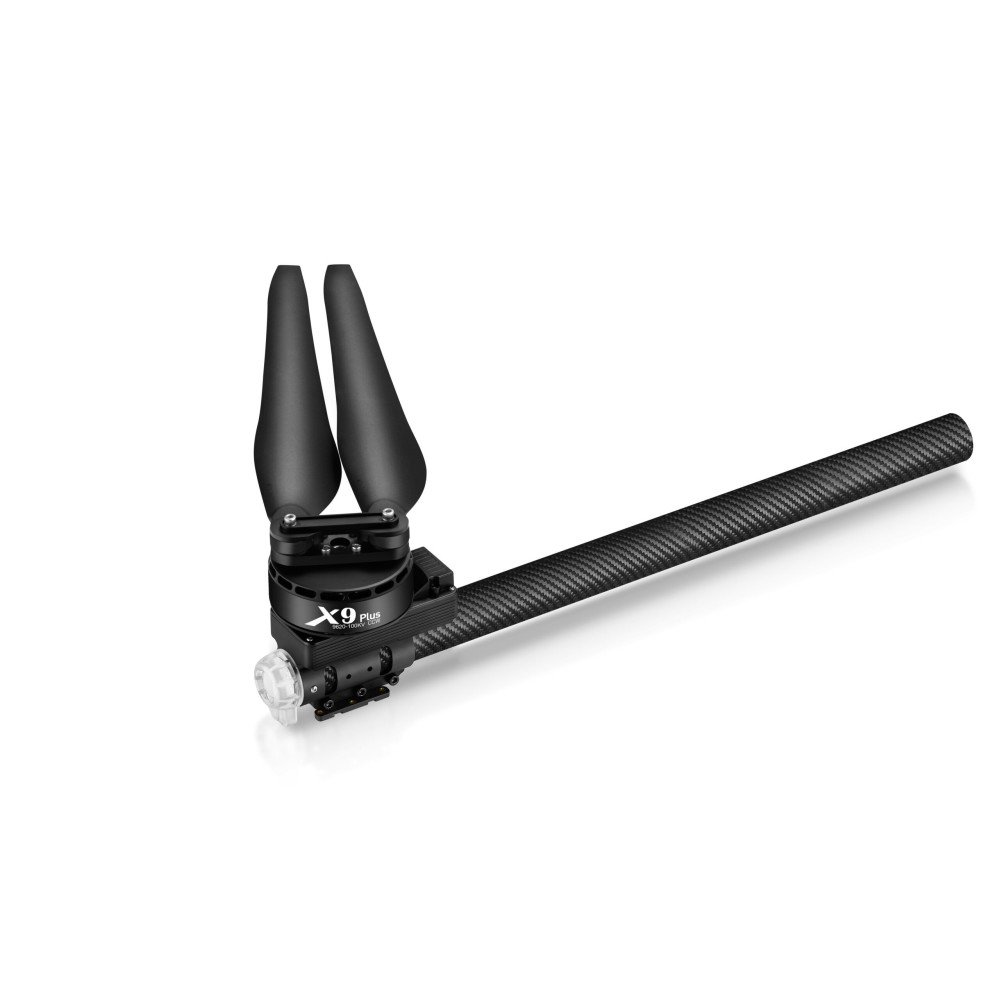

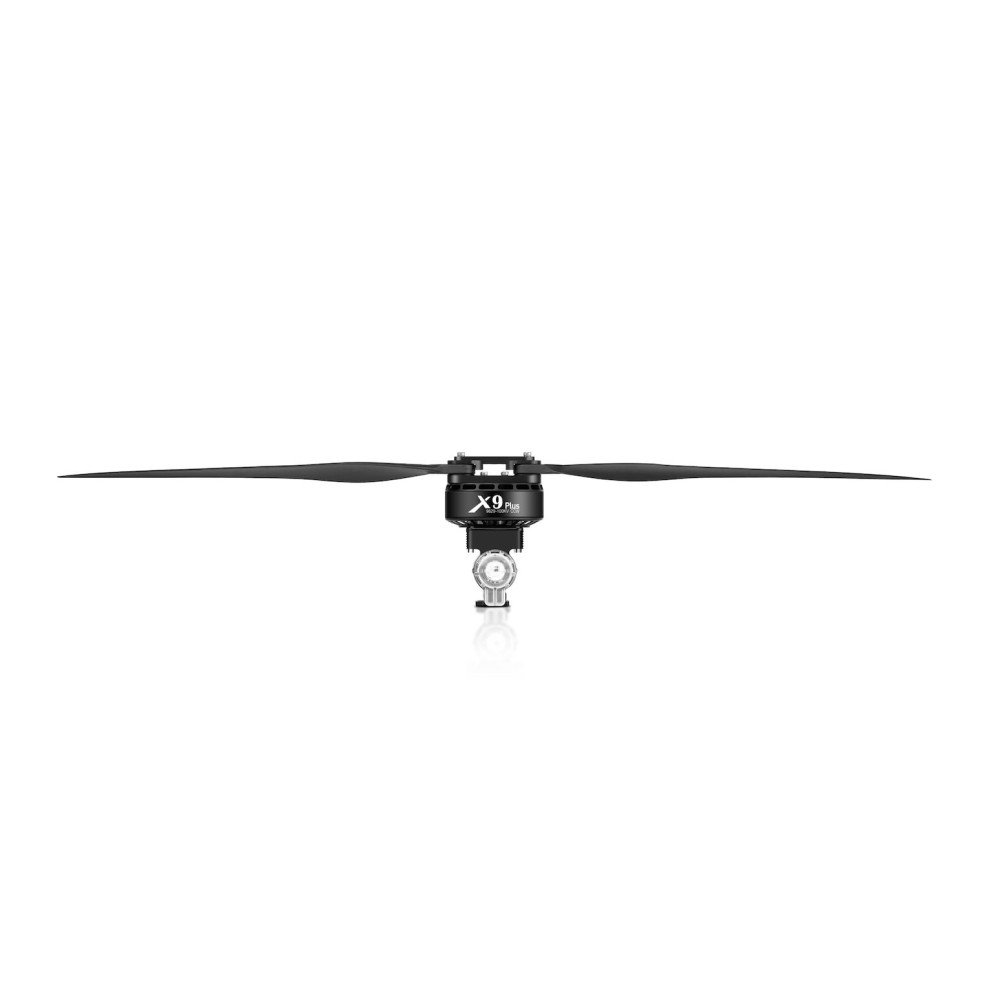

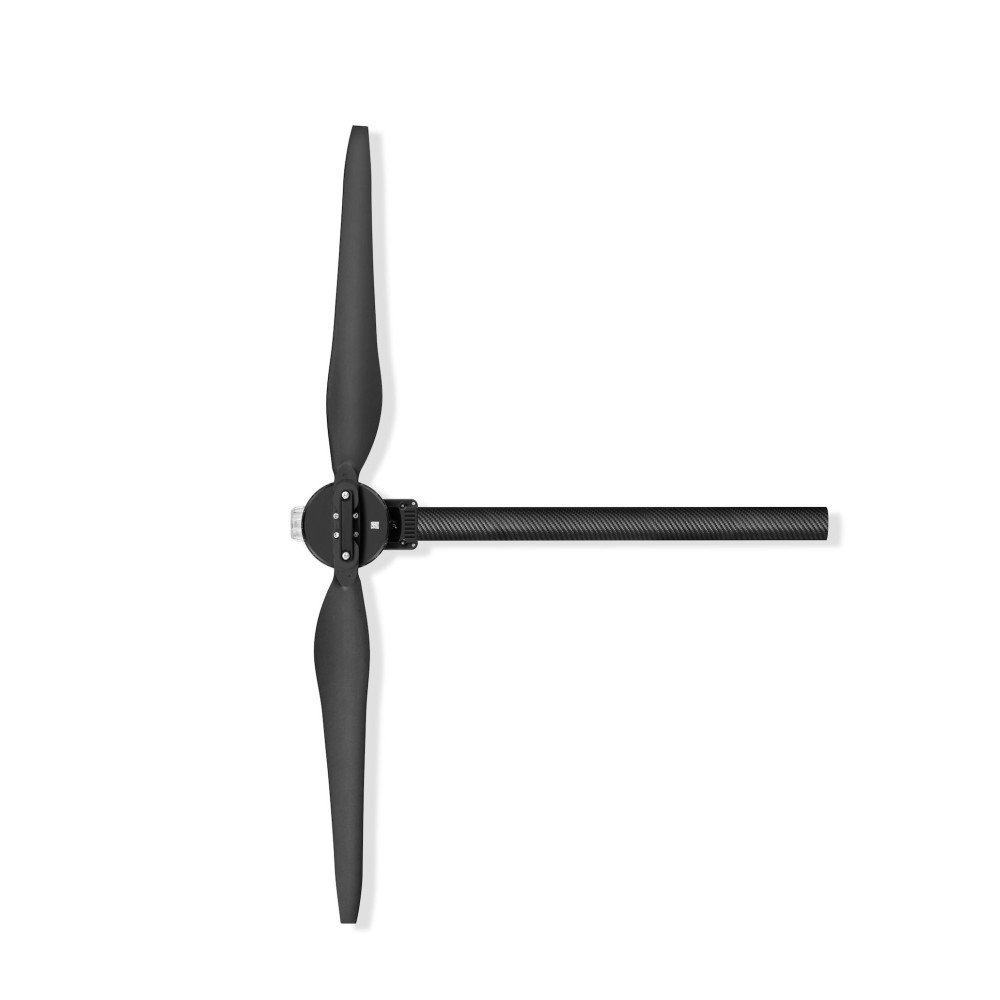

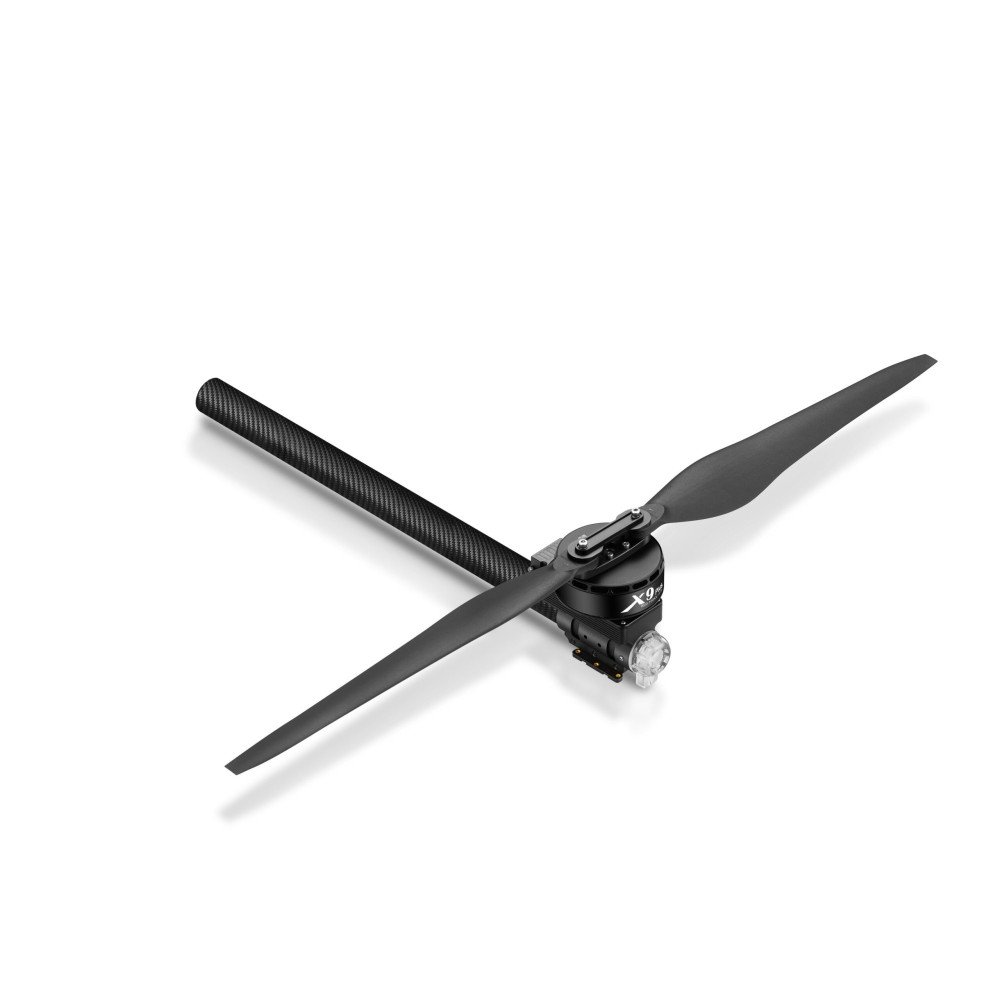

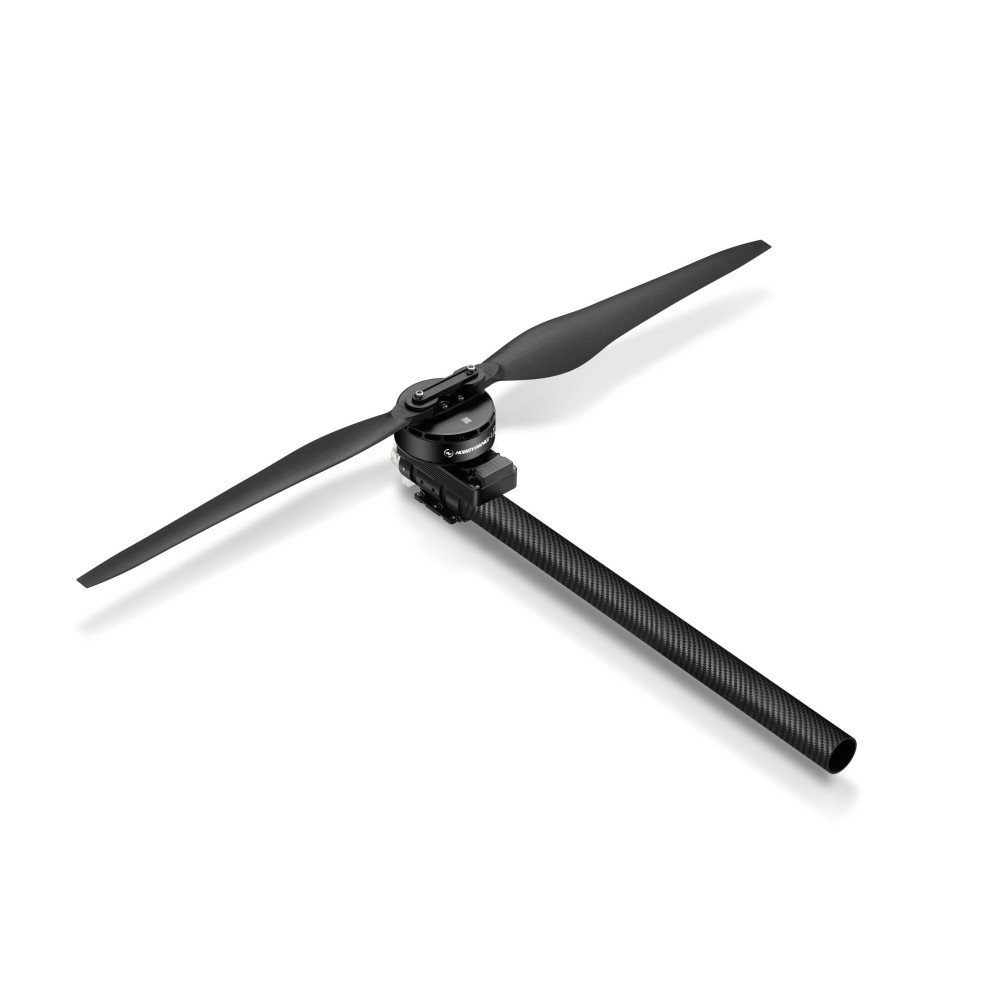

The Hobbywing X9 Plus is an upgraded propulsion system designed for industrial and agricultural drones. It delivers higher thrust, improved efficiency, and robust durability for demanding UAV applications.
With IPX6 waterproofing, advanced cooling, and intelligent safety protections, the X9 Plus is optimized for heavy-duty drone operations in harsh environments.
Powerful Heavy-Lift Performance
The X9 Plus delivers up to 26.5 kg of maximum thrust per axis when used with 36″ composite folding propellers.
The recommended load is 11–13 kg per axis for optimal efficiency.
It supports 20L-class agricultural drones with a maximum takeoff weight of approximately 50–60 kg.
Integrated Motor & ESC Design
The system integrates a large-load Hobbywing 9-series motor with FOC algorithm optimization.
The ESC and motor are combined into one lightweight module for easier installation and cleaner integration.
It is compatible with 40 mm circular carbon fiber tubes.
Robust & Durable Construction
The X9 Plus features IPX6 waterproof, dustproof, and corrosion-resistant protection.
The collision-proof motor seat helps reduce damage during crashes or hard landings.
It is engineered for long-term reliability in harsh agricultural environments.
Efficient Cooling System
The enlarged air duct improves active cooling under high-power load.
Lower current and reduced heat generation help extend the service life of the propulsion system.
Smart Safety & Monitoring
Built-in protections include power-on self-test, voltage abnormality protection, current protection, and stall protection.
Real-time data output to the flight controller includes throttle, motor speed, voltage, current, phase current, capacitor temperature, and MOSFET temperature.
Navigation lights with fault indication allow quick troubleshooting during operation.
Data & Upgrade Support
The X9 Plus is compatible with Hobbywing DataLink, sold separately, for closed-loop monitoring of up to 8 power systems.
Firmware updates are supported via DataLink for continuous optimization and improved long-term performance.
Technical Specifications
Product: Hobbywing X9 Plus UAV Propulsion System
Application: Industrial and agricultural UAVs
Maximum Thrust: 26.5 kg/axis
Recommended Load: 11–13 kg/axis
Drone Class: 20L-class agricultural drones
Maximum Takeoff Weight: Approx. 50–60 kg
Recommended Propeller: 36″ composite folding propeller
Motor Type: Hobbywing 9-series motor
ESC Integration: Integrated Motor + ESC module
Motor Control: FOC algorithm optimization
Arm Tube Compatibility: 40 mm circular carbon fiber tube
Water Resistance: IPX6
Protection: Waterproof, dustproof, and corrosion-resistant design
Real-Time Data Output: Throttle, motor speed, voltage, current, phase current, capacitor temperature, and MOSFET temperature
Safety Protection: Power-on self-test, voltage abnormality, current, and stall protection
Indicator: Navigation lights with fault indication
Optional Accessory: Hobbywing DataLink
Firmware Upgrade: Supported via Hobbywing DataLink
Propellers are sold separately.
