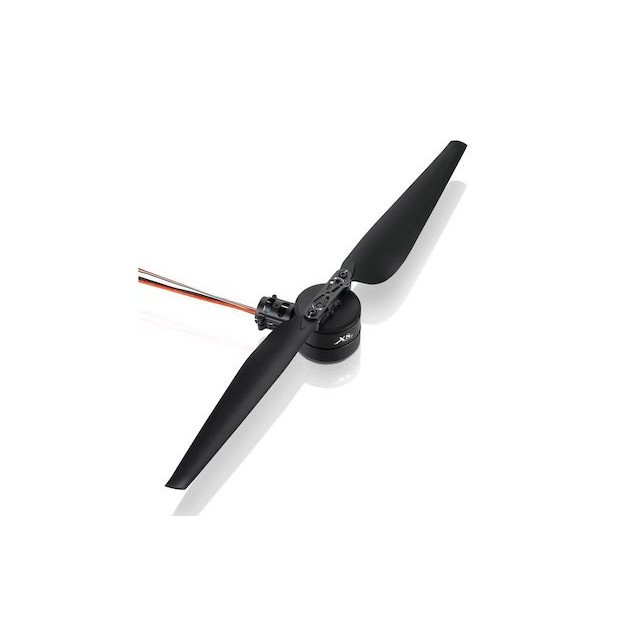

The Hobbywing X8 is a high-performance integrated propulsion system designed for agricultural and industrial UAVs. It simplifies installation while delivering powerful thrust, reliable stability, and intelligent safety features for professional drone applications.
Designed for demanding field operations, the X8 combines efficient power output, robust protection, and smart monitoring features to ensure stable performance in harsh environments.
Powerful & Efficient Performance
The X8 supports a single-axis load capacity of 5–7 kg.
It delivers up to 15 kg of maximum thrust per axis, providing strong lift performance for agricultural and industrial UAVs.
The optimized PMSM motor and FOC algorithm improve efficiency, reduce noise, and provide smoother control response.

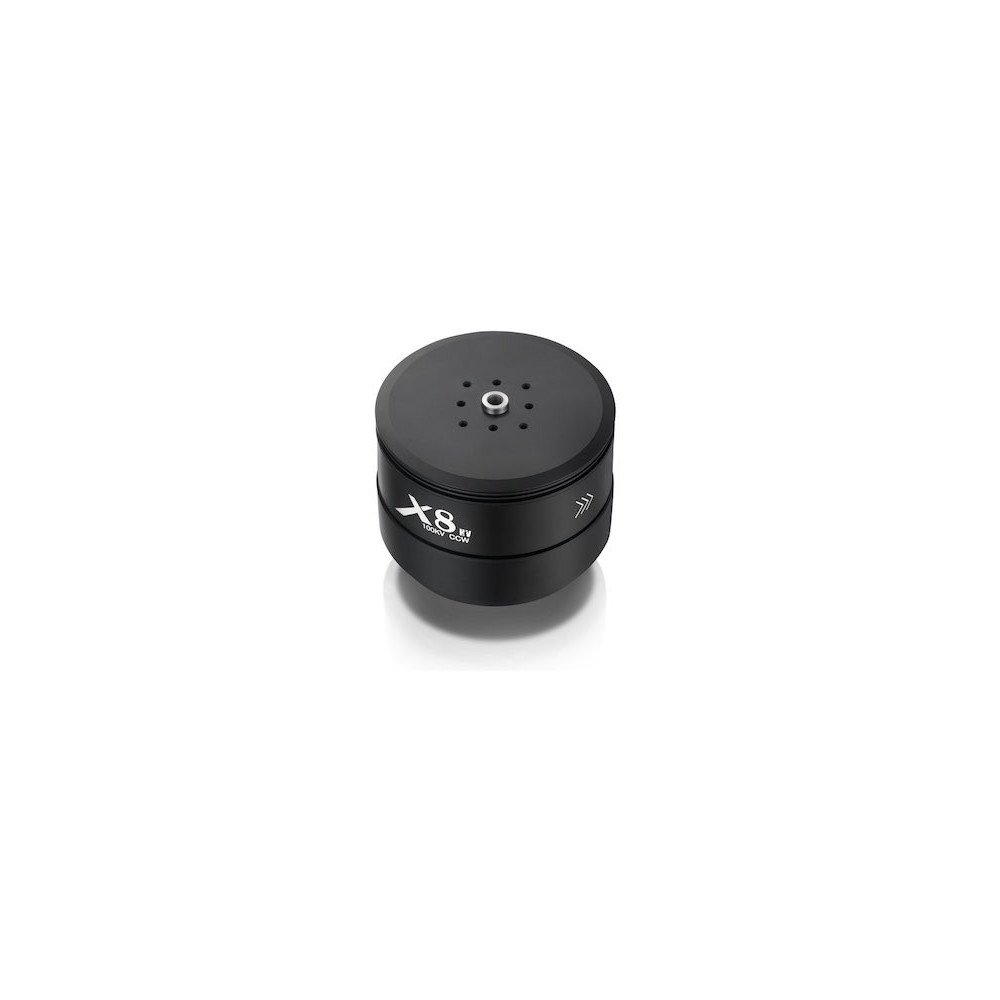

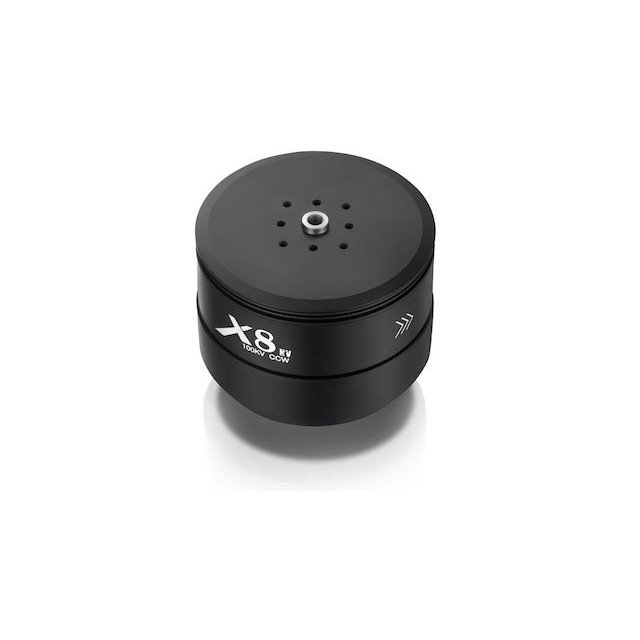

Integrated & Compact Design

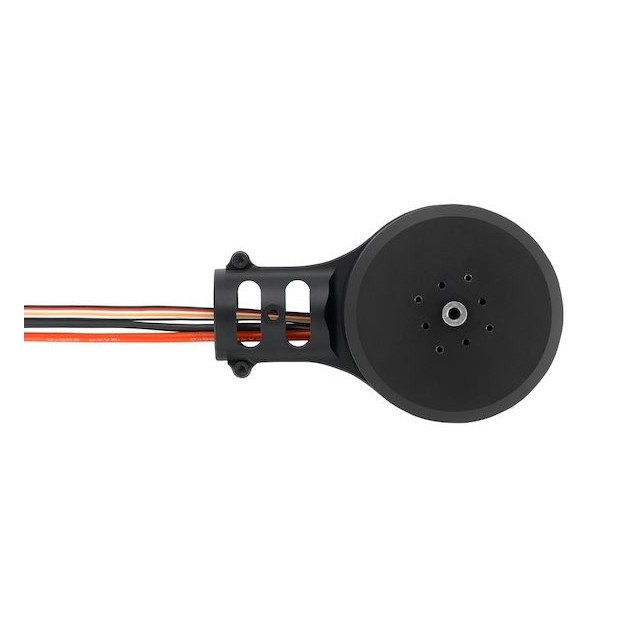

The X8 features an integrated and compact design for quick installation and simplified setup.

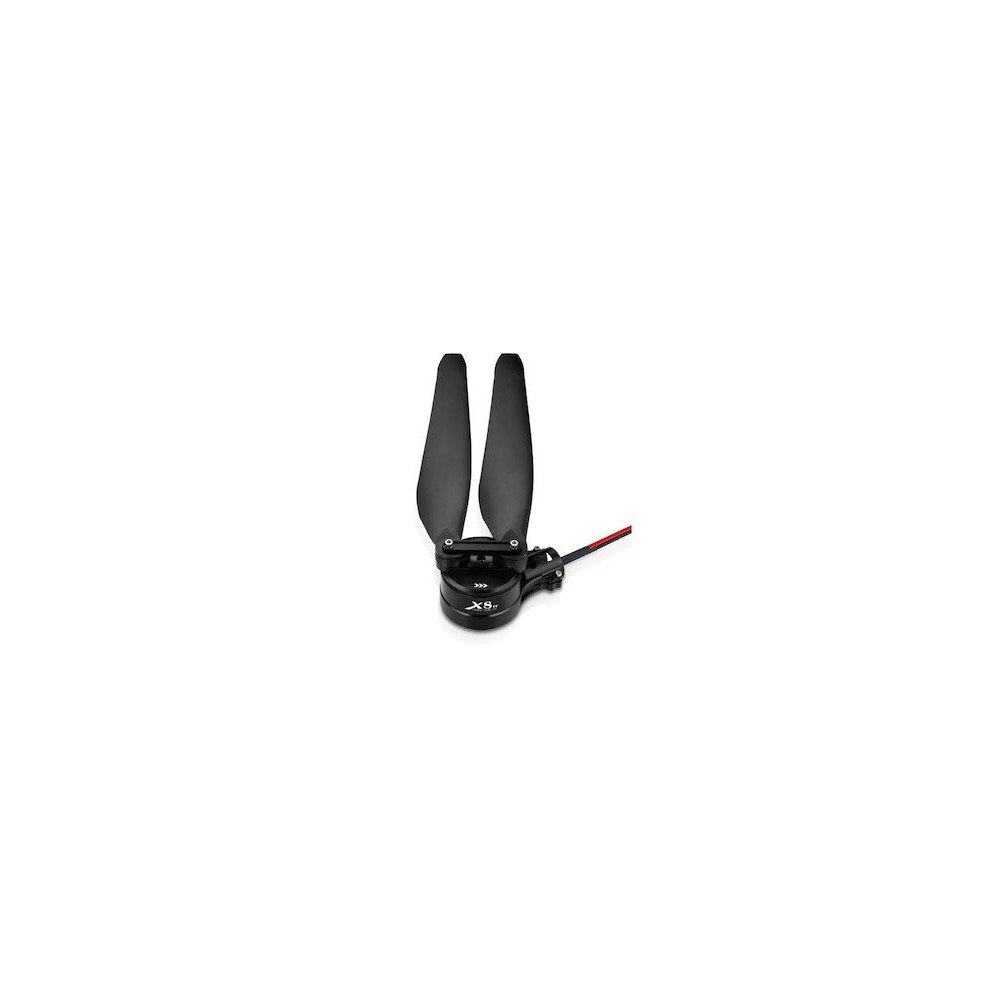

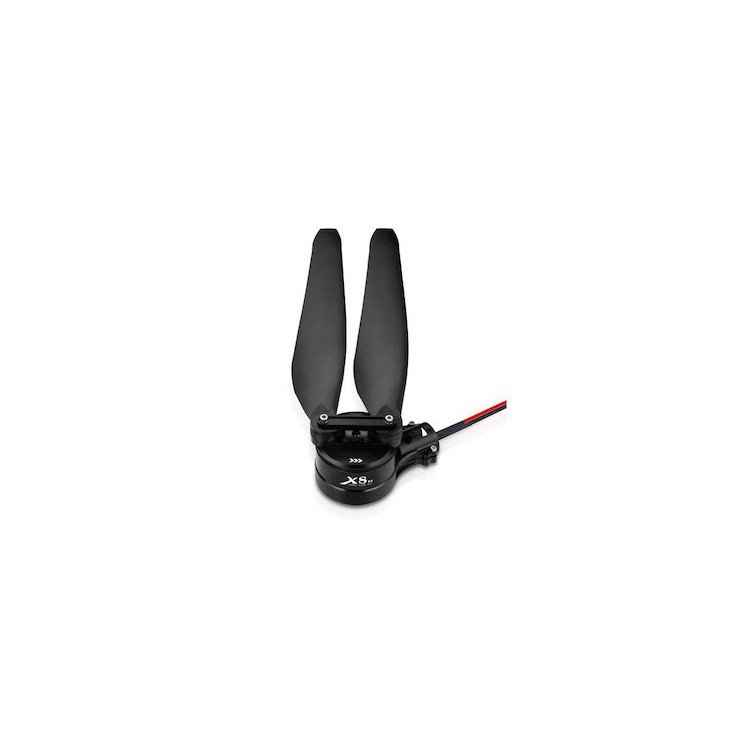

It is compatible with standard 30-inch folding propellers.

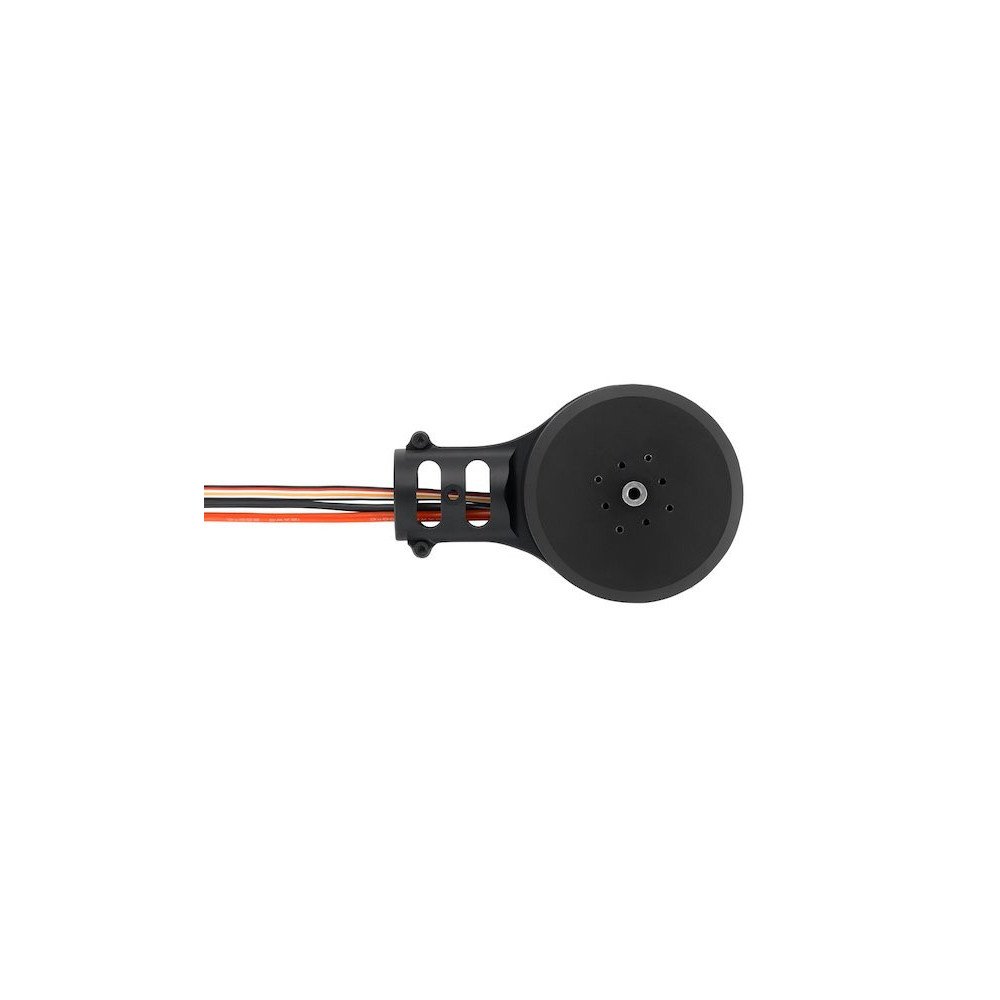

An optional 40 mm tube diameter converter is available for wider frame compatibility.
Intelligent Safety Protections
The system includes power-on self-test, voltage abnormality protection, current protection, stall protection, and overload protection.
Real-time data output to the flight controller includes throttle, motor speed, voltage, current, and temperature information.
Closed-loop control, available with the DataLink accessory, helps enhance flight reliability.

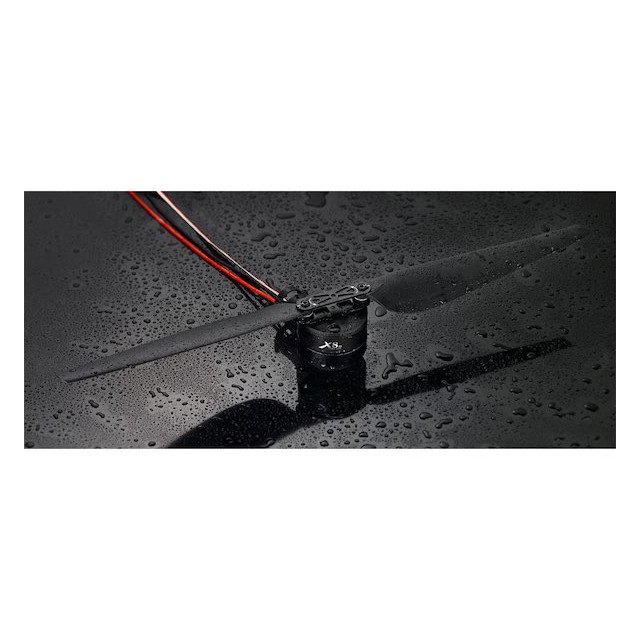

Durability in Harsh Environments
The X8 features IPX6 waterproof protection with drainage channels for liquids and debris.
It is designed to resist rain, pesticide spray, salt, dust, and high-temperature operating conditions.
Its patented design allows direct rinsing with water after operation for easier maintenance.

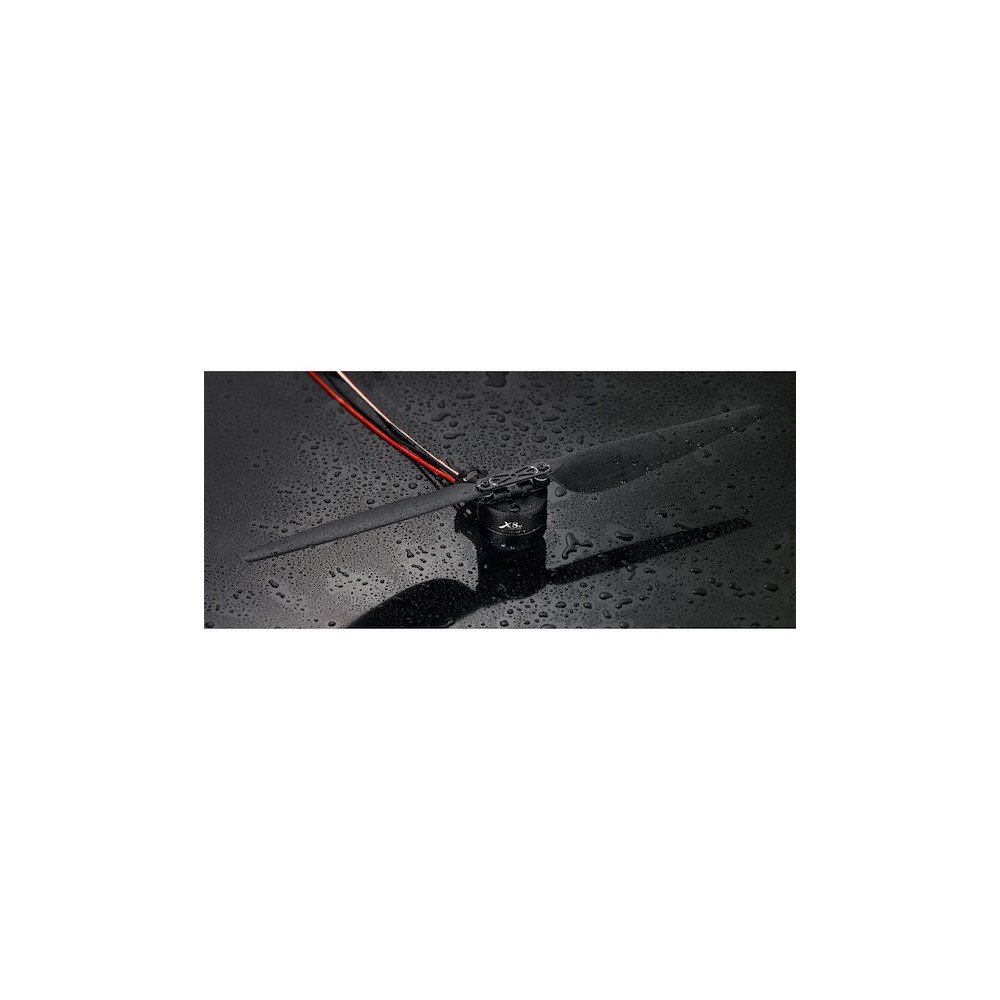

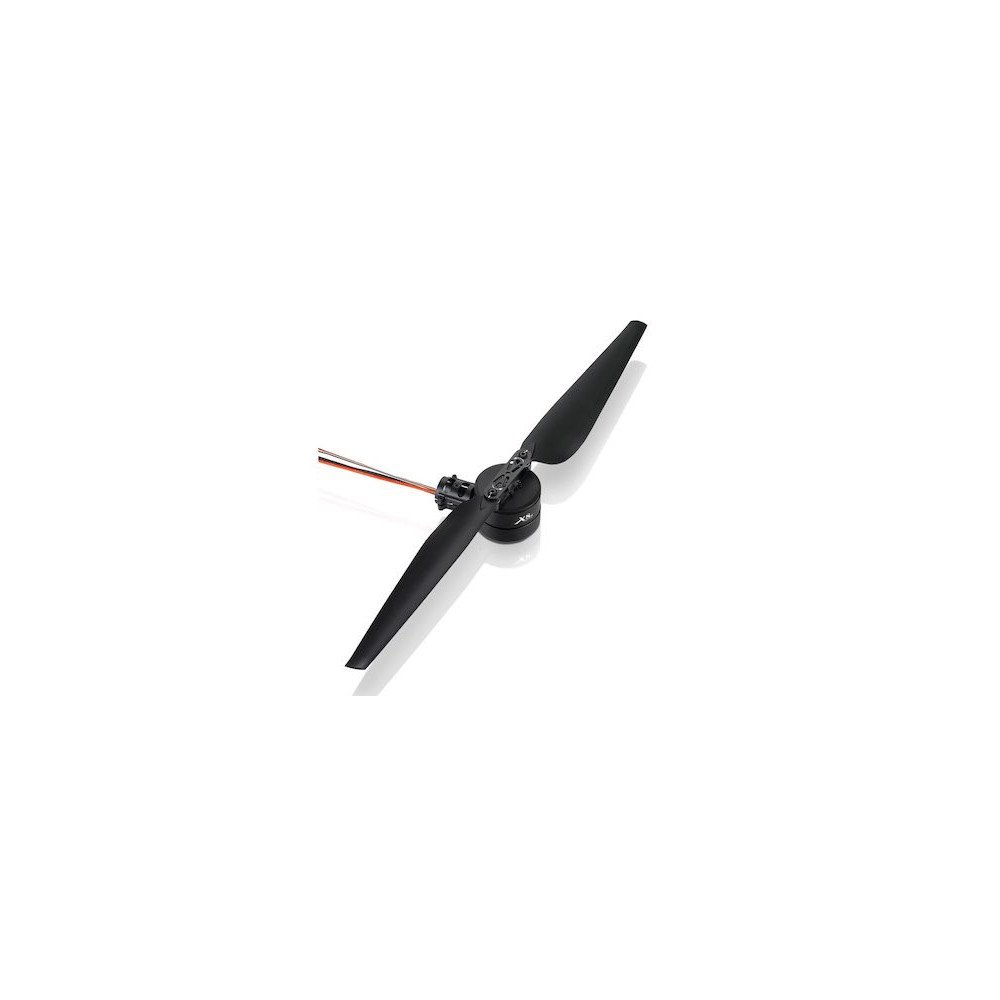

Optimized Propeller System
The X8 is compatible with 3011 folding propellers made from carbon fiber-reinforced nylon composite.
The propeller design provides superior dynamic balance for consistent thrust output.
Its aerodynamic optimization improves lift performance and overall efficiency.
LED Status Indicator
An ultra-bright LED light displays real-time system status.
Configurable colors and early warning alerts help improve operational safety.
Technical Specifications
Product: Hobbywing X8 UAV Propulsion System
Application: Agricultural and industrial UAVs
Single-Axis Load Capacity: 5–7 kg
Maximum Thrust: Up to 15 kg/axis
Recommended Propeller: 3011 folding propeller / 30-inch folding propeller
Propeller Material: Carbon fiber-reinforced nylon composite
Motor Control: PMSM + FOC algorithm
Water Resistance: IPX6
Real-Time Data Output: Throttle, motor speed, voltage, current, and temperature
Safety Protection: Power-on self-test, voltage, current, stall, and overload protection
Optional Accessory: DataLink for closed-loop control
Tube Compatibility: Optional 40 mm tube diameter converter
LED Indicator: Configurable ultra-bright status LED
Propellers are sold separately.
