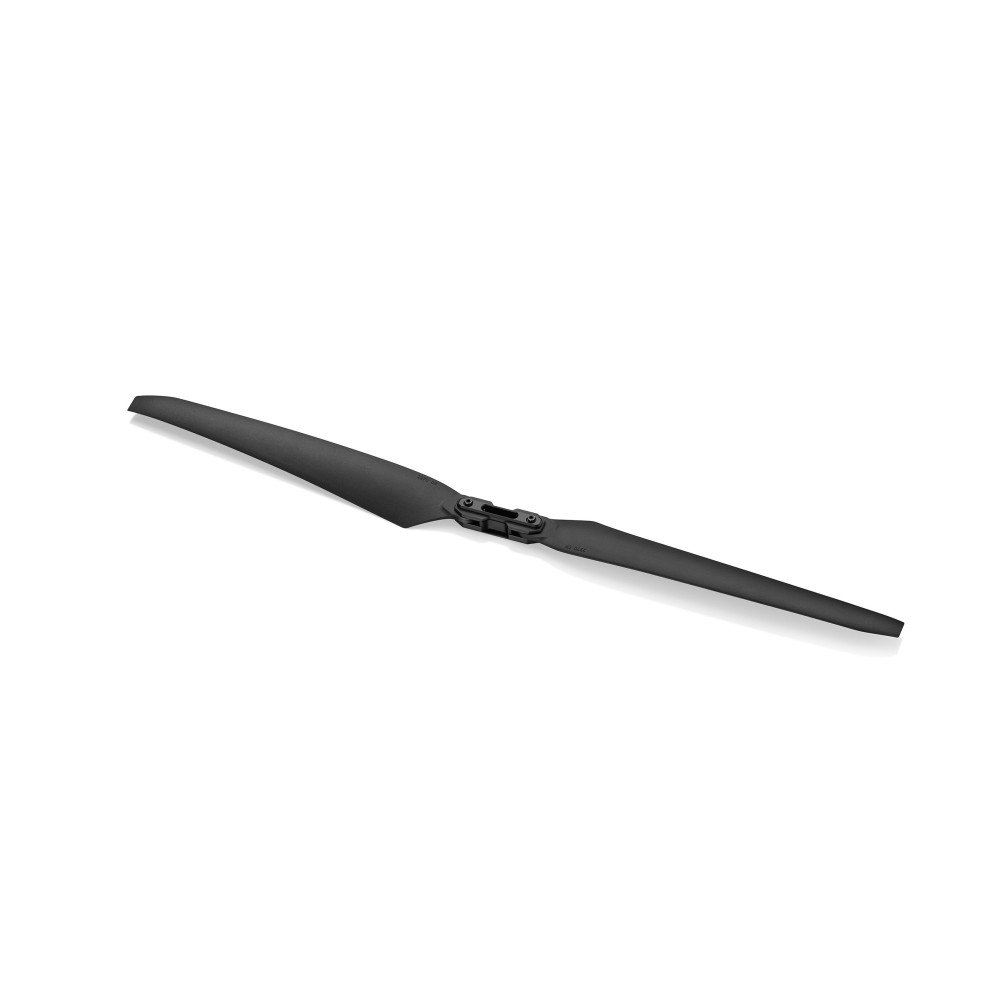

The Hobbywing MFP 22x7.0 Folding Propeller is a high-performance UAV propeller specifically designed for professional multirotor drones, compact industrial UAVs, and efficient propulsion systems. Engineered to deliver stable thrust, excellent aerodynamic efficiency, and reliable flight performance, it is ideal for applications such as mapping, inspection, surveillance, training, security, and long-endurance drone operations.
Built with a carbon fiber reinforced nylon structure, the MFP 22x7.0 offers an excellent balance between lightweight construction, rigidity, toughness, and durability, ensuring safe and consistent operation across professional UAV platforms.
Efficient & Stable Performance
The MFP 22x7.0 is optimized for light-load and high-efficiency UAV applications.
With a recommended thrust range of 2.0–5.0 kg and a maximum thrust of 11.0 kg, this propeller is suitable for UAV platforms requiring efficient power consumption, stable thrust output, and reliable flight behavior.
Designed for professional drone applications, the MFP 22x7.0 provides:
-
Stable thrust output
-
Excellent propulsion efficiency
-
Reliable flight performance
-
Optimized aerodynamic design
-
Efficient operation for compact and medium UAVs
Lightweight Folding Design

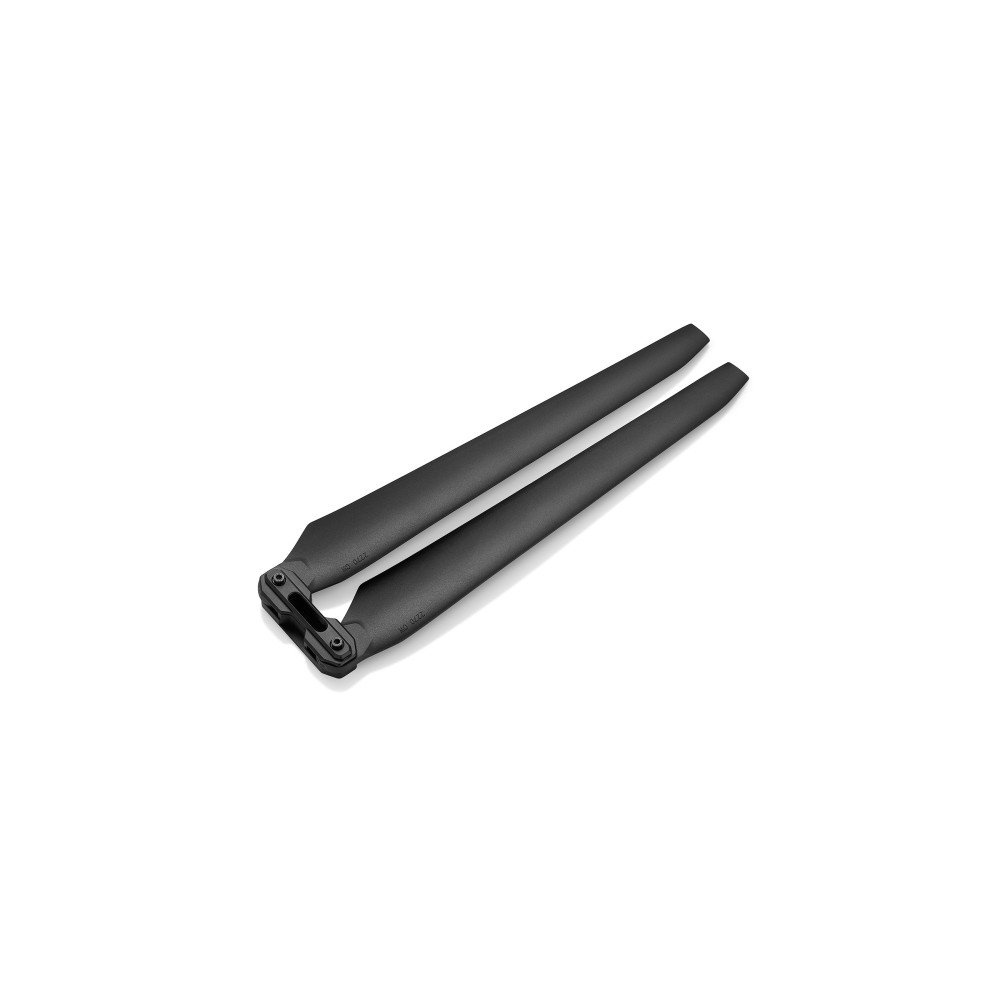

The MFP 22x7.0 features a folding propeller structure, making it easy to transport, store, and integrate into professional UAV platforms.
Its lightweight design helps reduce the total propulsion system weight while maintaining the rigidity required for reliable flight operation.
Key advantages include:
-
Folding propeller design
-
Reduced transport volume
-
Easy installation
-
Lightweight construction
-
Improved UAV integration
Strong & Durable Materials

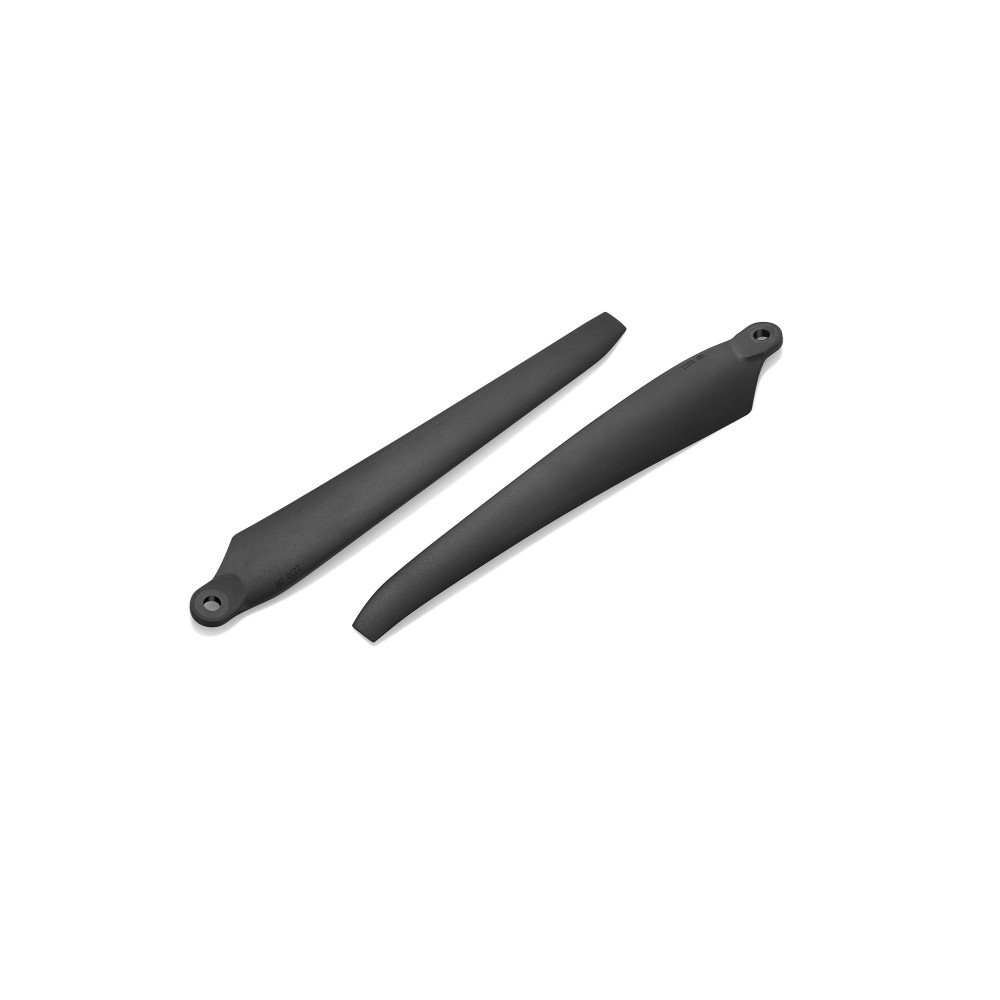

The propeller blades are made from carbon fiber reinforced nylon, providing excellent rigidity, toughness, water resistance, and aging resistance.

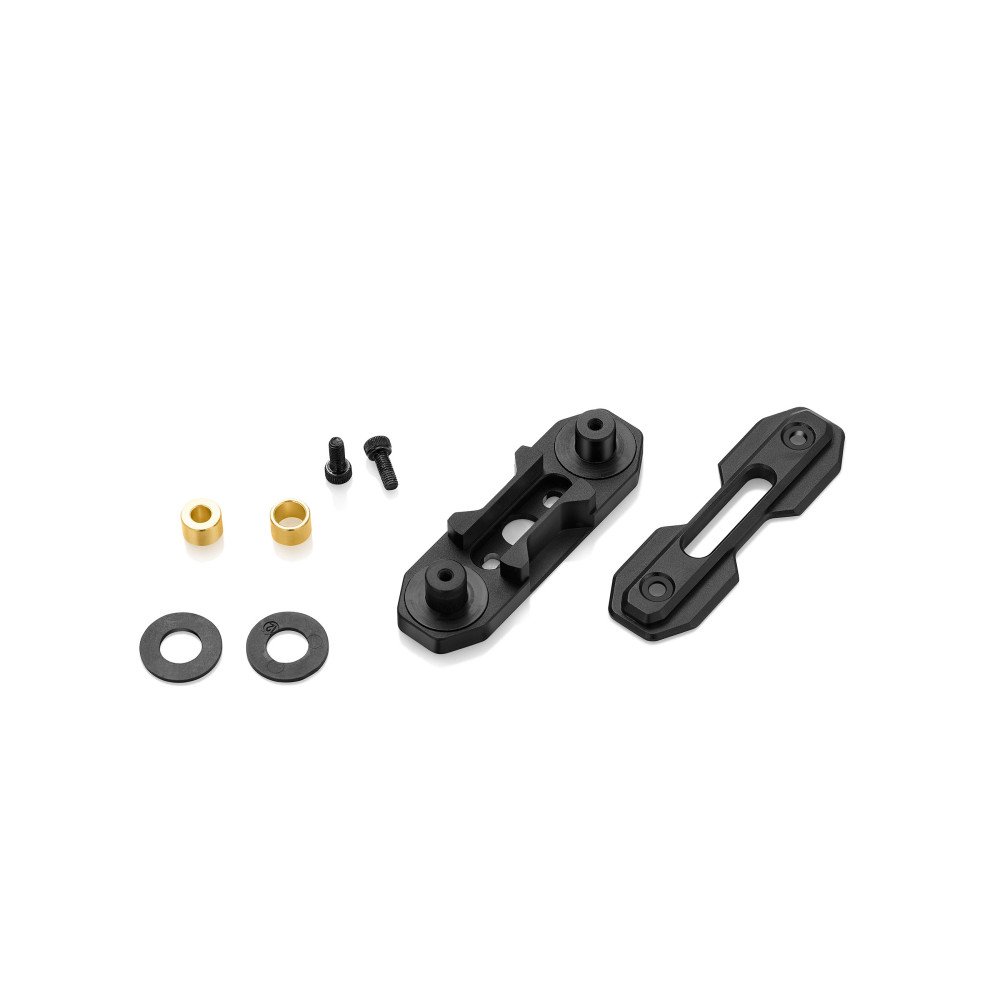

The propeller adapter is made from aluminium alloy, ensuring secure installation and reliable mechanical strength during UAV operation.
This material combination offers:
Excellent Balance & Low Vibration
The MFP 22x7.0 is designed to provide stable aerodynamic performance and smooth operation during flight.
Its lightweight structure and balanced design help reduce vibration, improve flight stability, and support safer operation across professional multirotor UAV platforms.
This provides:
Optimized for Hobbywing UAV Propulsion Systems
The MFP 22x7.0 is compatible with professional Hobbywing propulsion systems and is especially suitable for compact and efficient multirotor UAV configurations.
It is compatible with the Hobbywing X6 SE 280KV propulsion system and can also be used with suitable Hobbywing motor combinations such as M6215 HighProt applications, depending on the UAV configuration.
Recommended operating range:
Technical Specifications
Product: Hobbywing MFP 22x7.0 Folding Propeller
-
Propeller Size: 22 × 7.0 inch
-
Type: Folding propeller
-
Rotation: CW / CCW depending on selected version
-
Total Weight: 66 g including propeller adapter
-
Blade Material: Carbon fiber reinforced nylon
-
Surface Finish: Matte texture
-
Propeller Adapter Material: Aluminium alloy
-
Recommended RPM Range: 3000–4500 RPM
-
Maximum RPM: 6700 RPM
-
Recommended Thrust: 2.0–5.0 kg
-
Maximum Thrust: 11.0 kg
-
Operating Temperature: -30°C to +65°C
-
Storage Temperature: -10°C to +45°C
-
Storage Humidity: ≤85%
-
Recommended Hobbywing System: X6 SE 280KV / compatible Hobbywing UAV propulsion systems
-
Recommended Use: Professional multirotor UAVs, compact industrial drones, mapping drones and efficient propulsion systems
Motor and ESC are sold separately.
