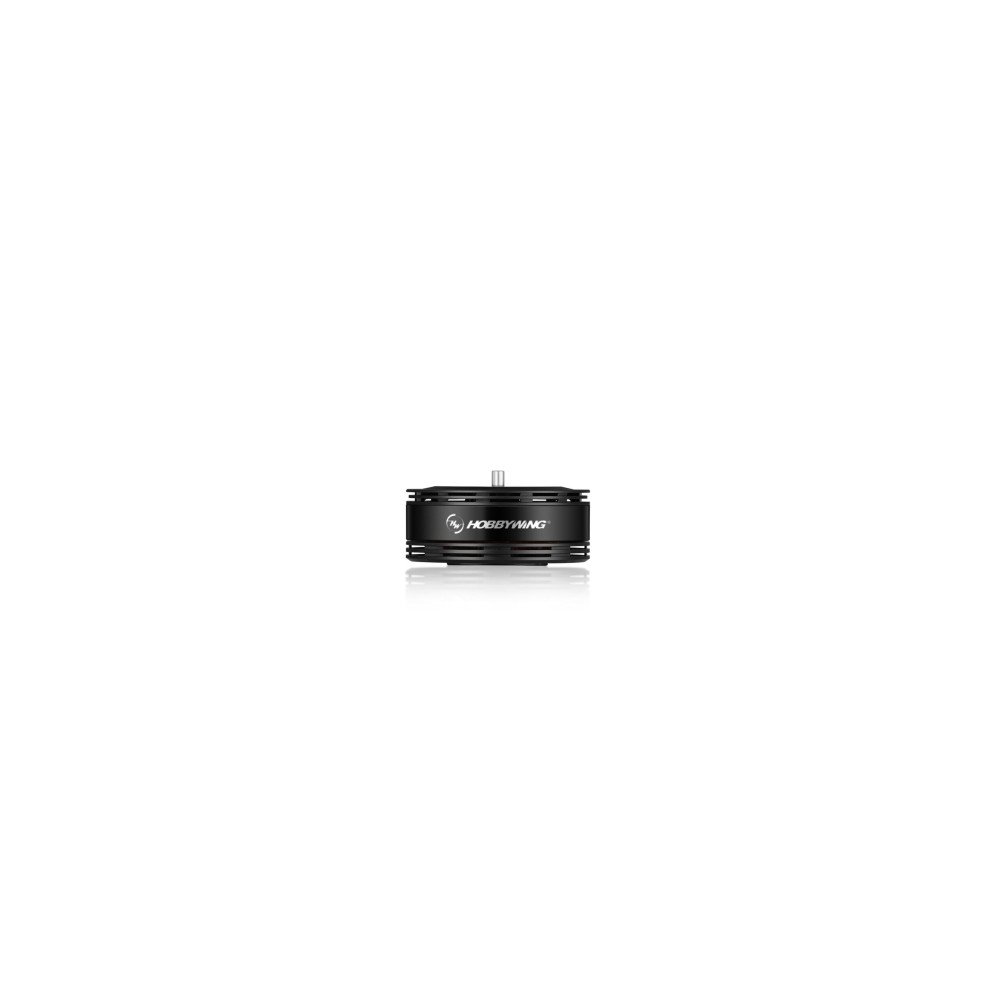

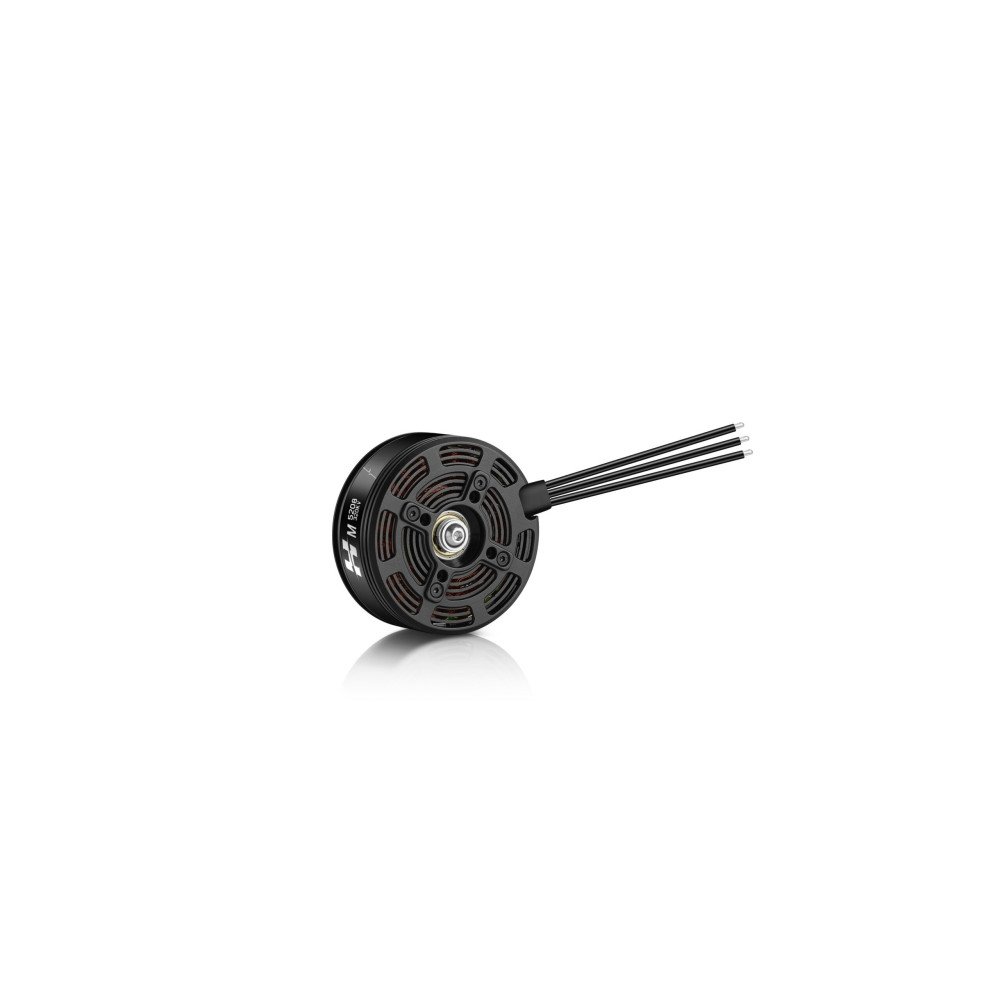

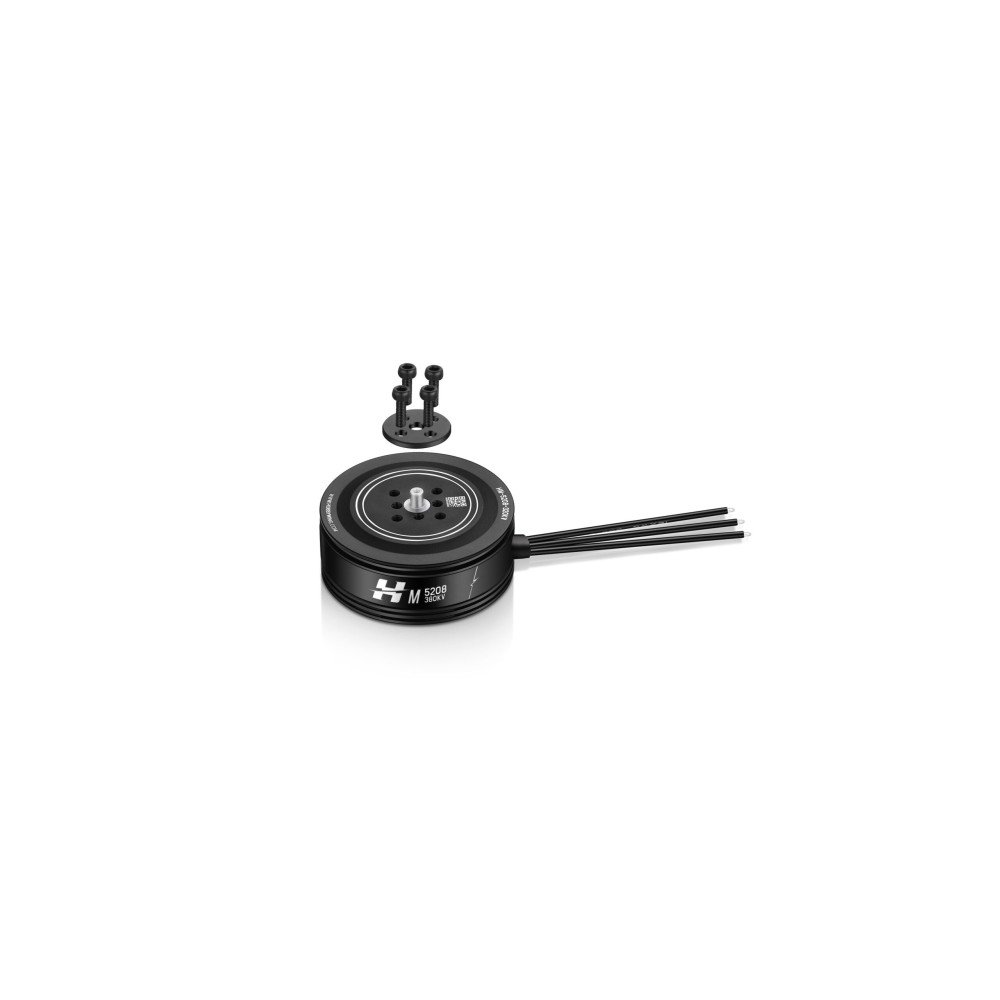

M5208-HighProt-380KV

The Hobbywing M5208 HighProt 380KV is a high-performance industrial drone motor designed for micro and small multirotor UAVs. It delivers reliable thrust, stable operation, and efficient power output for professional drone applications.

With advanced cooling, premium materials, and precise construction, the M5208 HighProt 380KV is built for endurance, stability, and safe long-term operation in demanding environments.

Efficient Power & Thrust

The M5208 HighProt 380KV delivers up to 5.2 kg of maximum thrust.

The recommended thrust range is 1.4–1.6 kg per rotor.

It supports quadcopters with a total takeoff weight of 5.6–6.4 kg, making it suitable for micro and small professional UAV platforms.

Advanced Cooling & Stability

The rotor is designed for effective heat dissipation during demanding flight operations.

The HighProt structure helps improve durability and reliability in professional UAV applications.

This design ensures stable operation for endurance-focused multirotor platforms.

Durability & Protective Design

The high-performance iron core uses low-loss silicon steel sheets with rust-proof treatment and high-temperature resistant coating.

The motor features waterproof bearings, high-temperature rated magnets, and a robust structure for reliable long-term operation.

With IP45 protection, the M5208 HighProt 380KV is designed for demanding field conditions.

Safety & Reliability

The motor shaft uses a secure interlocking structure to help prevent loosening during operation.

The precision-balanced rotor reduces vibration and improves flight stability.

The motor is designed for smooth ESC matching and reliable performance with professional UAV power systems.

Load Parameters

The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.

Technical Specifications

Product: Hobbywing M5208 HighProt 380KV Industrial Drone Motor
Application: Micro and small multirotor UAVs
KV: 380 KV
Battery: 6S LiPo
Weight with Wires: 165.5 g
Motor Size: Φ58 × 29.8 mm
Stator Size: Φ51.7 mm
Motor Structure: 24N28P
Recommended Thrust: 1.4–1.6 kg/rotor
Maximum Thrust: 5.2 kg/rotor
Maximum Power: 986 W
Maximum Current: 45 A
No-Load Current: 1.8 A
Internal Resistance: 43.4 mΩ
Rated Output Power: 127.5 W
Recommended Propeller: 17×5.8″ / 18×6.1″ / 20×6.0″ / 21×6.3″
Recommended ESC: XRotor Pro H60A 6S
Protection Level: IP45
Dynamic Balance: ≤8 mg
Motor Axle Diameter: Φ4 mm
Motor Mounting Dimensions: 4×M3 @ D25 mm
Propeller Mounting Dimensions: 4×M3 @ D12 mm / 4×M3 @ D18 mm
Wire Size: 16 AWG
Wire Length: 80 mm
Bearing: Waterproof bearing

What’s Included

1× Motor

Propellers are sold separately.
