The Hobbywing M5208 Light is a lightweight and efficient industrial drone motor designed for micro and small multirotor UAVs. With advanced materials, precision engineering, and high thrust-to-weight performance, it ensures safe, reliable, and long-endurance flights.
Built for mapping, inspection, and professional UAV applications, the M5208 Light delivers efficient power output, stable operation, and reduced propulsion system weight.
Efficient Power & Thrust
The M5208 Light delivers up to 5.3 kg of maximum thrust with the 380 KV version using an MP18×6.1″ propeller at 23 V.
The recommended thrust range is 1.4–1.9 kg per rotor.
It supports quadcopters with a total takeoff weight of 5.6–7.6 kg, making it suitable for efficient professional UAV platforms.
Lightweight & Reliable Design
The motor weighs only 154 g, helping reduce the overall propulsion system load.
The rotor casing is made from 20# seamless steel tube with nickel plating for improved anti-corrosion protection.
The durable alloy main shaft provides high strength and reliable operation during demanding flights.
High-Quality Materials
The motor uses 200°C high-temperature resistant enameled wire for improved thermal durability.
The CNC high-strength aviation aluminum stator base is both lighter and harder, improving structural reliability.
High-speed precision bearings with low friction torque help extend the motor’s service life.
Safety & Stability
The knurled shaft design helps prevent loosening during operation.
The shaft end is secured with a cir-clip, pressure ring, and screw interlock structure for improved safety.
The impact-resistant design ensures safer flights at high RPMs and improves long-term reliability.
Load Parameters
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.

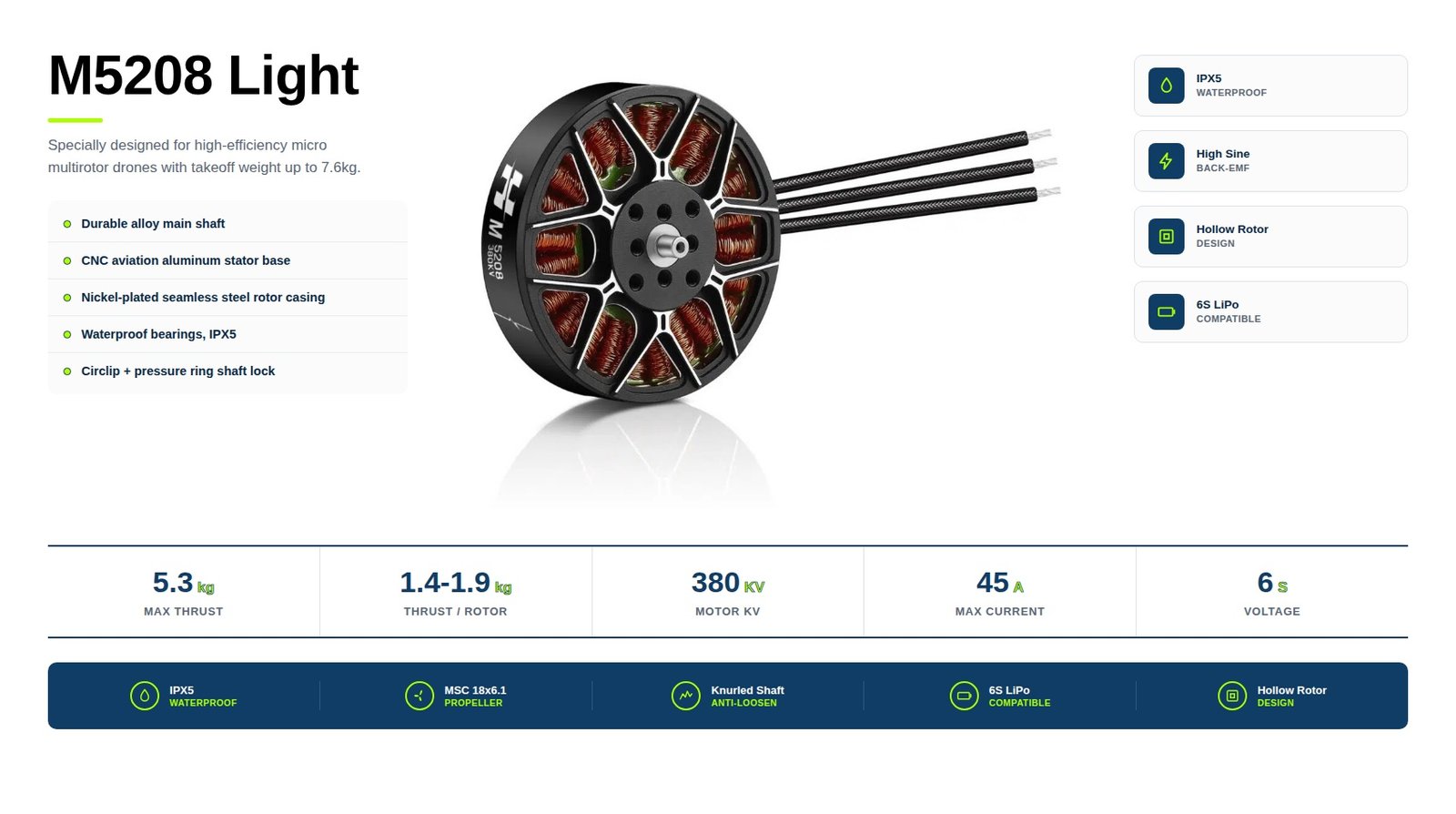

Technical Specifications
Product: Hobbywing M5208 Light Industrial Drone Motor
Application: Mapping, inspection, endurance UAVs, and professional multirotor platforms
Maximum Thrust: Up to 5.3 kg
Recommended Thrust: 1.4–1.9 kg/rotor
Recommended Quadcopter Takeoff Weight: 5.6–7.6 kg
Weight: 154 g
Example Version: 380 KV
Example Propeller: MP18×6.1″
Example Test Voltage: 23 V
Rotor Casing: 20# seamless steel tube with nickel plating
Main Shaft: Durable alloy main shaft
Wire Rating: 200°C high-temperature resistant enameled wire
Stator Base: CNC high-strength aviation aluminum
Bearings: High-speed precision bearings with low friction torque
Shaft Design: Knurled shaft with cir-clip, pressure ring, and screw interlock structure
Protection: Anti-corrosion, impact-resistant, and high-RPM safety design
What’s Included
1× Motor
Propellers are sold separately.
