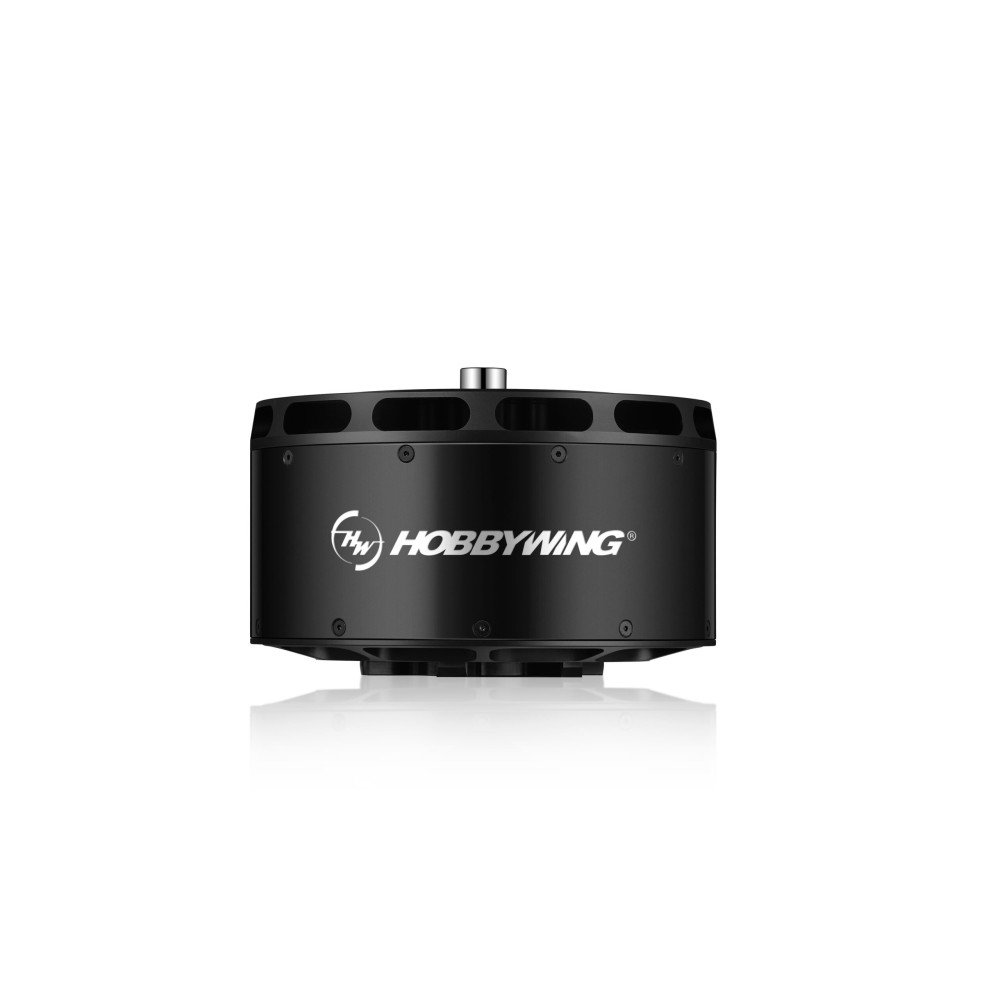

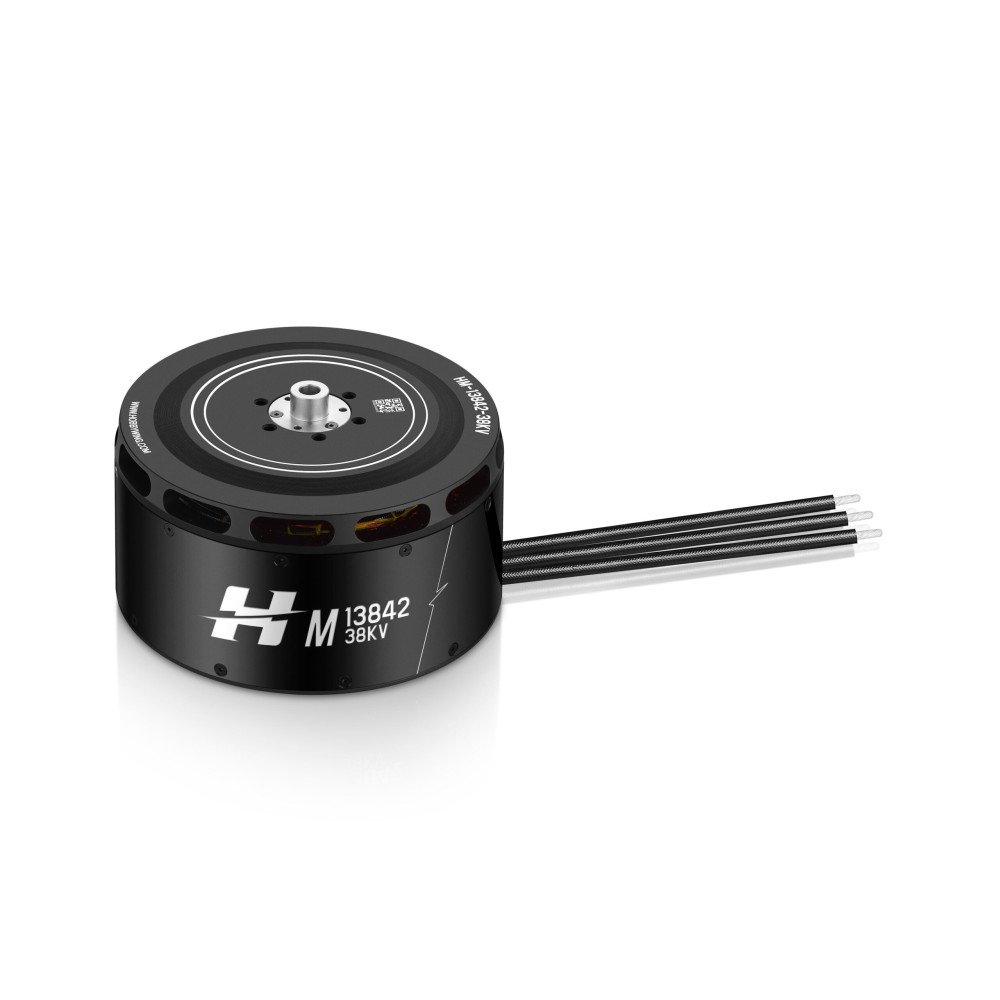

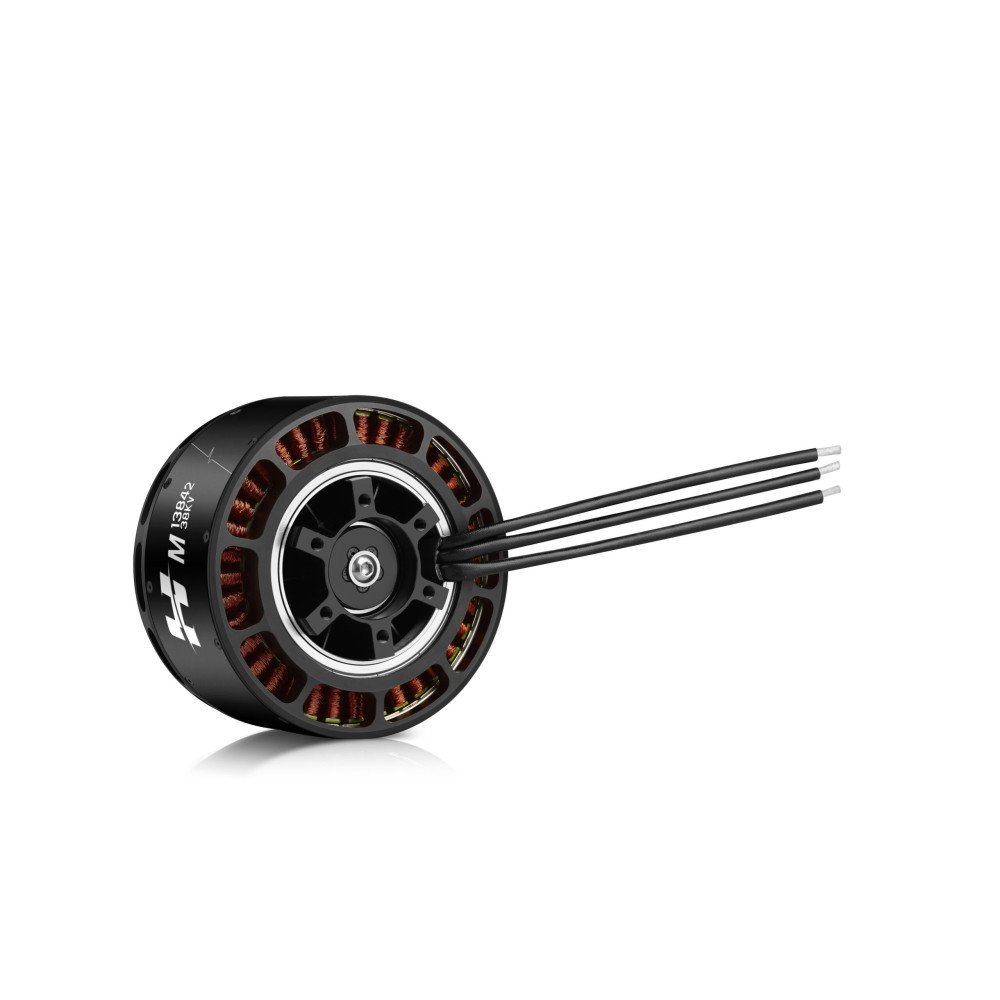

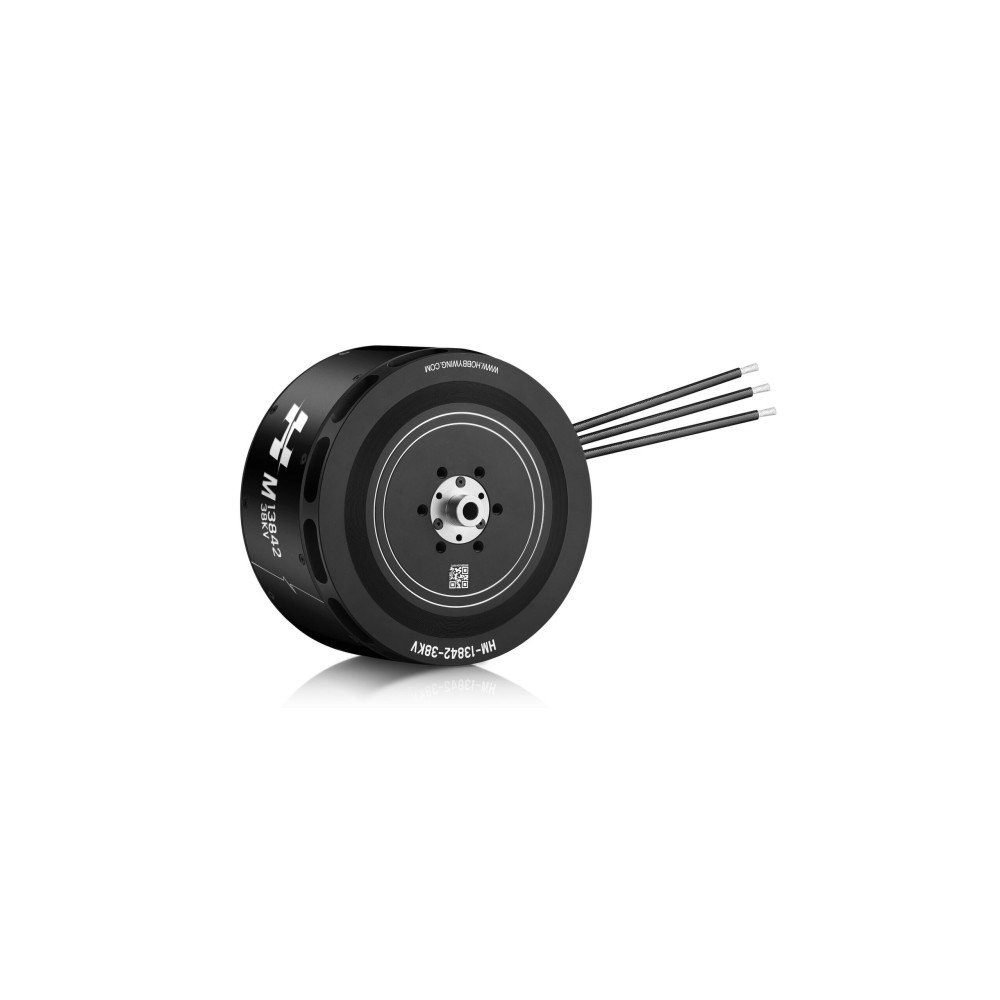

The Hobbywing M13842-HP-38KV is a high-protection heavy-lift UAV motor designed for ultra-heavy-duty multirotor drones. Built for industrial applications, it delivers massive thrust, high torque, and reliable performance for demanding professional missions.
With its HighProt structure, IPX5 protection rating, and robust mechanical design, the M13842-HP-38KV is engineered for large UAV platforms requiring durability, efficiency, and strong lifting capability.
Ultra Heavy-Lift Performance
The M13842-HP-38KV delivers up to 108 kg of maximum thrust.
This makes it suitable for ultra-heavy-lift multirotor UAVs, including large industrial drones, logistics platforms, firefighting UAVs, and special mission aircraft.
When used on quadrotor platforms, the motor is suitable for drones with a takeoff weight of approximately 140–160 kg.
High-Torque Industrial Design
The M13842-HP is designed as a heavy-duty, high-torque motor for large multirotor drones.
Its 38 KV configuration provides strong torque output and stable performance when used with large carbon fiber propellers.
This makes it ideal for applications requiring high lift capacity, stable power delivery, and long-term reliability.
Reliable HighProt Structure
The HighProt design improves protection against dust, water exposure, and harsh field conditions.
With an IPX5 protection rating, waterproof bearings, and anti-rust treated components, the motor is built for demanding industrial environments.
The structural design is validated for long operating life, helping improve flight safety and reliability.
Premium Materials
The motor uses high-standard silicon steel sheets with rust-proof treatment and 180°C high-temperature resistant coating.
It also features high-grade magnets, waterproof bearings, and enamelled wire rated up to 200°C.
These materials help improve durability, thermal resistance, and long-term performance under heavy load.
Optimized Cooling & Stability
The M13842-HP features a centrifugal air-cooling structure to support stable operation under high-power loads.
This helps improve heat dissipation, reduce thermal stress, and maintain reliable performance during demanding flights.
The motor is dynamically balanced to ensure smoother operation and reduced vibration.
Technical Specifications
Product: Hobbywing M13842-HP-38KV UAV Motor
Motor Type: High Protection heavy-lift industrial UAV motor
KV: 38 KV
Battery: 24S LiPo
Motor Size: Φ150.2 × H89.5 mm
Stator Size: Φ138 × H42 mm
Motor Structure: 36N42P
Weight with Wires: 3,930 g
Recommended Thrust: 35–40 kg/rotor
Maximum Thrust: 108 kg/rotor
Maximum Power: 25.5 kW
Maximum Current: 278 A
Rated Power Input: 5,100 W
Rated Power Output: 4,335 W
No-Load Current: 10 A
Resistance: 15.7 mΩ
Protection Level: IPX5
Dynamic Balance: ≤60 mg
Motor Axle Diameter: Φ15 mm
Motor Mounting Dimensions: 6×M6 @ Φ60 mm
Propeller Mounting Dimensions: 6×M5 @ Φ40 mm
Recommended Propeller: MSC 54×23 / MSC 58×24 / MSC 64×20
Recommended ESC: XRotor Pro H300A 24S
Wire Length: 200 mm
Bearing: Waterproof bearing
Enamelled Wire Rating: 200°C
Magnet Temperature Rating: 180°C
Recommended Takeoff Weight per Rotor: 35–40 kg
Recommended Quadrotor Takeoff Weight: 140–160 kg
What’s Included
1× Motor
Propellers are sold separately.
