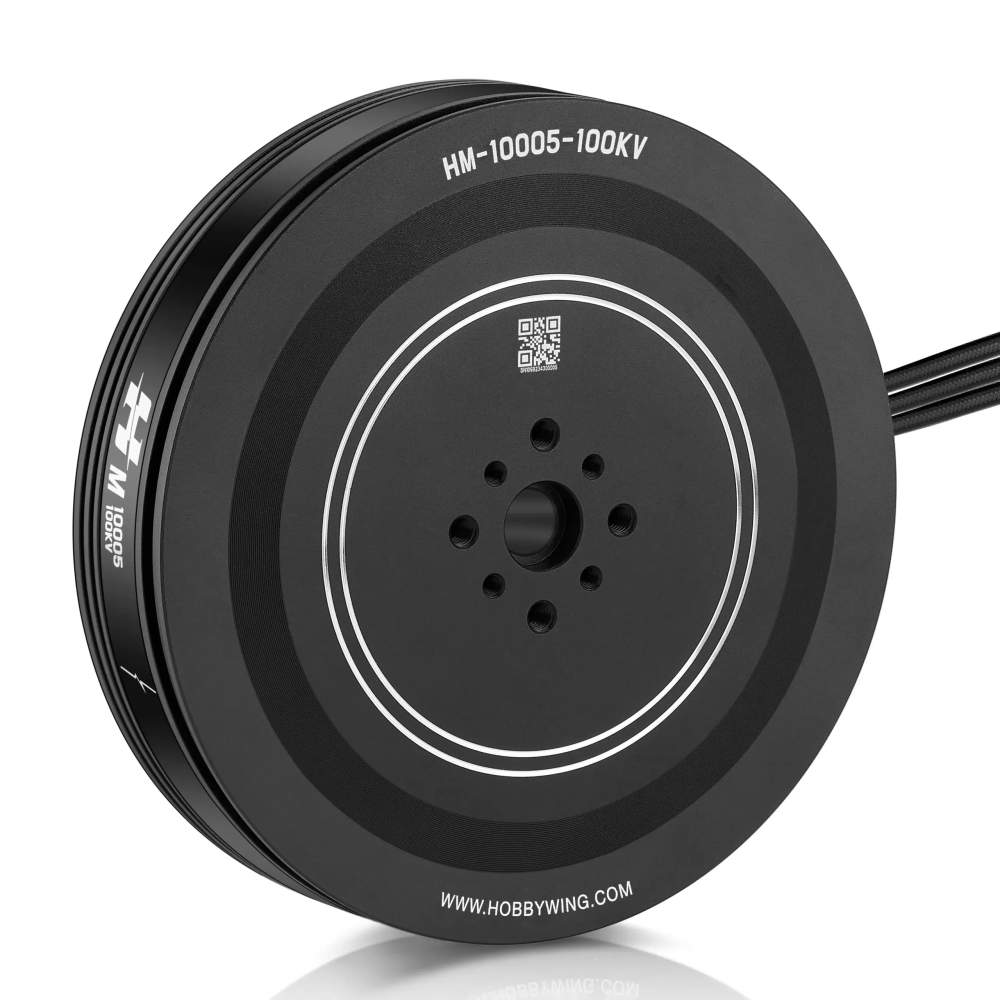

M10005-HP-100KV

The Hobbywing M10005-HP-100KV is a high-protection industrial UAV motor designed for efficient, long-endurance multirotor applications. Built for professional drone platforms, it combines reliable power output, lightweight construction, and enhanced environmental protection.

With its fully enclosed High Protection structure, IP45 rating, and waterproof bearings, the M10005-HP is engineered for demanding UAV missions requiring durability, efficiency, and stable performance.

Efficient Industrial Performance

The M10005-HP-100KV is designed for industrial multirotor drones requiring high efficiency and long endurance.

With a 100 KV motor configuration and 12S LiPo compatibility, it delivers smooth power output and stable operation for professional UAV platforms.

The motor can deliver up to 11.6 kg of maximum thrust, making it suitable for medium-lift multirotor applications.

High Protection Design

The High Protection structure helps protect the motor against dust and water exposure during field operations.

With an IP45 protection rating, waterproof bearings, and anti-rust treated components, the motor is designed for reliable operation in demanding environments.

Optimized Motor Architecture

The M10005-HP uses a 36N42P motor structure with a 100 mm stator size.

Its optimized magnetic circuit design helps improve motor efficiency, reduce vibration, and provide smoother running performance.

The motor is dynamically balanced to ensure stable operation and consistent power delivery.

Durable Materials

The motor features high-standard silicon steel sheets with rust-proof treatment and 180°C high-temperature resistant coating.

The enamelled wire is rated up to 200°C, improving durability and long-term reliability during demanding UAV operations.

Propeller Compatibility

The M10005-HP-100KV is compatible with large UAV propellers such as ML30×9.8″ and GP32×10.5″ configurations.

These propeller options allow the motor to be adapted for efficient lift, endurance-focused platforms, and professional multirotor applications.

Technical Specifications

Product: Hobbywing M10005-HP-100KV UAV Motor
Motor Type: High Protection industrial multirotor motor
KV: 100 KV
Battery: 12S LiPo
Motor Size: Φ107.1 × H24.1 mm
Stator Size: Φ100 mm
Motor Structure: 36N42P
Weight with Wires: 327 g
Maximum Thrust: 11.6 kg/rotor
Maximum Power: 1,875 W
Maximum Current: 41 A
No-Load Current: 1 A
Internal Resistance: 104 mΩ
Protection Level: IP45
Motor Axle Diameter: Φ10 mm
Motor Mounting Dimensions: 4×M4 @ D32 mm
Propeller Mounting Dimensions: 4×M3 @ D20 mm / 4×M4 @ D23 mm
Recommended Propeller: ML30×9.8″ / GP32×10.5″
Wire Length: 100 mm
Bearing: Waterproof bearing
Enamelled Wire Rating: 200°C

What’s Included

1× Motor

Propellers are sold separately.
