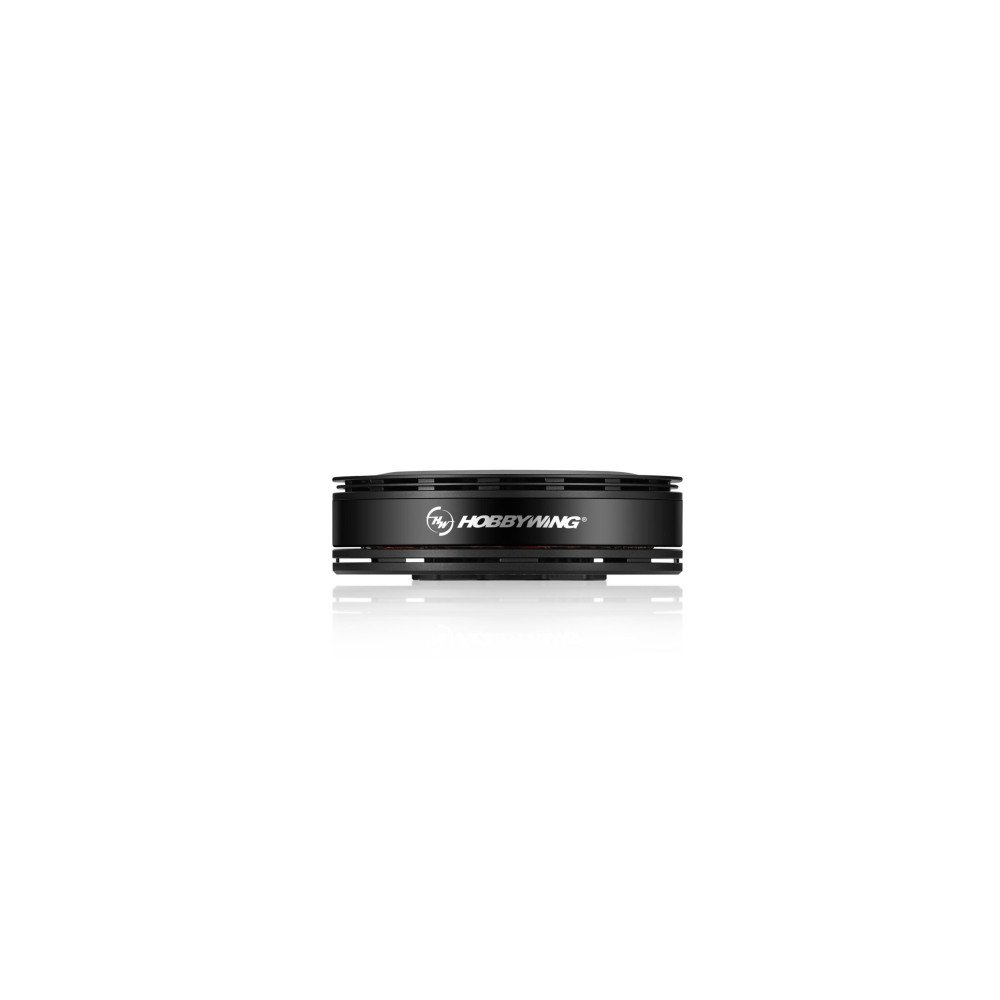

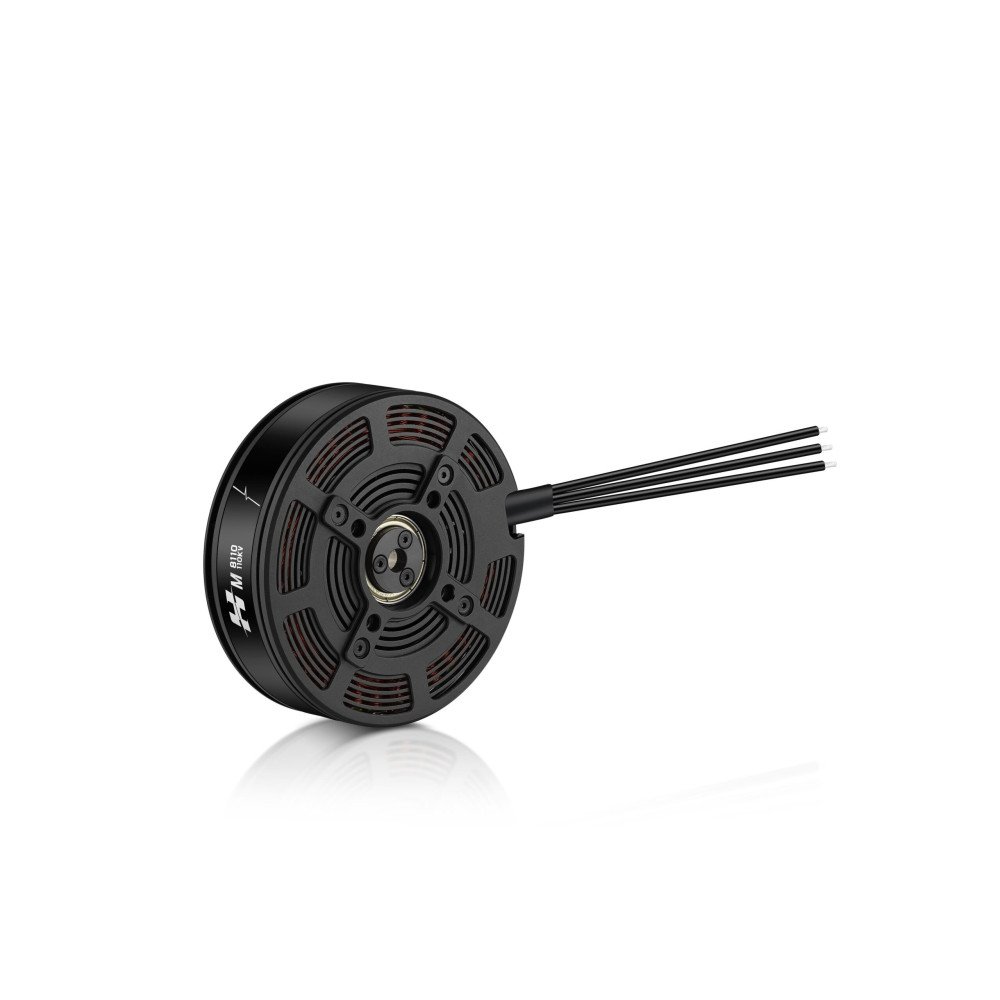

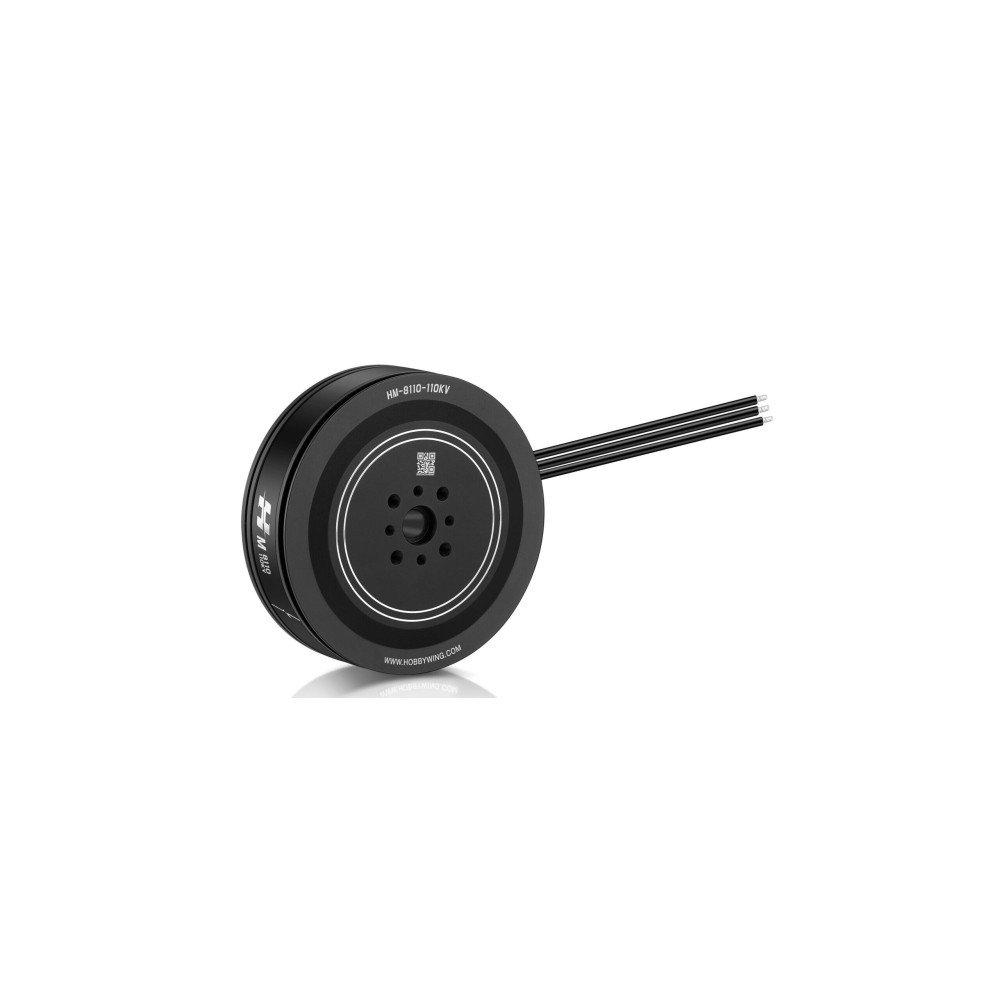

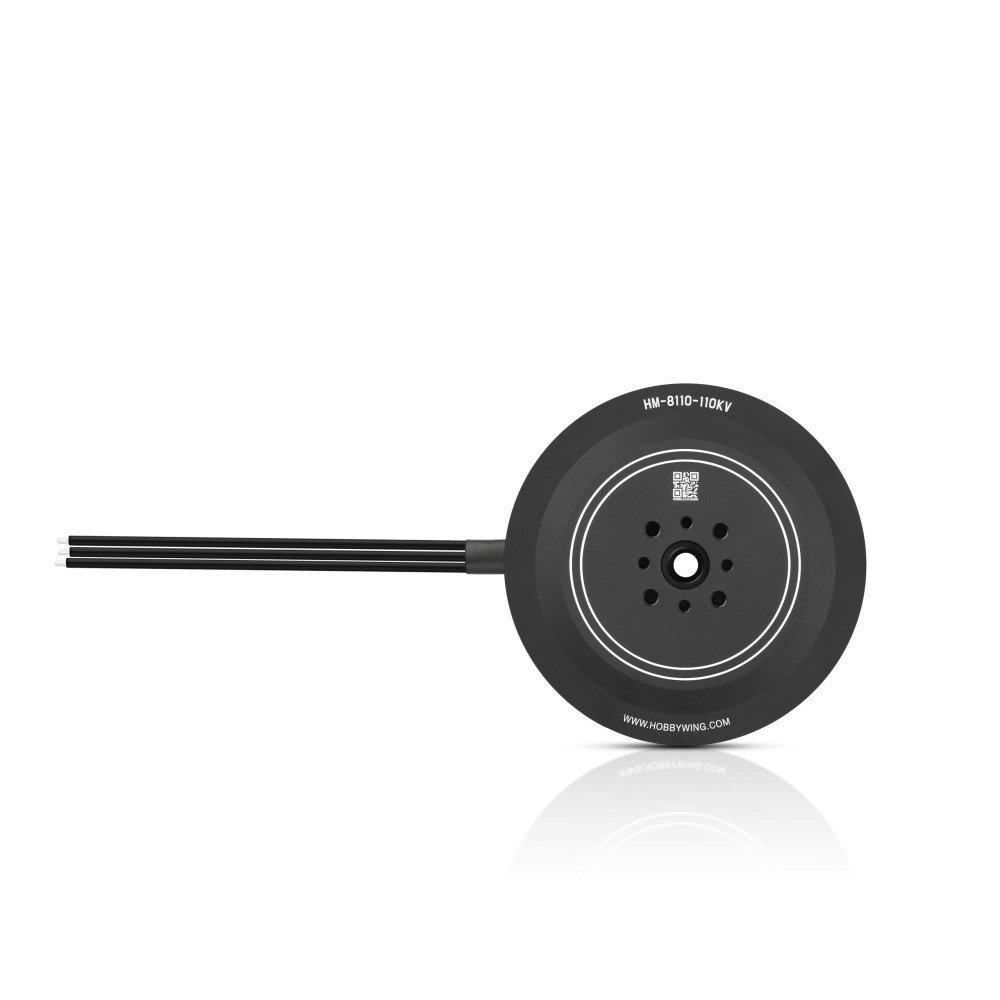

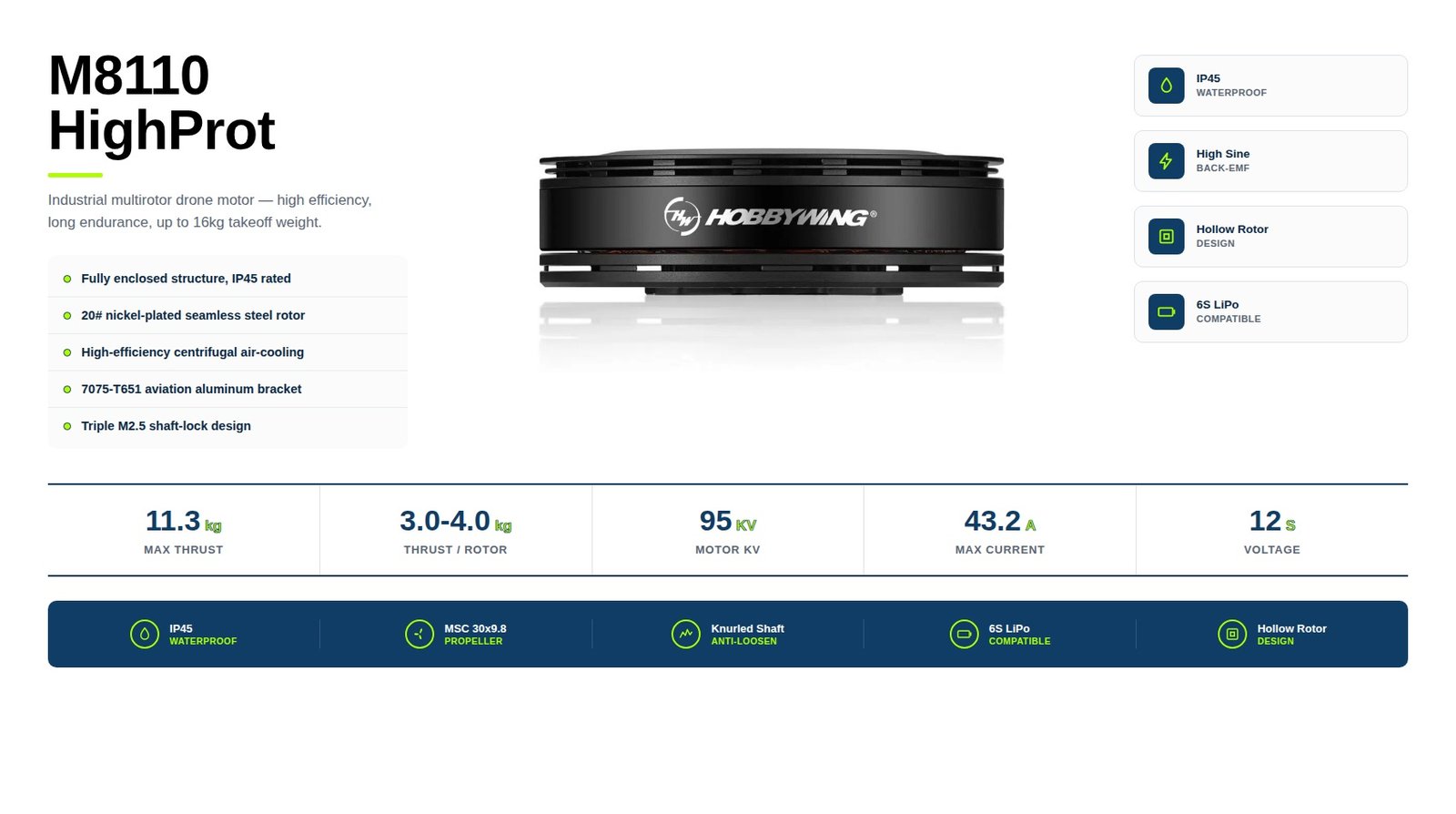

Hobbywing M8110 HighProt Industrial Drone Motor (95KV)

The Hobbywing M8110 HighProt is a high-efficiency industrial motor designed for heavy-duty multirotor UAVs. Featuring advanced magnetic circuit technology, premium materials, and an optimized cooling structure, it ensures stable thrust, long endurance, and superior reliability for mapping, inspection, and logistics applications.

Key Features

Efficient Power & Endurance

• Recommended thrust: 4.0 kg+ per rotor

• Efficiency: 10 g/W+ for long endurance flights

• Supports quadcopters with MTOW up to 16 kg

• Endurance up to 60 minutes with 12S 40Ah battery

Advanced Magnetic Circuit Design

• Optimized back-EMF harmonics for smoother ESC matching

• Produces higher-quality sine waves for precise throttle response

• Reduces energy loss and improves stability

Durable & Protective Build

• Fully enclosed structure with IP45 protection level

• Rotor bracket equipped with a centrifugal air-cooling system

• Stator base integrates large-area heat sinks for improved heat dissipation

Attention to Detail

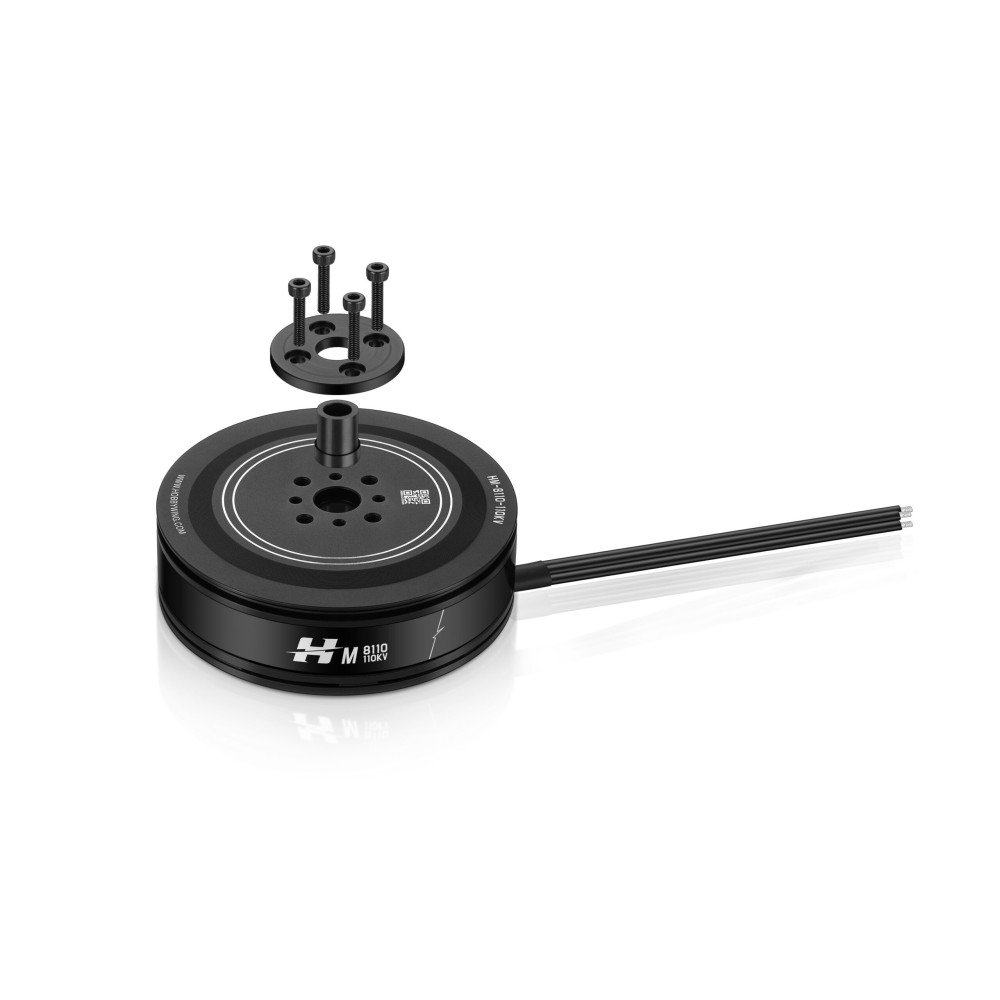

• Integrated bracket and rotating shaft improve coaxiality and reduce part count

• Tail spindle secured with triple M2.5×8 washer-locking screws for reliability

• Hollow housing design ensures lightweight yet robust performance

High-Quality Materials

• Made with premium raw materials and strict tolerances

• Anti-rust and corrosion-resistant treatments for long service life

• Designed for industrial-grade applications with NSS certification

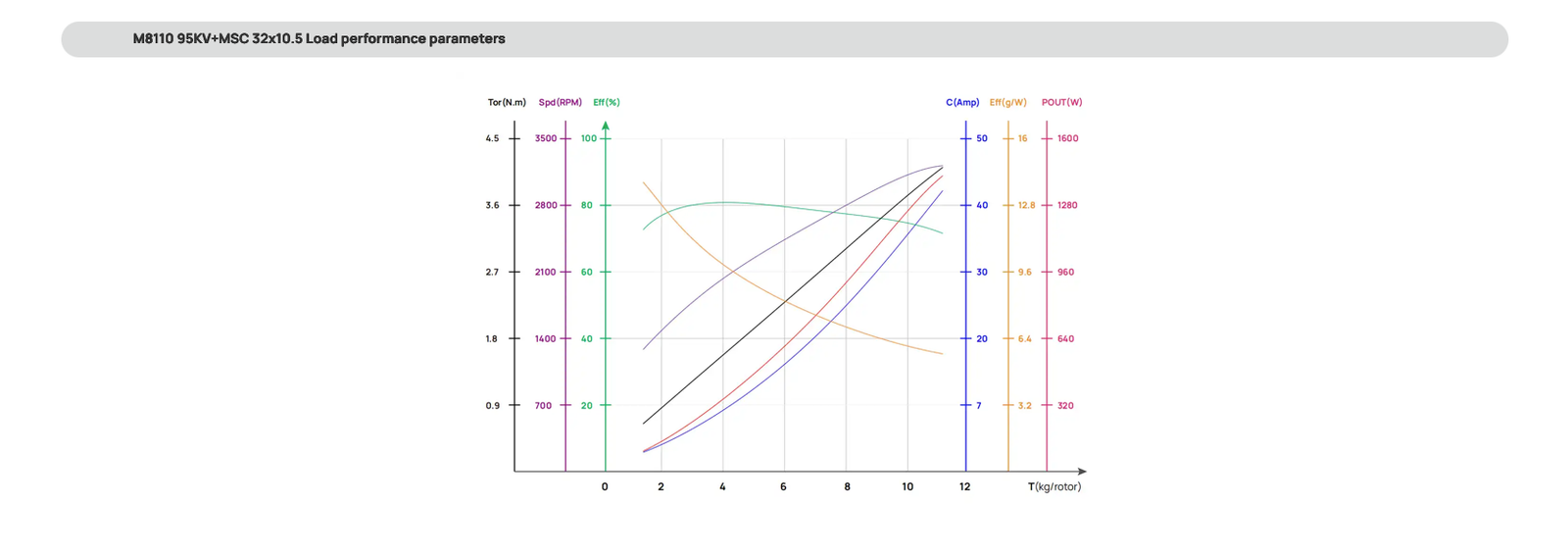

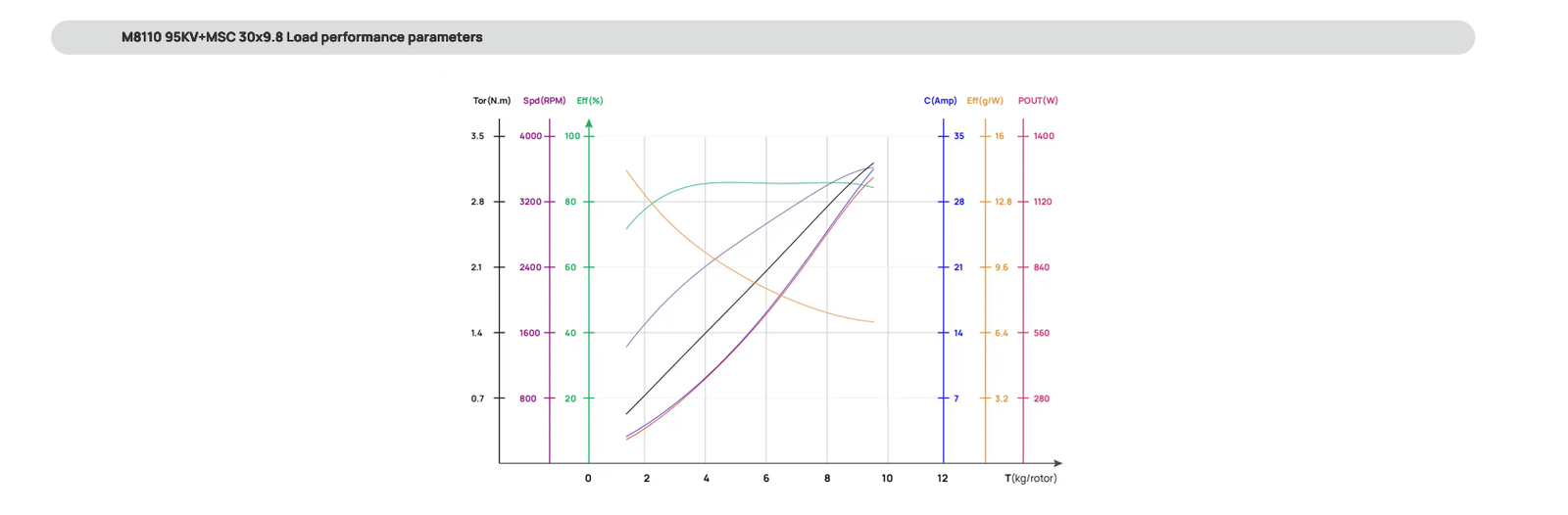

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
