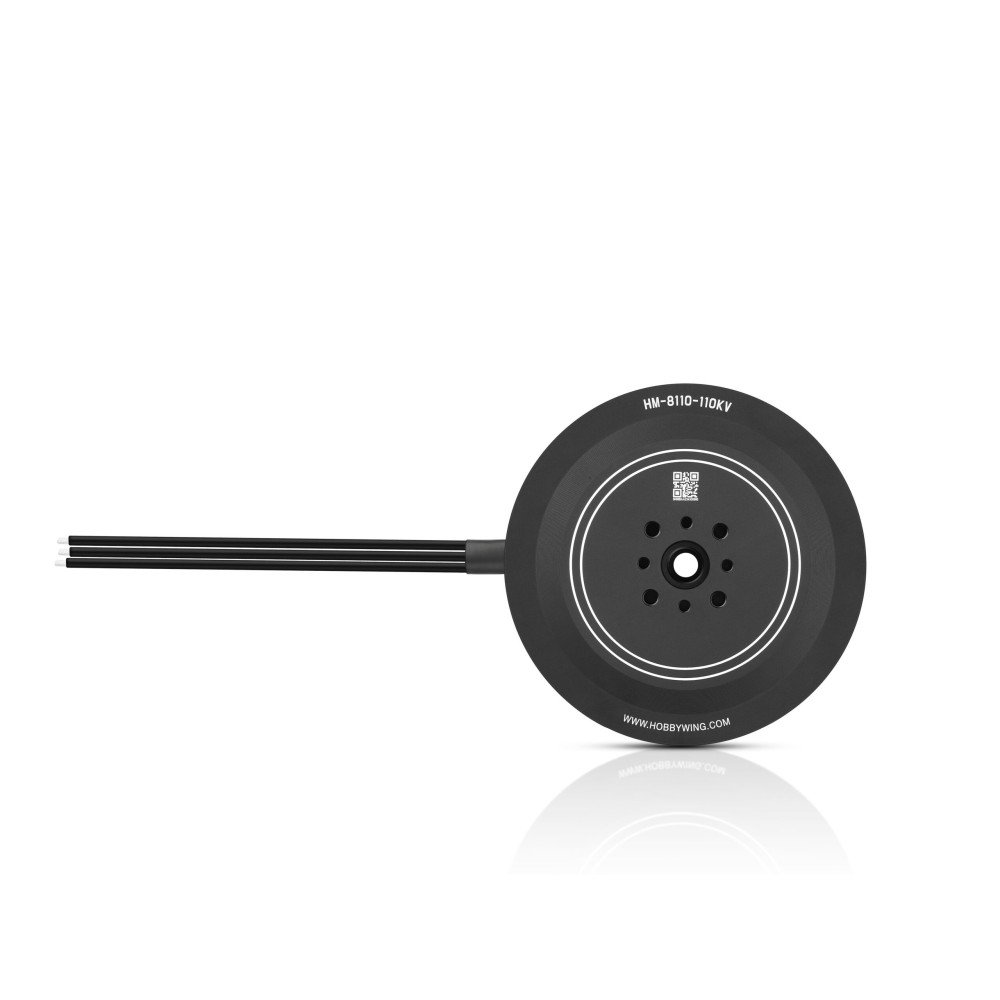

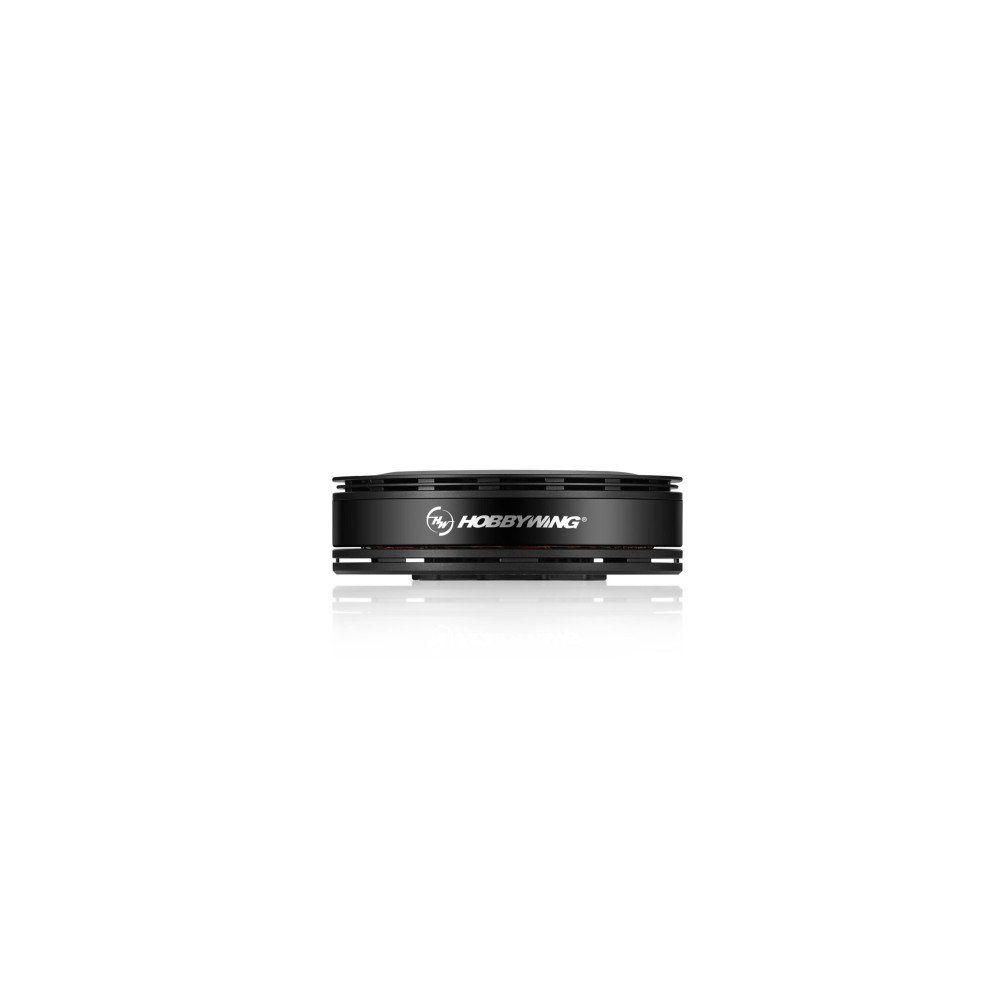

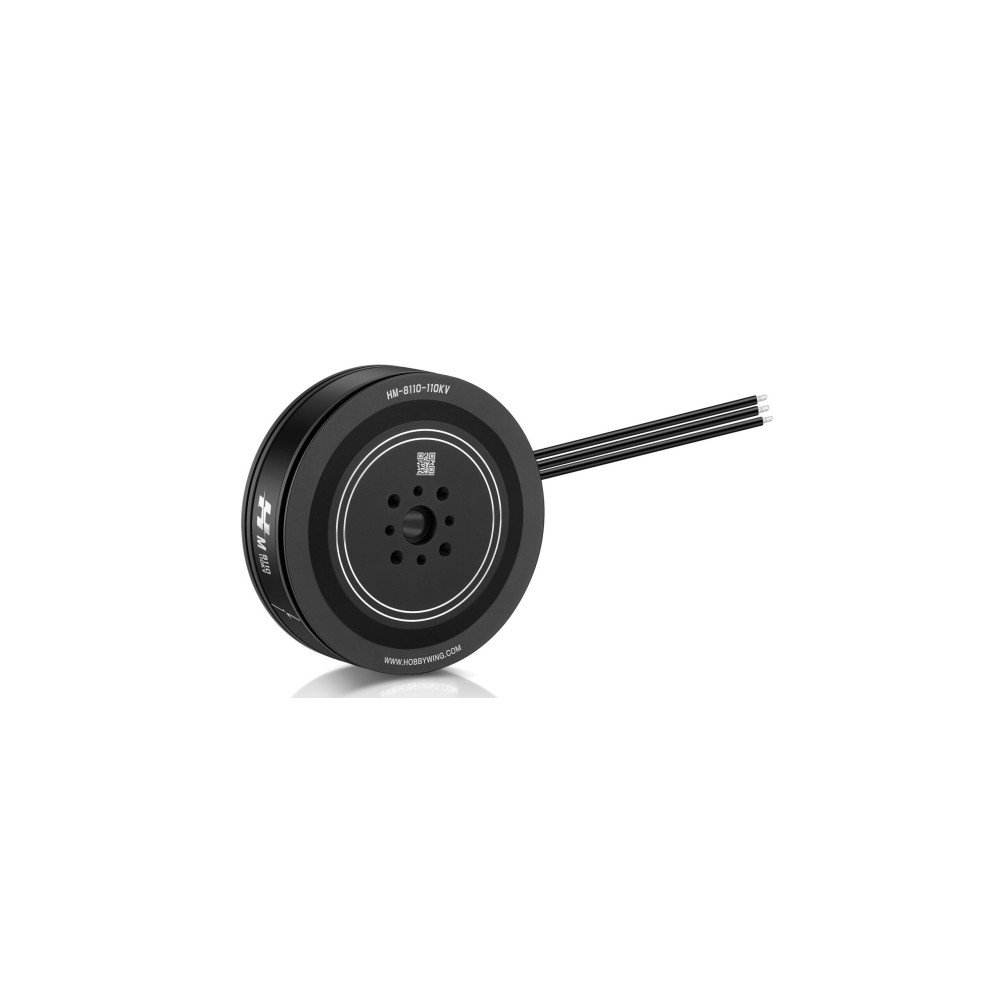

The Hobbywing M8110 HighProt is a high-efficiency industrial motor designed for heavy-duty multirotor UAVs. Featuring advanced magnetic circuit technology, premium materials, and an optimized cooling structure, it delivers stable thrust, long endurance, and superior reliability.
Designed for mapping, inspection, logistics, and industrial UAV applications, the M8110 HighProt is ideal for professional multirotor platforms requiring efficient power output, durable construction, and long-term performance.
Efficient Power & Endurance
The M8110 HighProt is optimized for a recommended thrust of 4.0 kg or more per rotor.
With efficiency of over 10 g/W, it supports long-endurance flights and efficient energy use.
It supports quadcopters with a maximum takeoff weight of up to 16 kg.
With a 12S 40Ah battery setup, the system can achieve up to 60 minutes of endurance.
Advanced Magnetic Circuit Design
The optimized back-EMF harmonics improve ESC matching and help deliver smoother motor operation.
The motor produces higher-quality sine waves for precise throttle response.
This design reduces energy loss and improves flight stability during operation.
Durable & Protective Build
The fully enclosed structure provides an IP45 protection level for demanding operating environments.

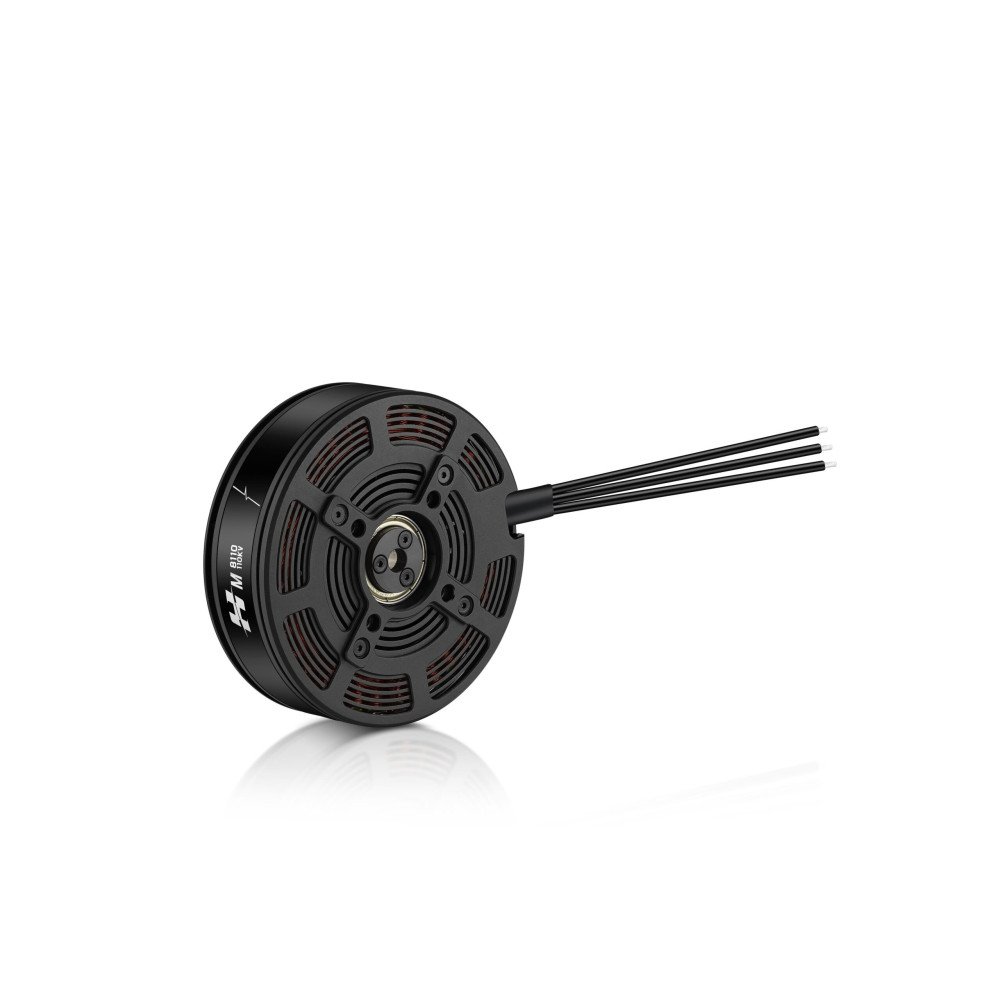

The rotor bracket is equipped with a centrifugal air-cooling system for effective heat dissipation.
The stator base integrates large-area heat sinks to improve cooling efficiency and maintain stable performance during demanding flights.
Attention to Detail

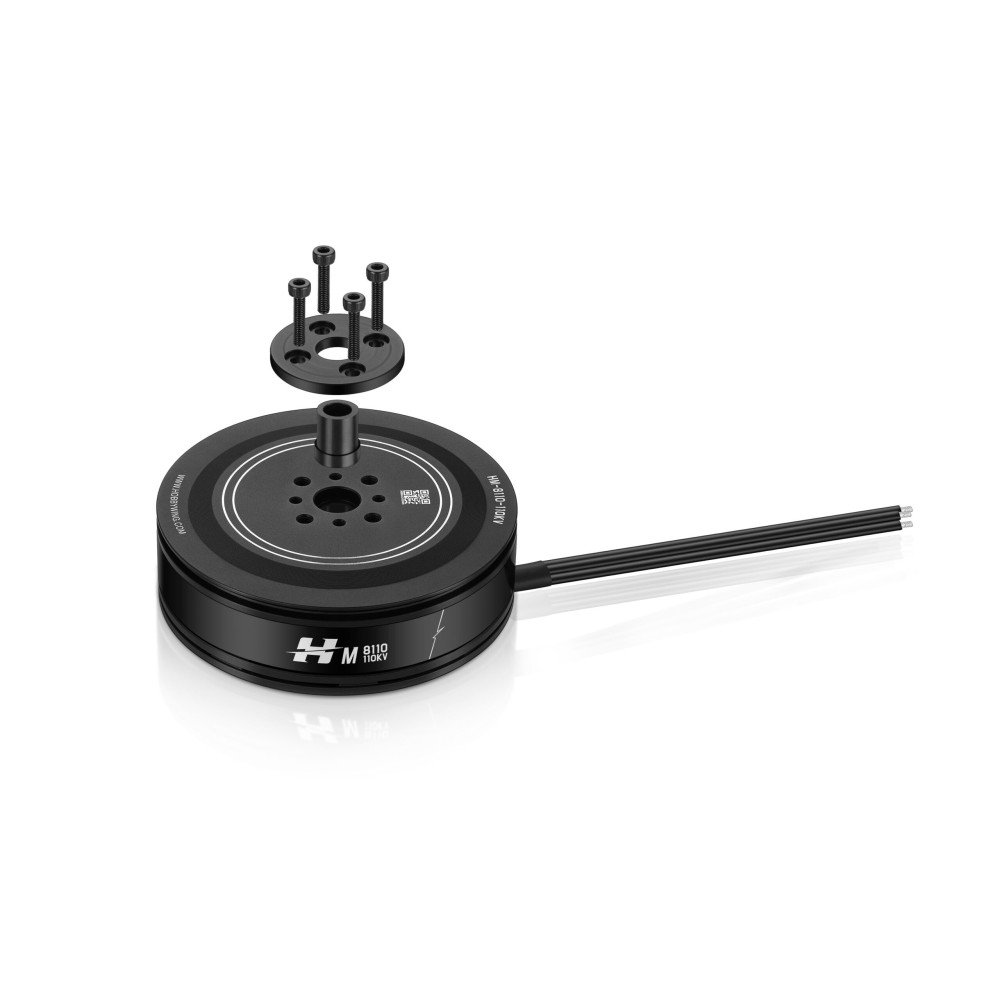

The integrated bracket and rotating shaft improve coaxiality while reducing the number of separate parts.
The tail spindle is secured with triple M2.5×8 washer-locking screws for improved reliability.
The hollow housing design provides lightweight yet robust performance for long-term industrial use.
High-Quality Materials
The motor is made with premium raw materials and strict manufacturing tolerances.
Anti-rust and corrosion-resistant treatments help improve durability and service life.
NSS certification provides industrial-grade reliability for professional UAV applications.

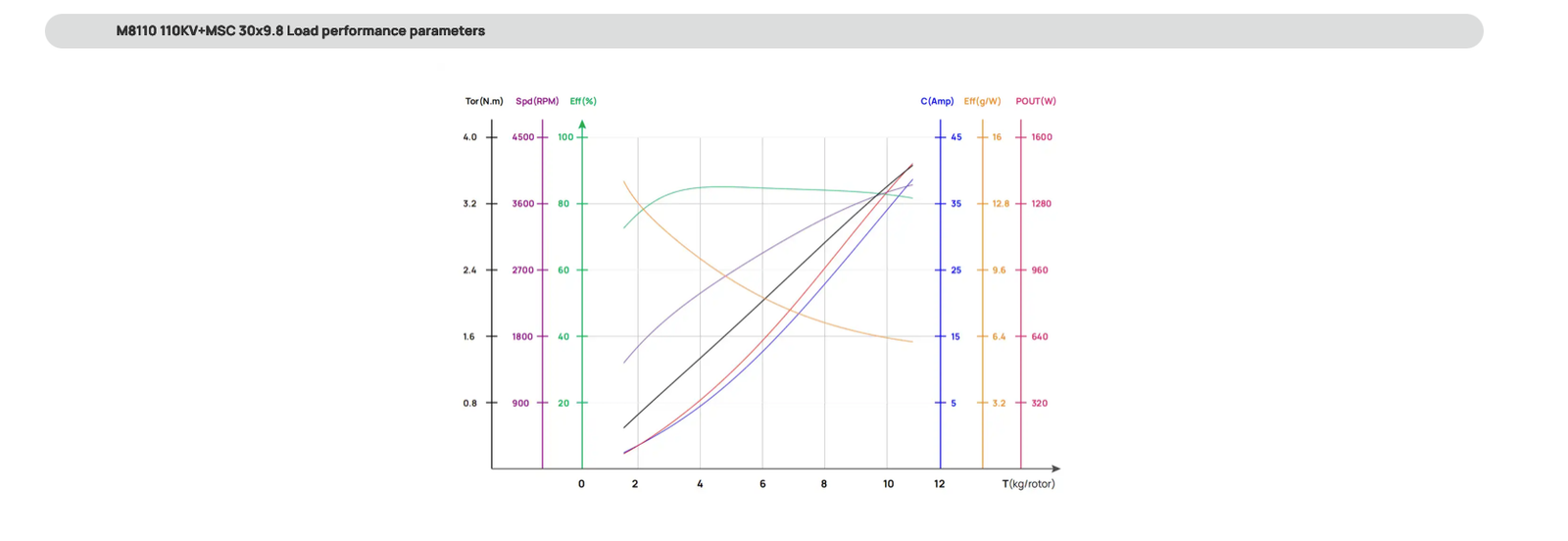

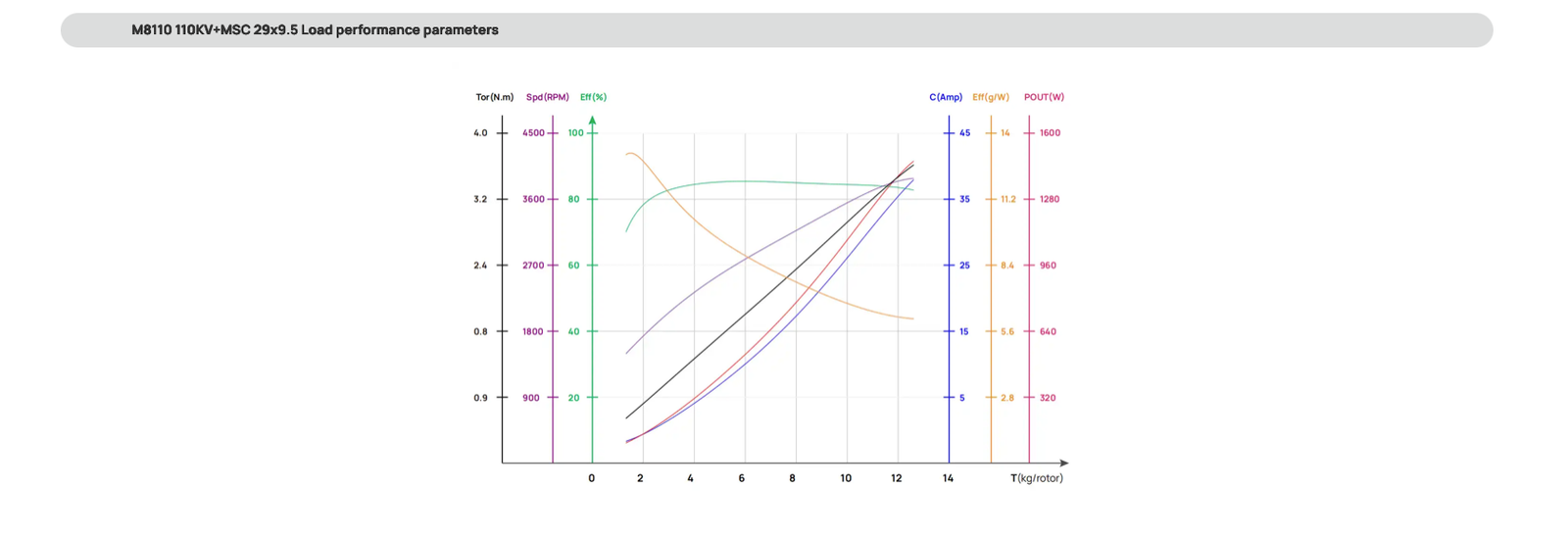

Load Parameters
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
Technical Specifications
Product: Hobbywing M8110 HighProt Industrial Drone Motor
Application: Mapping, inspection, logistics, long-endurance, and industrial multirotor UAVs
Recommended Thrust: 4.0 kg+/rotor
Efficiency: 10 g/W+
Maximum Quadcopter Takeoff Weight: Up to 16 kg
Battery Example: 12S 40Ah
Endurance Example: Up to 60 minutes
Motor Type: High-efficiency industrial brushless motor
Magnetic Circuit: Optimized back-EMF harmonics for smoother ESC matching
Protection Design: Fully enclosed structure
Protection Level: IP45
Cooling System: Centrifugal air-cooling rotor bracket
Heat Dissipation: Large-area stator heat sinks
Structure: Integrated bracket and rotating shaft design
Spindle Structure: Triple M2.5×8 washer-locking screws
Housing Design: Hollow housing structure
Certification: NSS
Protection: Anti-rust and corrosion-resistant surface treatment
What’s Included
1× Motor
Propellers are sold separately.
`
.
