The Hobbywing M6210 HighProt 170KV is a high-efficiency industrial motor engineered for professional multirotor drones. With advanced magnetic circuit design, robust protective features, and premium materials, it provides stable thrust, reliable operation, and long service life.
Built for mapping, aerial photography, and industrial UAV applications, the M6210 HighProt 170KV is ideal for professional drone platforms requiring endurance, stability, and durable performance.
Efficient Power & Stable Flight
The M6210 HighProt 170KV is optimized for a recommended thrust range of 2.2–2.7 kg per rotor.
It supports quadcopters with a total takeoff weight of 9–11 kg.
Designed for use with 12S LiPo batteries, it provides long-endurance performance and stable flight operation.
Advanced Magnetic Circuit
The optimized sinusoidal motion reduces harmonics for smoother ESC matching.
This helps ensure precise throttle response, improved flight stability, and more efficient motor operation.
Durable Protective Design
The semi-enclosed bracket and bottom cover feature dust-proof grilles to help protect the motor from debris.
Nickel-plated electrophoresis treatment provides enhanced anti-rust and anti-corrosion protection.
The high-toughness carbide shaft improves strength, durability, and long-term reliability.
Premium Materials
The high-performance iron core is made from low-loss silicon steel sheets to reduce energy loss and improve efficiency.
Anti-rust and corrosion-resistant coating helps extend the motor’s lifespan.
NSS48 certification provides industrial-grade reliability for demanding UAV applications.
Safety & Reliability
The shaft is secured with a cir-clip, pressure ring, and screw interlocking structure.
This design helps prevent detachment and ensures long-term flight safety.
Waterproof wire outlet protection with a rubber wire buckle improves durability and reliability in field operations.

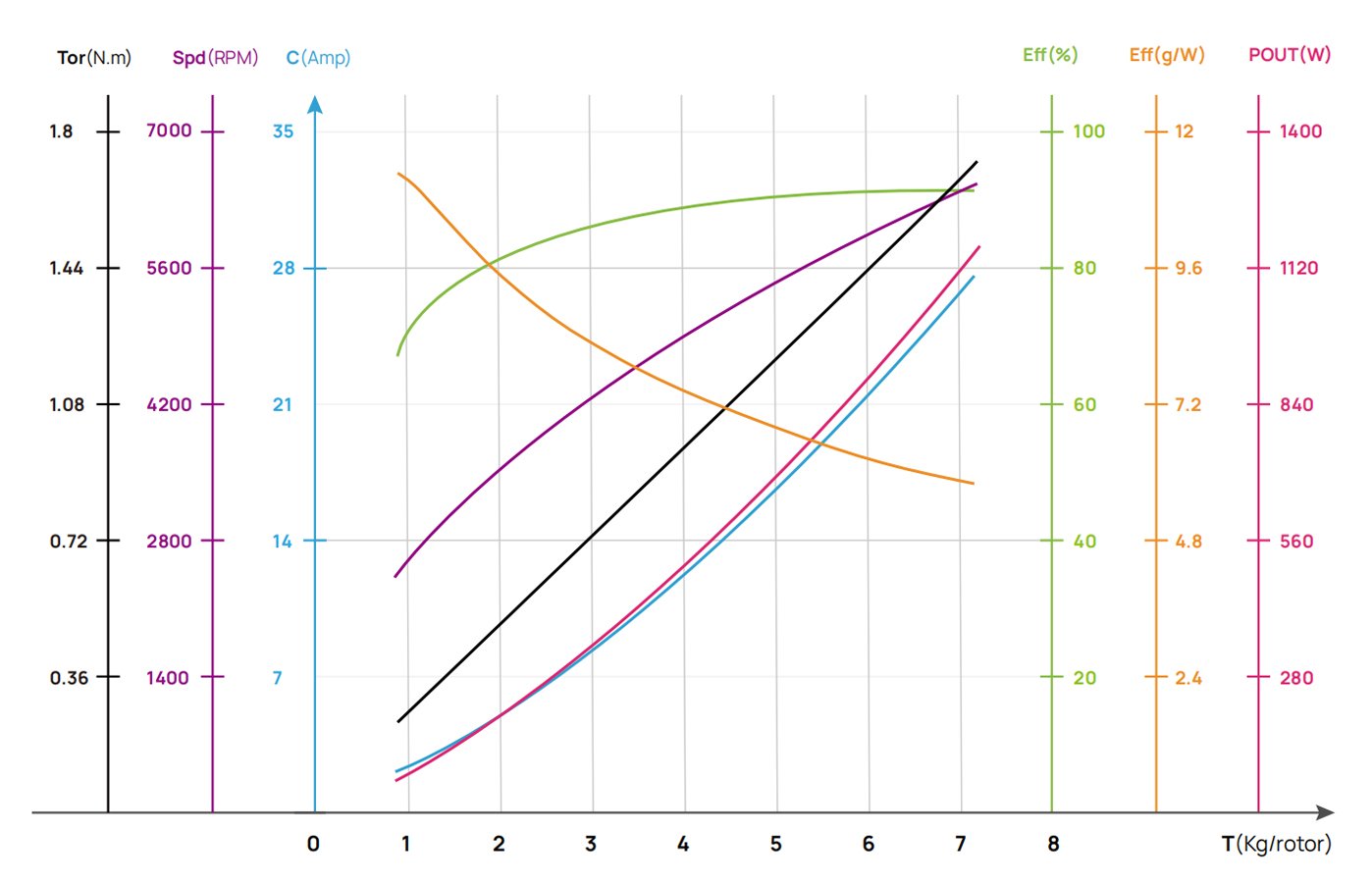

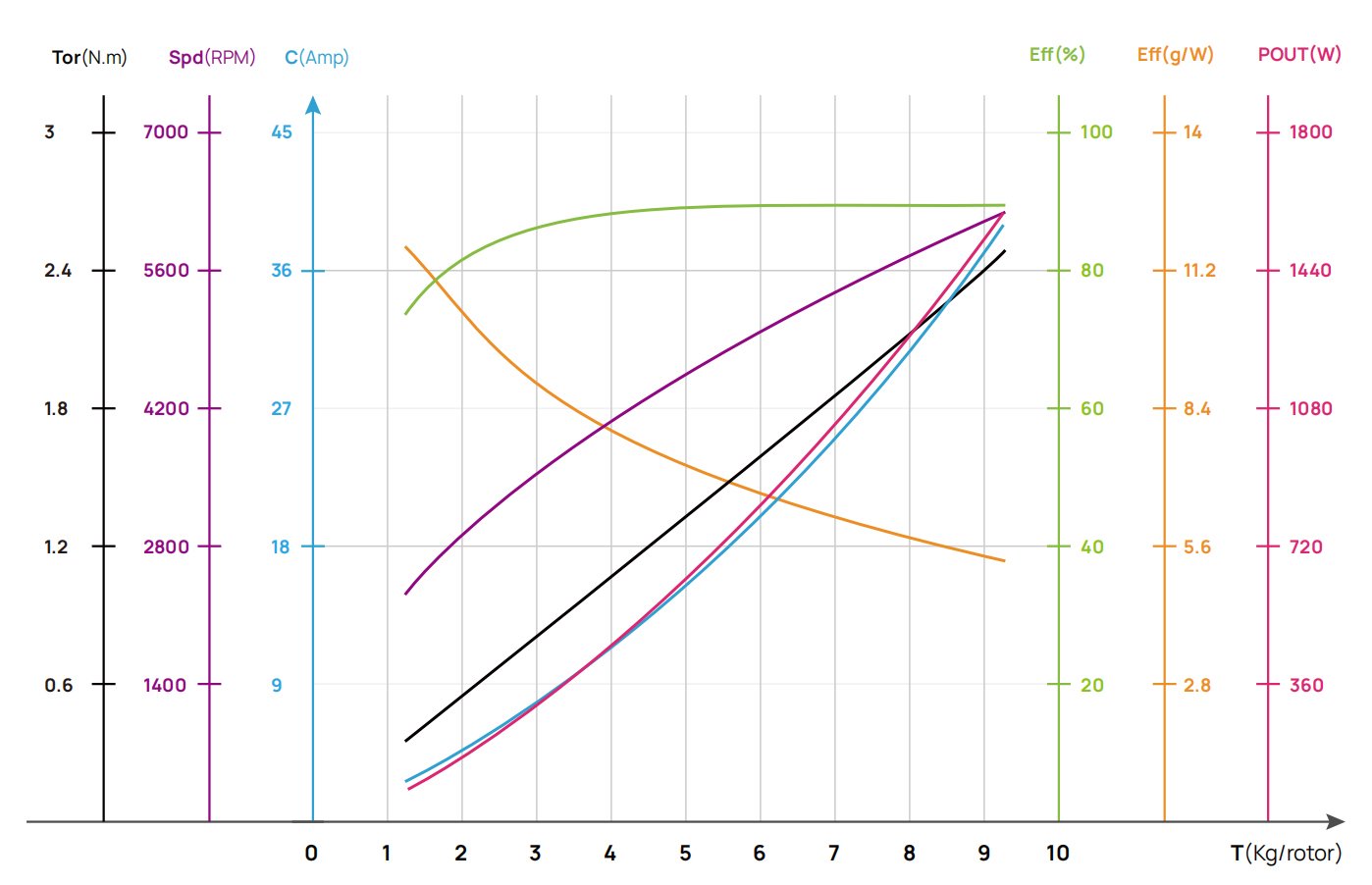

Load Parameters
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
Technical Specifications
Product: Hobbywing M6210 HighProt 170KV Industrial Drone Motor
Application: Mapping, aerial photography, industrial UAVs, and professional multirotor platforms
KV: 170 KV
Battery: 12S LiPo
Recommended Thrust: 2.2–2.7 kg/rotor
Recommended Quadcopter Takeoff Weight: 9–11 kg
Motor Type: High-efficiency industrial brushless motor
Magnetic Circuit: Optimized sinusoidal motion for reduced harmonics
Protection Design: Semi-enclosed bracket with dust-proof grilles
Shaft: High-toughness carbide shaft
Iron Core: Low-loss silicon steel sheets
Surface Treatment: Nickel-plated electrophoresis treatment
Certification: NSS48
Wire Outlet Protection: Waterproof rubber wire buckle
Protection: Anti-rust, anti-corrosion, dust-resistant, and waterproof design
What’s Included
1× Motor
Propellers are sold separately.
