The Hobbywing Pump 5L is a long-lifespan brushless water pump designed for agricultural UAV spraying systems. Built for durability and stable operation, it provides reliable liquid delivery for professional drone spraying applications.
With a brushless motor design, integrated temperature and current protection, and an IP67-rated housing, the Pump 5L is engineered for demanding agricultural environments and long-term field use.
Long-Lifespan Brushless Design
The Pump 5L uses a brushless motor design for improved durability and reduced maintenance.
It is designed to operate for more than 500 hours, reducing the risk of pump damage, frequent replacement, and delays during spraying operations.
Stable & Reliable Operation
Integrated temperature and current protection help protect the pump during demanding use.
These safety features improve operational reliability and ensure stable performance during agricultural spraying missions.
IP67 Protection
The Pump 5L features IP67 protection for reliable operation in harsh environments.
Its sealed structure helps resist water, dust, and agricultural spray exposure during field use.
Agricultural UAV Compatibility
Designed for 12–14S LiPo battery systems, the Pump 5L is suitable for professional agricultural drone spraying platforms.
With a 5 L/min flow rate and 60 W rated power, it provides efficient liquid delivery for compact and medium agricultural UAV spraying systems.
Technical Specifications

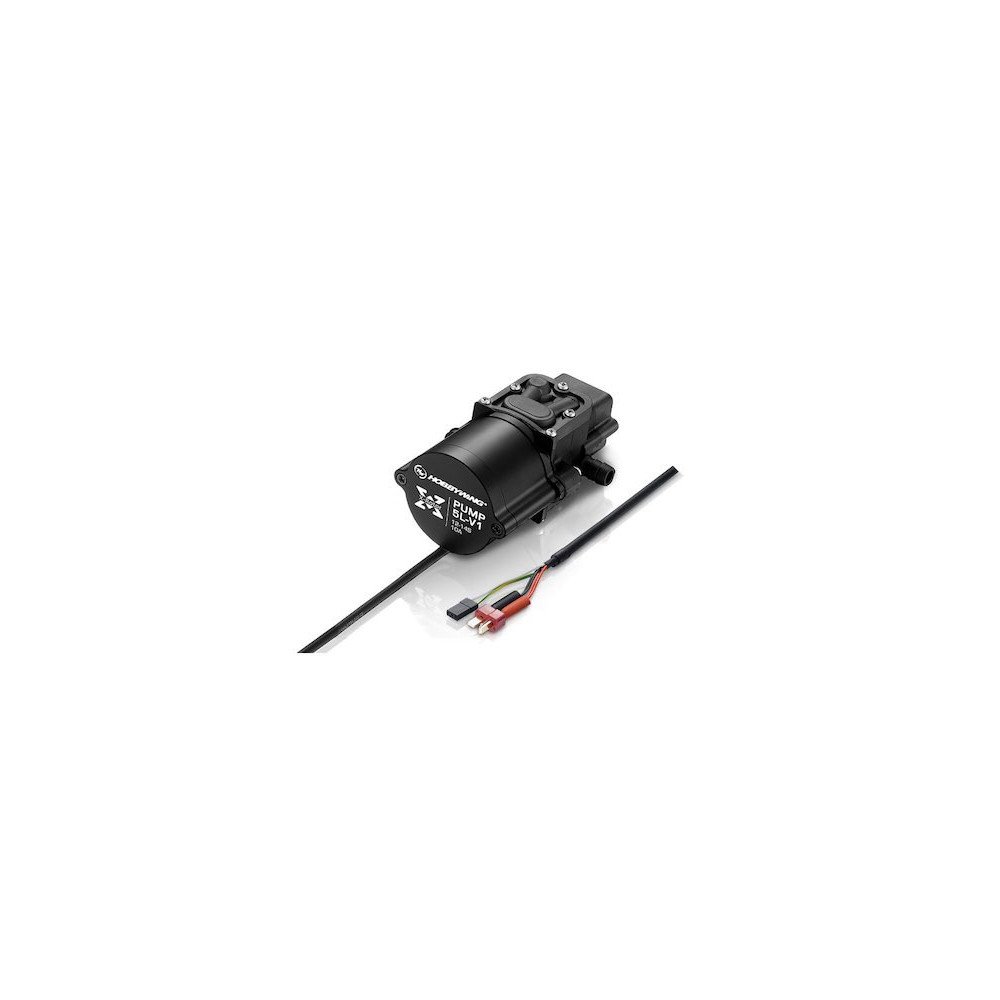

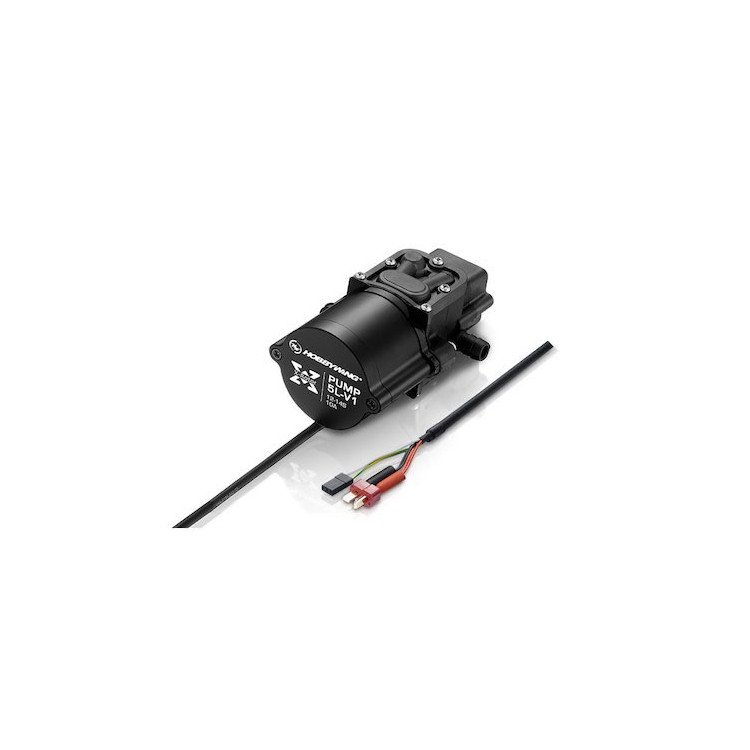

Product: Hobbywing Pump 5L
Application: Agricultural UAV spraying systems
Weight: 388 g
Battery: 12–14S LiPo
Voltage Range: DC 44–60.9 V
Flow: 5 L/min
Rated Power: 60 W
Working Current: ≤2.5 A
Maximum Current: 10 A
Working Pressure: 0.35 MPa
Size: 123 × 76 × 52 mm
Protection Level: IP67
PWM Range: 1050–1950 μs
Water Pipe Diameter: 10 mm inner diameter
Protection Features: Temperature protection and current protection
Service Life: More than 500 hours
What’s Included
1× Pump
Cable, ports, and accessories may vary depending on the product package.
