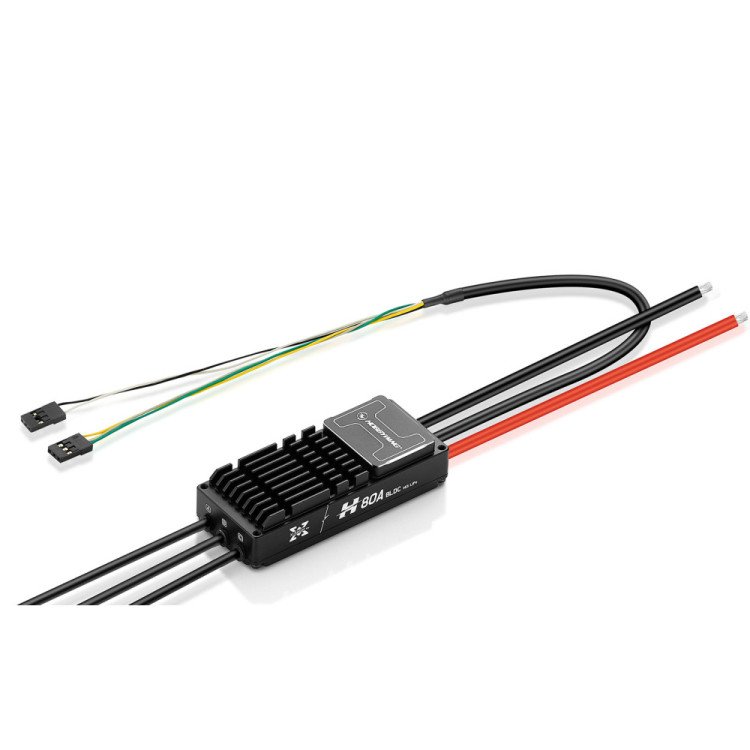

The Hobbywing XRotor Pro H80A-14S-BLDC ESC is a high-performance electronic speed controller specifically designed for industrial UAVs, professional VTOL platforms, and multirotor drone applications. Engineered to deliver stable power output, fast throttle response, and high reliability, it is ideal for demanding missions such as mapping, inspection, surveillance, cargo transport, drone docking systems, and industrial UAV operations.
Available in BLDC and BLDC IPC versions, the H80A-14S platform allows UAV manufacturers and integrators to choose the ESC configuration best suited to their aircraft architecture and mission profile.
Built with a compact high-power-density design, advanced thermal management, and professional-grade communication features, the H80A-14S-BLDC provides dependable motor control for UAV platforms requiring lightweight, efficient, and reliable propulsion electronics.
Compact & Reliable Power Delivery
The XRotor Pro H80A-14S supports 6–14S LiPo battery systems, with an input voltage range of 18–63V.
It delivers 40A continuous current with good heat dissipation and supports up to 100A peak current for 3 seconds, making it suitable for professional UAV platforms requiring stable current output in a compact and lightweight format.
Designed for industrial drone propulsion systems, the ESC provides:
-
Stable current output
-
Fast throttle response
-
High efficiency under load
-
Reliable power delivery for professional UAVs
-
Compact size and low weight for easy integration
BLDC or BLDC IPC Version
The H80A-14S is available in two versions to meet the needs of different UAV platforms.
BLDC Version
The BLDC Version is designed for professional UAV propulsion systems requiring reliable and efficient motor control with standard BLDC operation.
It is ideal for:
The BLDC version provides stable throttle response, efficient power delivery, and easy integration into professional drone systems.
BLDC IPC Version
The BLDC IPC Version integrates Intelligent Propeller Control technology, designed for VTOL aircraft and hybrid fixed-wing UAVs where propeller positioning is important during forward flight.
The IPC system provides several advantages:
-
Automatic propeller stop positioning
-
Reduced aerodynamic drag during fixed-wing cruise
-
Improved flight efficiency
-
Extended endurance
-
Precise digital motor positioning
-
Optimized power consumption
This version is especially suitable for hybrid VTOL aircraft where reducing drag and improving cruise efficiency are essential.
CAN Communication & Digital Throttle
The H80A-14S supports CAN communication and CAN digital throttle, allowing accurate control and reliable data communication between the ESC and the flight controller.
It also supports PWM throttle input, making it easier to integrate into different UAV architectures and flight control systems.
Key advantages include:
-
CAN communication protocol
-
CAN digital throttle support
-
PWM input signal support
-
5V / 3.3V PWM signal compatibility
-
50–500Hz throttle signal frequency
-
1100–1940μs operating pulse width
-
Improved control precision and system reliability
Lightweight Industrial Design
The XRotor Pro H80A-14S is designed for UAV platforms where weight, space, and reliability are critical.

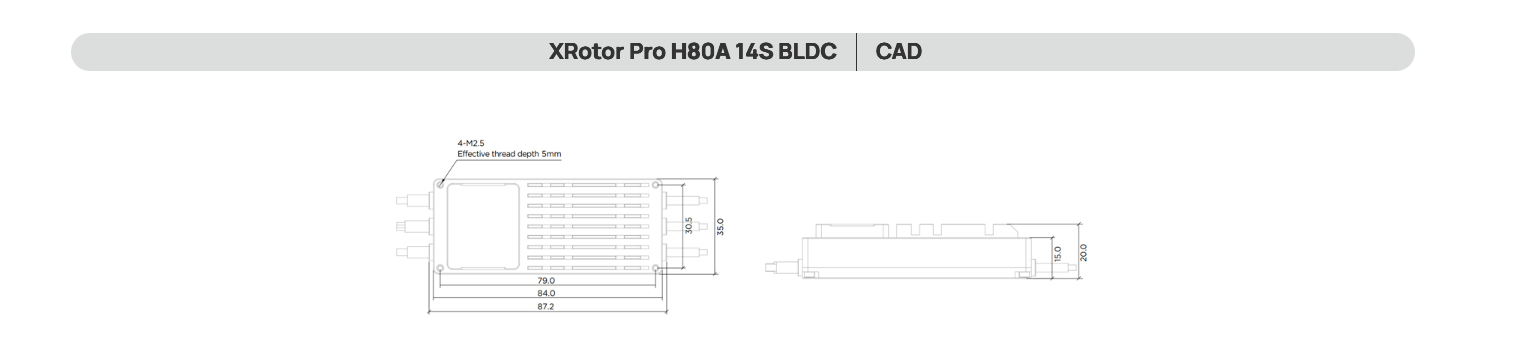

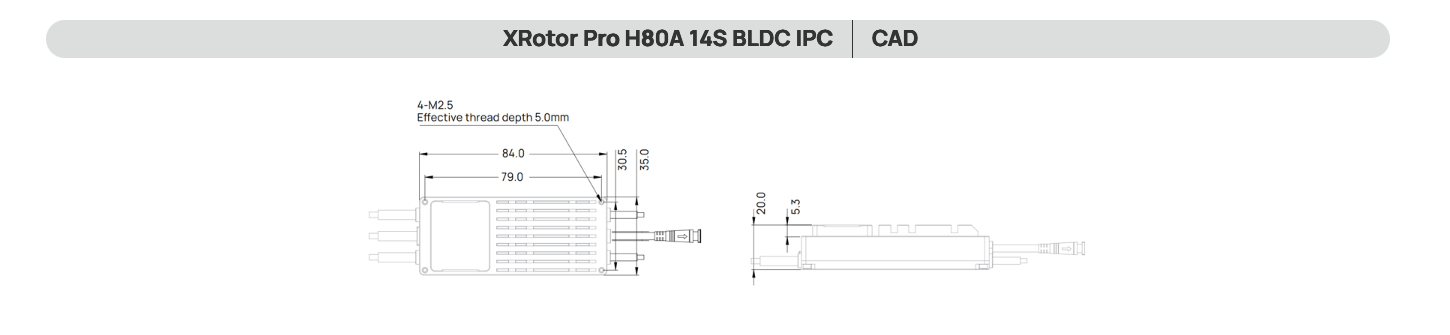

With a weight of only 87g without cables and compact dimensions of 84 × 35 × 20 mm, it offers excellent integration flexibility for professional drones, VTOL aircraft, and compact industrial UAV systems.
This compact design provides:
-
Reduced onboard weight
-
Easy installation in tight UAV frames
-
Efficient heat dissipation
-
Reliable operation in demanding flight conditions
-
Optimized performance for industrial UAV applications
Smart Protection & Fault Diagnostics
The H80A-14S integrates professional protection and monitoring features designed to improve operational safety and simplify maintenance.
The ESC supports operating data and fault recording, helping UAV operators and integrators analyze issues after flight and improve maintenance efficiency.
This helps with:
Rugged & Professional Construction
Built for harsh outdoor environments, the H80A-14S is designed to operate reliably in demanding industrial UAV conditions.
Key durability features include:
-
IP55 protection rating
-
Custom IP67 option available
-
Operating temperature from -40°C to +65°C
-
Compact high-strength housing
-
Professional-grade electronic components
-
Customizable throttle isolation mode
-
Firmware upgrade support
This makes the ESC suitable for professional drone operations in challenging environments, including industrial inspection, mapping, logistics, surveillance, and autonomous UAV platforms.
Optimized for Professional UAV Platforms
The XRotor Pro H80A-14S is ideal for industrial multirotor drones, VTOL UAVs, and professional propulsion systems requiring compact size, high efficiency, and dependable power delivery.
Recommended applications include:
-
Industrial UAVs
-
VTOL platforms
-
Multirotor drones
-
Drone docking systems
-
Mapping and surveying UAVs
-
Inspection and surveillance drones
-
Cargo and logistics UAV platforms

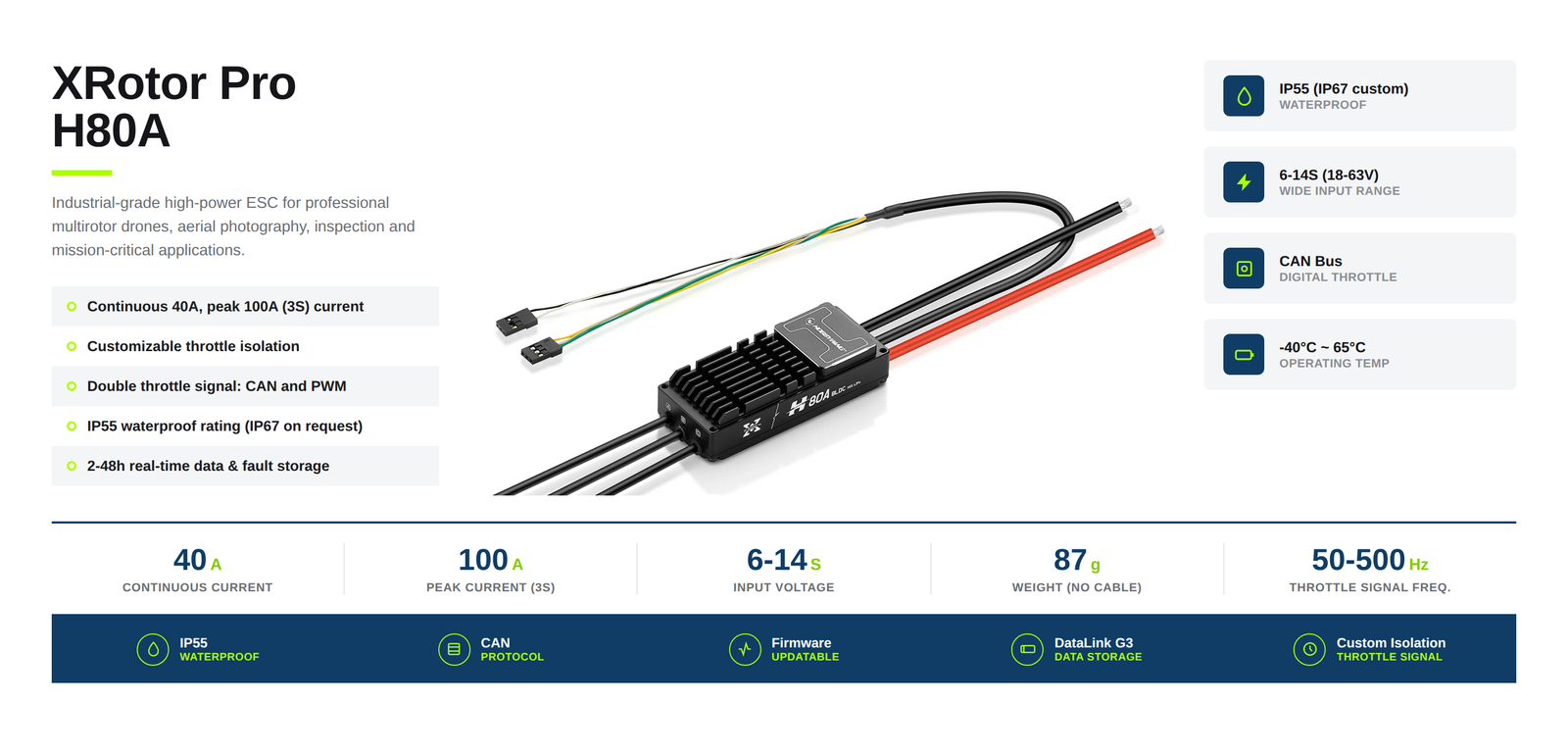

Technical Specifications
Product: Hobbywing XRotor Pro H80A-14S ESC
-
Versions: BLDC / BLDC IPC
-
Input Voltage: 6–14S LiPo
-
Voltage Range: 18–63V
-
Continuous Current: 40A with good heat dissipation
-
Peak Current: 100A for 3 seconds
-
Communication Protocol: CAN
-
Digital Throttle: CAN supported
-
PWM Input Signal Level: 5V / 3.3V
-
Throttle Signal Frequency: 50–500Hz
-
Operating Pulse Width: 1100–1940μs
-
Throttle Isolation Mode: Customizable
-
Firmware Upgrade: Supported
-
Operating Temperature: -40°C to +65°C
-
Protection Rating: IP55
-
Custom Protection Option: IP67 available
-
Weight: 87g without cables
-
Dimensions: 84 × 35 × 20 mm
-
Recommended Use: Industrial UAVs, VTOL platforms, multirotor drones and professional propulsion systems
The FOC version is available on request by email at contact@europeandroneshop.com.
Motor and propellers are sold separately.
