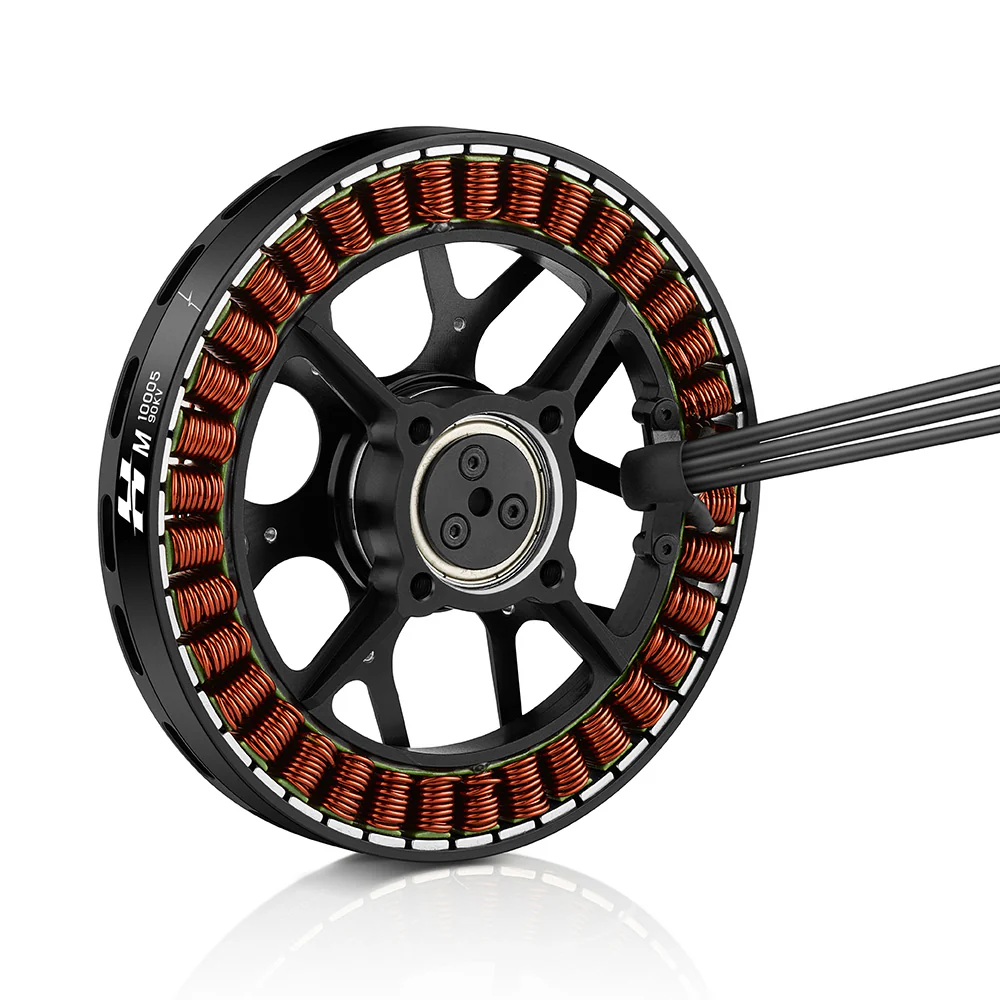

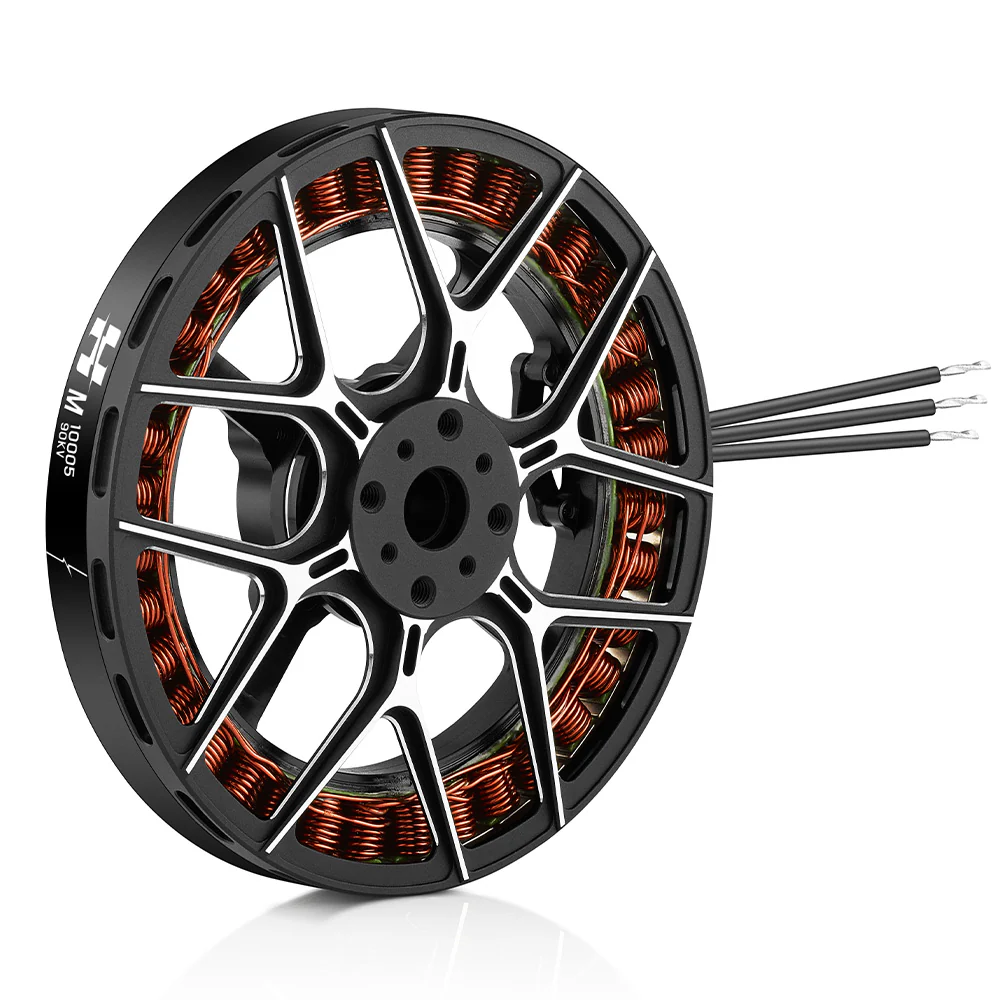

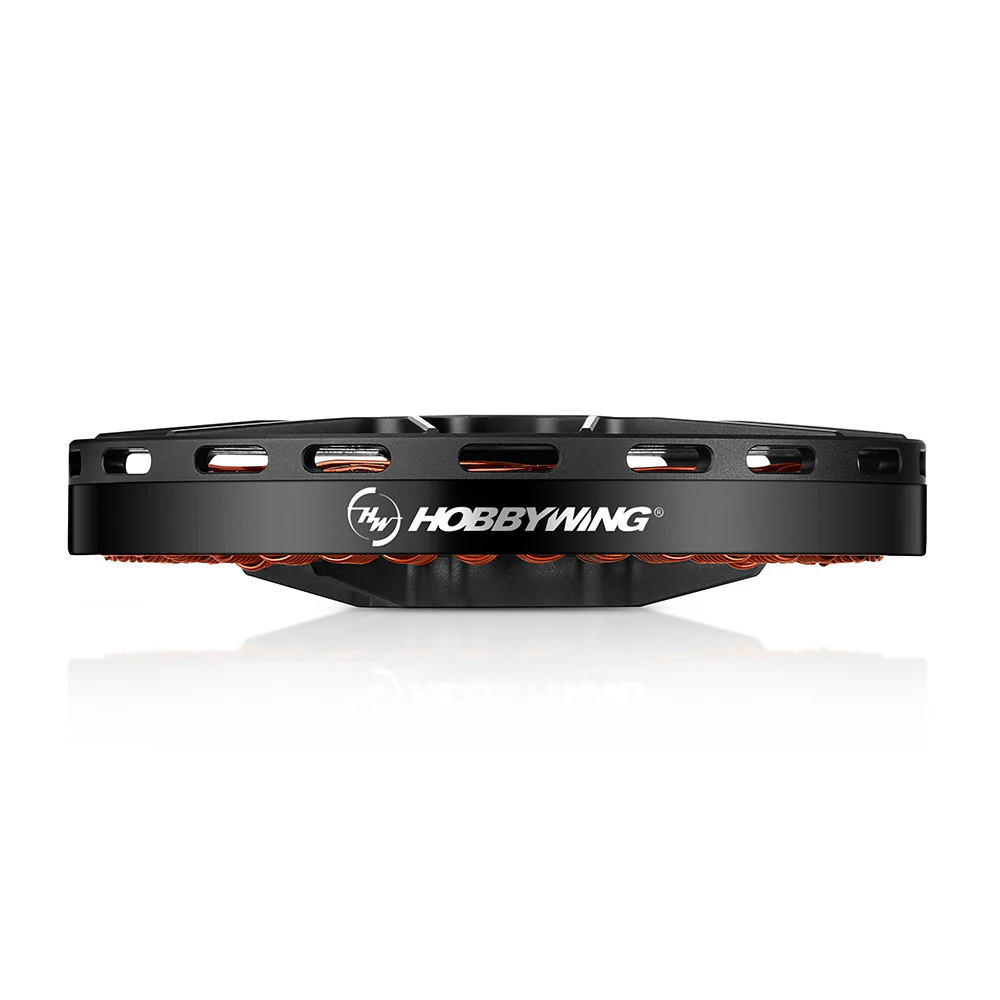

M10005-UL-100KV

The Hobbywing M10005-UL-100KV is an ultra-lightweight industrial UAV motor designed for efficient, long-endurance multirotor applications. Built for professional drone platforms, it combines low weight, strong thrust capability, and reliable operation for demanding aerial missions.

With its UL ultra-lightweight structure, IPX5 protection rating, and optimized magnetic circuit design, the M10005-UL is engineered to deliver high efficiency, smooth operation, and extended flight endurance.

Ultra-Lightweight Design

The M10005-UL-100KV is designed with an ultra-lightweight structure to reduce overall UAV weight.

This makes it ideal for endurance-focused multirotor platforms where efficiency, flight time, and payload optimization are key priorities.

Efficient Industrial Performance

With a 100 KV motor configuration and 12S LiPo compatibility, the M10005-UL delivers smooth and efficient power output for professional UAV applications.

The motor can deliver up to 12.5 kg of maximum thrust, making it suitable for medium-lift multirotor drones requiring strong and stable performance.

Optimized Motor Architecture

The M10005-UL uses a 36N42P motor structure with a 100 mm stator size.

Its optimized magnetic circuit design helps improve efficiency, reduce vibration, and provide smoother running performance.

The motor is dynamically balanced to ensure stable operation and consistent power delivery.

Reliable Protection

With an IPX5 protection rating, the M10005-UL is designed to resist water exposure during field operations.

The motor also uses waterproof bearings and anti-rust treated components to improve durability and long-term reliability.

Durable Materials

The motor features high-standard silicon steel sheets with rust-proof treatment and 180°C high-temperature resistant coating.

The enamelled wire is rated up to 200°C, supporting reliable operation during demanding UAV missions.

Propeller Compatibility

The M10005-UL-100KV is suitable for large UAV propellers in the 30–32 inch range.

This allows the motor to be used on efficient lift platforms, endurance-focused UAVs, and professional multirotor applications.

Technical Specifications

Product: Hobbywing M10005-UL-100KV UAV Motor
Motor Type: Ultra-lightweight industrial multirotor motor
KV: 100 KV
Battery: 12S LiPo
Motor Size: Φ107.1 × H24 mm
Stator Size: Φ100 mm
Motor Structure: 36N42P
Weight with Wires: 295 g
Recommended Thrust: 3.5–4.5 kg/rotor
Maximum Thrust: 12.5 kg/rotor
Maximum Power: 2,120 W
Maximum Current: 48 A
No-Load Current: 1.6 A
Protection Level: IPX5
Dynamic Balance: ≤10 mg
Motor Axle Diameter: Φ10 mm
Motor Mounting Dimensions: 4×M4 @ D32 mm

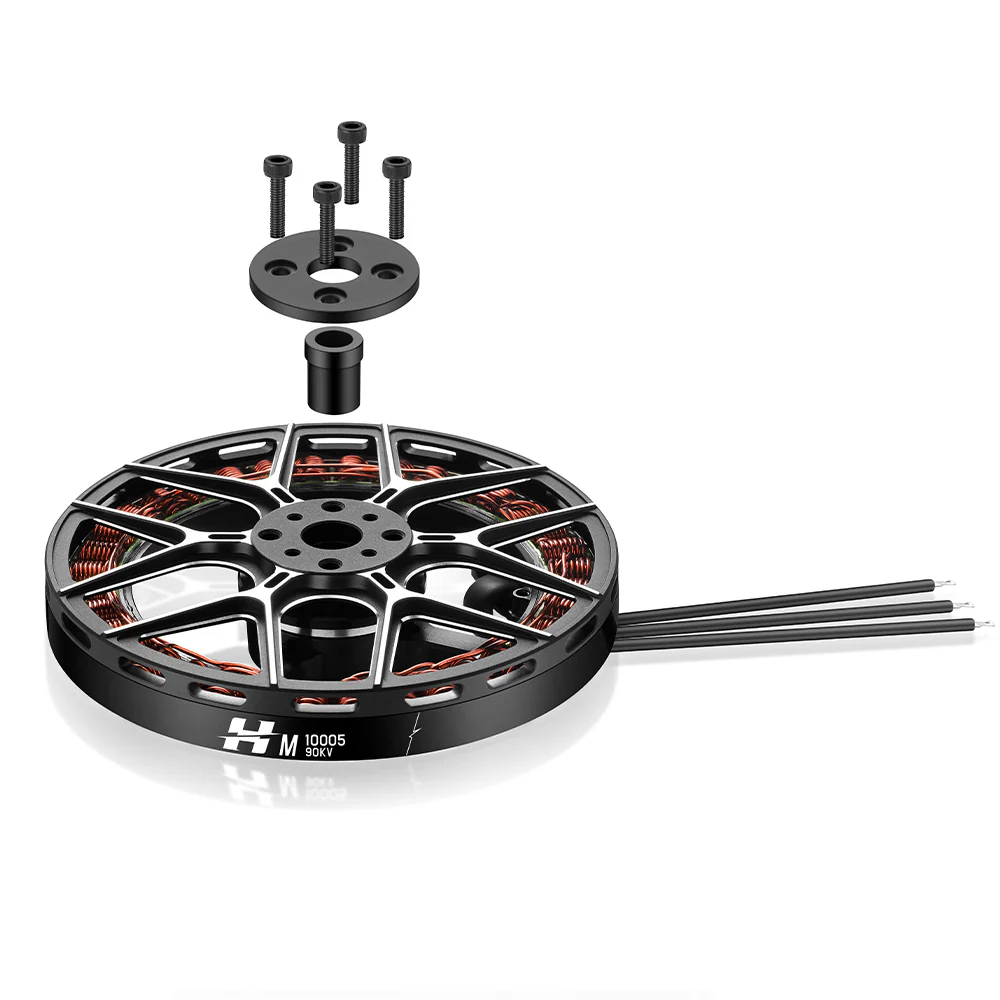

Propeller Mounting Dimensions: 4×M3 @ D20 mm / 4×M4 @ D23 mm
Recommended Propeller: 30–32 inch propeller
Wire Length: 100 mm
Bearing: Waterproof bearing
Enamelled Wire Rating: 200°C

What’s Included

1× Motor

Propellers are sold separately.
