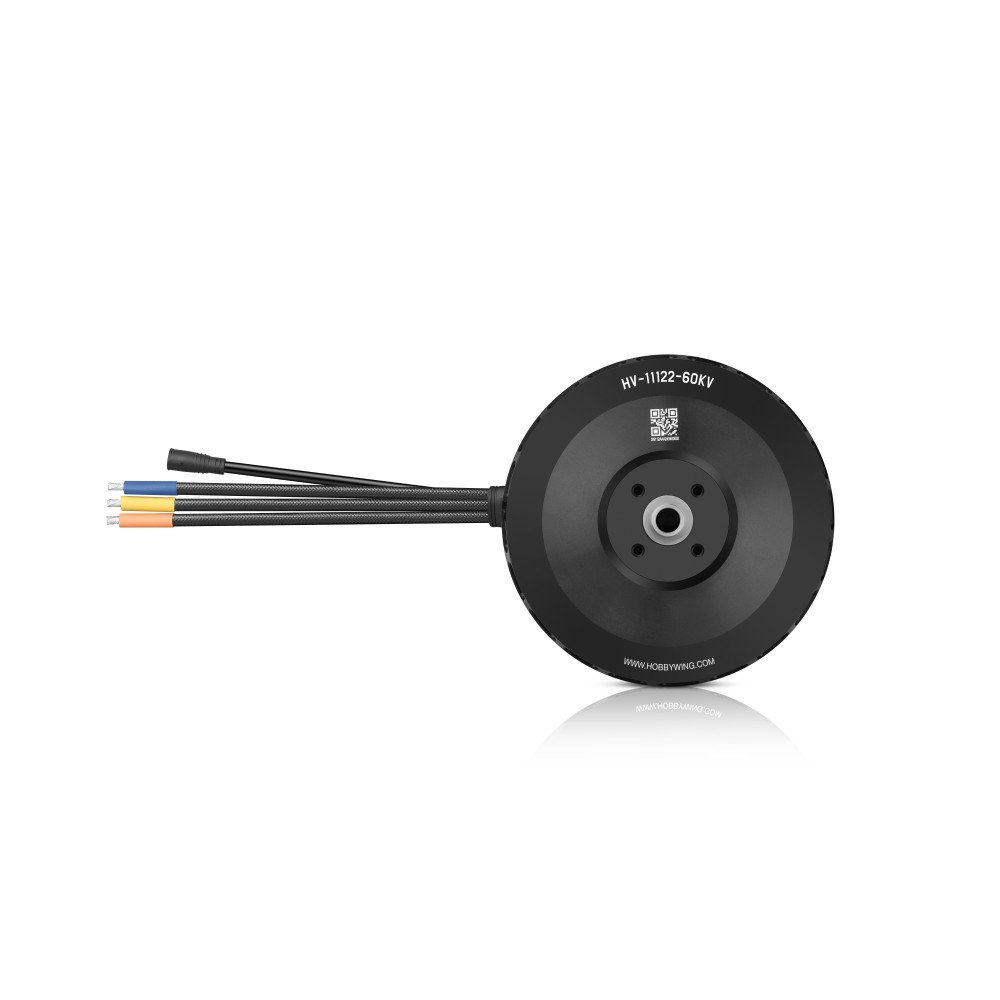

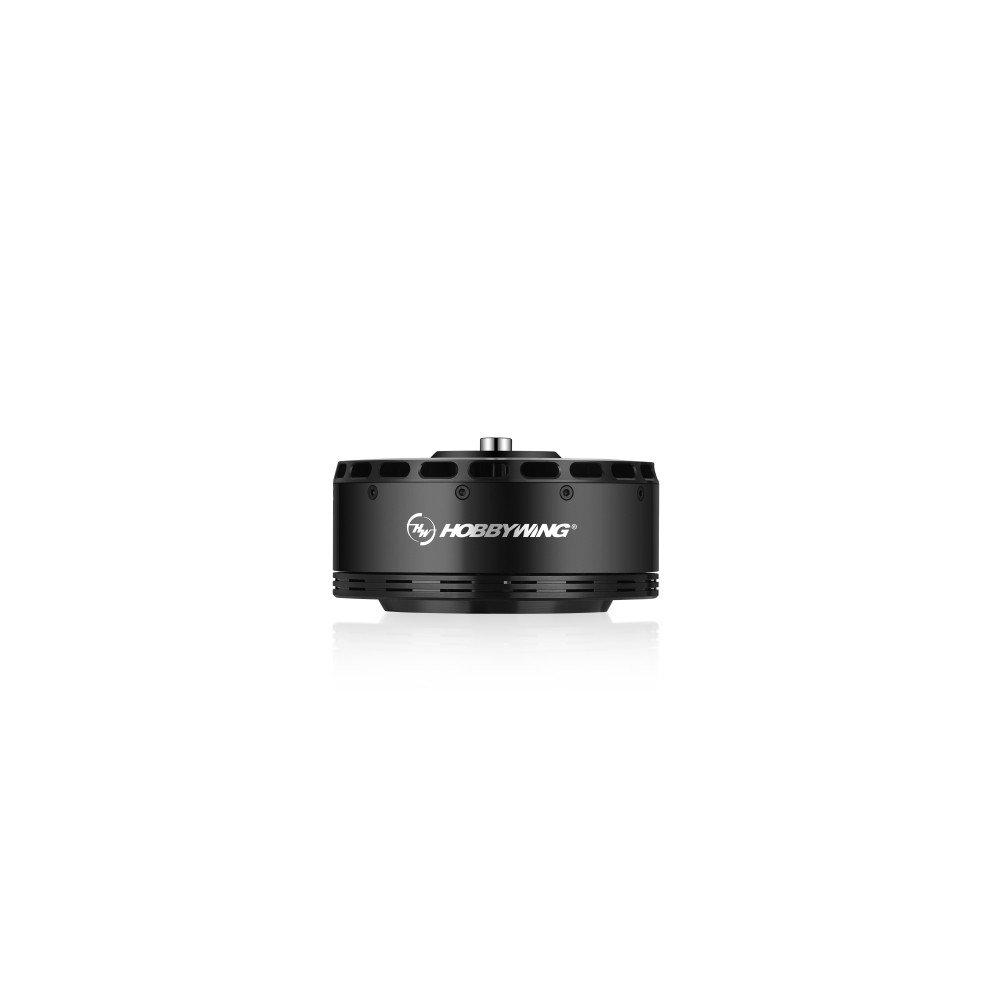

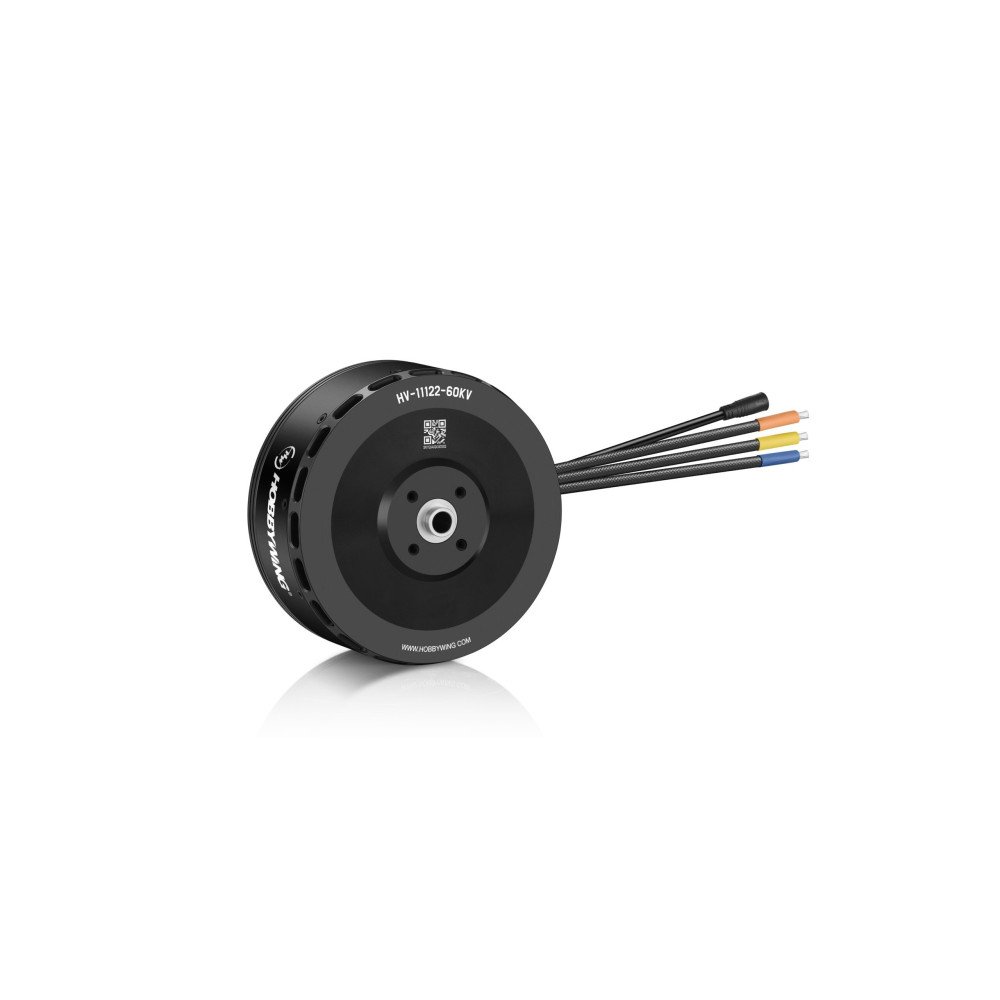

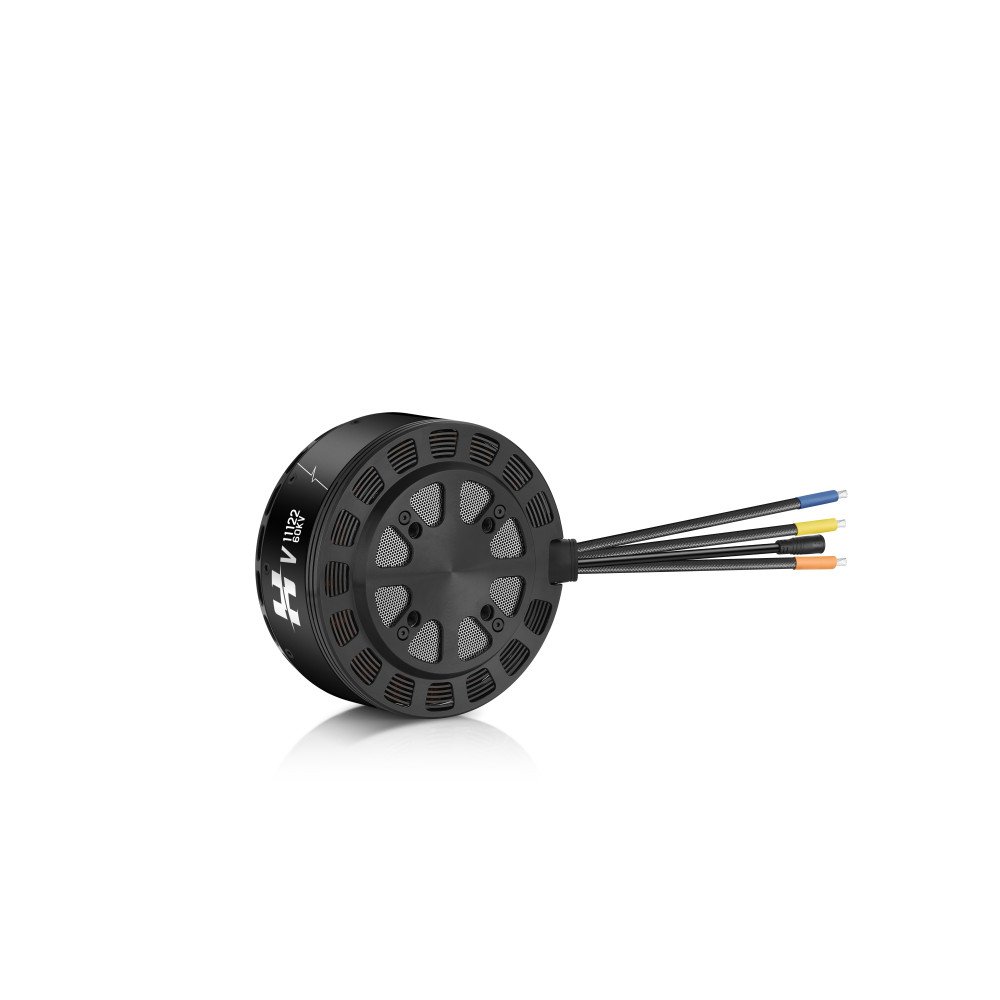

Hobbywing V11122 60KV VTOL Drone Motor

The Hobbywing V11122 60KV is a heavy-duty propulsion solution for medium to large-scale VTOL UAVs. With massive thrust, IPC compatibility, and premium durability, it is engineered for offshore, industrial, and emergency response missions requiring maximum reliability and endurance.

Key Features

Extreme Heavy-Lift Performance

• Maximum thrust: 52.5 kg per motor

• Thrust-to-weight ratio up to 39.8 (motor weight 1,319 g)

• Suitable for VTOL UAVs with MTOW 80–90 kg

Wide Industrial Applications

• Marine inspection and offshore wind farm O&M

• Maritime search and rescue

• Power line inspection, forestry and agriculture monitoring

• Hydrological surveys and emergency response

Durable & Reliable Build

• Passed 48h neutral salt spray corrosion test (GB/T 10125-2012)

• High & low temperature, water ingress, and drive compatibility tested

• Suitable for harsh offshore and industrial environments

Advanced Cooling & Protection

• Steel mesh bracket + bottom cover resist dust intrusion

• Large air outlets with centrifugal cooling fan ensure stable temperatures

• Provides reliable performance in demanding long-duration flights

Intelligent Propeller Control (IPC)

• Works with Hobbywing IPC ESCs for precise propeller stop positioning

• Reduces drag during cruise and extends endurance

• Minimizes power consumption in fixed-wing forward flight

Premium Materials

• High-grade magnets withstand up to 180°C

• 200°C high-grade enameled wires handle harsh climbing loads

• 0.2 mm low-loss silicon steel sheets improve efficiency

• Bread-shaped magnetic structure maximizes torque output

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
