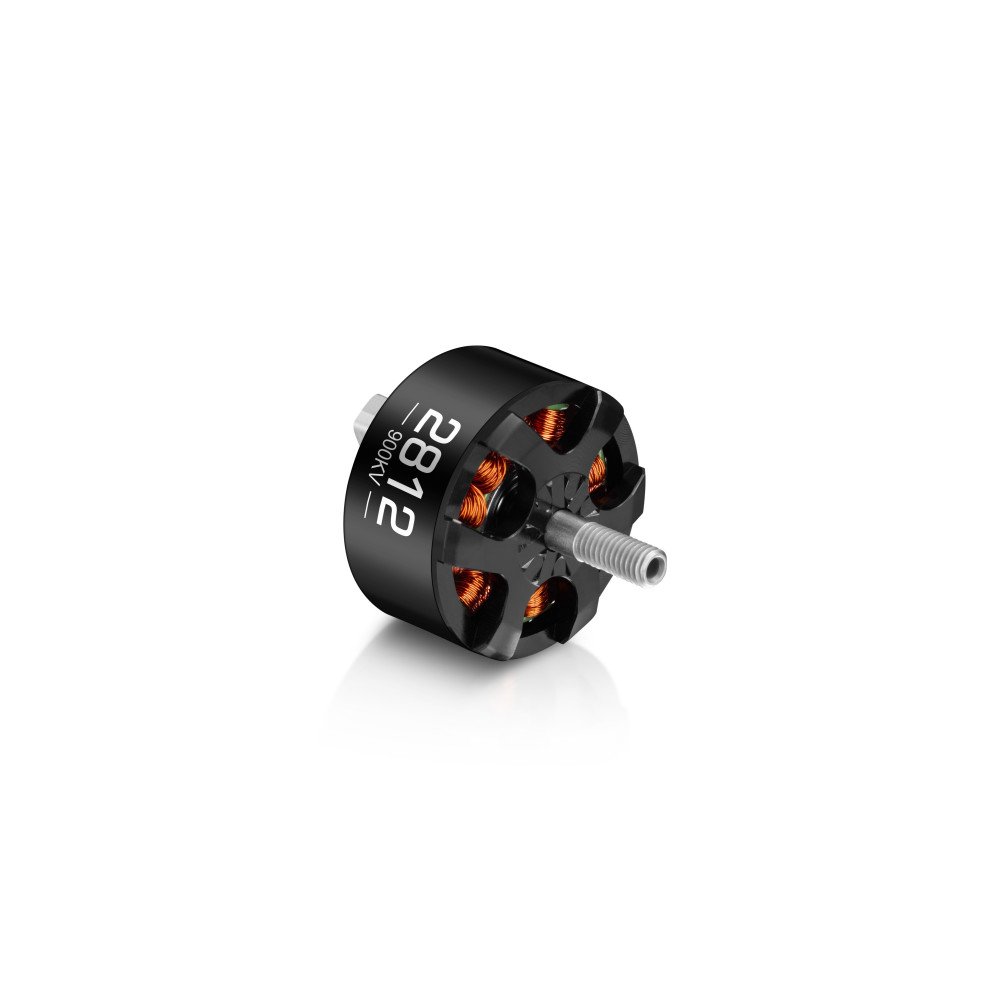

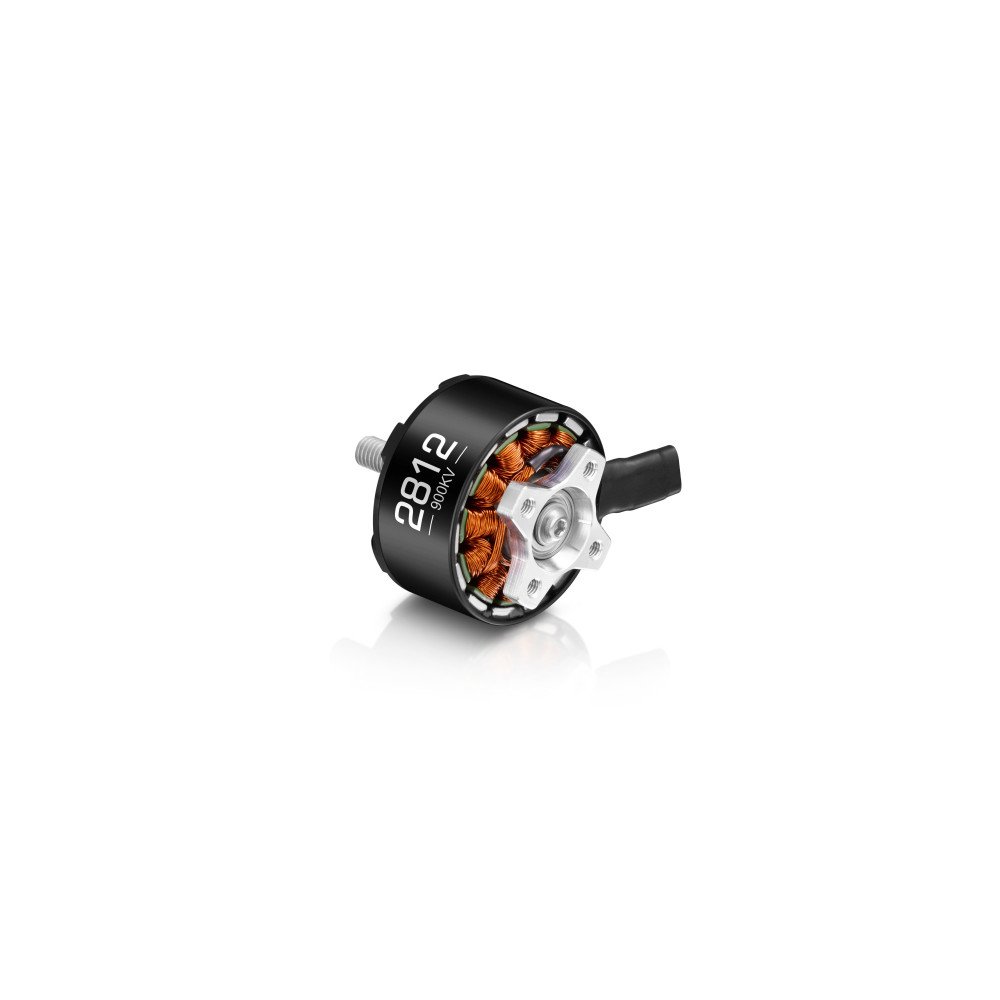

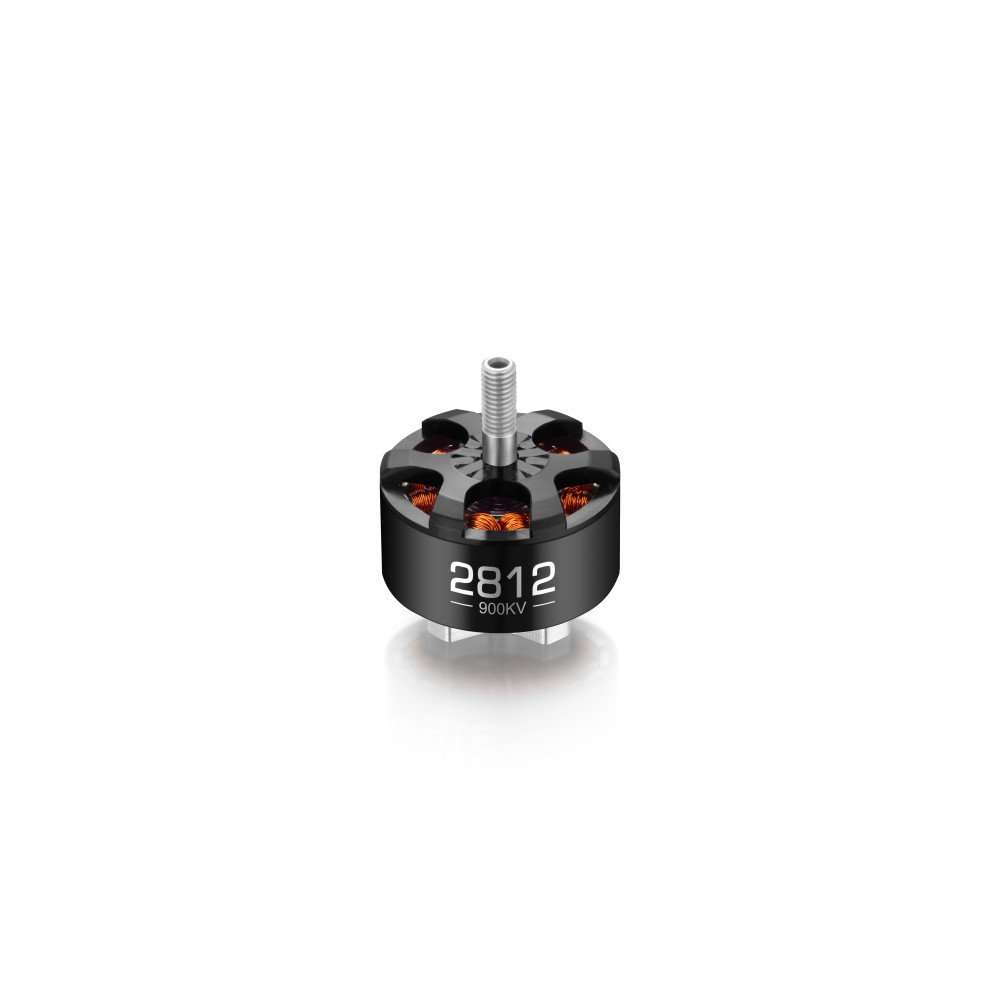

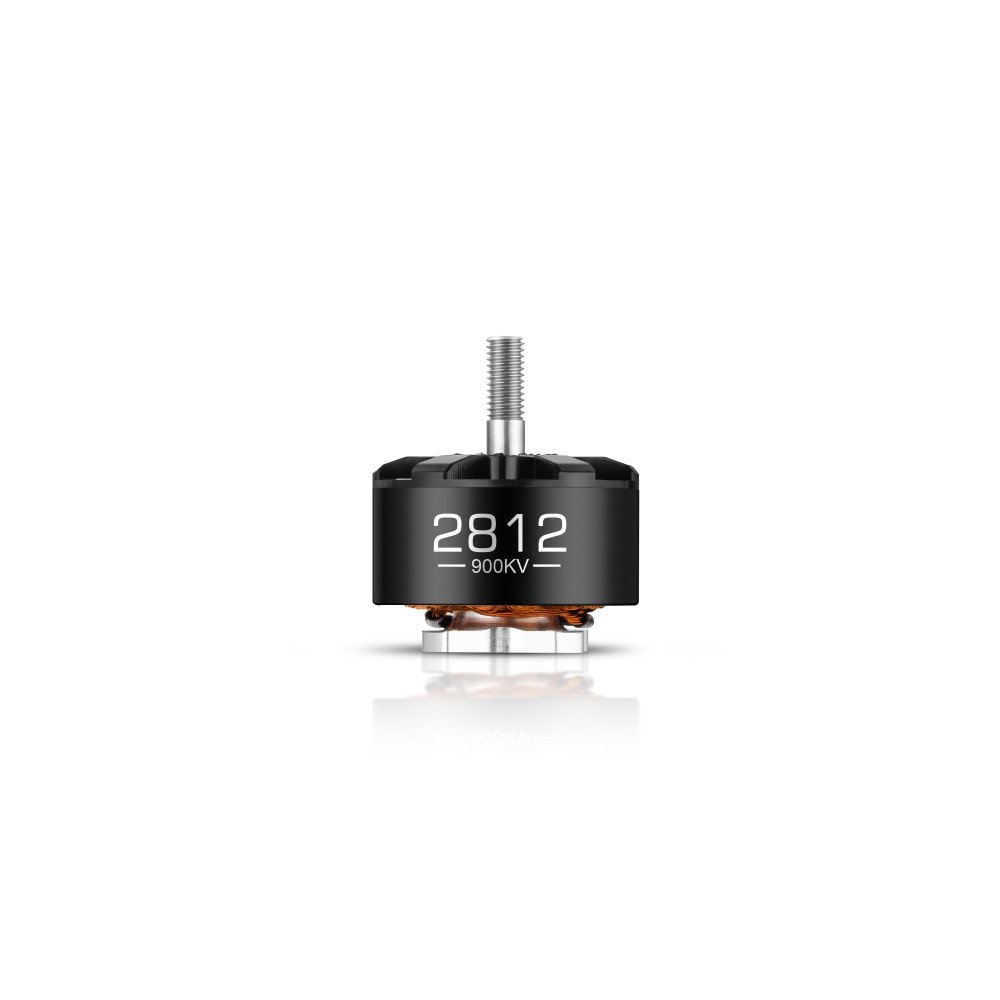

The Hobbywing XRotor 2812 900KV is a high-efficiency FPV brushless motor designed for powerful 8–9 inch FPV drones. With strong torque, high thrust output, and reliable cooling, it is ideal for long-range, freestyle, and cinematic FPV applications.
Built with premium materials, optimized electromagnetic design, and an efficient rotor cooling structure, the XRotor 2812 900KV delivers stable power, smooth throttle response, and dependable performance during demanding flights.
High-Efficiency Heavy-Load Performance
The XRotor 2812 900KV is optimized for strong heavy-load efficiency and stable power delivery.
With up to 3355 g of maximum thrust, it provides the power needed for large FPV drones carrying bigger batteries, HD systems, or cinematic payloads.
Its 900KV configuration is well suited for 4–6S LiPo setups, offering a strong balance of torque, efficiency, and control.
Efficient Cooling Design
The rotor features a dedicated cooling structure to improve heat dissipation during flight.
This helps keep operating temperatures lower under load, supporting more consistent performance and longer motor lifespan.
Anti-Slip Propeller Mount
The motor uses a tooth-groove anti-slip propeller mount design.
This helps prevent propeller slippage during high-throttle operation, improving safety and maintaining consistent thrust output.
Premium FPV Construction
The XRotor 2812 uses a robust 12N14P motor structure for smooth operation and strong torque.
Its 220°C high-temperature resistant wire improves durability under demanding FPV use.
The optimized motor design provides reliable throttle response and stable performance for professional FPV builds.
Technical Specifications
Product: Hobbywing XRotor 2812 900KV FPV Brushless Motor
Application: 8–9 inch FPV drones, long-range, freestyle, and cinematic FPV
KV: 900 KV
Battery: 4–6S LiPo
No-Load Current: 1.5 A / 24 V
Resistance: 63.9 mΩ
Rated Power Output: 200 W
Maximum Current: 49.6 A / 9 s
Maximum Power: 1,191 W / 9 s
Maximum Thrust: 3,355 g
Weight: 83.4 g
Motor Size: Φ34 × 25.5 mm
Motor Structure: 12N14P
Wire Size: 18 AWG
Wire Length: 250 mm
Shaft Diameter: D5 + M5
Shaft Length: 15 mm
Motor Mounting Dimensions: Φ19 mm / 4×M3
Recommended ESC: XRotor FPV G2 65A 4in1 ESC
Recommended Propellers: HQ 8×4.5×3 / HQ 9×5×3
Wire Temperature Rating: 220°C
What’s Included
1× Motor
1× Screw Set
Propellers are sold separately.
