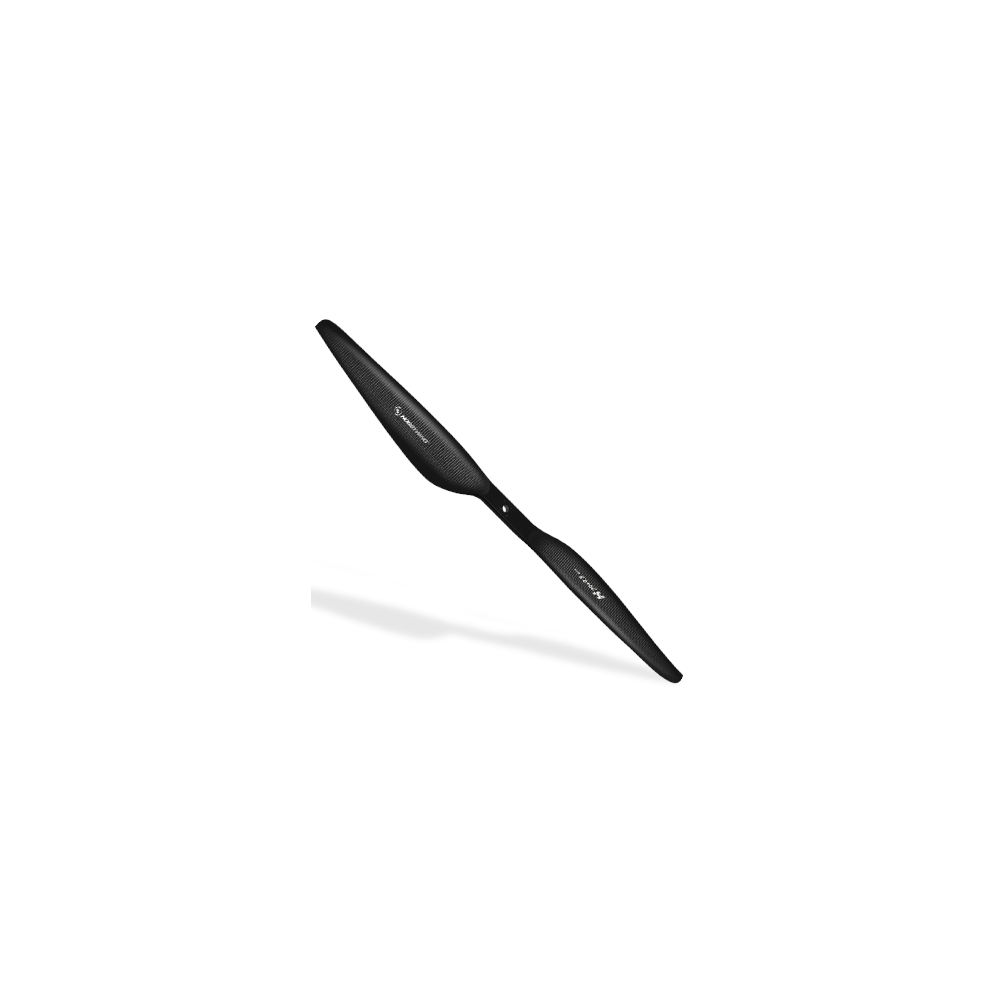

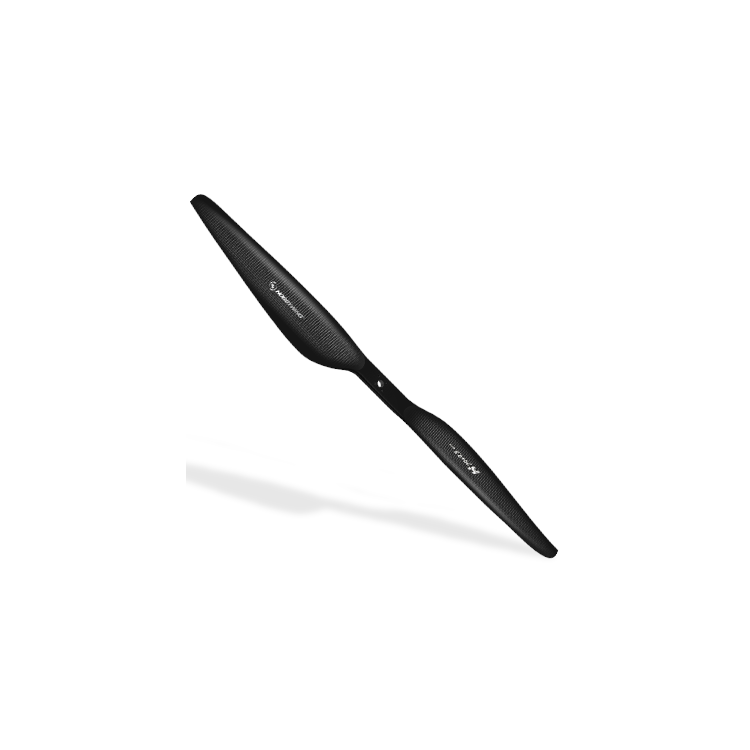

The Hobbywing MSC 40x13.1 Carbon Fiber Propeller is a high-performance non-folding UAV propellerspecifically designed for professional multirotor drones, industrial UAVs, and large high-efficiency propulsion systems. Engineered to deliver high thrust, excellent aerodynamic efficiency, and reliable flight stability, it is ideal for demanding applications such as mapping, inspection, surveillance, logistics, offshore operations, and long-endurance industrial drone missions.
Built with carbon fiber and epoxy resin, the MSC 40x13.1 provides an excellent balance between rigidity, lightweight construction, corrosion resistance, and stable aerodynamic performance, making it suitable for professional UAV platforms requiring strong and efficient propulsion.
High Thrust & Efficient Performance
The MSC 40x13.1 is optimized for large UAV platforms requiring strong lift, smooth operation, and reliable thrust output.
With a recommended thrust range of 15.0–25.0 kg and a maximum thrust of 60.0 kg, this propeller is suitable for industrial multirotor drones requiring stable lift, efficient power consumption, and dependable performance under demanding operating conditions.
Designed for professional UAV applications, the MSC 40x13.1 provides:
-
High thrust capability
-
Excellent propulsion efficiency
-
Stable flight performance
-
Low noise operation
-
Reliable performance for industrial UAVs
Advanced Carbon Fiber Construction
The MSC 40x13.1 uses a twilled carbon fiber weaving process combined with a bright mirror surface finish, improving both structural strength and visual quality.
This construction helps distribute stress more evenly across the blade, reducing deformation at high speeds and improving reliability during demanding UAV missions.
This provides:
-
High structural rigidity
-
Reduced blade deformation
-
Excellent corrosion resistance
-
Stable blade shape under load
-
Reliable long-term durability
Non-Folding Professional Propeller
The MSC 40x13.1 is a non-folding propeller, designed for UAV platforms requiring maximum stiffness, consistent aerodynamic behavior, and reliable rotor performance.
Its fixed-blade structure helps provide:
Optimized for Hobbywing H Series Motors
The MSC 40x13.1 is designed to work with Hobbywing H Series motors, allowing the propulsion system to deliver strong dynamic performance and efficient power output.
It is recommended for the Hobbywing V11122 motor, making it a suitable propeller choice for large professional UAV platforms requiring high thrust, smooth operation, and efficient propulsion performance.
Recommended operating range:
Easy Installation
The MSC 40x13.1 is designed for straightforward installation with compatible Hobbywing motor systems.
The propeller can be installed by direct locking to the motor rotor, with a quick-dismantling propeller mounting base for easier maintenance and servicing.
This provides:
-
Simple installation
-
Secure propeller mounting
-
Easy maintenance
-
Professional UAV integration
-
Reliable mechanical connection
Technical Specifications
Product: Hobbywing MSC 40x13.1 Carbon Fiber Propeller
-
Propeller Size: 40 × 13.1 inch
-
Type: Non-folding carbon fiber propeller
-
Weight: 224 g
-
Blade Material: Carbon fiber + epoxy resin
-
Surface Finish: Bright mirror finish
-
Recommended RPM Range: 1100–2800 RPM
-
Recommended Thrust: 15.0–25.0 kg
-
Maximum Thrust: 60.0 kg
-
Operating Temperature: -40°C to +65°C
-
Storage Temperature: -10°C to +35°C
-
Storage Humidity: ≤85%
-
Recommended Hobbywing Motor: V11122
-
Recommended Use: Professional multirotor UAVs, industrial drones, logistics UAVs and large high-efficiency propulsion systems
Motor and ESC are sold separately.
